3 tons electric chain hoist low price 1.5 2 5 tons 3000 kg electric chain hoist with hook

Supplier: Taizhou Hongshuo Hoisting Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Ms sunny yuan
Price: $293.00 / 1 - 4 sets
$237.00 / 5 - 49 sets
$195.00 / >=50 sets
Min. Order: 1 set

Click here to contact

Product details

Chain length:	custom	trademark:	custom logo
Voltage:	120V, 220V/50HZ, 110V-240V, 380v, 480V, 220V-480V, customized	port:	Shanghai, Ningbo, Guangzhou
place of origin; place of origin:	Zhejiang, China	application:	Lifting industry
Advantage two:	Certificate Quality Assurance	Advantage one:	Pre-sales and after-sales service
Warranty:	1 year	payment terms:	L/C, T/T
Supply capacity:	2000 sets per month	Pay:	sky long
OEM/Design Manufacturer:	accepted	model:	HHBB
color:	customer request	Customization support:	OEM,ODM,OBM
current:	4A, 5A, 6A, 7A, 12A, customized	product name:	Electric chain hoist
sample:	accepted	boost speed:	custom
Packaging Details:	Packed in wooden box with foam board inside

Product Description

Enter the homepage>>

Click to enter the product list>>

HHBB series>>

EQ Series>>

KDFB explosion-proof series>>

China strength factory
Welcome to wholesale
MOQ: 1 set
good price
Pre-sales and after-sales service
Product weight	Product Category
100kg~1T 0.5T, 1.5T, 2T, 3T, 5T, 7.5T, 10T, 15T, 20T, 25T, 30T custom	Electric chain hoist Wire Rope Electric Hoist Lever block chain hoist

Electric chain hoistIt is a light and small lifting equipment. It consists of a motor, a transmission mechanism and a sprocket. And all produced in accordance with international standards. The fuselage is beautiful in appearance and durable. All internal gears are treated with high-temperature quenching, which increases the wear resistance and toughness of the gears. It adopts the most advanced technology in the world, with fine workmanship and tight gear coordination.

The machine is equipped with a lifting limit switch device, which makes the motor automatically stop working, prevents the chain from exceeding, and ensures safety.

The end of the chain is placed in the chain bag and cannot be installed in any other place. Special attention must be paid to this.

It adopts a lightweight aluminum alloy shell, which is light and strong, with good heat dissipation and fully sealed design.

G80 chain, alloy steel, quenched, high strength, high tensile strength, long service life

Product Specifications

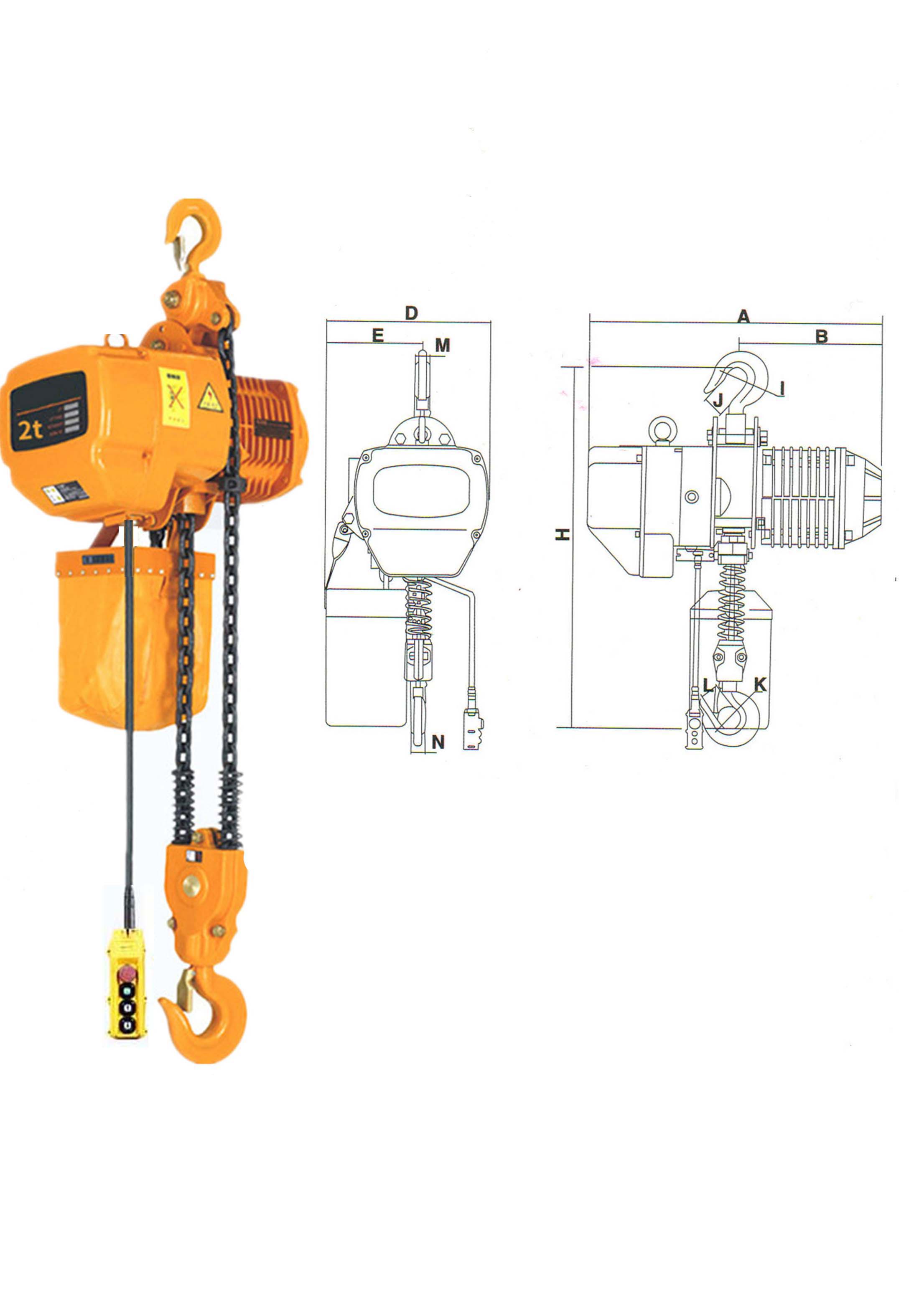

hook type
*product specification*
Types of	Well)	A (mm)	B (mm)	Diameter (mm)	E (mm)
HHBB0.5-01IS	530	460	230	288	165
HHBB 01-01IS	650	520	260	300	175
HHBB 01-02IS	680	460	230	288	165
HHBB 02-01IS	800	615	295	430	265
HHBB 02-02IS	835	615	260	300	236
HHBB 03-01IS	845	615	295	430	265
HHBB 03-02IS	950	615	295	430	320
HHBB 05-02IS	1030	615	295	430	325

hook type
*Product Technical Parameters-Lifting Motor*
Types of	capacity (Ton)	lift motor
Types of	capacity (Ton)			boost speed (m/min)	strength (kilowatt)	Speed(r/min)	stage	volt (Fives)	frequency (hertz)	diameter (mm)
HHBB0.5-01IS	0.5 tons	7.0	0.8	1400	3	200-480	50/60	Ф6.3
HHBB 01-01IS	1 ton	6.8	1.5	1400	3	200-480	50/60	Ф7.1
HHBB 01-02IS	1 ton	3.6	0.8	1400	3	200-480	50/60	Ф6.3
HHBB 02-01IS	2 tons	6.6	3.0	1400	3	200-480	50/60	Ф10.0
HHBB 02-02IS	2 tons	3.4	1.5	1400	3	200-480	50/60	Ф7.1
HHBB 03-01IS	3 tons	5.4	3.0	1400	3	200-480	50/60	Ф11.2
HHBB 03-02IS	3 tons	3.3	3.0	1400	3	200-480	50/60	Ф10.0
HHBB 05-02IS	5 tons	2.8	3.0	1400	3	200-480	50/60	Ф11.2
