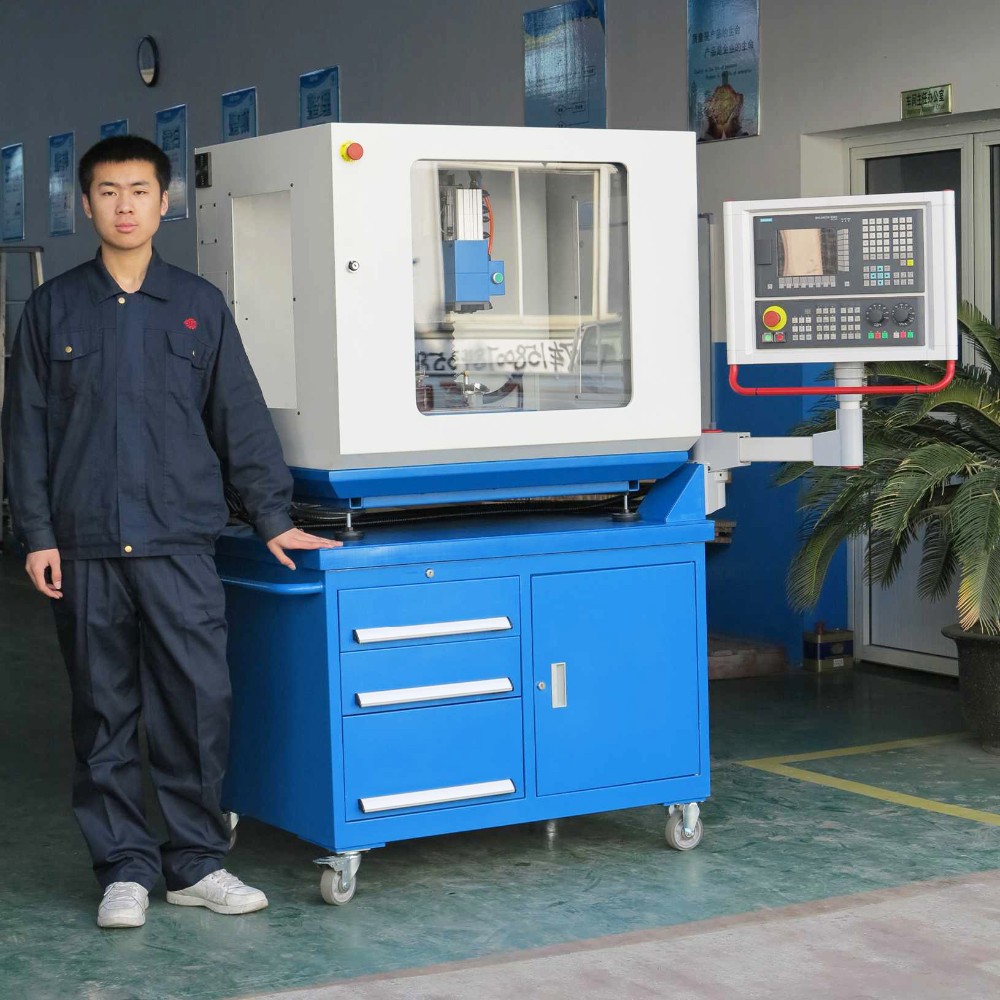

High Precision High Quality 5 Axis Small CNC Milling Machine

Supplier: Liuzhou Gluck Imp& Exp Co., Ltd.
Region: Guangxi, China
Contact: Ms Alison Ning
Price: $5750.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Spindle taper:	100-5000	Repeatability (X/Y/Z) (mm):	±0.005
Spindle speed:	100-5000 rpm	color:	Blue and white (purchase quantity can specify the color)
Packaging Details:	Most of the carton packaging, a small part of the wooden box packaging, accept customization	port:	Shanghai
application:	DIY/Education/Light Industry	Key words:	CNC milling machine 5 axis
Types of:	vertical	After-sales service provided:	Video technical support
brand:	Sig	Positioning accuracy (mm):	±0.010
Warranty:	1 year	year:	within 1 year
weight:	280KGS	Supply capacity:	50 pieces per month
accurate:	high precision	strength:	1000W
Product Category:	handicrafts, metal, wood	place of origin; place of origin:	China Shanghai
Dimensions (LWH):	1040860940mm	State of health:	new
Voltage:	230V or 120V	CNC or not:	CNC
Type of machine:	CNC milling machine	model:	iKX1-Siemens-2, iKX1-Siemens-2
Function:	Flange, car thread, car surface, etc.	Table travel (mm):	170-230
payment terms:	wire transfer	Certification:	EU/ISO
Spindle speed range (rpm):	100 - 5000	product name:	High Precision High Quality 5 Axis Small CNC Milling Machine

Product Description

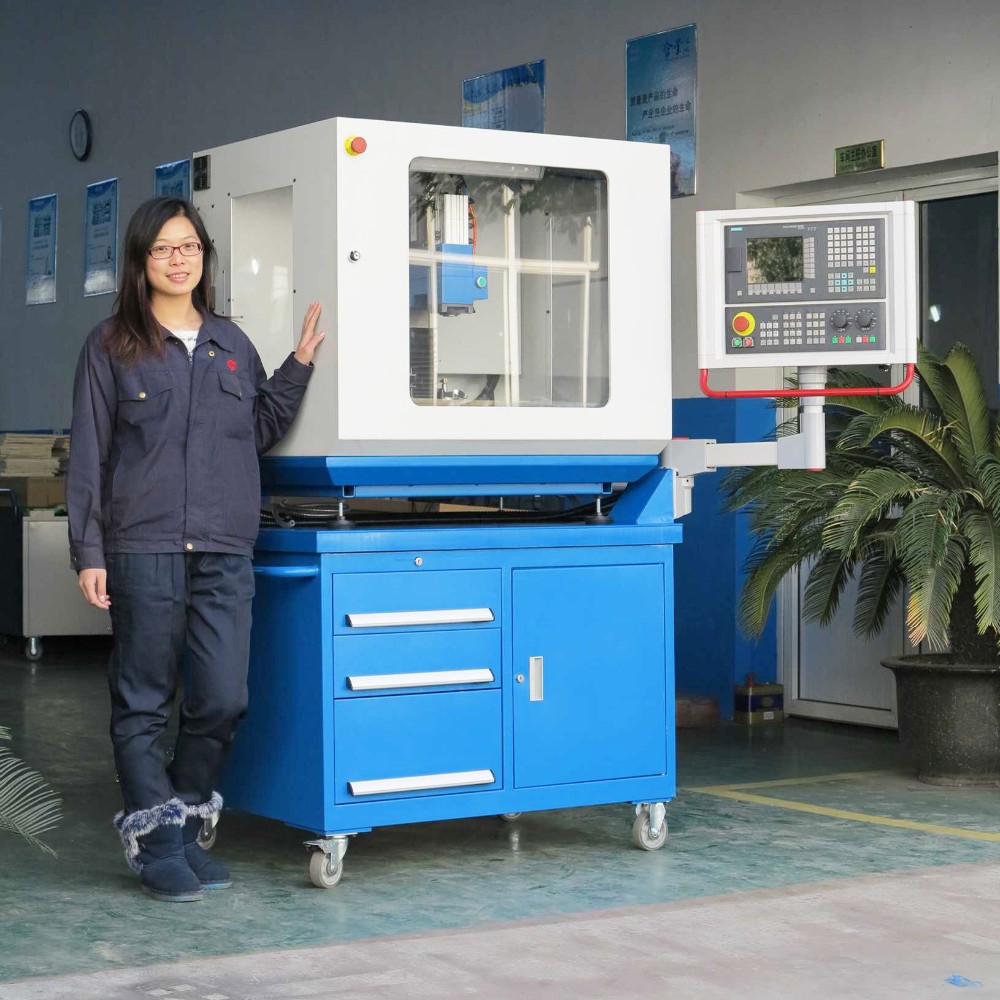

Product Image

detailed image

detailed drawing

SpecificationiKX1

table	table size	400×145mm
	T slot (quantity x width x distance)	3×12mm×40mm
	maximum. load	20 kg
travel	X travel	260mm
	Y travel	152mm
	Z travel	180mm
	Spindle nose to table	60-240mm
	Spindle Center to Column	200mm
Spindle	Spindle taper	ISO20
	Spindle motor	1000w
	Spindle speed	5000 rpm
feed	maximum movement speed	2000mm/min
	feed rate	500mm/min
	Power of X/Y	1.35 Nm
	Power of Z	2.2 Nm
tool changer	tool number	4
	Maximum Tool Diameter	10mm
	tool length	110mm
	tool weight	0.5 kg
	Tool change time	10s
accuracy	positioning accuracy	0.015mm
accuracy	Repeatability	0.01mm
other	Gas source	0.6 MPa
	strength	230V/120V
	Weight (net/gross)	280/340 kg
	Dimensions	1040×860×940mm
	Package Size	1170×960×1100mm

Main Structure and Features

● Taiwan PMI ball screw

● Swedish SKF linear guide rail

● German FAG bearings

● 45 degree inclined bed

Siemens system.

GlaxoSmithKline

system.

FANUC

system.

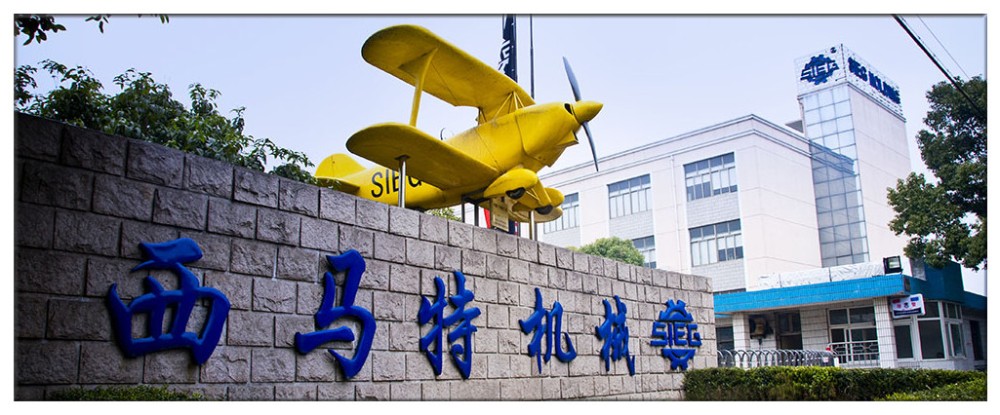

our company

Liuzhou GluckImp&Exp Co., Ltd is an office (Located in Liuzhou City, Guangxi Province) Shanghai SIEG CNC Machinery Factory, which belongs to SIEG Group, was founded in 1988.

As we have grown, we have gained extensive knowledge and experience to meet your requirements. Professional export of machinery and equipment, such as milling machines, lathes, engraving machines.

Especially, we have a lot of experience in supplying CNC and manual machines for hobby DIY, education and light industry. We know exactly "what you want" and "how you want it".

We have a team of qualified technicians and service personnel who are perfectly suited to produce some of the hottest machines in the world. We also offer a wide range of accessories ideal for use with our machines.

company culture

Smart technology, starting from the future, serves customers with mature technology and high-quality products, contributes to society, and develops itself!

There are many activities every year, such as the New Year's Day party,Thanksgiving annual meeting, fun sports meeting, Spring Festival party, birthday celebration, annual travel! ! ! Enrich the lives of employees, enhance the relationship between colleagues, make work more passionate, make good products, and serve customers well. .....

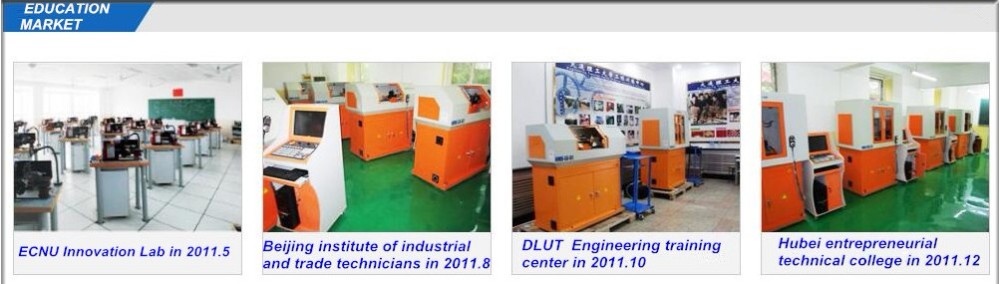

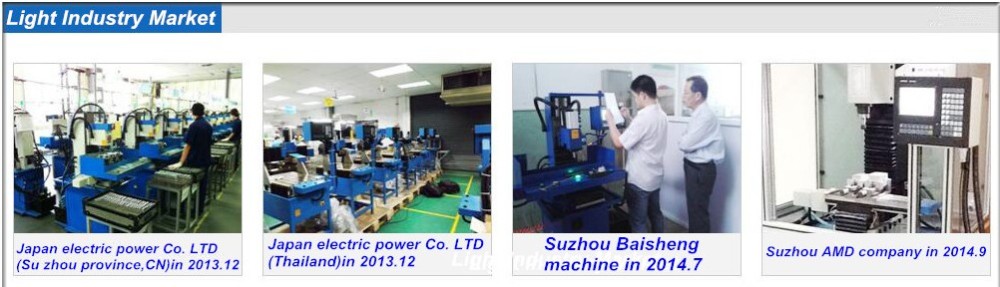

customer case

Small CNC machine tools have the advantages of small size and convenient operation, and are deeply loved by users.

our customers

We have good cooperation with customers in more than 10 countries, list some for your reference.

Hope to become your best supplier as soon as possible! ! happy....

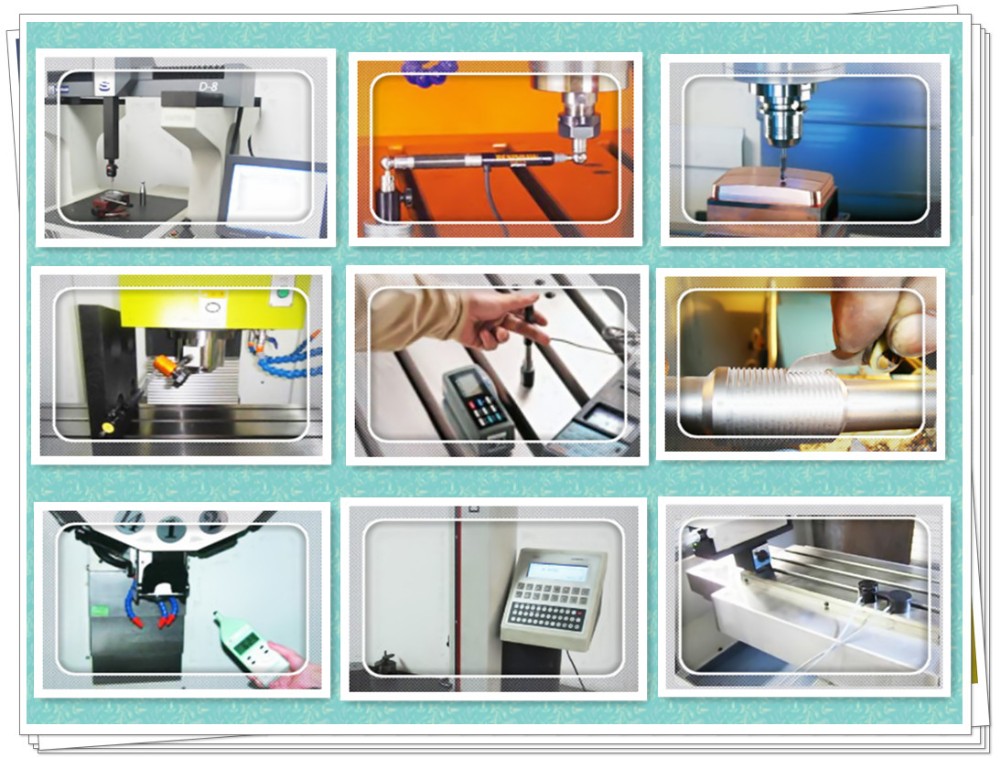

Quality Management

Cue test.

Check the type and value of Tolerance/Error.

Laser detection.

Detect repeat positioning accuracy/micro-displacement accuracy and make compensation

to CNC machines.

CMM (Coordinate Measuring Machine).

Check positional/geometric and contour accuracy.

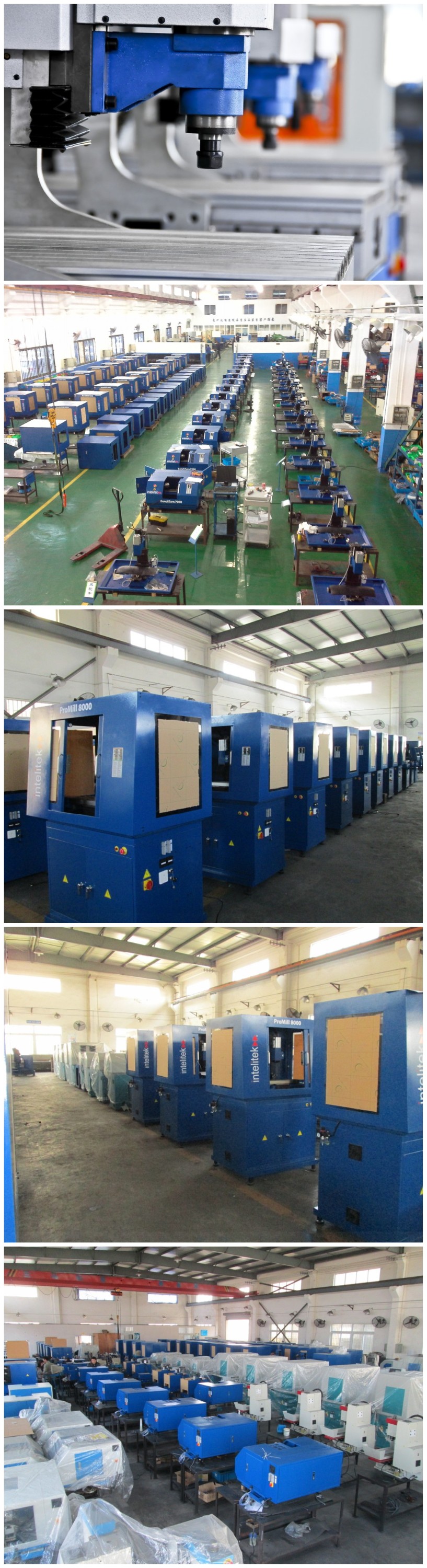

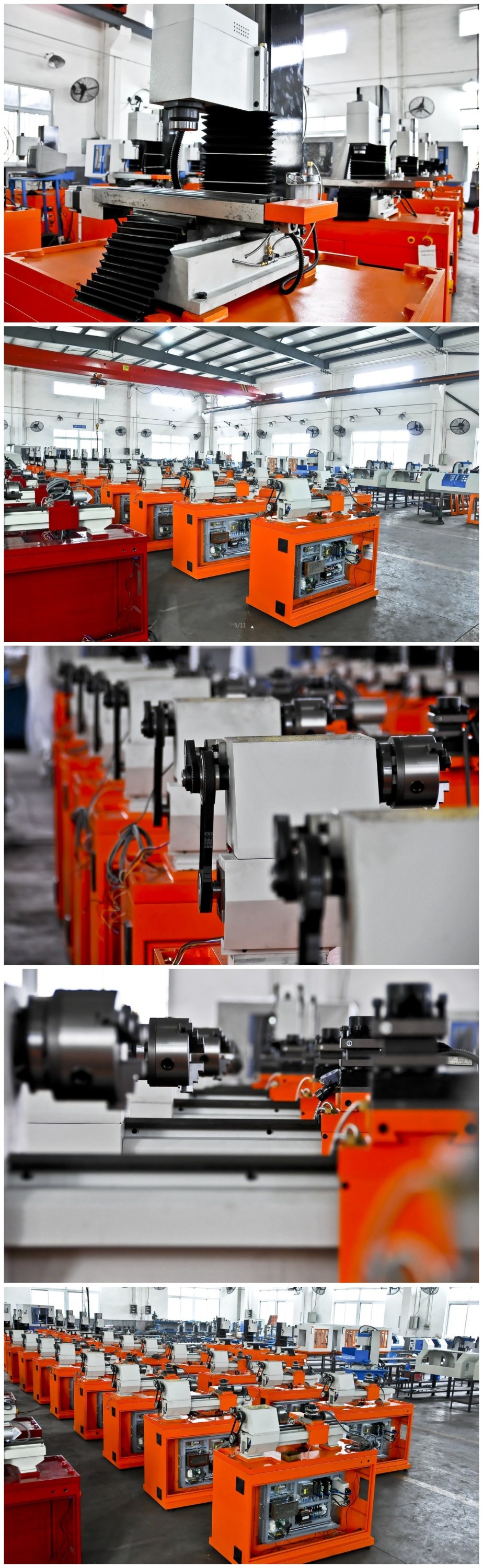

factory and machine pictures

certified

Packaging and Shipping

Packing details: 1 set/normal carton or according to your requirements

transportation:

1. By express, by sea, by air, depends on your choice.

2. About 45 days after receiving your depoist, according to your quantity.

our service

FAQ

Q1: Is your company a factory or a trading company?
A1: We are factory with more than 12 years production experience. And has an office in Liuzhou City, Guangxi Province, China.

Q2: Where is the factory located? How can I get there?
A2: Our factory is located in Shanghai City, China. You are warmly welcome to visit us.

Q3: Do you have CE certification?
A3: Yes, we have CE certification, and the machine quality is guaranteed.

Q4: What is your payment terms?
A4: Our payment terms are 30% T/T in advance and 70% T/T before shipment.

Q5: What's your delivery time?
A5: It will take 40-45 days for the machine order after receiving the deposit. Please consult sales.

Q6: What is the control of your lathe? Can it be replaced by another brand?
A6: The standard control of our lathes is GSK. You can also change other controls, such as FANUC, Siemens, etc.

Q7: How can I get a quotation?
A7: You can send inquiries on alibaba.com, or email us. It would be better if you could tell what your detailed requirements are.

Q8: What is the main product of your company?
A8: We are specialized in producing many kinds of CNC machine tools, such as CNC lathes, CNC milling machines and CNC vertical machining centers.

Q9: How to choose the most suitable machine?
A9: Please tell us your requirements for the machine, or you can also send us the product drawing, our engineer can help you choose the best model.

Q10: If you are still confused. what can I do?
A10: Please feel free to contact us by email or trade manager.
