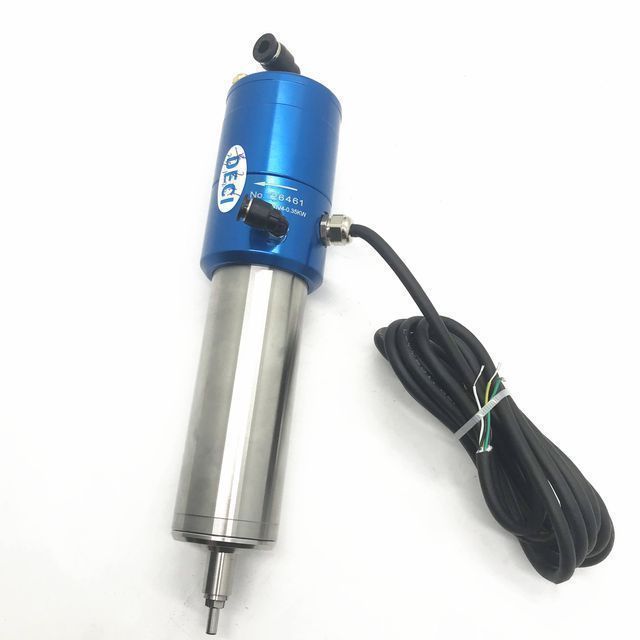

DECI dental spindle motor for atc pcb milling machine engraving spindle

Product details
brand:desicooling method:water cooling
model:DC-40V4Supply capacity:1000 sets per month
Video shipment inspection:ifweight:1.35KG
Maximum torque:0.056Showroom location:not any
strength:0.35KWfrequency:1000 Hz
Running speed:60000 rpmAfter-sales service provided:online support
place of origin; place of origin:Guangdong, ChinaState of health:new
drive:engineAfter warranty service:online support
Core components:bearingcurrent:2.5A
Applicable industries:Building materials stores, manufacturing plants, machinery repair shops, print shops, construction, energy and miningMarketing Type:New Products 2020
Local service location:not anyapplication:milling
Warranty:12 months, 1 yearpayment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Mechanical test report:ifVoltage:100V(3~)
Product Description

This product is a dental high-speed electric spindle with a maximum speed of 60,000 rpm and a rated power of 0.35 kW. It is suitable for grinding processing of composite materials such as zirconia and ceramics.



DECI spindle motor features

1) Imported bearings, good quality and long service life.

2) Application: various CNC engraving machines for milling, engraving and drilling.

3) There are water-cooled spindle, air-cooled spindle and self-cooled spindle for your choice.

4) Each spindle motor must be polished to improve the concentricity of the spindle to increase the service life of the motor.



DECI More Spindle is also available at the best price, welcome to contact us if you need.

1. Water cooling: 300w, 800w, 1.2kw, 1.5kw, 2.2kw, 3kw, 4kw, 3.2kw, 4.5kw, 5.5kw

2. Air cooling: 800w, 1.5kw, 2.2kw, 3.5kw, 4.5kw, 6kw, 7.5kw, 12kw

3. Self cooling: 400w

4. ATC spindle: water cooling: 1.5kw, 2.2kw, 5.5kw, 6kw, 7.5kw

Air cooling: 8kw, 9kw (same as HSD)

5. Edge spindle: 350w, 550w, 700w, 750w, 1.1kw, 1.8kw, 2.2kw

Personalized customization: The company has strong research and development strength, flexible design, and can customize high-speed milling electric spindles with different functions, speeds and precisions according to customer needs.

Specification
DC-40V3
parameter
Motor Power kilowatt 0.35 Rated voltage Voltage/AC 100(3~)
Maximum speed Rotating speed 60000 Maximum current A sort of 2.5
maximum frequency hertz 1000 torque Nano 0.056
Specification
Cone pulsation at shaft end mm ≤0.001 Tool release air pressure kgf/cm2 5.0-6.0
tool exchange method ~ Air Traffic Management Bureau front valve pressure kgf/cm² ~
Tooling tension no ≥1000 Tooling back pressure kgf/cm² ~
Tooling connection ~ Φ4 collet cool down ~ air cooled
Encoder ~ ~ coolant pressure kgf/cm² 2.5~3.0
proximity switch ~ ~ bearing imprint method ~ grease
balance level ~ G1 installation method ~ flange
vibration value mm/s ≤0.8 weight Kilogram 1.35
