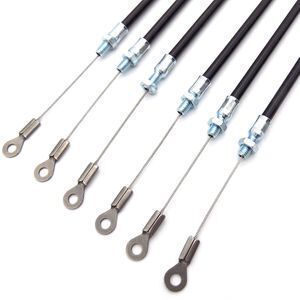

Pram brake cable with screw fittings

Supplier: Dongguan Guofeng Manufacture Co., Ltd.
Region: Guangdong, China
Contact: Mr Zhiyu Lin
Price: $0.60 / >=500 pieces
Min. Order: 500 pieces

Click here to contact

Product details

place of origin:	China;	breaking load:	as requirement;
application:	automobile;	Package Type:	Pram brake cable in standard export carton;
Place of Origin:	Guangdong China (Mainland);	Single package size:	41X41X17 cm;
Selling Units:	Single item;	Certification:	ISO;
construction of steel:	17,77,119,719,etc;	Single gross weight:	24 KG;
material of steel:	stainless steel or galvanized;	outer casing:	PVC,PE or as requirement;
kits include:	steel wire+outer casing +end accessories;	jacket:	PVC;
Brand Name:	pram brake cable;	OE NO.:	OEM;
Size:	1.5mm *1500;	end parts:	can be hooks or as requirement;
Warranty:	1;	Car Model:	Brake cable;
Delivery Detail:	0 days after payment;	diameter:	1.5mm;
Material:	stainless;

Product Description

Pram brake cable with screw fittings

1.Diameter	1.5mm pram cable	Custom-made available
2.construction	7X7,etc ,steel cable + housing +end fittings
3.material	stainless steel or galvanized
4.MOQ	500pcs
5.length	1.5m-5m
6.place of origin	china
7.coating	as requirement:PVC/PU/PA
8.end parts of fittings	a large selection of end fittings,including eye bolts,links,springs,hooks,thimble,clips,stops,ball ,ball shanks ,sleeve ,stamped eye,handles,etc
9.Lead time	7days if there were enough material in stock
10.sample	Free sample available if all of dimensions same as our existing one ,if not ,contact me ,to get a cost efficient solution.
application	Lighting , Machinery, Medical, Security, Sporting Goods, Toys, Window , Lawn & Garden Etc. When designing a cable assembly, a number of factors need to be considered such as, work load, abrasion, cycle life, and flexibility, environment, cost, safety .etc. the larger the diameter ,the greater the work load capacity and the less flexible it will be. WARNING :Breaking strength should never be considered the rope's working load ,safety factor 5:1 ,Coating must be removed from installation area when attaching fittings
specification	Refer to the drawing as below: All of specification custom-made available. the tighter tolerance ,the higher the cost of the cost.

how to choose material:1stain1.1.1.

1.stainless steel :

providing good corrosion resistance and strength comparable to galvanized carbon steel grades.

2.galvanized steel:

Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.

Diameter	construction	weight(100m)	Minimum Breaking load(N)
1.0mm	1*19	0.495	950(95kg)
	7*7	0.393	650 (65kg)
1.2mm	1*19	0.713	1440(144kg)
	7*7	0.566	950(95kg)
1.5mm	1*19	1.114	2200(220kg)
	7*7	0.884	1500(150kg)
1.8mm	1*19	1.604	3200(320kg)
	7*7	1.273	2100(210kg)
2.0mm	1*19	1.98	3900(390kg)
	7*7	1.527	2650(265kg)
2.4mm	1*19	2.851	5650(565kg)
	7*7	2.264	3800(380)kg
2.5mm	1*19	3.094	6100(610kg)
	7*7	2.381	4100(410kg)
3.2mm	7*7	4.024	6850(685kg)
	7*19	3.901	6800(680kg)
3.8mm	7*19	5.675	9650(965kg)
	7*7	5.502	9600(960kg)
4.0mm	7*19	6.609	12500(1250kg)
4.2mm	7*7	6.933	13000(1300kg)
4.5mm	7*7	7.958	13500(1350kg)
4.8mm	7*19	8.778	15300(1530kg)
6.0mm	7*19	8.716	23900(2390kg)
