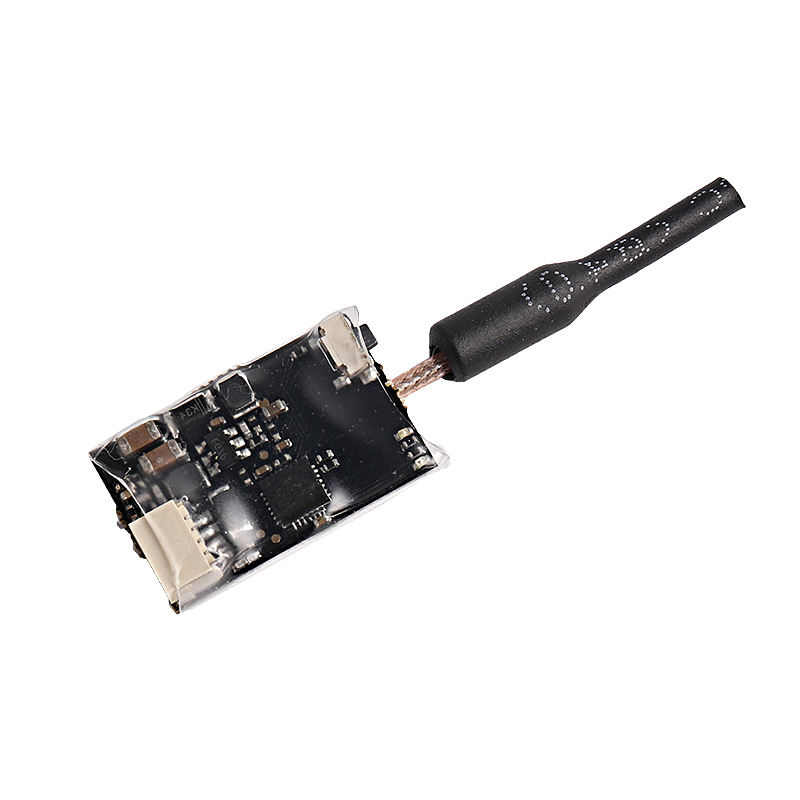

EWRF e7082C 5.8G 48CH VTX FPV Transmitter 25/100/200mW/OFF PitMode Support Betaflight/Cleanflight OSD DC 5-24V RC Model Parts

main feature
Adjustable 4 modes: 25mW/100mW/200mW/OFF
Betaflight/Cleanflight OSD Configuration Parameters
Clean power-on and channel switching without disturbing others
Miniature and Lightweight Design

Specification
Model: EWRF e7082C
Frequency: 5.8G 48CH
Transmission power: 25mW/100mW/200mW/OFF (pit mode)
Power supply: DC5-24V
Supply current (12v): 75mA(25mW)/100mA(100mW)/130mA(200mW)

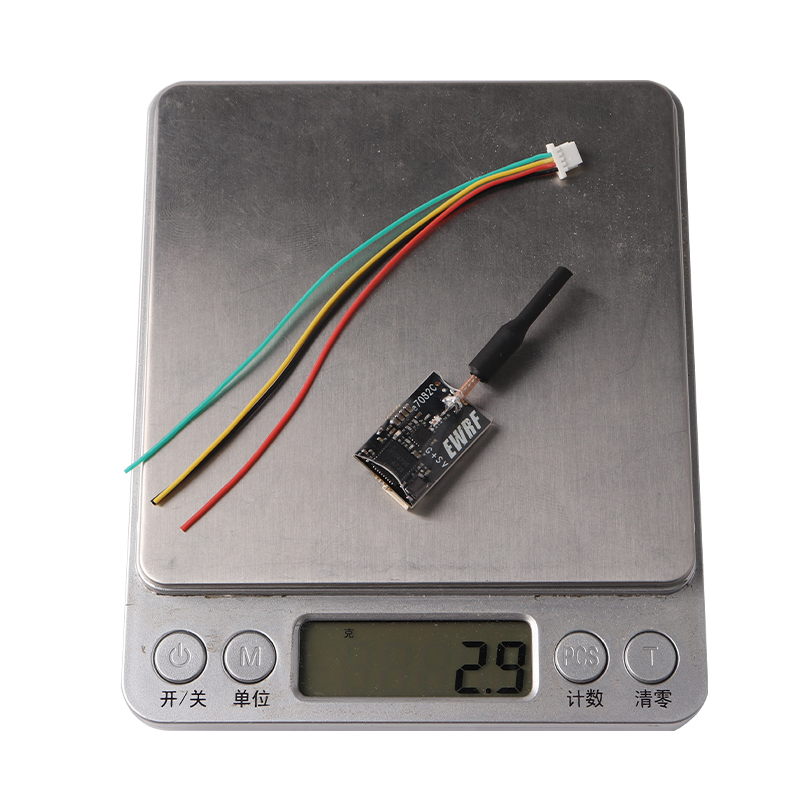

Weight: 2.9g

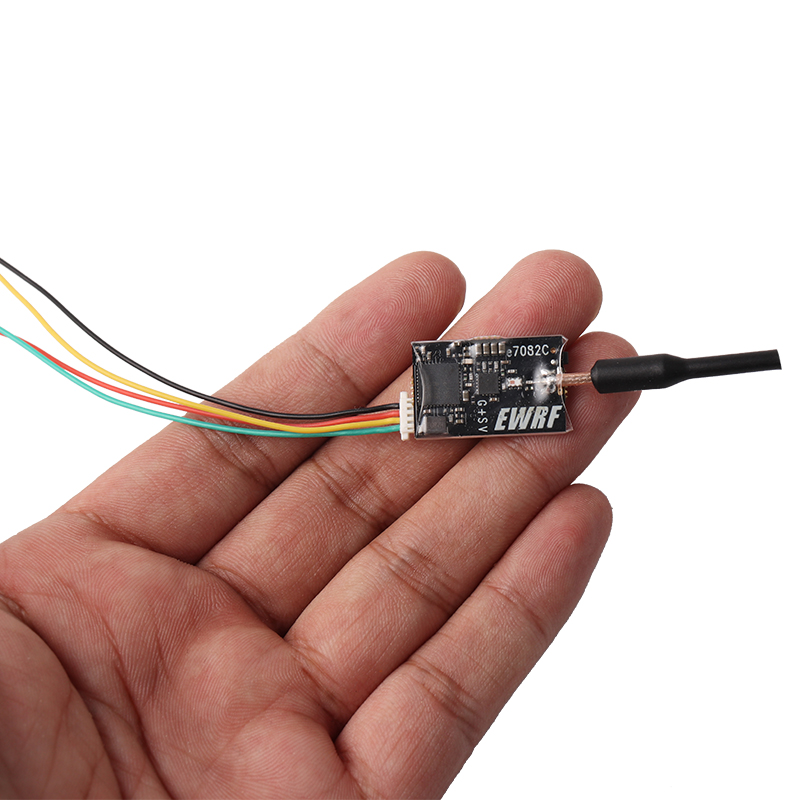

Standard size: 22*14*5mm

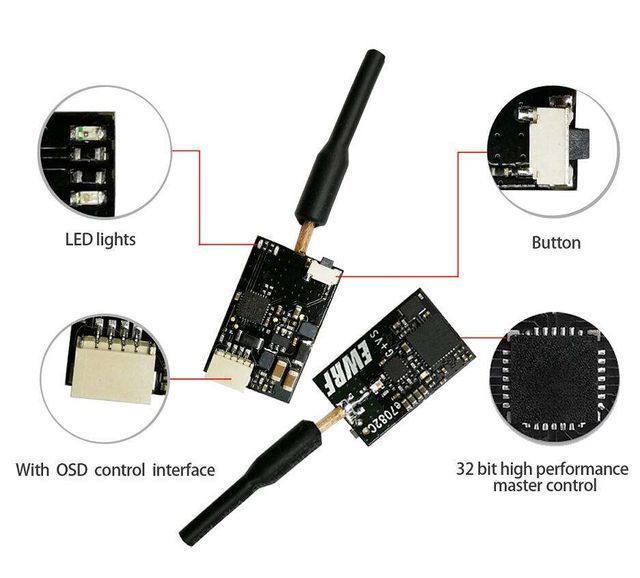

Key configuration:
After power on, press and hold the button to enter (configuration mode) channel number, channel group and power supply.
1. Press and hold the button until the red light flashes, adjustable channel frequency (1, 2, 3, 4, 5, 6, 7, 8).
At this time, short press the button to switch the channel frequency. The blue light flashes to indicate channel frequency 1, and the blue light flashes several times to indicate the corresponding channel frequency
2. Press and hold the button until the red light flashes twice, adjustable channel group (A, b, c, d, E, F).
At this time, short press the button to switch the channel group. The blue light of channel group A flashes, and the number of blue light flashes increases each time, expressed as (b, c, d, E, F).
3 Press and hold the button until the red light flashes three times to adjust the power. Short press the button to switch the power supply, the blue light flashes to indicate 25mw, two flashes to 100mw, and three flashes to 200mw.
4. Long press the button to complete the parameter setting, red and blue are always on.
5. Quickly press the button twice, when the red light is on, the blue light is off to indicate that the RF is off. Press twice quickly, when the red light is on, the blue light is on to indicate that the RF is on.

OSD configuration:
Please refer to "EWRF 5.8G AV TX OSD Settings" for details about the power, frequency band, channel and Pit mode set by Betaflight/Cleanflight OSD.

Frequency (Mhz)
Band CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
A 5865 5845 5825 5805 5785 5765 5745 5725
b 5733 5752 5771 5790 5809 5828 5847 5866
c 5705 5685 5665 5645 5885 5905 5925 5945
d 5740 5760 5780 5800 5820 5840 5860 5880
Telephone 5658 5695 5732 5769 5806 5843 5880 5917
Female 5362 5399 5436 5473 5510 5547 5584 5621

notes:
1. When installing the module on the drone, please make sure there is enough space for air circulation, in case the overheating protection starts to reduce power, worst case even shut down.
2. Please install the antenna before power on to get a longer lifespan.
