Rotary speed: | 4800 rpm; | Voltage: | 380V, 50HZ; |
Condition: | New; | Power(W): | 75, 90, 112, 250; |
Input DS: | 8-10Be; | Port: | Tianjin Xingang port; |
Capacity: | 30-250 m3/h; | Warranty: | 1 Year; |
Payment Terms: | L/C,T/T; | Brand Name: | MecKey; |
Product Type: | Gluten separator; | Supply Ability: | 10 Set/Sets per Month; |
Dimension(L*W*H): | Customized; | Product name: | Gluten separator; |
Main motor: | 55Kw, 380V, 50Hz; | Weight: | Customized; |
Nozzle qty.: | 12; | Place of Origin: | Beijing China (Mainland); |
Drum diameter: | 550 mm; | Type: | Disc separator; |
After-sales Service Provided: | Overseas service center available; | Item: | Starch separator for corn/wheat starch plant; |
Packaging Detail: | wooden case.; | Output DS: | 17-19Be; |
Certification: | CE, ISO9000; |

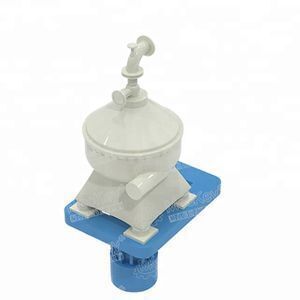

Meckey high efficiency corn starch gluten separator
Application
Gluten separator is mainly applied for purifying starch, previous concentrating, separating protein, and recovering starch in starch production line.
Description
It features in remarkable advantages as below:
Big drum diameter and large area of disc ensure the excellent effect of separation and concentration.
Top-suspension driving can be applied, which stabilizes the separator rotation and extremely improves the life span of bearings and main shaft.
Automatic control on lubricating system is applied, which assures and prolongs lifetime of driving system.
Big nozzle is applied, which increases the feeding capacity, reduces the changces of block and assures the continuous production.
Lifting drum is fitted with the hydraulic system, which is convenient for drum inspection and nozzle replacement.
The material of drum adopts special high-strength corrosion-proof stainless steel which assures the safety and stability of separator.
This machine can treat the materials with various concentrations without internal adjustment.
It is equipped with inner circulation system, which keeps separation stability and improves adjustment as well as control accuracy.
Gluten separator Specifications and Parameters
MSC-450A | MSC-445 | MSC-500 | MSC-550 | MSC-800 | MSC-930 | |
Capacity(m3/h) | 5-15 | 15-25 | 20-30 | 30-75 | 50-110 | 80-220 |
motor power(kw) | 18.5 | 30 | 45 | 55 | 90-132 | 180-250 |
Drum Rotating Speed(rmd) | 4500 | 4420 | 4800 | 4500 | 3300 | 2900 |
Nozzle Quantity | 8 | 10 | 12 | 12 | 20 | 30 |
Weight(kg) | 1050 | 1100 | 1300 | 2100 | 5800 | 11000 |
Length(mm) | 1300 | 1447 | 1470 | 2050 | 2800 | 3200 |
Width(mm) | 1320 | 1196 | 1320 | 1200 | 1500 | 1800 |
Height(mm) | 1650 | 1476 | 1500 | 2300 | 2300 | 3100 |

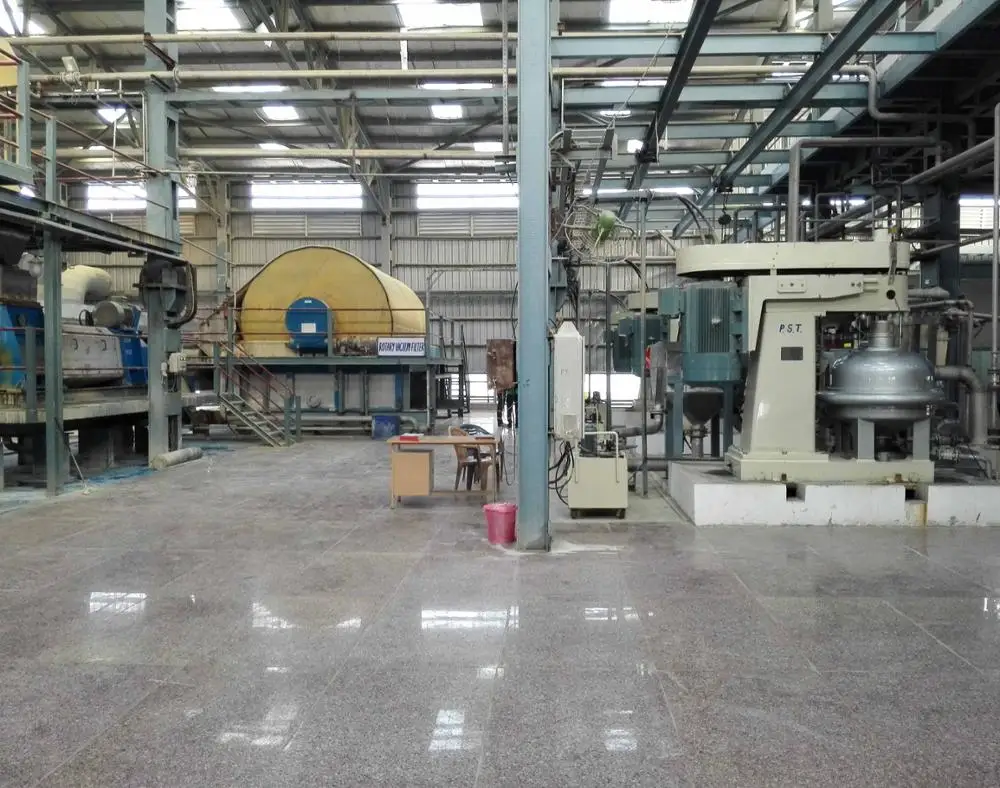

Gluten separator photos
Our team
1.Strong and vigorous technological force member.
2.Abundant theory and practical experience.
3.The zealous service and fast reply.
4.The scientific management system.
Our team will offer specialized and kindly service for you from end to end.
Our culture
Keeping Integrity, Profession, Efficiency, and Win-Win as our spirit and making friends through business contacts as our goal, we are always ready to provide satisfactory services for our friends from all over the world.
WE ARE WHERE YOU ARE!
By choosing MecKey you are choosing the perfect long-term partner for your daily operations. Our service network can reach you wherever you are.
About Meckey
Meckey is a shareholding company in corn, wheat, potato, cassava, processing area, secialized in project engineering & construction, equipment manufacturing, technical support & sevices to customers worldwide.
Turnkey solutions
1. Corn grain to corn starch, gluten, germ/corn oil, fiber.
2. Wheat flour to vital gluten, A starch, B starch.
3. Potato(cassava) to potato(cassava) starch, cassava flour.
4. Starch to glucose, DMH, sorbitol, HFCS55.
5. Corn flour(rice) to glucose, DMH, sorbitol, HFCS55.
6. Modified starch, maltodextrin, potato flakes.
7. L-lysine, GSM.
Payment item
As a routine, 30% down payment, 70% by L/C at sight, 10% Bank guarantee supplied by Meckey. Workable details should be as per discussion based on the contract.
Delivery
Both your destination port or China port are available according to terms of contract. All exporting transactions can be on our duty.
Warranty
The warranty period of each item of equipment delivered shall be 12 months from the date of the signing ACCEPTANCE MEMO or 17 months from the date of shipment, whichever is earlier.
