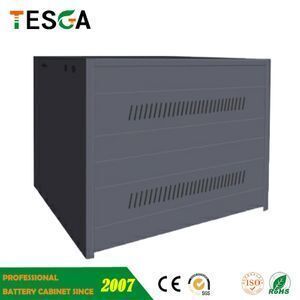

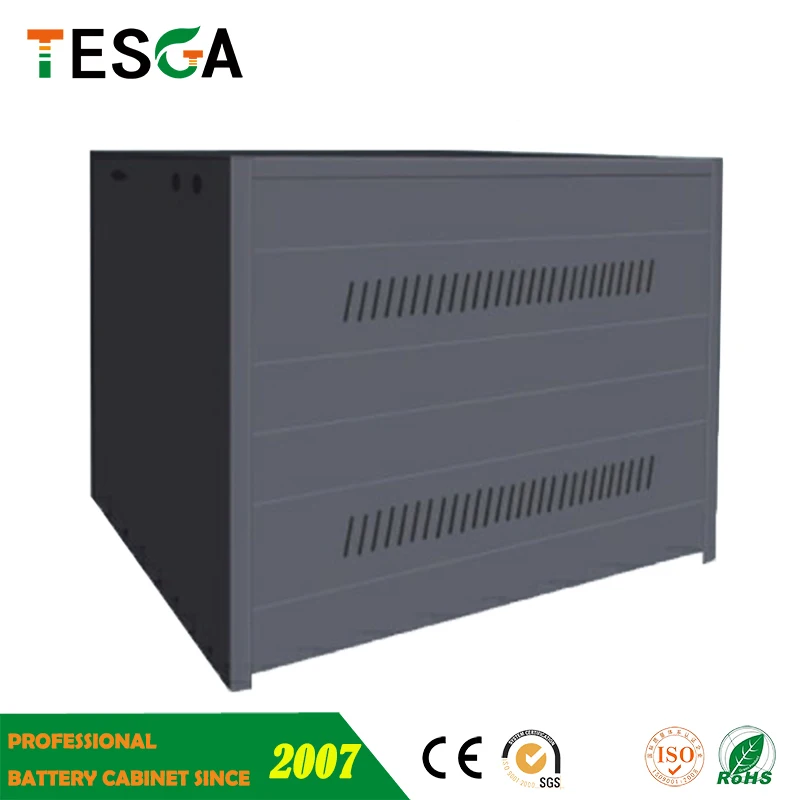

battery cabinet C-10 for loading 10pcs barrery 12v100ah

Product details
Payment Terms:L/C,T/T,Western Union,MoneyGram;External Size:470*390*310mm;
Protect rate:IP55;Type:Control Box;
Delivery time:7days;Protection Level:IP55;
Model Number:C-10;Material:cold rolled steel;
Port:guangzhou;Supply Ability:5000 Set/Sets per Week;
Application:load the battery;Certificate:CE, ISO;
Warranty time:2 years;Certification:CE,ISO;
Place of Origin:Guangdong China (Mainland);Packaging Detail:battery cabinet 1pcs/carton;

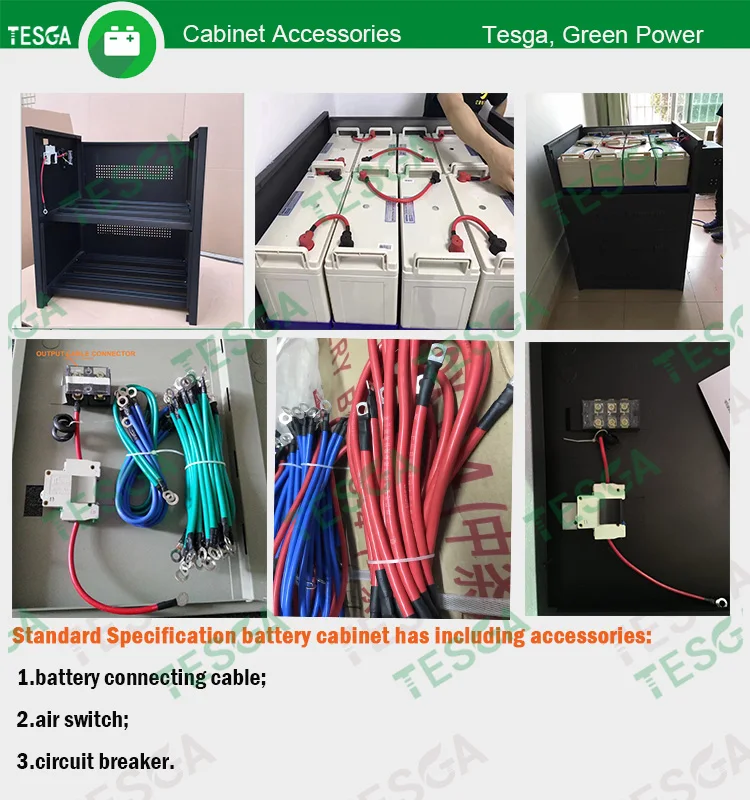

Brand Name:TESGA;accessories:battery connecting cable, air switch;
Size:470*390*310mm;
Product Description

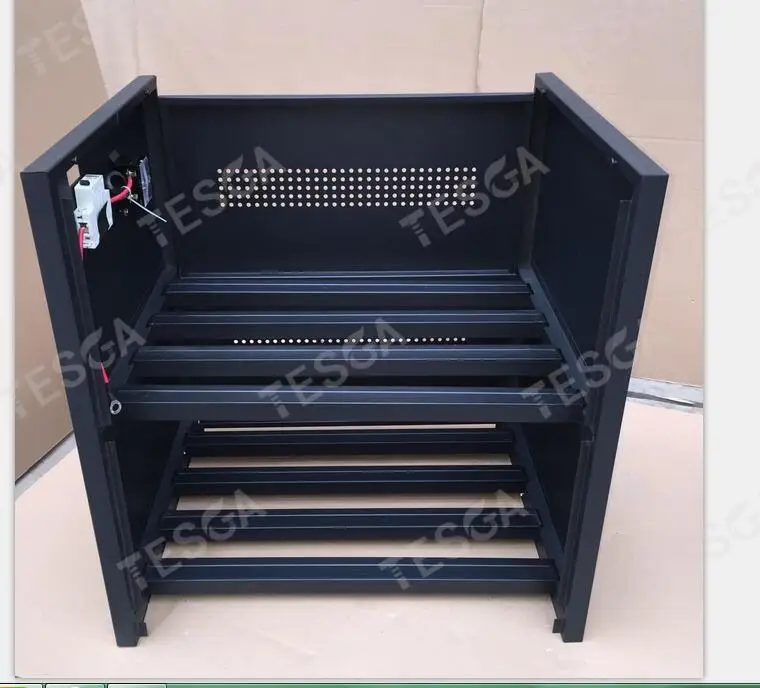

battery cabinet

with metal components, good mechanical properties, bearing capacity, compact and reasonable structure, interchangeability, the entire cabinet electrostatic spray, soft, abrasion resistance, corrosion resistance, good fireproof performance, insulation and durable design can be placed with a plurality of large capacity or less battery capacity. Easy transportation and installation

battery box/ battery cabinet battery cabinet

1.Enclosure for Electrical Equipment.

2.Processed by advanced NC machines.

3.ISO9000:9001 certificated

1) Material: sheet metal (SPCC, SPHD, SECC, AL-EN, AL, SPHC, ZN, SGCC, SUS etc.)

2) Optional Surface Treatment: plating, powder coating (with or without texture), anodizing etc.

3) Advanced NC machines for processing of shearing, punching, bending & welding, ensure high precision.

4) High IP grade attainable.

5) ISO9001 certificated.

6) OEM & Design Support Offered.

Remark: we mainly produce the customized metal part, all the products display here are to show our business scope only. Thanks!





Model

Battery

Structure

Layer number

Size

 (L×W×H)mm

Weight(Kg)

Capacity

Quantity

C-1

17AH/24AH/38AH

5/3/2

Integral

1

435×210×270

3.3

65AH/100AH

1

C-1A

17AH/24AH/38AH

6/4/3

Integral

1

540×210×230

7

C-1B

17AH/24AH

3/2

Integral

1

280×190×220

2.2

C-2

17AH/24AH/38AH

10/6/4

Combination

1

450×470×320

7

65AH/100AH

2

C-3

17AH/24AH/38AH

14/8/6

Combination

1

585×470×320

9

65AH/100AH

3

C-4

17AH/24AH/38AH

20/12/8

Combination

2

450×470×615

13

65AH/100AH

4

C-6

17AH/24AH/38AH

28/16/12

Combination

2

585×470×615

18

65AH/100AH

6

C-8

17AH/24AH/38AH

36/20/16

Combination

2

780×470×615

21

65AH/100AH

8

C-10

17AH/24AH/38AH

44/28/20

Combination

2

950×470×615

24

65AH/100AH

10

C-12

24AH/38AH

30/24

Combination

3

780×470×900

32

65AH/100AH

12

C-16

24AH/38AH

40/32

Combination

4

780×470×1190

45

65AH/100AH

16

C-20

24AH/38AH

56/40

Combination

4

950×470×1190

50

65AH/100AH

20

C-24

65AH/100AH

24

Combination

4

1150×470×1190

90

C-32

65AH/100AH

32

Combination

4

780×880×1190

95

C-40

65AH/100AH

40

Combination

4

950×880×1190

100

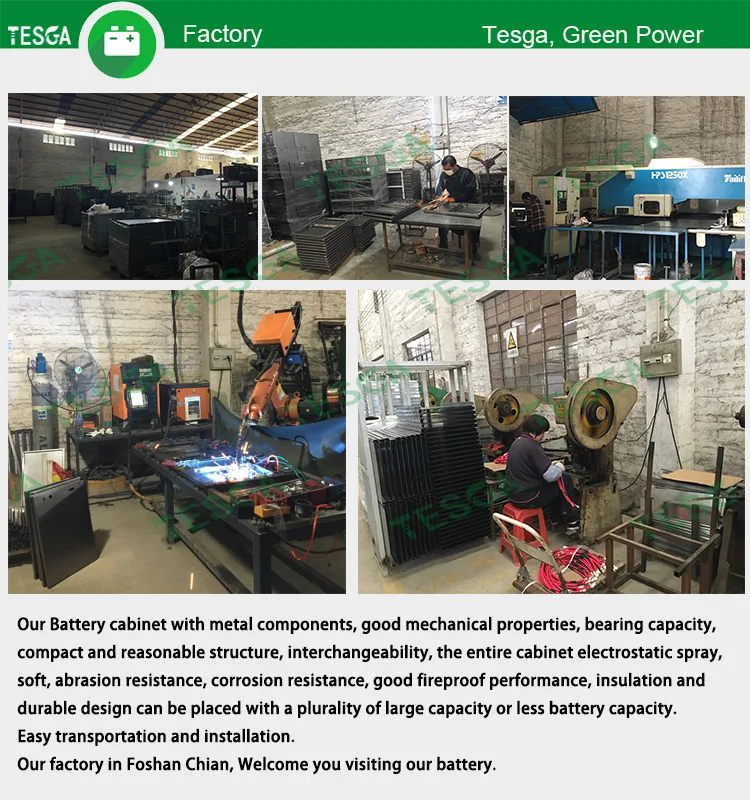

Factory

FAQ

Q1.Where your factory and office?

We are factory, Welcome to visit our factory in Huizhou and office in Guangzhou.



Q2.Can you print my logo on Product or Package?
Yes, OEM is available, you can print your logo on product or package, but you have to reach the MOQ quantity on OEM.



Q3.Do you have other products design for sale?
Yes, More products and designs you can visit our website: http://www.tesgapower.com

Q4.How can I pay for the order?
Usually is T/T, sample and small orders we recommend Western Union.



Q5.How Long can I receive my goods?
In stock we will send in 24 hours. Factory production Usually 7-14 days. According to the product and quantity, delivery time will have different, Pls make a sure with us.



Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate                        will be less than 0.2%.
  Secondly, During the guarantee period, we will send new battery with next new order for                         small quantity.

                   For defective batch products, we will repair them and resend them to you or we                         can discuss the solution including re-call according to real situation.

  Thirdly,   Please keep the pictures and video of the faulty products, offer those information                      to us, then we can according your information, give the best situation to you.


Thank you very much for your reading!
If you have any doubt please no hesitate to contact me, we guarantee any your questions will get our prompt reply.
We look forward to establish business relationship with you.

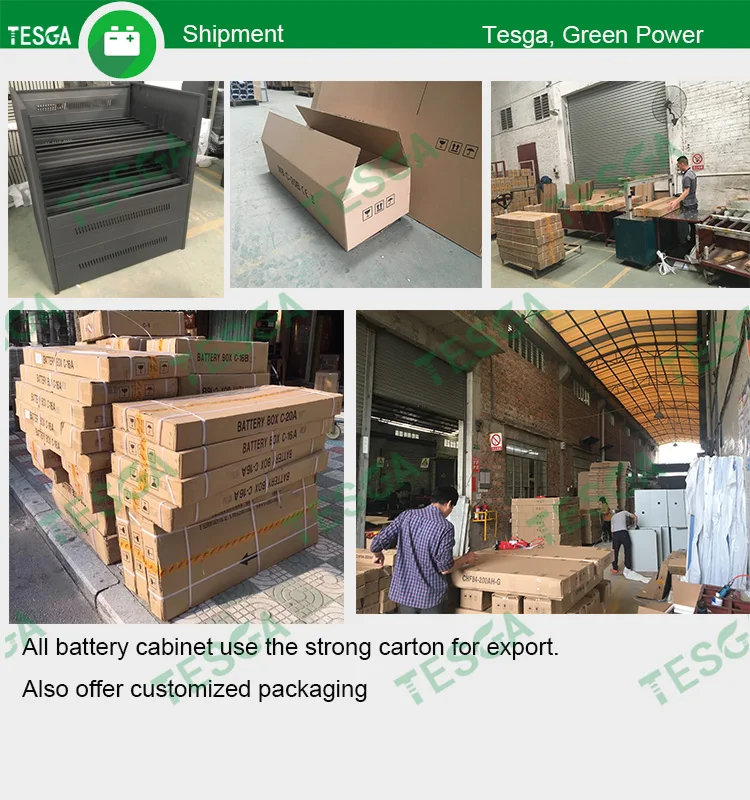

Packaging & Shipping
