electron tube YD1212 for linear accelerator

Click here to contact

Product details

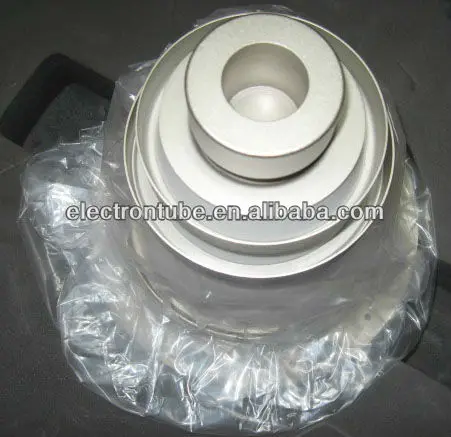

output power:	240kW;	Packaging Detail:	Electron tubes exported are shipped in specially designed cartons depend on their size.;
Model Number:	YD1212;	Delivery Detail:	1-2weeks;
Place of Origin:	Beijing China (Mainland);	Brand Name:	Beijing Jenerator;
Payment Terms:	T/T,Western Union,MoneyGram;	Supply Ability:	5 Piece/Pieces per Week;
Port:	Beijing, Tianjin;

Product Description

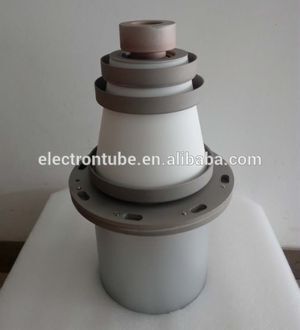

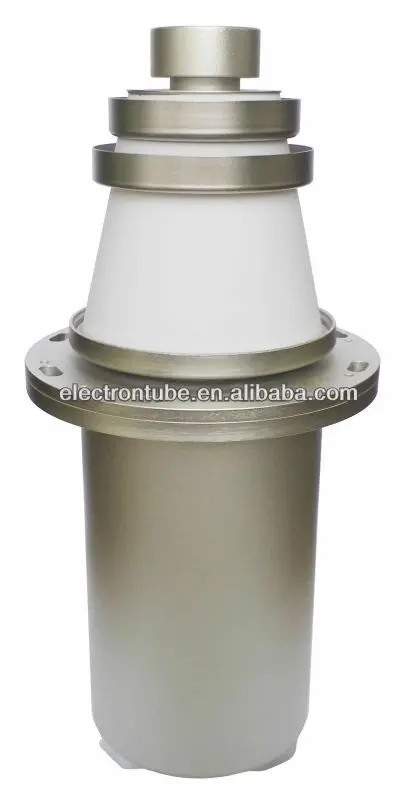

Electron tube YD1212 is a high power ceramic-metal triode; It has thoriated tungsten cathode and hyper-vapotron cooling of plate.

The tube maximum plate dissipation is 120kW and maximum frequency operation is 30MHz.

The tube designed for oscillator in the industry high frequency heating applications.

The tube can replace BW1185J2 and ITK90-1.

Electrical

Cathode	Thoriated Tungsten
Filament Voltage	12.6V
Filament Current	380A
Transconductance	160mA/V
Amplification Factor	41
Interelectrode Capacitances:
Filament to Grid	180pF
Filament to Plate	3.4pF
Grid to Plate	60pF
