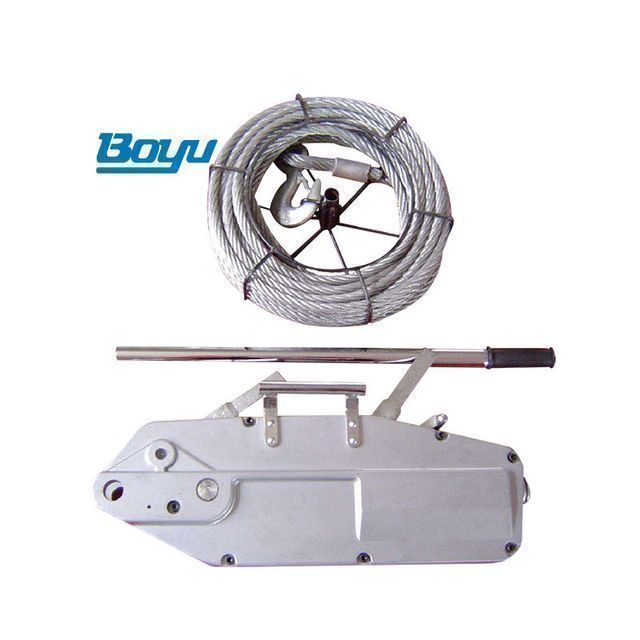

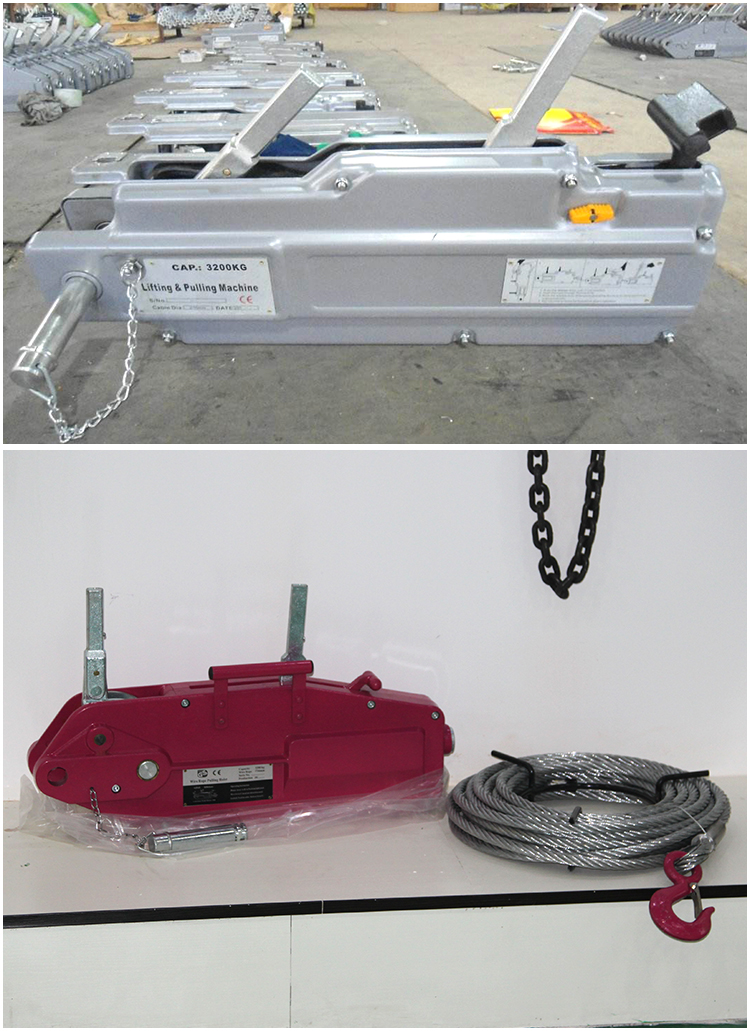

Tirfor 3.2 ton wire rope winch jack lever block

Tirfor 3.2 ton wire rope winch jack lever block

Product Description

1. Scope of application

Wire rope hoists are suitable for narrow areas with limited local space. SM-618 wire rope chain hoists will show special advantages in field operations, high-altitude operations, lifting operations and inorganic electric power supply sites in deep well operations.

2. Working principle

The wire rope lever hoist uses a human wrench to obtain a linear traction force that matches the load by using the lever principle, and the caliper body that acts on the movement of the movement runs alternately with the load.

3. How to use

Put the forward (reverse) handle on the machine first, then push the handle to the front of the machine, the tip snaps into the housing upper step. At this time, the upper and lower calipers of the front and rear calipers are OK. The opening can be worn (drawn) open, and then push the release handle forward and downward by hand, so that the clamp clamps the wire rope (or resets) and puts into operation.

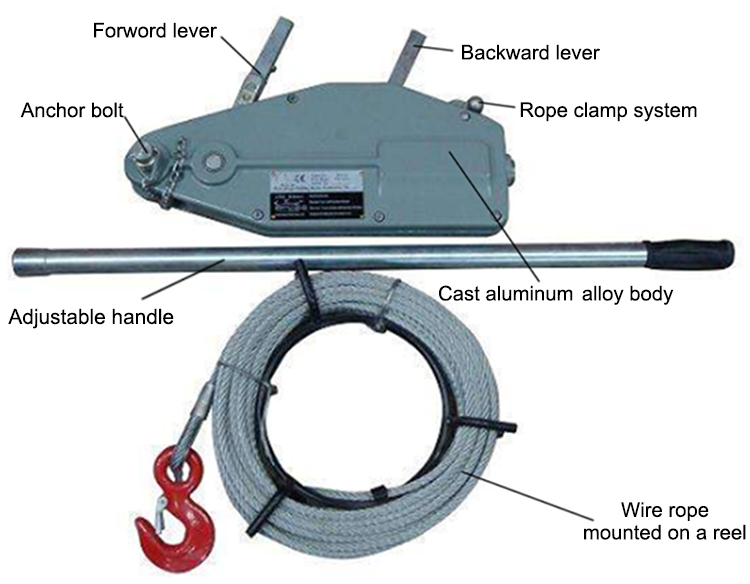

4. Novel body structure

This machine adopts high-strength aluminum alloy body with beautiful appearance, compact body, small size and light weight. Two-stage gear transmission is adopted, and the high-speed stage is helical gear transmission, with stable transmission and low noise.

5. High strength parts

The main components of this machine are made of high-quality alloy steel and processed by a number of special heat treatment processes. It has the characteristics of high strength and good wear resistance. The upper and lower hooks are made of high-strength alloy steel, and the heat treatment strength is very high. High toughness, even if the car body is overloaded and damaged, the hook will only sag and deform, and will not be brittle

Product parameters
