port: | Guangzhou Whampoa | model: | 86HB250-156 |
Lots of: | 5.5 kg | Packaging Details: | 1. Outer packing: standard export carton, with required shipping marks 2. Inner packing: waterproof packing, surrounded by shock-absorbing pearl cotton and cardboard 3. According to customer requirements |
Certification: | CE, ISO, ROHS, TUV, ce, ISO, RoHS, TUV | Types of: | hybrid |
Resistance per phase: | 0.5Ω±10% | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alibaba Trade Assurance |
Rated current: | 6.0A | Inductance per phase: | 5.3mH ± 20% |
Voltage: | 6.05V | place of origin; place of origin: | Guangdong, China |
brand: | Casson, Casson | Key words: | NEMA 34 stepper motor 156mm |
Insulation resistance: | Class B | Supply capacity: | 99000 pieces per month |
Holding torque: | 12.5 Nm | Package preview: | |
stage: | 2 | Current/Phase: | 6A |

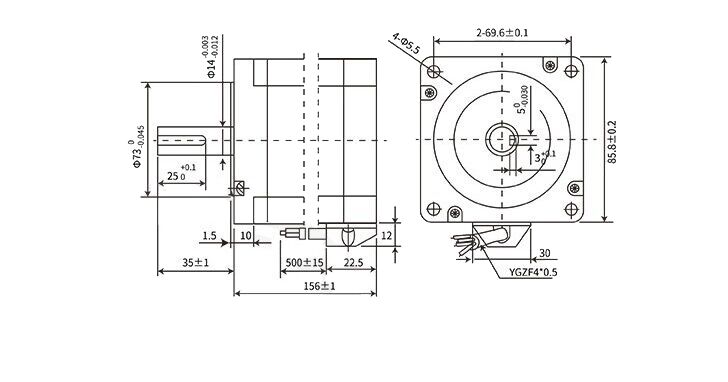

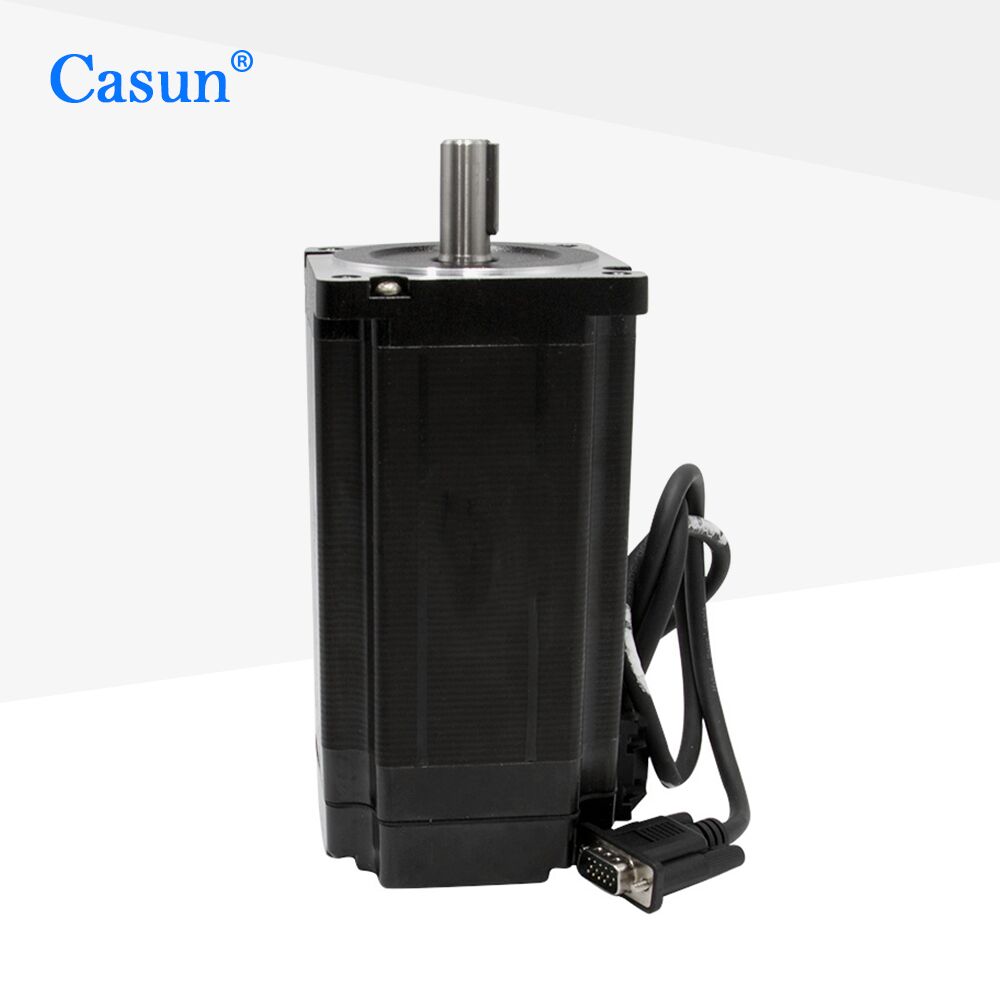

NEMA 34 Enclosed Stepper Motors (86HB250-156) | ||||||
General Specifications | Electrical Specifications | |||||
Step angle | 1.8 degrees | Rated voltage | 3.0V | |||
Phase | 2 | rated current | 6.0A | |||
Insulation resistance | 100MΩmin.(500V DC) | Resistance per phase | 0.5Ω±10% | |||
insulation level | Class B | Inductance per phase | 5.3mH±20% | |||
Rotor inertia | 4.9Kg.cm² | holding moment | 12.5mN.m | |||
Lots of | 5.5 kg | Braking torque | / |
