Supply capacity: | 5000 sets/year automatic fabric folding and ironing machine | speed: | CVT |
Applicable industries: | clothing store, factory | Dimensions (L*W*H): | 2300*1400*1900mm/1900*1800*1700mm |
Core components: | Bearings, gearboxes, motors, gears | Mechanical test report: | if |
strength: | 1.5kw | brand: | Hyde |
Certification: | CE ISO9001 | place of origin; place of origin: | Jiangsu, China |
Automatic level: | automatic | Model: | Hyde 2600 |
State of health: | new | Video shipment inspection: | if |
Rated frequency: | 50 Hz | weight: | 900 kg |
port: | Shanghai | Package preview: | |
Pack: | wooden box | Warranty: | 1 year |
Voltage: | 480v/415v/380/220v/110v/50Hz/60Hz, 220V/380V | Packaging Details: | wooden box |
width: | 2600mm | Showroom location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, United Arab Emirates , Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia, Morocco |
Core component warranty: | 1 year | Deviation system: | Infrared correction system |
payment terms: | L/C, Western Union, T/T | After-sales service provided: | Does not provide overseas services |
Marketing Type: | normal product | name: | Automatic fabric folding and ironing machine |
Cutting machine features:
• The automatic sewing machine can automatically sew the fabric into a cylindrical shape. The fabric is automatically sewn into the cylindrical fabric by the folding frame of the sewing machine, and the automatic sewing machine can automatically cut the irregular edges of the fabric during the sewing process.

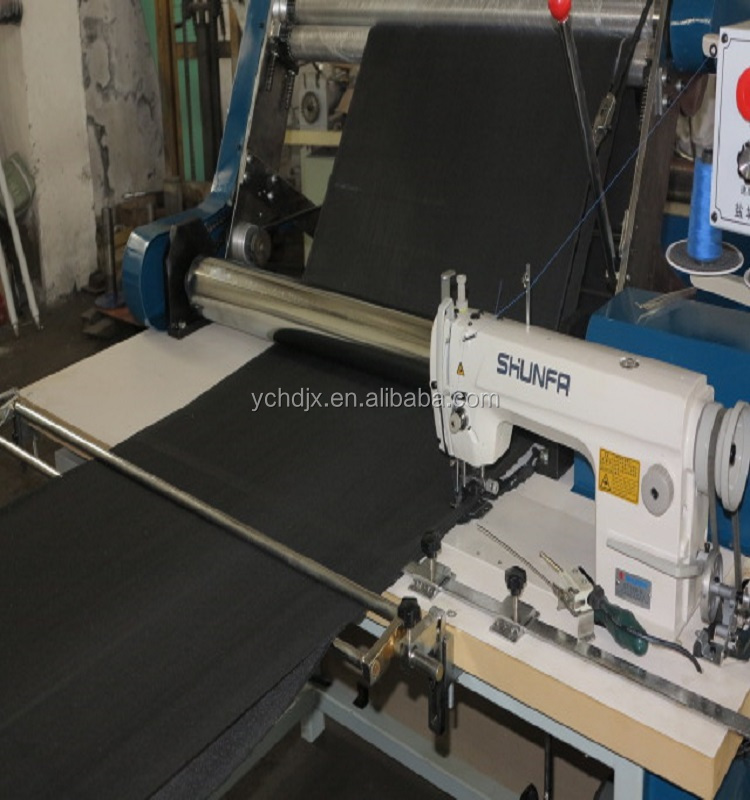

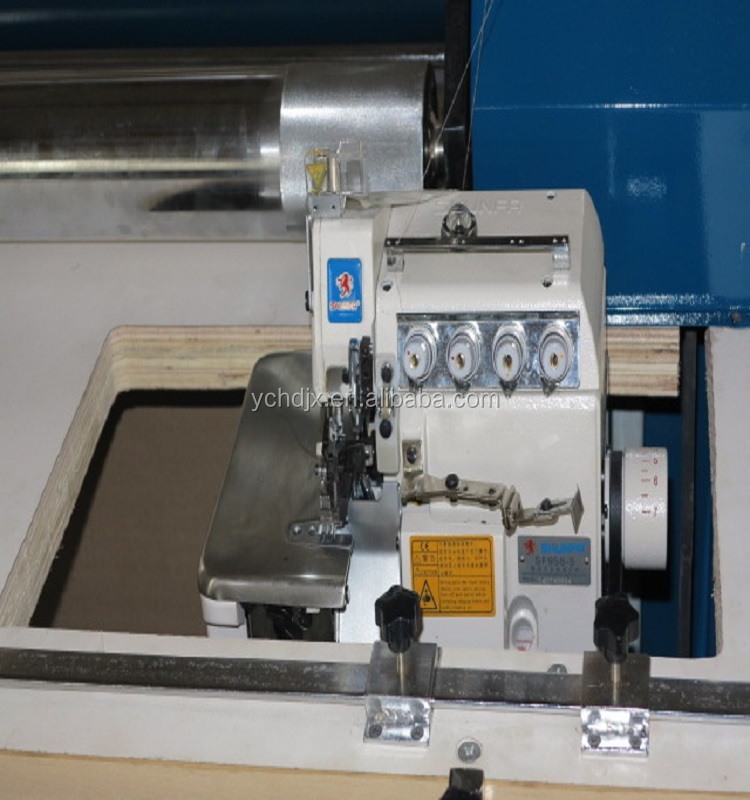

•Optional machine head: knife lockstitch sewing machine, five-thread overlock sewing machine, ultrasonic sewing machine
• The loading rack is designed under the folding rack, which can save space and can hold whole rolls or large fabrics. And it has the function of unfolding and folding in half. After folding, it can be unfolded and folded in half, and the fabric is folded neatly without wrinkles.
•Sewing and Laba are driven by the same frequency conversion motor, which adopts frequency conversion stepless speed regulation, which can meet the requirements of different fabrics and speeds. The two ends are synchronized, and the sewing speed can reach 500-900 meters per hour.
• Equipped with a cloth limit adjustment baffle to minimize the width error of the entire roll of cloth after folding and splicing.
• Equipped with photoelectric automatic deviation correction system.
Applicable Products:
Home textiles, clothing, bags, shoes and hats, umbrellas, tents, insulation cotton, sponges, waterproof materials, swimwear, toys, etc.
Cutting machine parameters:
Model |
width |
folded width |
strength |
Voltage 50Hz/60Hz |
folded size |
Stitching outline size |
Hyde 1700 |
1700mm |
850mm |
3 kW |
380v/220v/110v/415v |
1980*870*1650mm |
1800*1290*1585mm |
Hyde 1900 |
1900mm |
950mm |
3 kW |
380v/220v/110v/415v |
2180*870*1660mm |
2000*1290*1585mm |
Hyde 2000 |
2000mm |
1000mm |
3.7 kW |
380v/220v/110v/415v |
2280*870*1700mm |
2100*1290*1585mm |
Hyde 2200 |
2200mm |
1100mm |
4 kW |
380v/220v/110v/415v |
2480*870*1720mm |
2300*1290*1585mm |
Hyde 2600 |
2600mm |
1300mm |
5 kW |
380v/220v/110v/415v |
2880*900*1840mm |
2700*1290*1585mm |
Hyde 2800 |
2800mm |
1400mm |
5.5kw |
380v/220v/110v/415v |
3080*970*1890mm |
2900*1290*1585mm |
Hyde 3000 |
3000mm |
1500mm |
6.5kw |
380v/220v/110v/415v |
3280*1050*1900mm |
3100*1290*1585mm |
Hyde 3600 |
3600mm |
1800mm |
7.5kw |
380v/220v/110v/415v |
3880*110*2000mm |
1800*1290*1585mm |
If the above table does not have the cutting machine size you need, we can remake it for you.
Remarks: Our factory can manufacture machines according to your order, such as cutting force, cutting area, feeding device, special stroke, etc.
Please contact us directly for more pictures and videos and detailed quotation.
Cutting machine customer case:

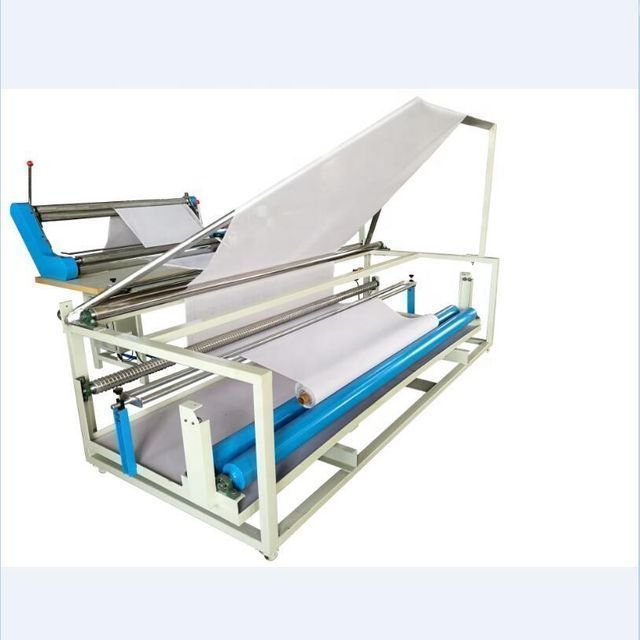

Cutting machine picture:
