Packaging Details: | 25 tons lithium battery electric heavy duty forklift for sale, shipped by Nude, one 40ft FR container + one 20ft container | payment terms: | L/C, T/T |
Dimensions (L*W*H): | 1200*200*320 | Core component warranty: | 1 year |
Package: | nude | spread: | hydraulic |
Mechanical test report: | if | Core components: | Engines, gearboxes, motors, pressure vessels, gears, pumps |
Warranty: | 1 year | After warranty service: | online support |
Loading capacity: | 45 tons | Applicable industries: | Hotels, Clothing Stores, Farms, Home Use, Others |
brand: | China-America Chamber of Commerce | Supply capacity: | 2000 sets per year |
place of origin; place of origin: | Fujian China | Weight (kg): | 54000 kg |
Machine weight: | 45000 kg | color: | custom made |
Mast: | double mast | port: | Ximen Port, Fujian, China |
Load center: | 1250mm | State of health: | new |
Showroom location: | Canada, Italy, France, Germany, Philippines, Saudi Arabia, Pakistan, Russia, Morocco, Kenya, Chile, Colombia, Sri Lanka, Kyrgyzstan | Video shipment inspection: | if |
name: | 45 ton container reach stacker | Marketing Type: | New Products 2020 |
wheel: | pneumatic |

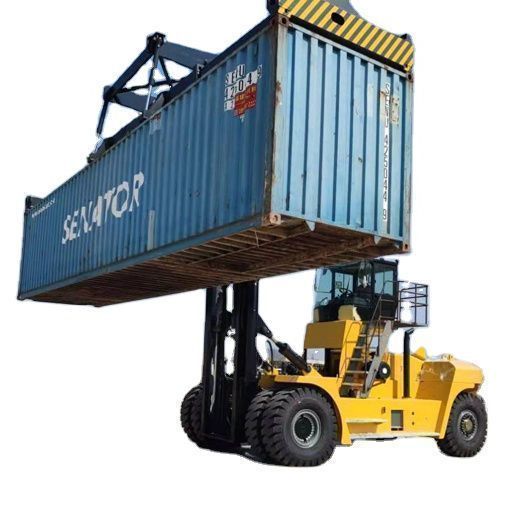

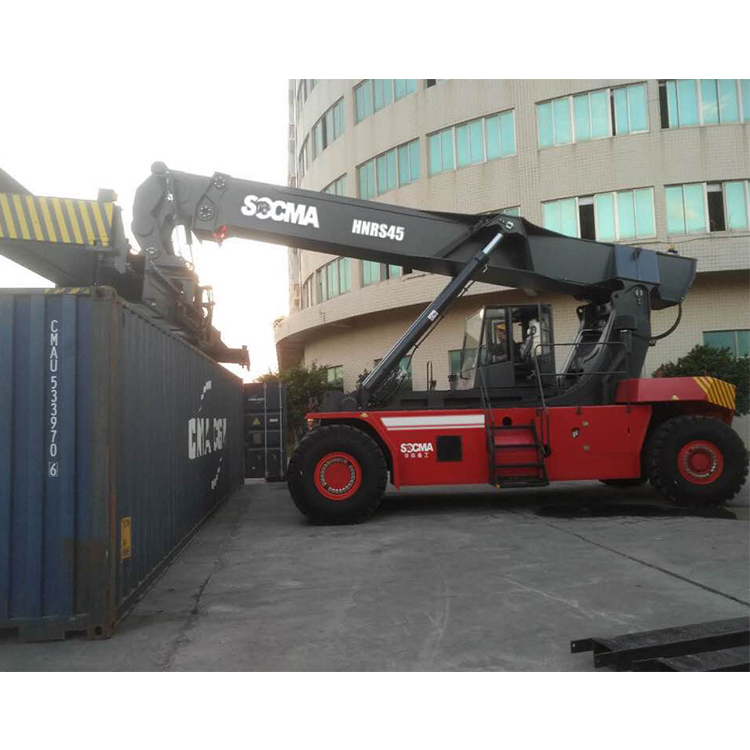

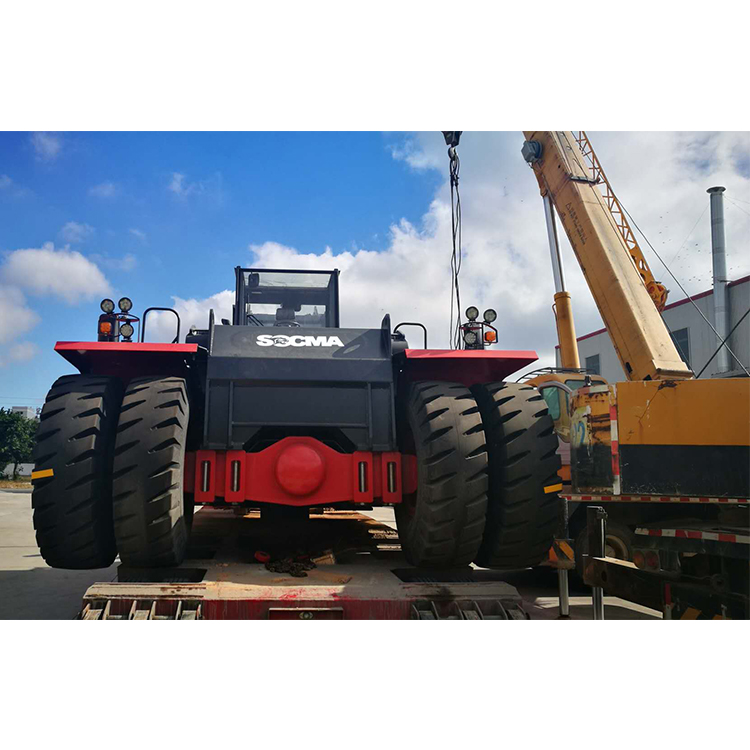

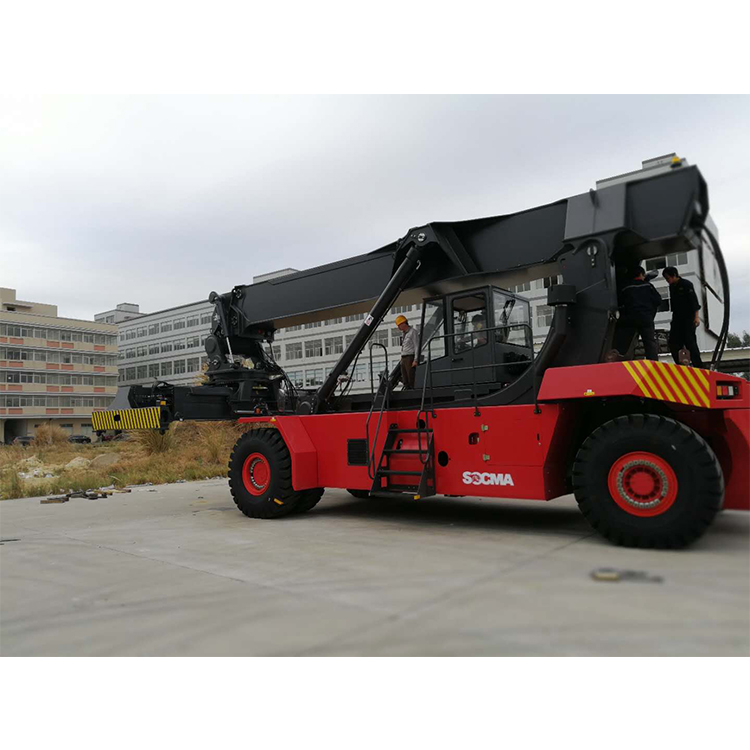

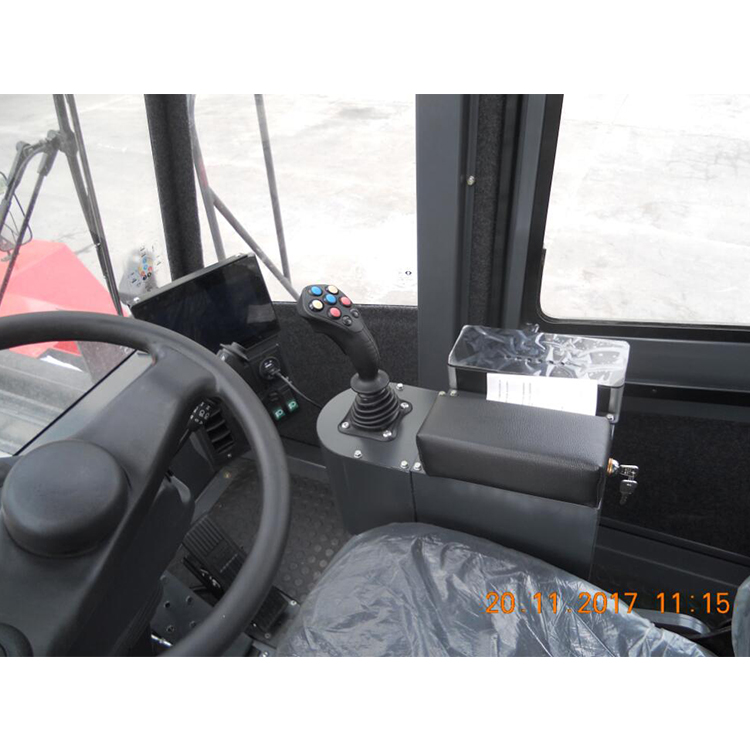

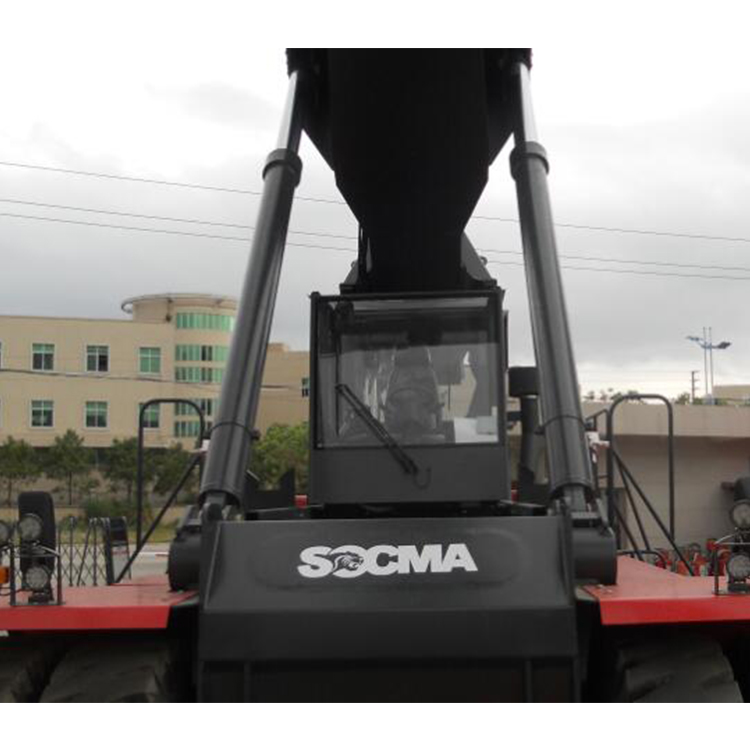

45 ton container reach stacker
truck model | HNR450CCZ5 |
device code | CCZ5 |
Rated capacity (Kg) | 31000 (front distance 1900mm) (5-HIGH) |
45000 (front distance 1900mm) (4-HIGH) | |
31000 (front distance 3850mm) (4-HIGH) | |
15000 (front distance 6350mm) (3-HIGH) | |
Maximum Lifting Height (mm) | 14850 |
Load center distance (mm): | |
Maximum lifting speed (mm/s): | 380/240 |
Maximum descending speed (mm/s): | 300/250 |
Driving speed(Km/h) | No. 1 4/4 |
September 2 | |
16/16/16 | |
No. 4 25/25 | |
Gradeability(%) | 30/15 |
Lower gap(mm) | 400 |
Minimum turning radius (mm): | 8200 |
Braking stop distance (m): | <=7 |
Overall length (mm) | 11350 |
Machine width(mm) | 6042 |
Overall height (mm) | 4600 |
wheelbase(mm) | 6000 |
Tread (mm) | Front 3033 |
Reverse 2750 | |
spreader | Spreader ELME 817 |
Use weight(Kg) | 73000 |
engine | Model M11-C330 |
Displacement 10800cc | |
Rated power/speed 246 Kw/2100 rpm | |
Maximum torque/speed 1458/1300 rpm | |
fetal | Front 4X18.00-25-40PR |
Rear 2X18.00-25-40PR |
Our factory has more than 50 years of forklift manufacturing experience. Products are professionally assembled
Technology, imported technology and innovative technology, won the national special equipment manufacturing
Approved to become a satisfactory product of China's machinery industry and a famous brand of China's machinery industry.
The company has passed the ISO9001: 2000 quality management system and CE certification, and won the "National
The first batch of contract-abiding and trustworthy units, "AAA credit enterprise", "China's top 500 machinery industry"
enterprise'.
