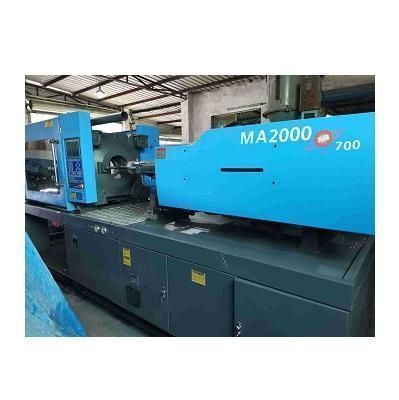

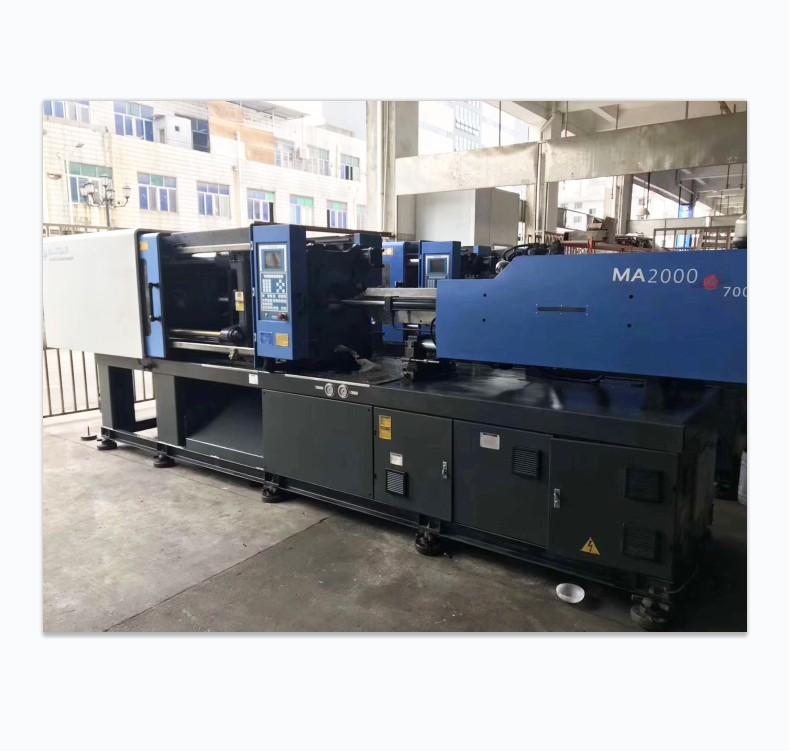

Used Haitian 200 Ton MA2000/700 Servo Motor Injection Molding Machine Haitian

Product details
port:ShenzhenSupply capacity:5 sets per month
Used for:PE PET PVC ABS full plastic materialbrand:sea ​​sky
State of health:usedoperating hours:0-2000
Shot Weight (grams):375 gramsWeight (kg):5300 kg
Machine weight:5.3Tmotor:servo
Fuel tank capacity:240LHopper capacity:16KG
Type of machine:hydraulicVideo shipment inspection:if
Machine size (length*width*height):5.07*1.35*1.99year:2017
Injection Rate (g/s):182 g/sHeater power:9.75KW
Mechanical test report:ifPackage preview:
payment terms:Western Union, T/T, MoneyGramApplicable industries:Manufacturing plants, machinery repair shops, food and beverage plants, construction works, energy and mining industries, others
style:horizontalMaximum pump pressure:16MPA
Showroom location:not anyplace of origin; place of origin:China
Injection pressure:169MPACore components:motor, engine
Product Description
Specification
thing
value
plastic processing
PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, polylactic acid
State of health
used
2017
style
horizontal
530mm
530mm
Clamping force(kN)
2000 kg
Plasticizing capacity (g/s)
182
Mold height(mm)
140mm - 490mm
Ejection stroke(mm)
140mm
Ejection force(kN)
62kN
Theoretical injection volume (cm³)
412 cubic centimeters
Injection rate (g/s)
182 g/s
type of machine
hydraulic
Injection weight (g)
375 grams
Screw speed (rpm)
1rpm - 196rpm
Screw diameter(mm)
50mm
Screw aspect ratio
20
distance between rods
530*530
Weight (kg)
5300
Types of
Tube head injection
place of origin; place of origin
China
Open stroke(mm)
490mm
model
MA2000
brand
Haiti
certified
CE ISO9001
Power (kW)
18.5kW
Warranty
1 year
Video technical support, online support
main selling point
energy saving
Applicable industry
Manufacturing plants, machine repair shops, food and beverage plants, construction works, energy and mining, other
After Warranty Service
Video technical support, online support
local service point
not any
Showroom location
not any
marketing type
used product
Mechanical inspection report
if
Video shipment inspection
if
Core component warranty
1 year
core components
motor, engine
for
PE PET PVC ABS full plastic material
machine weight
5.3T
brand
sea ​​sky
motor
servo
Injection pressure
169MPA
Maximum pump pressure
16MPA
Heater power
9.75KW
Machine size(L*W*H)
5.07*1.35*1.99
Hopper capacity
16KG
Fuel tank capacity
240L
