Australian Standard Copper Press Fit (AS 3688)

Supplier: Wenzhou Kasin Valve Pipe Fitting Co., Ltd.
Region: Zhejiang, China
Contact: Mr Jim song
Price: $0.50 / 10 - 999 pieces
$0.30 / >=1000 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Types of:	Australian Standard Copper Fittings	Process:	forging
port:	Ningbo	connect:	according to
standard:	as 3688	payment terms:	L/C, T/T, Western Union
brand:	Happy	Quality Control:	100% inspection
Supply capacity:	3,000,000 pieces per year	Packaging Details:	Export packaging, such as polybags, cartons, pallets.
size:	10.15.18.20.25.32.40.50.65.80.90.100.125.150.200	O-ring:	EPDM
header code:	round	model:	STP GC6028
pressure:	16 bar	application:	Air conditioner or refrigerator, plumbing, water H
shape:	equal	Material:	Copper, CW024A
Pack:	export packing	place of origin; place of origin:	Zhejiang, China

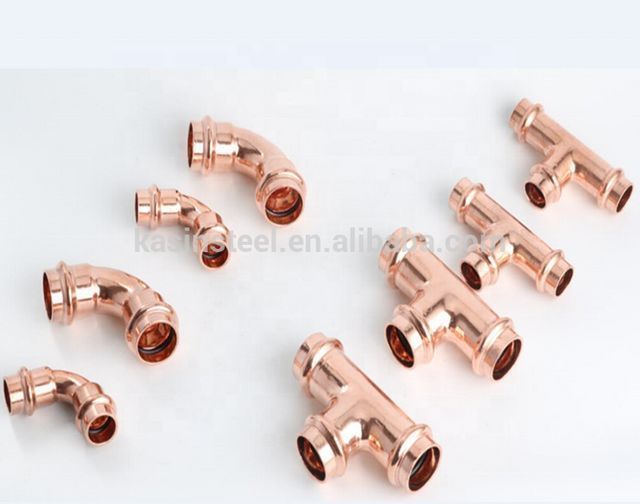

Australian Standard Copper Press Fit (AS 3688)

Australian Standard Copper Press Fit (AS 3688)

Australian standard copper compression fittings are widely used in drinking water supply, hot and cold water supply, heating, fire protection, gas supply, industrial oil pipeline system, etc.
Applicable medium: cold water, hot water, compressed air, gas, oil, etc.
Stamping tool: Novopress
proper temperature:-20°C to 120°C (for potable water systems and sanitary systems), 180°C for solar applications
Pressure: up to 1.6mpa (16bar)
Fields of use: Drinking water, heating, rainwater, solar systems, fire extinguishing systems, sprinkler systems (wet), shipbuilding, intermediate gas, cooling water pipes, compressed air (oil-free), boilers, water heaters
Press range:
Coupling——straight coupling FF stamping, reducing coupling FF stamping, Fitting reducer MF stamping
Elbows -- Bend 90°FM Press, Bend 90°FF Press, Bend 45°FM Press, Bend 45°FF Press
Tee -- equal diameter tee FFF press, different diameter tee FFF press
Other Accessories - End Cap Presses, Full Crossover FF Presses, Partial Crossover FM Presses, Wall Panel Elbow Presses

Our advantage
* Free samples:We can provide some free samples for evaluation.
* After-sales service:We provide customers with after-sales technical support.
* Strict quality control:We do 100% inspection before delivery to make sure every piece is of high quality.
