Small Horizontal Wood Pellet Fired Steam Output Biomass stea

Product details
Structure:Fire Tube;Rated evaporation capacity:2ton/h 2000kg/h;
Weight:8T;Place of Origin:Henan China (Mainland);
Supply Ability:40 Set/Sets per Month pellet fired steam boiler for sale;Output:Steam;
Type:Natural Circulation;Feed-water temperature:20;
Warranty:2 YEAR;After-sales Service Provided:Engineers available to service machinery overseas;
Material:Q345R Steel Plate;Voltage:380v 3-phase 50hz;
Port:Qingdao/Shanghai/Tianjin;Style:Horizontal;
Condition:New;Rated steam temperature:170/184/194;
Packaging Detail:Small Horizontal Wood Pellet Fired Steam Output Biomass steam Boiler for hotel packaging standard: Plywood case professional packaging transportation;Color:Customer's Requirement;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Usage:Industrial;
Thermal efficiency:83-84%;Dimension(L*W*H):3200*2000*2656;
Warranty:2 Years;Brand Name:Gentle wood fired boiler;
Working pressure:7bar/10bar/13bar;Certification:ISO;
Fuel:Coal-fired;Pressure:Low Pressure;
Application:Industrial Production;

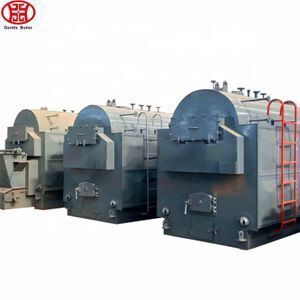

Small Horizontal Wood Pellet Fired Steam Output Biomass steam Boiler for hotel

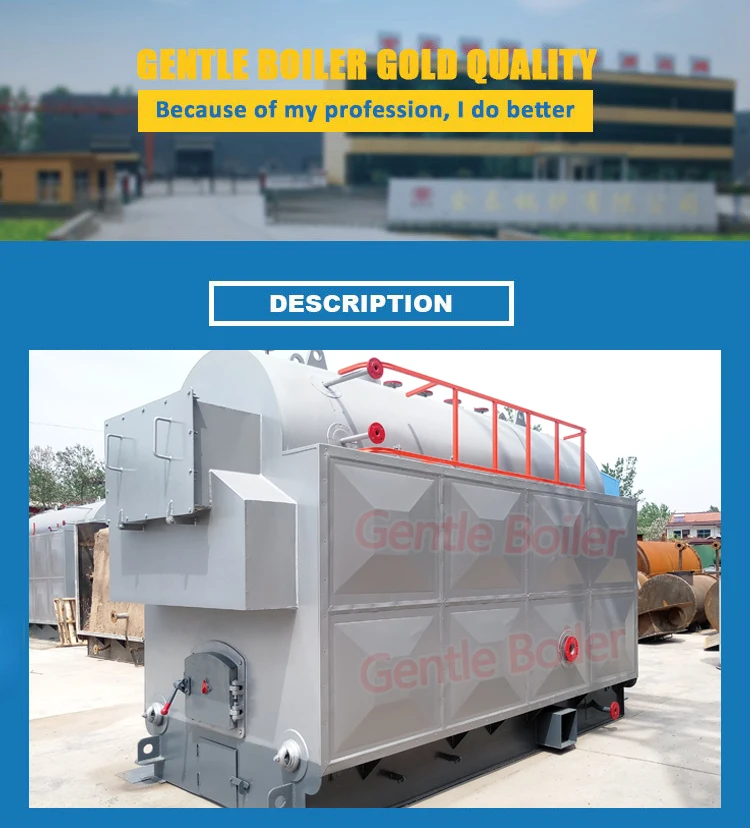

 biomass boiler banner2

Biomass-burned boiler, Straw briquette Fuel (Biomass pellet Or Biomass Molding Fuel, hereinafter referred to as BMF ) is the use of agriculture and forestry waste (such as straw, sawdust, bagasse, etc.) as raw material, after crushing, drying, mixing, extrusion process, such as molding made (such as granular, rod, block, etc.). It is mainly used to replace the traditional fossil energy (coal, oil and natural gas), and directly combust the new type of clean fuel in the biomass burning machine specially developed and developed. The components of biomass forming fuel BMF constitute BMF composed of combustible, inorganic and water.

Run the environmental protection, save fuel, automatically feed, slag, blower fan to adjust the frequency, the boiler fully automatic operation, can adjust the fuel quantity according to the load chan.

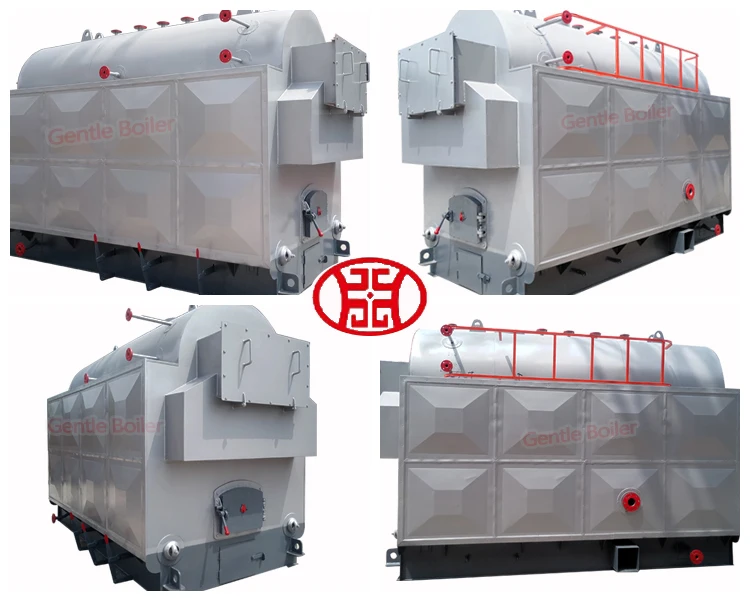

biomass boiler16

Technique Parameters



                              model          ItemDZH0.5-0.7-T
DZH0.5-1.0-T
DZH1-0.7-T
DZH1-1.0-T
DZH1-1.25-T
DZH2-0.7-T
DZH2-1.0-T
DZH2-1.25-T
DZH2-1.6-T
DZH4-1.25-T
DZH4-1.6-T
Rated evaporation capacityt/h0.5124
Rated pressureMPa0.7/1.00.7/1.0/1.250.7/1.0/1.251.25/1.6
Rated steam temperature170/184170/184/194170/184/194/204194/204
Feed water temperature20202020
Heating areaBody21.3132.12/32.12/33.2450.5/51.8/51.05/59.492.82/92.82
Economizer8.2810.56/10.56/27.627.669.76/33.21
Effective area of gratem21.282.13.365.2
Fuel type

             Biomass pellet,wood sawdust, bamboo chip, wood block, straw

Size:3*3*3mm, Moisture: ≤30% Ash content: ≤5% Lower heating

value:Q > 12000KJ/Kg

Fuel consumptionkg/h~ 150~ 301~ 602~ 1190
Flue gas temperature~ 165~ 165~ 165~ 165
Thermal efficiency%91919191
Weight of biggest part for transportiont8121522
Overall dimension of biggest part for transportationmm3288*2000*26564108*2200*29154700*2300*32705600*2550*3563



Biomass Pellet (Biomass Molding Fuel) is a kind of biomaterial that is made by cutting, drying, mixing and extruding agricultural and forestry wastes (such as straw, sawdust, bagasse, etc.) (Such as granular, rod, block, etc.) fuel, which is mainly used to replace traditional fossil fuels (coal, oil and natural gas) and directly burn in a specially developed biomass burning machine.

industry biomass boiler

<<< Get Categories & Factory Price Now >>>

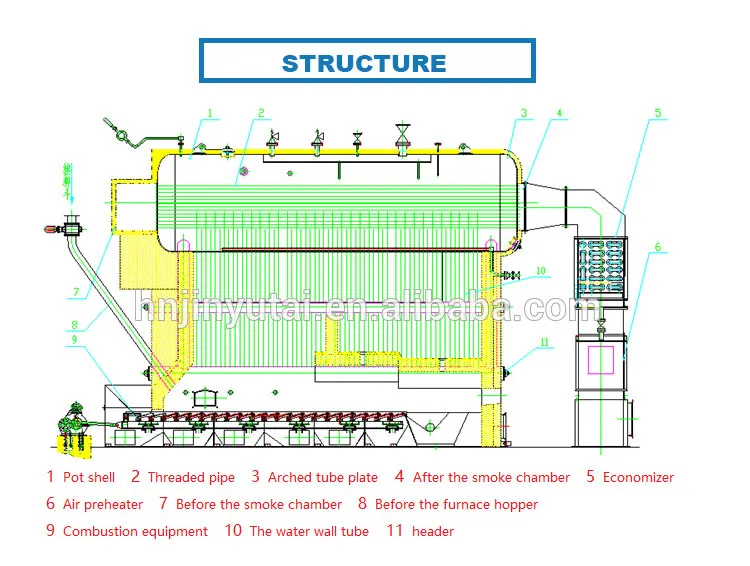

1.Using the arch tube plate and the screw pipe, the cylinder is made of the quasi-rigid body to the quasi-elastic body, and the tensioning part of the tube plate is eliminated and the stress is reduced.The pipe is changed from double return to single return to solve the problem of tube plate crack.

2.The lower part of the drum is arranged with ascending pipe line,  and the high temperature area of the pot can be well cooled, preventing the drum from the bottom of the drum.

3.Compact structure, compared with the same type of boilers, small size, saving boiler room infrastructure investment.

4.Stable operation, convenient adjustment and sufficient output.

5.The heat transfer coefficient and thermal efficiency have been improved by the use of spiral smoke tube, which has a disturbing effect on the pipe.The smoke pipe is not easy to accumulate ash, play the role of self-cleaning.

6.The eight - word wall in the furnace and the export smoke window have some dust - lowering effect.The original dust concentration of the boiler is controlled below the standard, which ensures that the boiler dust emission meets the national environmental protection regulations.

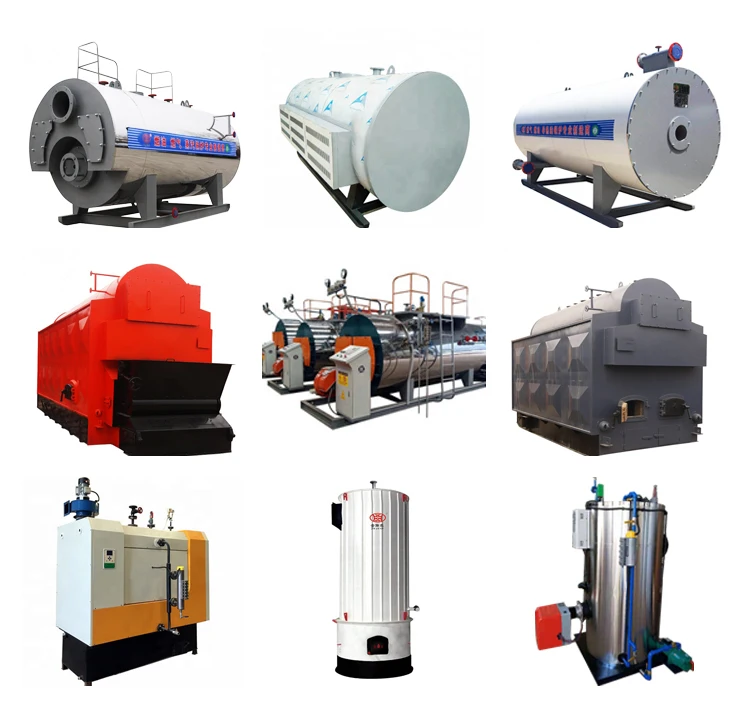

Related Products

industry biomass boiler

Cases

industry biomass boiler

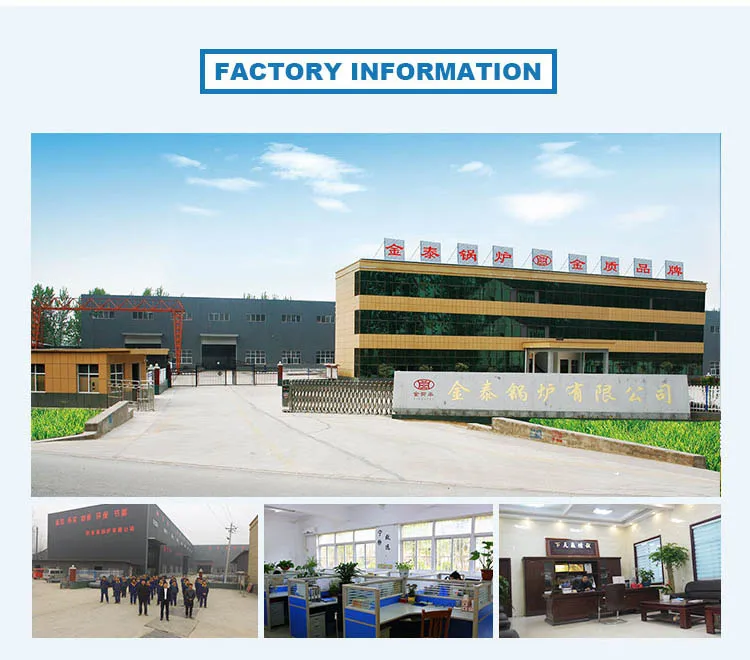

Factory & Company

industry biomass boiler

industry biomass boiler


Henan gentle industry co., ltd, a R&D and production base of thermal equipment of shanghai Zhenlv Environment Protection Technology Co., Ltd, is a level-B producer permitted by General Administration of Quality Supervision, Inspection and Quarantee. Is a company specializing in the production of gas fuel steam boiler, hot water boiler, thermal oil boiler manufacturers.Gentle company covers a land of 90 mu.It focus on development of efficient, safe, enviroment-friendly and energy-saving heating equipment.Its experienced in design and development and owns domestically advanced heat-supply technology and equipment. The special equipment and production line for processing, soldering, flaw-detection and testing are comprehensive, precise and advanced.

industry biomass boiler



<<< Get Categories & Factory Price Now >>>

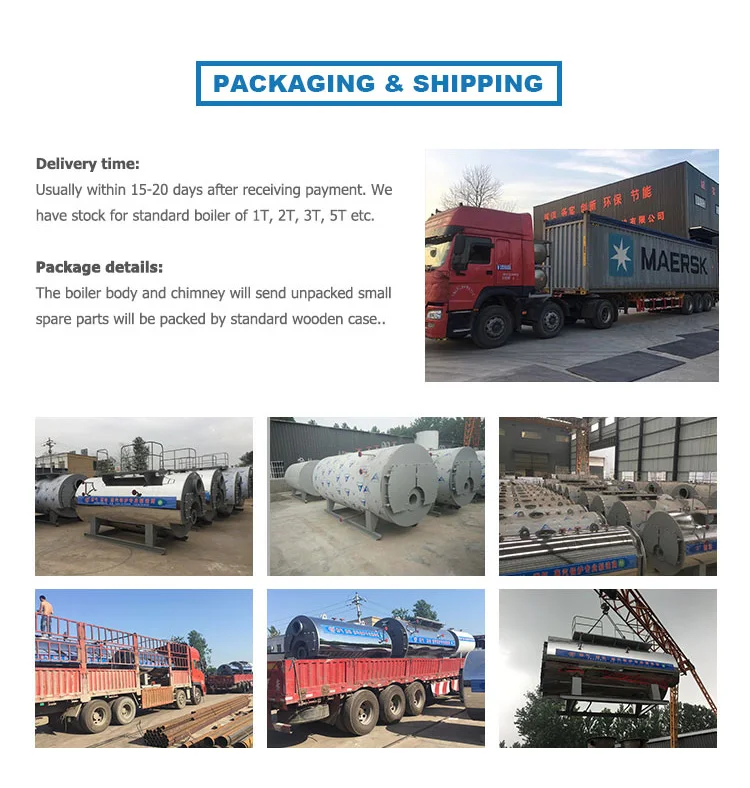

Delivery

industry biomass boiler

FAQ

FAQ

1. What can you get from us before quotation?

A:After confirming all the details about your requirement, we will provide you with several sets of related project pictures we have done before. Once you are satisfied with our strength and our products, lets continue.

2. Below are the details need your confirmation before quotation.

 A: 2.1. What type boiler you need, steam boiler, thermal oil boiler or hot water boiler?

     2.2. What is the fuel type for you boiler, biomass(coal, shell, pellet etc.), gas or oil?

     2.3. What is the requirement for oil/steam temperature and pressure?

     2.4. What is the evaporation capacity of boiler required?

3. How long can we get the reply with detailed information for our project?

 A: For single boiler, usually you can get the detailed offer within 1 day after details confirmed; For whole set project; the time takes longer and usually 2-3 days for tentative plan and process flow drawing.

4. What is your advantages for the whole project?

 A: We have been in the boiler equipment fields for many years and obtain a good reputation with the up/down partner. So we have much richer resource in different fields like the burn system PIC control instrument, raw material qualiy selecting shipping installation etc. We are comprehensive company with experiences for different fields.

5. What is warranty for your equipment and whole set of project?

 A: For boiler body, we provide you with 2 year quality warranty.for all the parts of our equipment by repairing or replacing, damage caused by human excepted. For whole project, our engineer will stay in your site for equipment installation, debugging and training till you get standard products from the equipment. If necessary, we will also help you find an engineer to work for you for 1 or 2 year for your plant management.
