Total number of workers: | 5-people | control: | semi/automatic |
train: | free | Packaging Details: | Wooden case, export standard. |
Warranty: | 1 year | place of origin; place of origin: | Jiangsu, China |
payment terms: | L/C, T/T | Package preview: | |
State of health: | new | Power Consumption: | 50KW or more |
Building plant: | 1000 square meters | port: | Shanghai |
system: | PLC Delta | model: | 5 MW |
Annual output: | 5 MW | Supply capacity: | 250 sets per year |
Laminator: | Semi-automatic 2200*2200 mm | brand: | reopen |

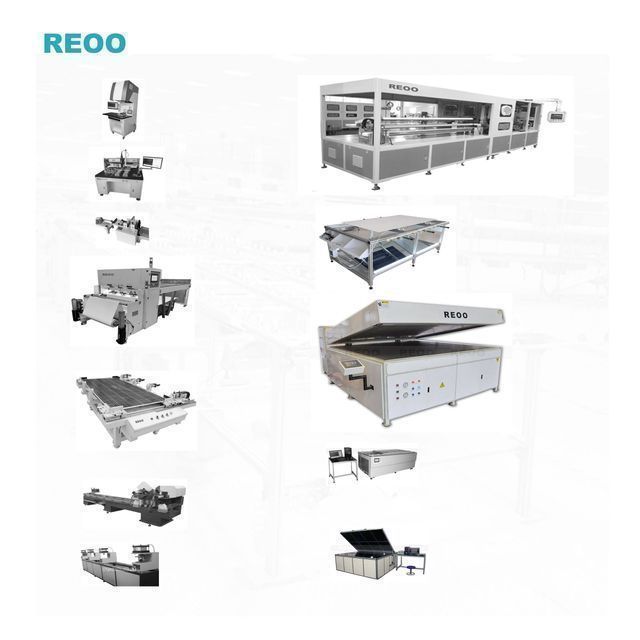

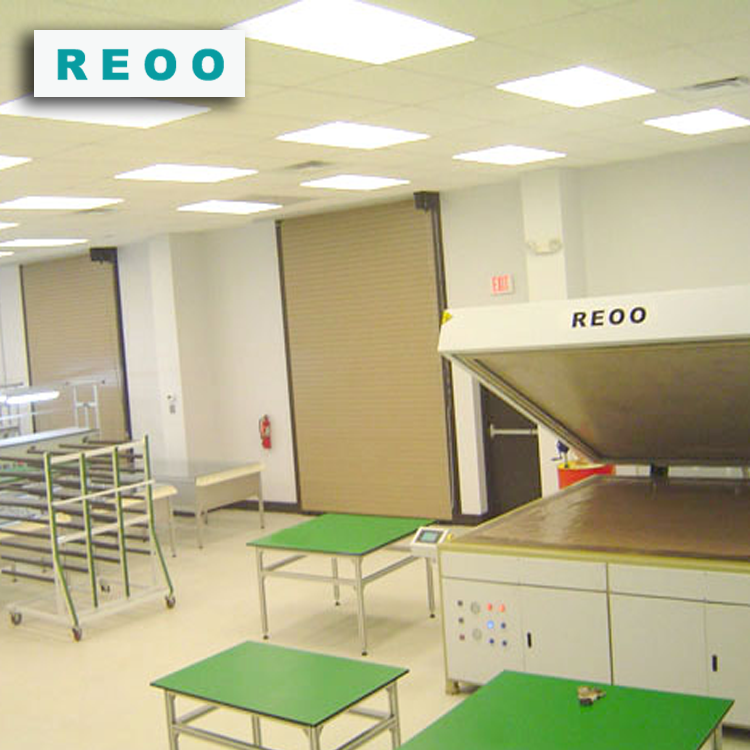

5MW solar panel production line

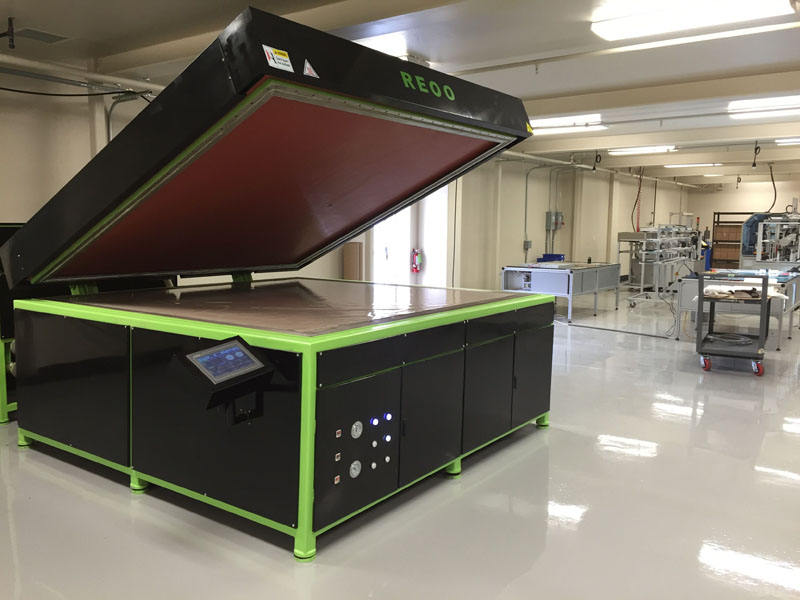

1. Semi-automatic laminating machine (RO-B1)
http://preview.alibaba.com/product/537543641-209683101/REOO_quality_guarantee_semi_auto_solar_panel_lamintating_machine_Turnkey_basis_.html
temperature control: | PID intelligent temperature control system |
Temperature uniformity in the working area: | ≤±3℃ |
Temperature control accuracy: | ≤±1℃. |
Temperature control range: | 30°C - 180°C |
Lamination time: | 2-4 minutes (not including setting time) |
Heating rate: | 50 to 60 minutes at room temperature at 135°C |
Vacuum rate: | 30 l/s |
Vacuum time: | 90 seconds |
Silicone sheet size: |
2650mm*1650mm |
Production capacity: | |
300 WP*1 piece/time*3 times/hour*8 hours*300 days= 2.16 MWP/year. 8 hours/day |

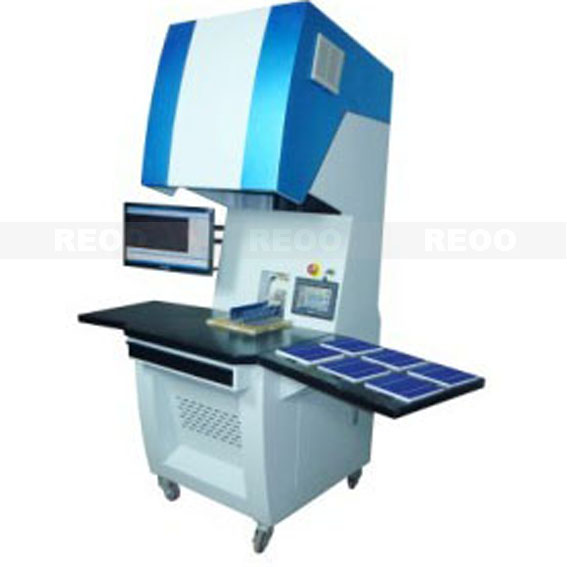

2. Solar battery tester
http://reoo.en.alibaba.com/product/945952587-209683101/Solar_cell_tester_for_solar_module_manufacturing_line.html
Light intensity: | 100mW/cm2 (continuously adjustable range 70-120W/cm2) |
Inhomogeneity of light intensity: | ≤±2% |
Light intensity instability: | ≤±2% |
Consistency of test results: | ≤±1% |
Electrical performance test error: | ≤±2% |
Single flash time: | 10 milliseconds |
Effective test range: | 200x200mm |
Measuring voltage: | 0~0.8V (resolution 1mV) |
Measuring current: | 0~20A (resolution 1mA) |
3. Solar module tester
http://reoo.en.alibaba.com/product/945964367-209683101/REOO_Grade_A_solar_cell_module_tester_high_quality_low_investment.html
Light spectrum: | PID intelligent temperature control system |
Light intensity: | 100mW/cm2 (continuously adjustable range 20-120W/cm2) |
Inhomogeneity of light intensity: | ±2% |
Light intensity instability: | ≤±2% |
Consistency of test results: | ± 0.5% |
Electrical performance test error: | ≤±1% |
Single flash time: | 10 - 100 milliseconds |
Effective test range: | 2000x1200mm, 5 – 300W |
Measuring voltage: | 0~100V (resolution 1mV); |
Measuring current: | 0~20A (resolution 1mA); |
power supply: | 220V±10% 5A |
Grass weight: | 350 kg |

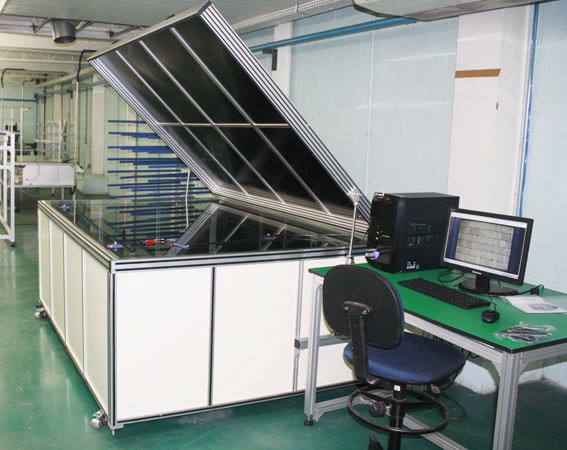

4. EL tester
http://reoo.en.alibaba.com/product/586464140-209683101/2016_New_REOO_Solar_module_EL_tester_electroluminescent_inspection_16_million_pixel.html
Test module: | 2100 mm x 1200 mm |
CAN test module: | 10A, 60V max |
include: | Cabinet (including infrared camera) + computer + software |
Pixels: | 4928*3264 = 16 million |
Exposure time: | 0.1 S-25.5 S adjustable |
strength: | 220V 10A or customized |
Working temperature: | 10-30℃ |
humidity: | 20 - 70% |
power consumption | 1 kW |

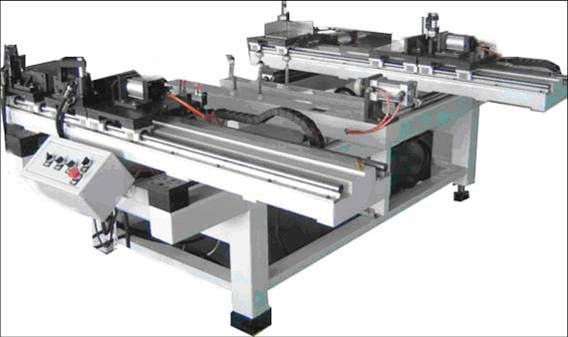

5. Framing machine
http://reoo.en.alibaba.com/product/1440807009-209683101/Easy_operation_and_high_quality_solar_panel_framing_machine_for_solar_assembly_line.html
size: | 3000*1700*920mm |
Solar panel minimum size: | 350*600*50(35)mm |
Solar panel maximum size: | 1100*2000*50(35)mm |
strength: | 0.1KW, AC220V/50Hz |
weight: | 1100 kg |
Application of aluminum frame: | 35*50mm |

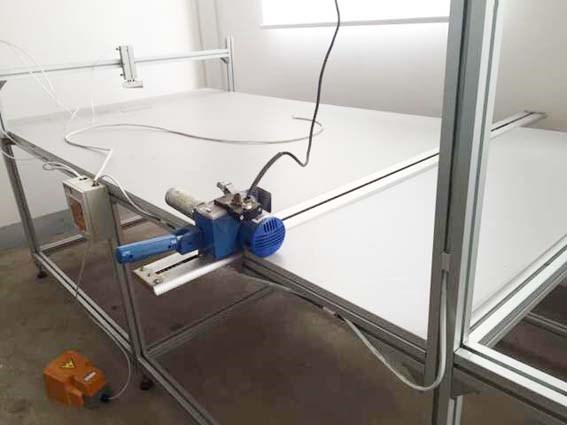

6. EVA, back panel cutting station
http://reoo.en.alibaba.com/product/60450257534-209683101/REOO_EVA_and_TPT_cutting_machine_for_solar_panel_production_line_with_electrical_knife.html
7. Soldering station for solar cells
http://reoo.en.alibaba.com/product/528719713-209683101/Easy_operation_soldering_station_table_for_solar_panel_production_line.html
worksheet | 2140mm*1200mm*1900mm | 1 |
electric soldering iron | Smart lead-free 203H | 3 |
Single welding heating plate | Soldering preheat | 2 |
Single welding controller | constant temperature | 2 |
String welding heating plate | Soldering preheat | 1 |
String welding controller | constant temperature | 1 |
String welding mold | 125*125 | 1 |
String welding mold | 156*156, 2 measures | 1 |
String welding mold | 156*156, 3 lines | 1 |
String tray | 12 cells | 1 |
work chair | mobile | 3 |

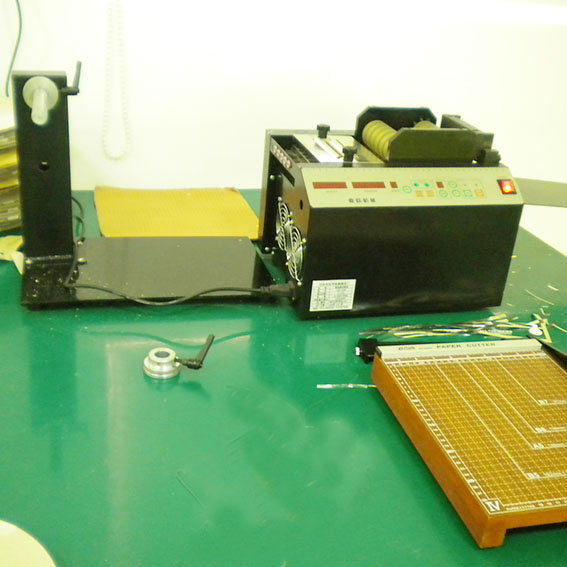

8. Ribbon cutter
http://reoo.en.alibaba.com/product/1095265467-209683101/Soldering_ribbon_cutting_machine_used_in_solar_panel_manufacturing_line.html
Electrode material: | toothed copper alloy |
Straighten: | 98% |
Cutting accuracy: | L+-0.5+0.002L |
Cut length: | 1-9999.9mm |
Maximum Ribbon Size: | 8*0.2mm |
Processing speed: | 350/minute |
strength: | 220V 50Hz |
strength: |
Maximum 250W, minimum 20W |
volume: | 395*265*355mm |

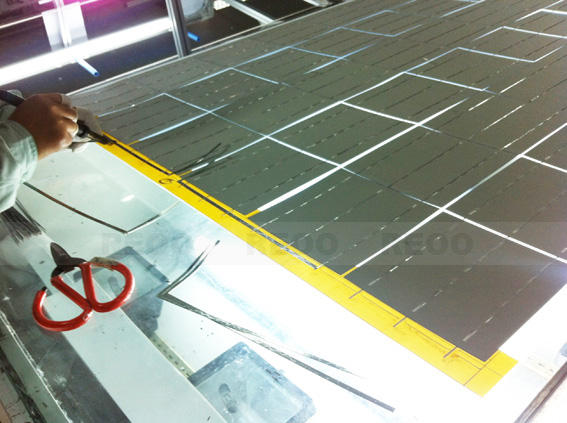

9. Laying station
http://reoo.en.alibaba.com/product/591011556-209683101/REOO_Laying_up_station_for_solar_panel_production_line.html
10. Laser scribing machine
http://reoo.en.alibaba.com/product/999032838-209683101/REOO_High_efficiency_solar_cell_laser_dicing_machine_cutting_machine.html
Laser wavelength: | 1064mm |
Laser mode: | semiconductor |
Laser maximum output power: | ≥50W |
Laser modulation frequency: | 200Hz~50KHz (adjustable) |
Working scale: | 320mm*320mm |
Scribing speed | 120 mm/s |
Marking Line Depth: | 0.01-0.3mm (depending on material) |
using electric: |
220V/50Hz/3KW |
cool down: | Water/compressor cooling |
Check out our video on Youtube for more details. Please click on the URL below:
https://www.youtube.com/watch?v=QhR81yLzNIs
https://www.youtube.com/watch?v=HTQ1AJD-1bs
All free standard accessories will be provided!
Vacuum pump:1 set
Cooling water pump:1 set
Teflon plate:2.
insulation gloves:2 Paris.
Graphite seal:1 set.
High pressure pneumatic glue gun:1.
Smart lead-free soldering iron with dedicated tip:6
Trays for immersing ribbon in flux:1
Filter:1
Dryer:1 item
Laminated constant temperature soldering iron:4
Electric trimming knife:1 item
Latex finger cots:1000
Solar cells for training:100 pieces.
Total: USD6200.00 Free! ! !
Install:
We arrange our engineer to install the machine in buyer's factory.
The travel expenses, board and lodging expenses and transportation expenses for installation by our engineers/technicians are to be borne by the buyer. REOO company bears the salaries of engineers/technicians.
train:
We provide overseas and local training for engineers and technicians in operation and maintenance.
The buyer is responsible for air tickets, accommodation, food and training materials.
Package:
All equipment, tools, accessories and goods are properly packed. All packages may be opened
Therefore, customs inspection and packaging should be designed to facilitate opening and subsequent repackaging.
Shipping information should be printed in bold on each package.
Manuals/Documents:
Operation and maintenance manuals for all equipment in English and soft copy on CD
(Compatible versions: MS Word/PDF).
raw material:
We provide all materials for producing solar panels from China for trial production and formal production,
Buyer pays the fee.
