payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal | Maximum tangential moment (N m): | 1000 Nm CNC Turret |
application: | turning tool | State of health: | new |
Video shipment inspection: | if | Weight (kg): | 80 |
Warranty: | 1 year | Package preview: | |
Packaging Details: | 1. The inner layer is polyethylene 2. The outer carton packaging 3. Wooden box | Applicable industries: | Manufacturing plants, machine repair shops, farms, lathe parts |
Marketing Type: | 2019 Hot Products | Tool change time: | 2.8s or 3.0s CNC turret |
Repeatability ("): | ±2.0 CNC Turret | Mechanical test report: | if |
brand: | Drake | Core components: | motor |
Supply capacity: | 10226 sets per month | High rigidity turret center height: | 80 CNC Turret |

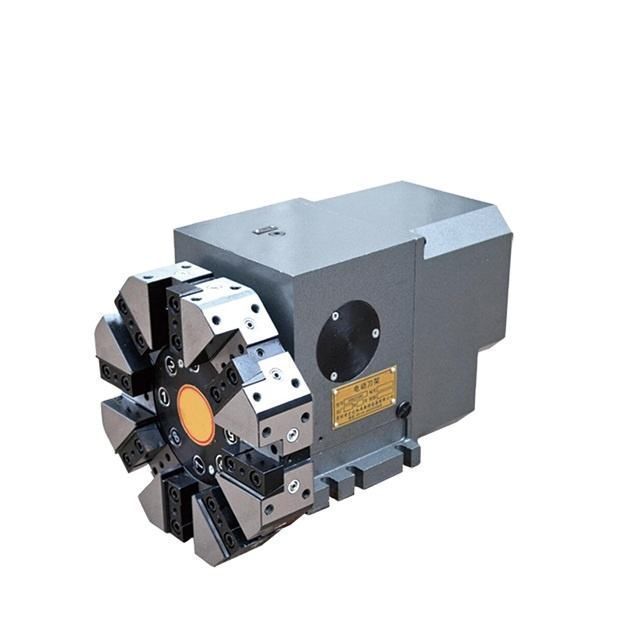

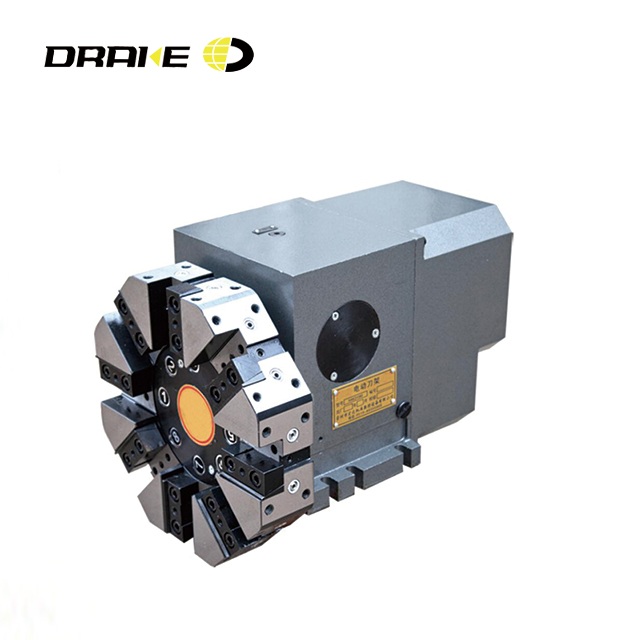

place of origin; place of origin: | Jiangsu, China | product name: | 8 stations HAK31080 NC TURRET CNC tool lathe power turret |
Number of high rigidity turret stations: | 6 or 8 station CNC turret | Showroom location: | not any |
After-sales service provided: | online support | After warranty service: | online support |
port: | Shanghai, Ningbo, Tianjin, Qingdao, Dalian, |
Technical Features:
HAK31The series of horizontal CNC turrets adopt the working principle of worm drive, the three-face gear coupling is used as the precision indexing mechanism, the large screw rod is clamped, and the Hall unit sends signals. Indexing without cutterhead lifting, stable rotation, low noise, high rigidity, multi-station, built-in cooling. It is the best choice for processing complex parts.
1. Confirm the parameters when selecting the turret model. Select the number of stations according to the number and complexity of the part process.
2. Select the tool specifications according to the machine tool model and cutting force. Choose front or rear turret according to the cutting direction of the machine tool.
3. After the horizontal turret boring tool holder is installed, drill the inner hole according to the size of the boring bar and mark it accordingly. When installed later, the tool should be fixed in place.
4. The distance that the tool protrudes from the upper shell is generally not greater than 2/3 of the size of the upper shell. Please note when placing an order if the limit is exceeded.
5. When the turret is running, it is forbidden to touch it with hands or other things to avoid injury or damage.
6. If the user has special requirements or parameters have changed, please provide some data and contact our company.
performance parameter
model/data |
Center height (mm) |
station number |
Tangential moment (N.m) |
Repeatability (") | Tool change lock time | ||
45° | 60° | ||||||
HAK31063 | 63 | 6 | 8 | 600 | ±2 | 2.6 | 2.8 |
HAK31080 | 80 | 6 | 8 | 1000 | ±2 | 2.8 | 3 |
HAK31100 | 100 | 6 | 8 | 1500 | ±2 | 3.6 | 3.8 |
HAK31125 | 125 | 6 | 8 | 2500 | ±2 | 4 | 4.2 |
HAK31160 | 160 | 6 | 8 | 4000 | ±2 | 4.3 | 4.5 |

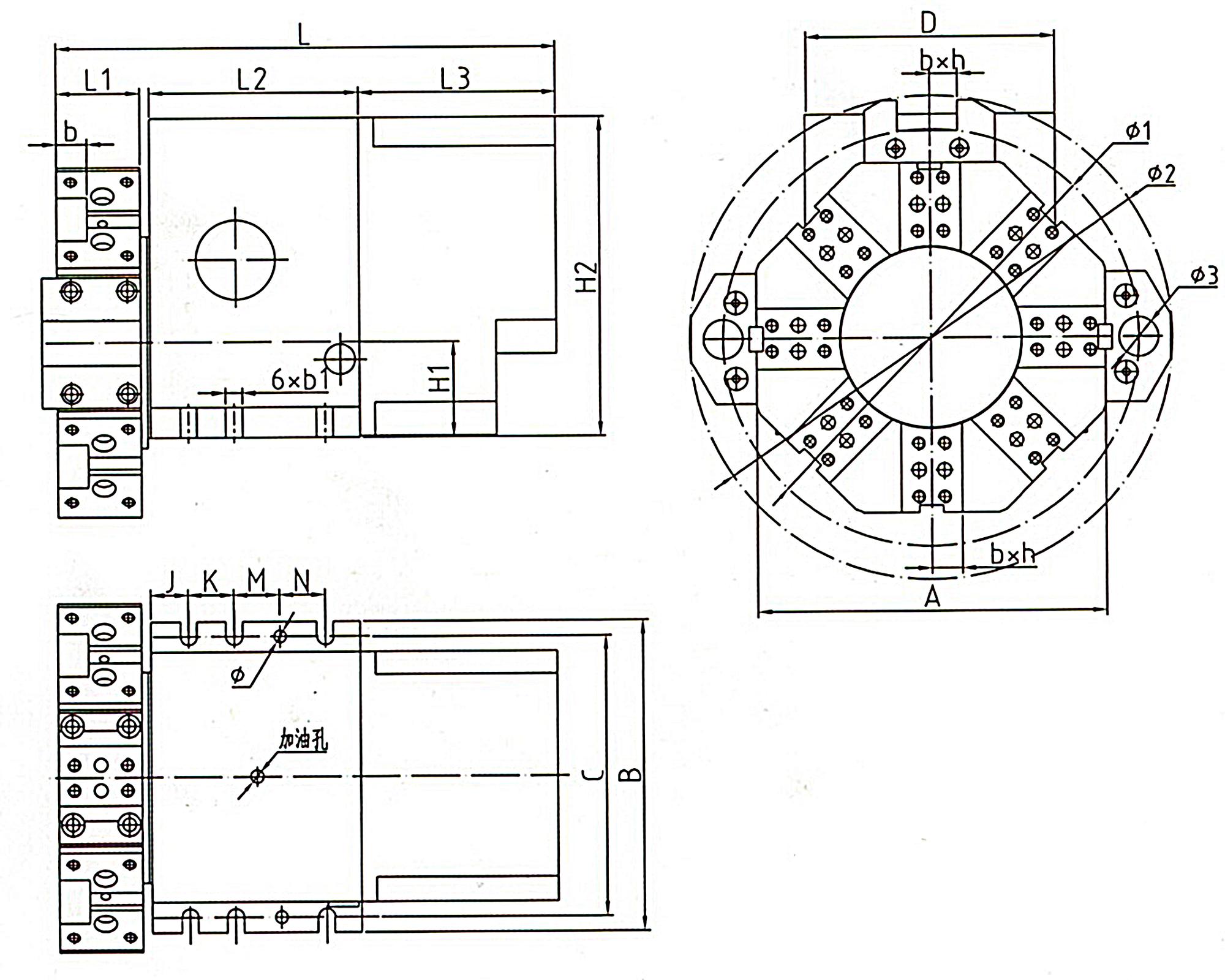

Size parameters
model/dim | A sort of | Second | C | Ding | H1 | hydrogen | b1 | b | h |
HAK31063 | 230 | 205 | 185 | 165 | 63 | 210 | 11 | 20 | 20 |
HAK31080 | 260 | 210 | 190 | 180 | 80 | 230 | 11 | 25 | 25 |
HAK31100 | 300 | 240 | 220 | 200 | 100 | 260 | 13 | 25 | 25 |
HAK31125 | 340 | 288 | 260 | 230 | 125 | 300 | 18 | 32 | 32 |
HAK31160 | 460 | 380 | 345 | 306 | 160 | 380 | twenty two | 40 | 40 |
model/dim | large | L1 | L2 | L3 | Jay | Potassium | rice | no | φ | φ1 | φ2 | φ3 |
HAK31063 | 329 | 55 | 138 | 130 | 25 | 30 | 30 | 30 | φ8 | φ274 | φ318 | φ25 |
HAK31080 | 350 | 60 | 147 | 130 | 32 | 32 | 32 | 32 | φ8 | φ310 | φ366 | φ25 |
HAK31100 | 384 | 72 | 164 | 140 | 25 | 40 | 30 | 30 | φ10 | φ360 | φ420 | φ32 |
HAK31125 | 459 | 85 | 204 | 150 | 32 | 44 | 43 | 43 | φ12 | φ420 | φ492 | φ40 |
HAK31160 | 564 | 115 | 265 | 160 | 40 | 48 | 56 | 48 | φ22 | φ560 | φ640 | φ50 |
