Plastic extruder single screw volumetric feeder

Product details
Applicable industries:manufacturing plantstructure:horizontal conveyor
Types of:Horizontal Screw ConveyorFeed accuracy:more or less 0.5-1%
Core components:PLC, motorproduct name:Weight measurement system
Weight (kg):320 kgOutput (kg/h):1 - 6000 kg/h
Load cell:METTLER TOLEDOapplication:powder
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramport:China's main ports
place of origin; place of origin:Henan, ChinaAutomatic level:automatic
Mechanical test report:ifCore component warranty:1 year
Marketing Type:2019 Hot ProductsWarranty:one year
sensor:SiemensMaterial:304 stainless steel, stainless steel
Showroom location:not anyMan-machine interface:delta
R:0-3000L/HSupply capacity:100 sets of gravity dosing systems per month
Feed range:Granules, free-flowing powders, fibrous materials...brand:bart
Voltage:220-480V 50/60HZ three-phaseVideo shipment inspection:if
Dimensions (L*W*H):According to your requestsPackaging Details:Gravity metering system housed in a composite wooden box
State of health:new
Product Description

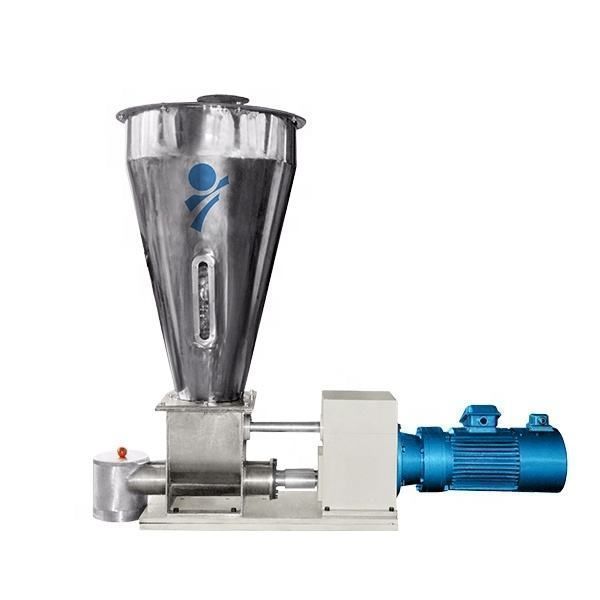

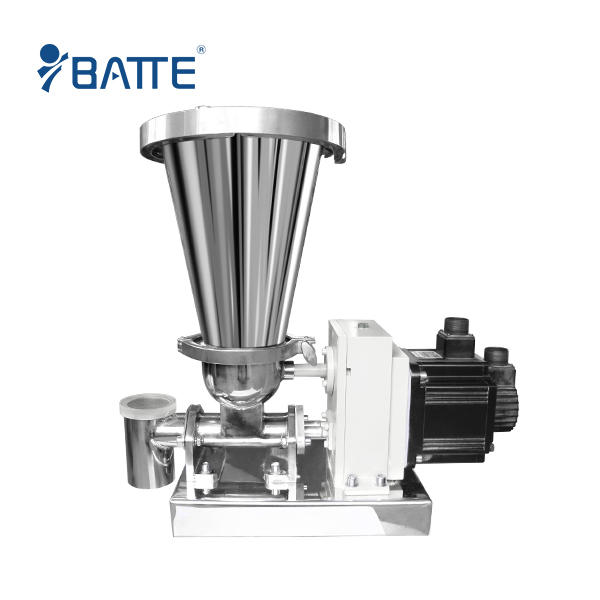

Single screw gravity quantitative feeder
High-precision gravity feeder fully meets the needs of pharmaceutical, chemical, food, plastic and other fields
and rubber etc. Configurable options can meet the needs of factories in terms of hygiene, explosion-proof, waterproof, and anti-corrosion
environmental and other regulatory requirements.
Single-screw loss-in-weight metering feeder: Feeding volume: 4-800L/H Feeding range: granule, free-flowing powder, etc. Accuracy: ±0.2% Single-screw loss-in-weight metering feeder: Feeding range: granule, flow Good powder and other precision: ±0.5% BAT-MF-SS28 feed rate: 4-50L/H feed range: granules, free-flowing powder, etc. Hopper: 40L feed accuracy: ±0.2% BAT-MF-SS46 feed Rate: 20- 500L/H Feeding range: Granules, free-flowing powder, etc. Hopper: 40-60L Feeding accuracy: ±0.2% BAT-MF-SS64 Feeding rate: 100-800L/H Feeding range: Granules, free-flowing Flowing powder, etc.
Product parameters
Types of
tighten
Specification
capacity
(length/height)
drive
power (kw)
hopper
(optional)
feed
accuracy
BAT-MF-SS28
28
10-100
1.1
40-80
±0.2%
BAT-MF-SS38
38
30-300
1.1
40-100
±0.2%
BAT-MF-SS46
46
40-400
1.5
40-120
±0.2%
BAT-MF-SS64
64
50-500
2.2
40-150
±0.2%
