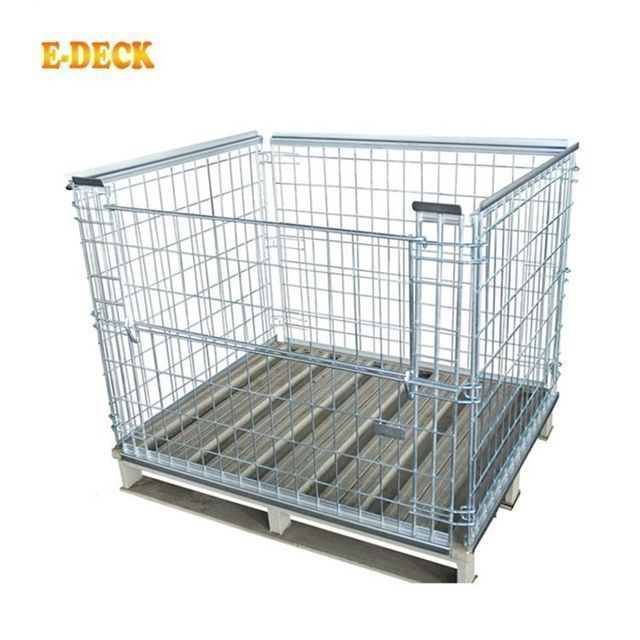

Metal Storage Industrial Stackable Foldable European Standard Logistics Rigid Bottomless Wire Mesh Pallet Cage
-
Supplier: Hangzhou E-Deck Trading Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Weiguo Ying -
Price: $52.00 / 50 - 479 sets
$42.00 / 480 - 2399 sets
$33.00 / >=2400 sets -
Min. Order: 50 sets
| place of origin; place of origin: | Zhejiang, China | Material: | Low carbon steel Q235 |
| Wire Gauge: | 5-12 mm | payment terms: | L/C, D/P, D/P, T/T |
| Supply capacity: | 6000 sets of cage pallets per month | Loading capacity: | 800 kg |
| Packaging Details: | Plastic cable ties + stretch film, easy loading and unloading by standard forklift or cage pallet truck. | Price Type: | FOB, CIF, DDU, factory price, etc. |
| Grid size: | 60x103mm | model: | EDP1 |
| feature: | foldable, stackable | port: | Dalian/Qingdao/Xiamen/Nanjing |
| life: | Up to 3 to 5 years of proper handling | brand: | electronic deck |
| Dimensions Ext.: | 1200Lx800Wx1000H mm | Type of company: | China professional manufacturer |
| Surface treatment: | black/hot dip galvanized/zinc/painted |
Metal Storage Industrial Stackable Foldable European Standard Logistics Rigid Bottomless Wire Mesh Pallet Cage

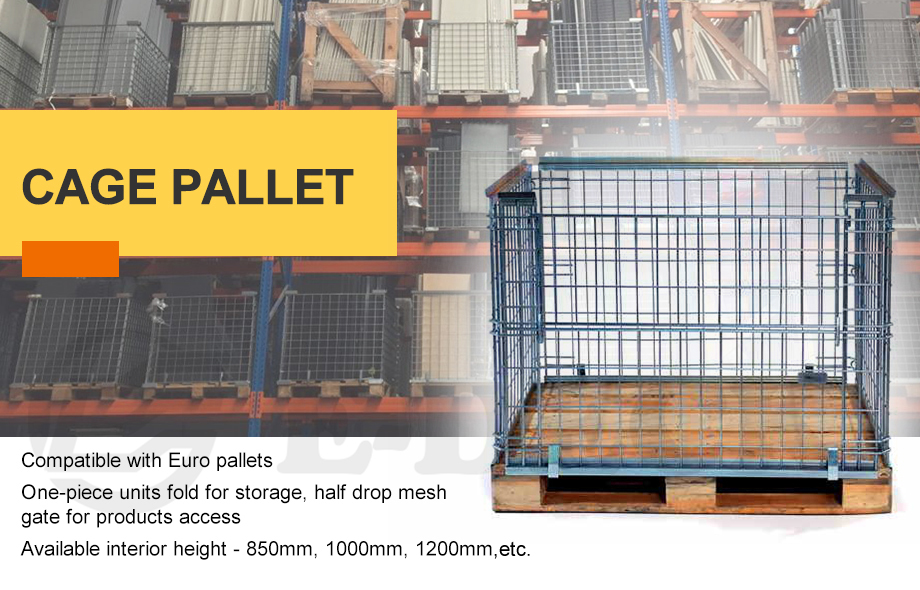

Compatible with Euro-pallets, one-piece unit folds away for storage, half drop net door for product access, available internal heights - 850mm, 1000mm, 1200mm etc.
Wire Mesh Pallet Cage Specifications
| same design, different size | ||||||
| model. | Dimensions |
Internal High |
metallic line Counting |
grid size |
Loading capacity |
to load 1x40'GP |
| LxWxH(mm) | mm | mm | mm | Kilogram | set | |
| EDP1 | 1200x800x1000 | 850 | 5-12 | 60x103 | 800 | 480 |
| EDP2 | 1000x1200x1450 | 1300 | 5-10 | 60x105 | 1000 | 280 |
| EDP3 | 1200x1000x1200 | 1200 | 5-10 | 60x105 | 800 | 460 |
| EDP4 | 1200x1000x1000 | 1000 | 5-10 | 60x105 | 800 | 480 |
| EDP5 | 1200x800x1000 | 1000 | 5-10 | 60x105 | 800 | 480 |
| Material | Low carbon steel Q235 | |||||

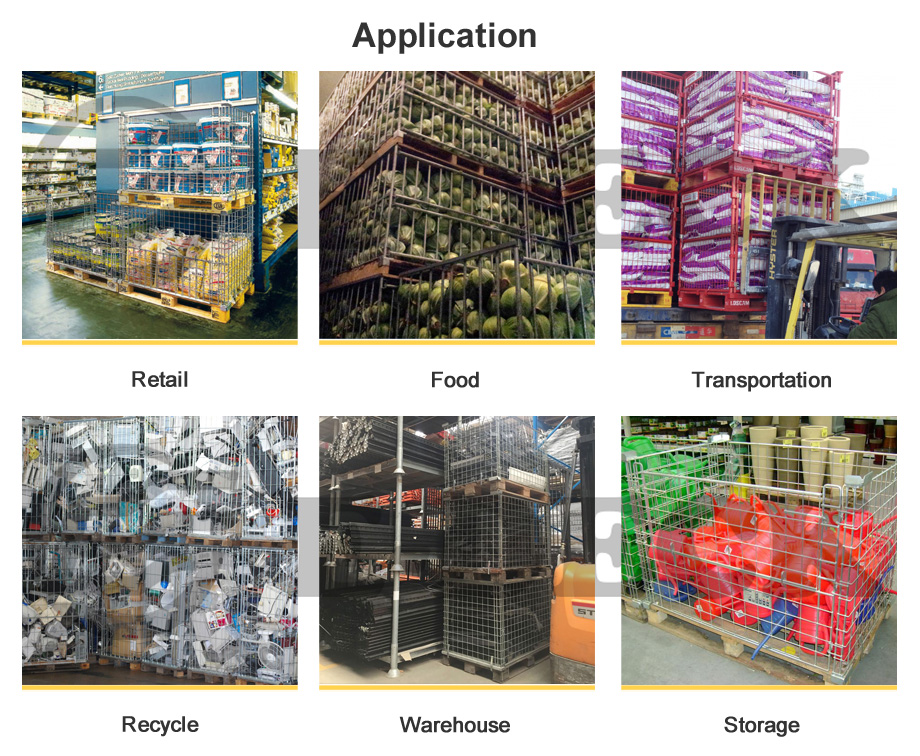

| Application field | Warehousing, logistics, mass retail, agriculture, electronic equipment, etc. | |||||
| Finish | Zinc/Hot Dip Galvanized/Powder Coated | |||||

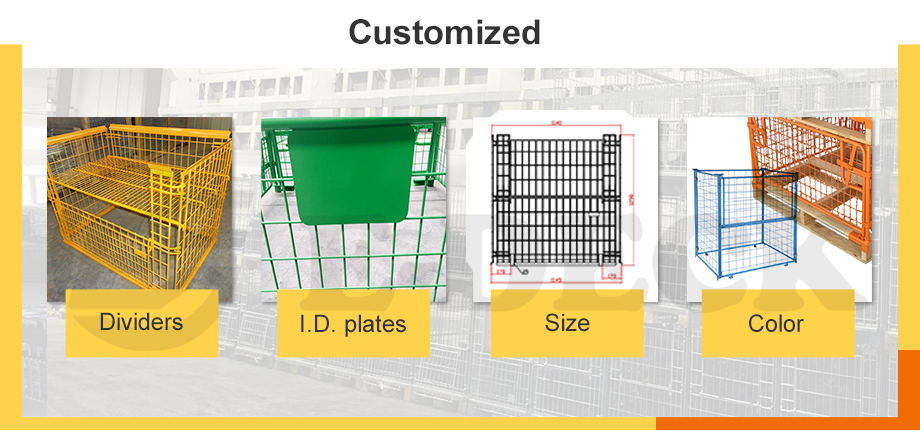

| Comment | Custom or OEM support | |||||

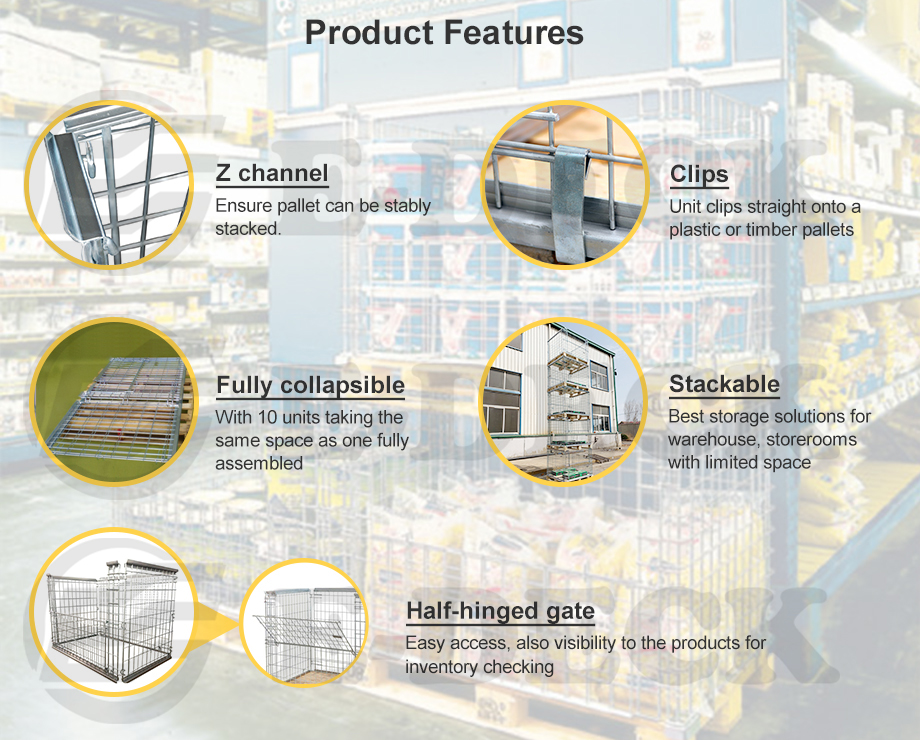

| main features |
1.Stackable - the best storage solution for warehouses, storage rooms with limited space 2. Fully Collapsible - 10 units take up the same space as a fully assembled unit 3. Unit clips directly onto plastic or wooden pallet 4. Compatible with standard European pallets |
|||||
usage:
Warehouses, supermarkets, logistics.

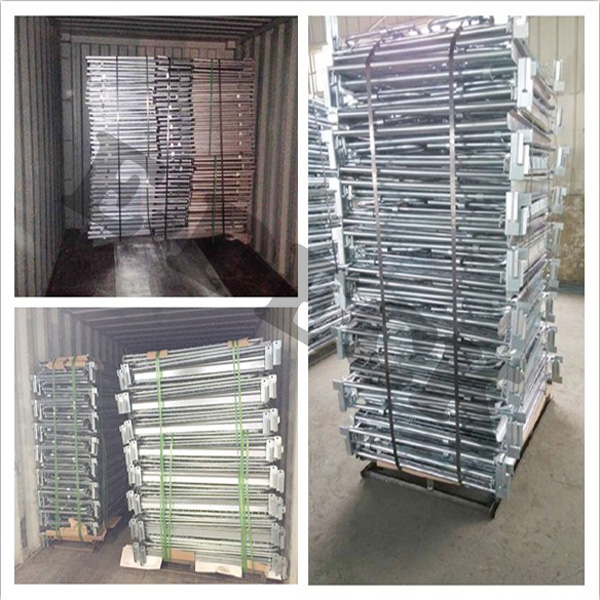

Package
1. Wooden pallet with plastic seal
2. Stretch film
delivery time
15 days for cage pallet after receiving 30% deposit
to pay
T/T: 3-5 working days to arrive
Western Union: 1-24 hours to arrive
MoneyGram: arrive within 1-24 hours
PayPal: Immediately credited
-
