Brand Name: | GRAM; | Single package size: | 135X18X15 cm; |
Delivery Detail: | 0 days after payment; | Place of Origin: | Jiangsu China (Mainland); |
Package Type: | Pallet; | Weight (kg): | 31; |
Selling Units: | Single item; | Single gross weight: | 31 KG; |
Display Type: | LCD+Back Light; | Min. height (mm): | 95; |
Power Supply: | 100-240V; | Load cells: | four units H8C Rebel C3; |
Structure Material: | Painted steel; | Structure Thickness: | 6mm; |
Product dimensions (mm): | 60 X 100 X 1200; | Model Number: | Zebra 12; |
Max. height (mm): | 120; |

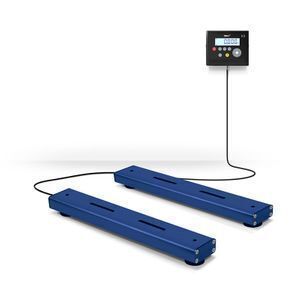

Zebra Series scale ,to weigh long or special objects.
• Easy installation under any structure.

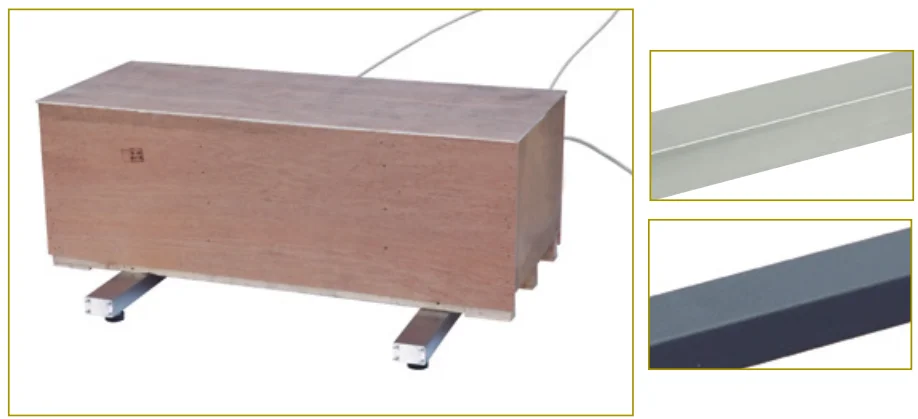

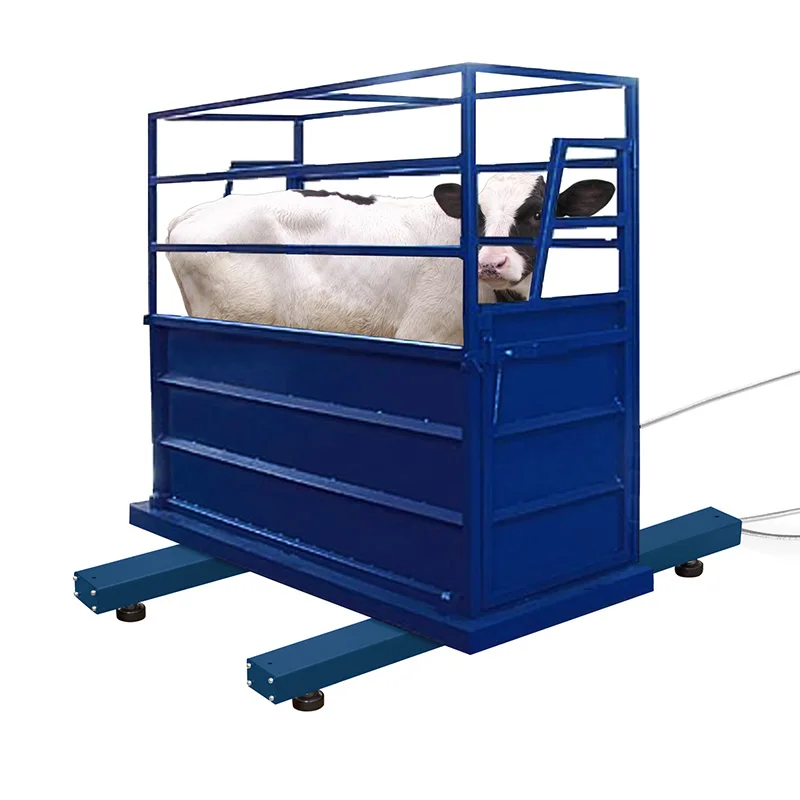

• Perfect to weigh rigid structures: beams, tanks, animal cages, etc…
• Two versions: Epoxy painted structure or stainless steel version.
• Two load cells in each bar, IP-67 protection.
• Two sizes of weighing bars: 800 mm or 1200 mm long.
• Capacity 3000 kg, readibility 1kg.
• Wire length: 4 meters between each bar and 4 meters between the bar and the indicator (optional longer cable).
• Lifting handles in every bar for an easy installation and maintenance.
• Connecting to GRAM indicators.

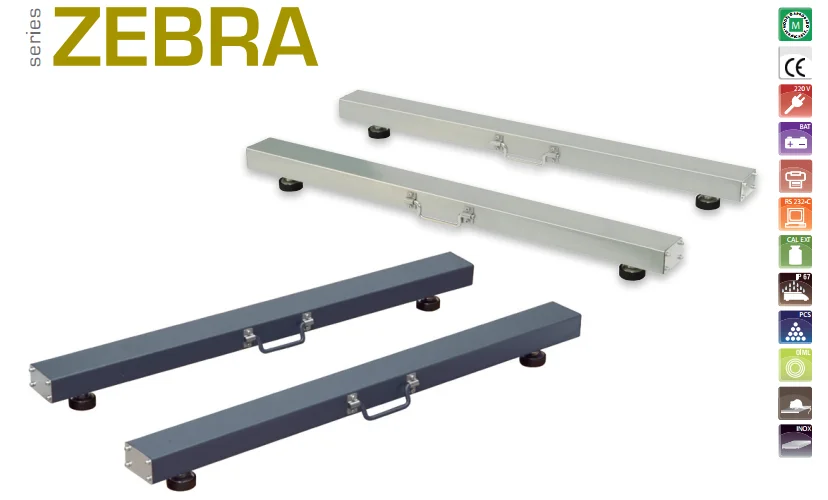

Stainless steel structure or epoxy painted steel
The structure of two weighing bars Zebra Inox is made of stainless steel. The model Zebra is made of epoxy painted steel, of high resistance to scratches. It is perfect for a hard daily utilisation.
Lifting handle
In order to easy the installation and maintenance, every bar of Zebra is equipped with a lifting handle.
Adjustable feet
The adjustable feet allow leveling the platform despite possible irregularities in the floor and they ensure an optimal force transmission to load cells.
MODEL | ZEBRA 8 | ZEBRA 12 | ||||
Capacity (kg) | 600 | 1500 | 3000 | 600 | 1500 | 3000 |
Readability (g) | 200 | 500 | 1000 | 200 | 500 | 1000 |
Structure Material | Painted steel | |||||
Product dimensions (mm) | 60 X 100 X 800 | 60 X 100 X 1200 | ||||
Min. height (mm) | 95 | |||||
Max. height (mm) | 120 | |||||
Weight (kg) | 20 | 28 | ||||
Load cells | four units H8C Rebel C3 | |||||

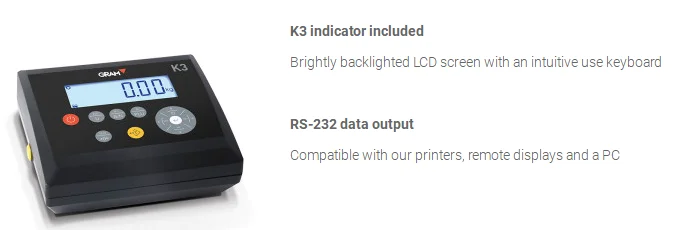

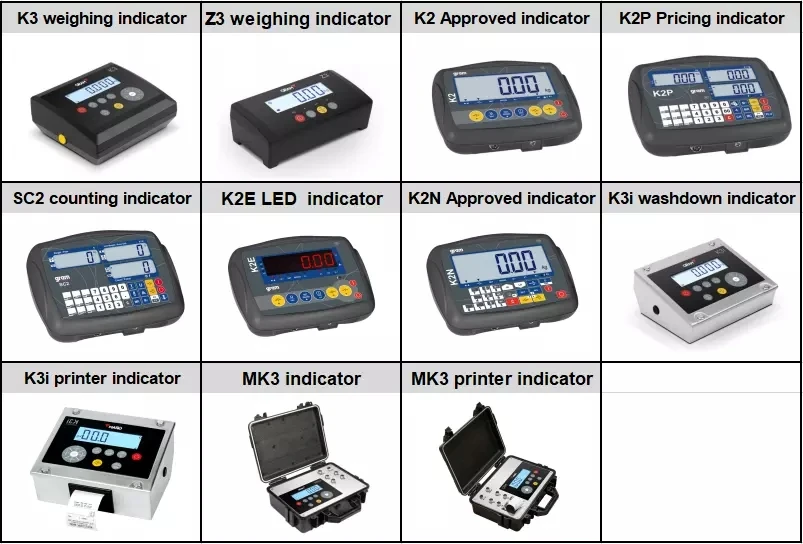

AVAILABLE INDICATORS | ||||||
K3/K3i/K2/K2E/K2N/K2P/SC2 | ||||||
AVAILABLE OPTIONS | ||||||
CS-1 painted steel floor stand for indicator | ||||||
Stainless steel wall support for indicator (K3, K3i, K3i Printer) |
