302 Brass Composite Self-Tapping Thread Inserts for Industrial Plastics

Supplier: Xinxiang Flight Fasteners Co., Ltd.
Region: Henan, China
Contact: Mr hongwei qi
Price: $0.05 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Packaging Details:	Plastic bag carton	Package:	Carton + plastic bag
Specification:	fully	application:	General Industry, Heavy Industry, Mining
Certification:	GS, EPA, scoc, IECEE, Reach	Thread Insert Type:	Metric Thread Inserts
product:	Different kinds	High precision:	6 hours
Customization support:	OEM,ODM,OBM	Supply capacity:	500,000 pieces per year
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	product name:	Brass Composite Self-Tapping Thread Inserts for Industrial Plastics
Warranty:	3 months	port:	Shanghai
Package preview:

product information

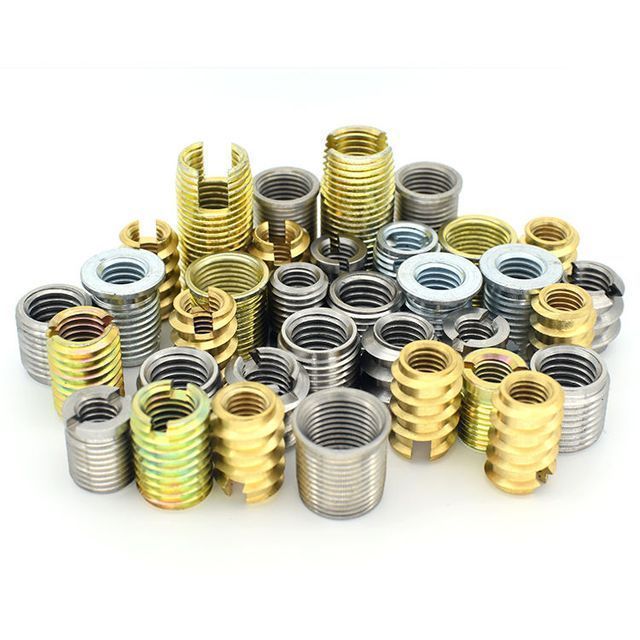

A self-tapping insert is a fastener with internal and external threads and a cut hole or slot. The materials are carbon steel and stainless steel. The surface of carbon steel is galvanized (yellow zinc, colored zinc, blue zinc) ), and stainless steel is the true color of metal.

feature:

Provide strong internal threads on soft substrates to meet the needs of multiple maintenance and disassembly;

Can effectively repair damaged internal threads;

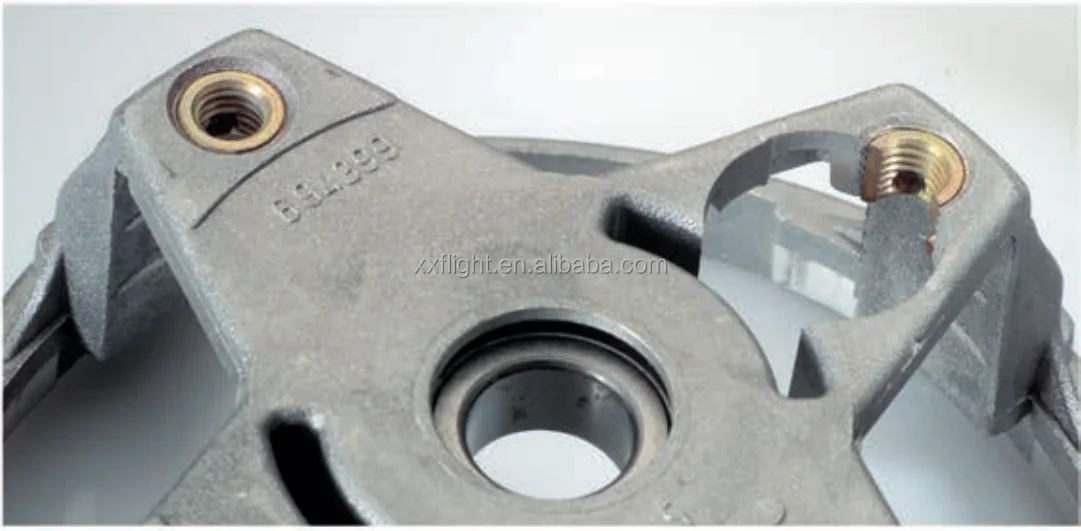

After the self-tapping sleeve is used in manufacturing processes such as die-casting and injection molding, the product structure can be simplified and the output can be increased;

Self-tapping sleeves can withstand high loads, so smaller inserts can be used for structural design of the product
more compact.

product name	Self-tapping threaded inserts
Types of	Groove type: 302/303 Three-hole type: 307/308 Other Types: Type 309, Shoulder Type, Other Types of Self-Tapping Inserts
surface treatment	Natural color of stainless steel Carbon steel galvanized: color zinc, yellow zinc, blue and white zinc
thread type	thread type
model	M2-M24/custom
color	Galvanized/natural color
standard	ISO9001/MS21209
color	Galvanized/natural color
standard	ISO9001/MS21209
color	Galvanized/natural color
reliability test	Mechanical dimension, hardness test. Salt spray durability test
scope of application	Electronic computers, plastic products, cabinets, sheet metal
transport bag	PE bag + carton
sample	free of charge
MOQ	100PCS

Manual installation:Use special threaded inserts to install tools. The specific operation method is shown in the figure below. The end of the tool in the figure is a square head, which can be connected with a manual tapping wrench.

Electrical Installation:The DiI type HRT CNC suspended threaded insert electric installation machine designed by AVIC can complete the installation of threaded inserts with high efficiency and high quality.
