Proudct name: | HYDRULE Auto Bilge Pump; | Voltage: | 12v/24v; |
Flow Rate: | 600/750 GPH; | Theory: | Centrifugal Pump; |
Standard or Nonstandard: | standard; | Brand Name: | HYDRULE; |
Usage: | Water; | Single package size: | 16X12X11 cm; |
Flow Rate: | 501 - 1000GPH; | Single gross weight: | 0.6 KG; |
Rated Current: | 1-4A; | Certification: | CE,ISO9001:2000,RoHS; |
Selling Units: | Single item; | Power: | Electric; |
Package Type: | inner box; | Package Preview: | https://sc01.alicdn.com/kf/HTB1Mo0wB29TBuNjy0Fc762eiFXay.png_640x640.png; |
Rated Current: | 1 - 4A; | Delivery Detail: | 0 days after payment; |
Structure: | Single-stage Pump; |
Features & Benefits:
All-in-one pump & switch-No float switch required
Pump turns on when water level rises & shuts off when water is removed.
Will not pump oil-straight motor oil that enters the bilge will not turn the pump on.
Snap-off strainer for easy cleaning
Anti-fouling impelle
Typical Applications:
· Typically used in boat hulls / bilges
· Bait tanks
· Ponds, pools, spas
· Other applications where you have to remove water
· Note: These pumps are designed for intermittent use only,NOT designed for continuous use
Note: Bilge and aerator pumps must be lower than the source of water for priming

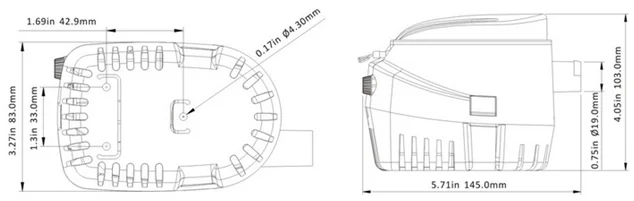

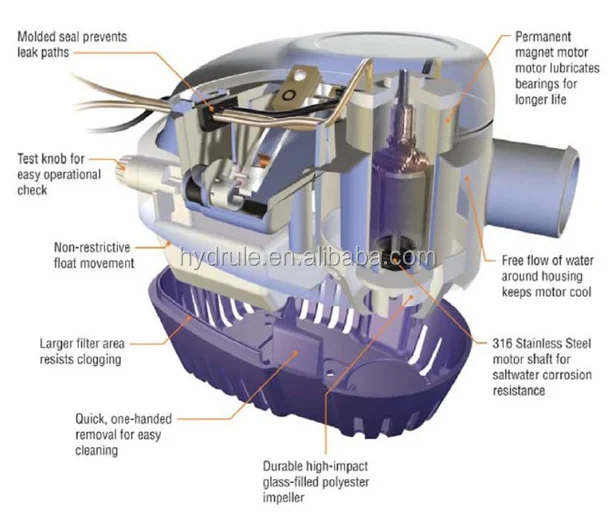

Pump Structure :
Technical Data:
Model | Flow rate | Volts | Current | Head | Wire lead |
| ||
GPH | V | A | m | m | mm | |||
HYBP1-G600-02 | 600 | 12 | 2.5 | 3 | 1 | 19mm/3/4" | ||
HYBP2-G600-02 | 600 | 24 | 1.5 | 3 | 1 | 19mm/3/4" | ||
HYBP1-G750-02 | 750 | 12 | 3 | 4 | 1 | 19mm/3/4" | ||
HYBP2-G750-02 | 750 | 24 | 1.6 | 4 | 1 | 19mm/3/4" | ||
HYBP1-G1100-02 | 1100 | 12 | 3.8 | 5 | 1 | 29mm/1-1/8" | ||
HYBP2-G1100-02 | 1100 | 24 | 2.0 | 5 | 1 | 29mm/1-1/8" |
