Brand Name: | JIANJIE; | Vibrating Amplitude: | 0.5mm; |
Drive Mode: | Engine Vibrator; | Max. speed: | 3600rpm; |
Vibrator Poker Model: | VP25; | Supply Ability: | 50 Set/Sets per Month; |
Condition: | New; | Weight: | 35kg; |
Min. Productivity: | 2.5m3/h; | Port: | Qingdao; |
Color: | Changable; | Certification: | CE; |
Vibrating diameter: | 25mm; | Packaging Detail: | Standard Exporting Containers; |
Length of flexible hose: | Standard 6 meter; | Frequency: | 230hz; |
Slump of concrete: | 3-4cm/h; | Length of vibrator shaft: | 350mm; |
Voltage: | 380V; | Type: | External, Concrete Vibrator and Vibrator Poker; |
Place of Origin: | Henan China (Mainland); | Length of Flexible Shaft: | 4000mm; |

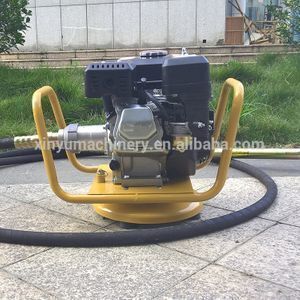

Dimension(L*W*H): | -; | Name: | CV-50 Concrete Vibrator; |
Payment Terms: | L/C,T/T,Western Union; | After-sales Service Provided: | Video technical support,Free spare parts,Online support; |
Fuel tank: | 3.6liter; | Warranty: | 1 Year; |
High frequency Indonesia external screed concrete vibrator capacity
Information of Product |
Concrete vibrator is used to consolidate cement and remove all the trapped air bubbles to give you the toughest cement possible, widely used in a variety of building purposes and concrete foundation work such as road,bridge and tunnel.it is an indispensable tool in concrete spot in distant area without electricity or when there is black out.
It can be adapted to every type of application, vibrator heads and shafts can be easily combined and rapidly exchanged to match the right equipment to the job.
Concrete vibrators by vibrating the role of the concrete by vibration during air overflow inner member, I plant the vibrator, compacting member can increase strength. I plant vibrator long life, high efficiency, large amplitude, is an important concrete construction equipment.

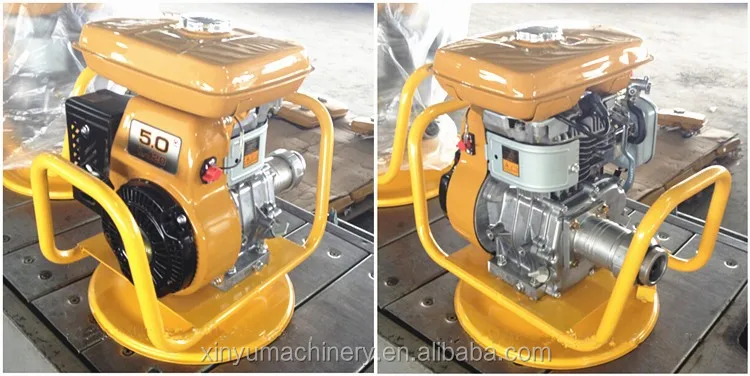

Parameters |

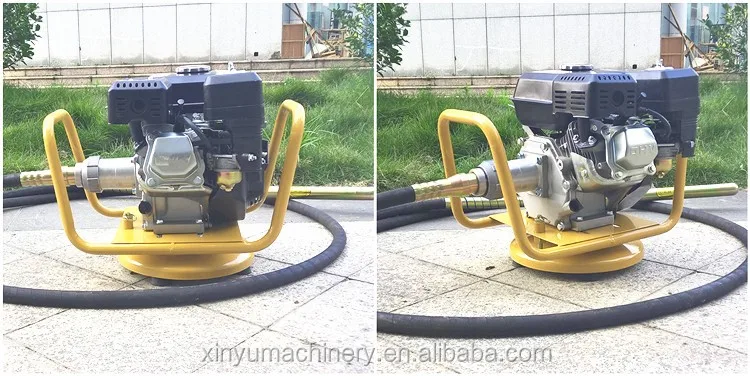

Concrete Vibrator | ||
Model | CV-50 | |
Engine | Air-cooled, 4 cycle, Gasoline | |
Type | GX160 | Robin ex17 |
Max. output kw(hp) | 4.0 (5.5) | 4.2 (5.7) |
Max. speed | 3600 | 3600 |
Fuel tank | 3.6 | 3.6 |

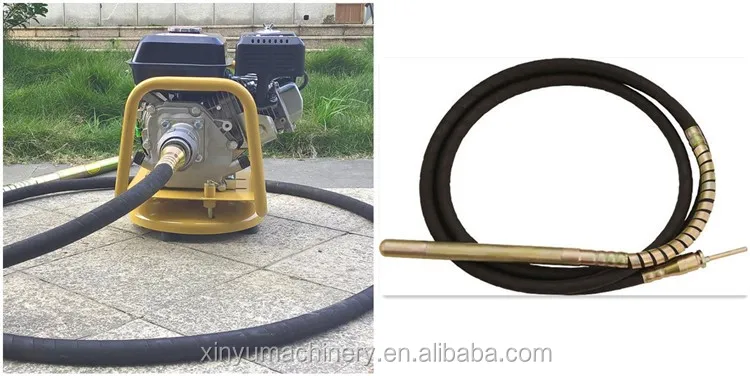

Vibrator Poker | ||||
Model | VP25 | VP35 | VP50 | VP70 |
Vibrating diameter (mm) | 25 | 36 | 51 | 68 |
Vibrating frequency (hz) | 230 | 200 | 183 | 183 |
Vibrating amplitude (mm) | 0.5 | 0.8 | 1 | 1.2 |
Output (kw) | 1.5 | 1.5 | 1.5 | 2.0 |
Voltage (v) | 380v,3p | 380v,3p | 380v,3p | 380v,3p |
Slump of concrete (cm/h) | 3-4 | 3-4 | 3-4 | 3-4 |
Min. Productivity (m3/h) | 2.5 | 5 | 10 | 20 |
Length of vibrator shaft (mm) | 350 | 423 | 451 | 480 |
Diameter and length of flexible shaft (mm) | 8*4000 | 10*4000 | 13*4000 | 13*4000 |
Outside/inside diameter and length of flexible hose (mm) | 24*13*3985 | 30*16*3985 | 36*20*3960 | 36*20*3960 |
Weight (kg) | 35 | 37 | 47 | 53 |
Length of flexible hose | Standard 6 meter (customizing: 1-12 meters) |

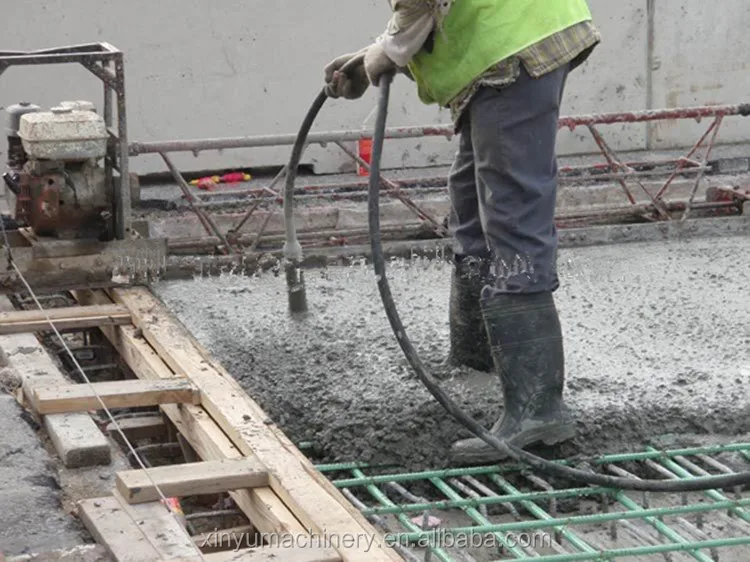

Working Site |

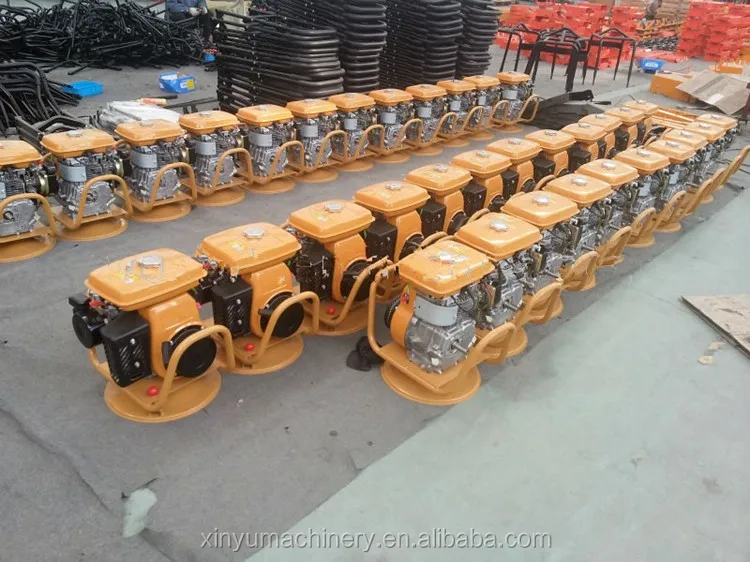

Packing and Shipping |
Packing | standard exporting package |
Shipping | 7-10 workdays after receive your workable payment |
Our services |
1.We will send our technicians to install machines and debug machines.
2.We will train workers for customers.
3.We will follow customers’ usage and telephone follow-up.
4.our guarantee period is 24 months except wearing parts. We provide spare parts at low price.

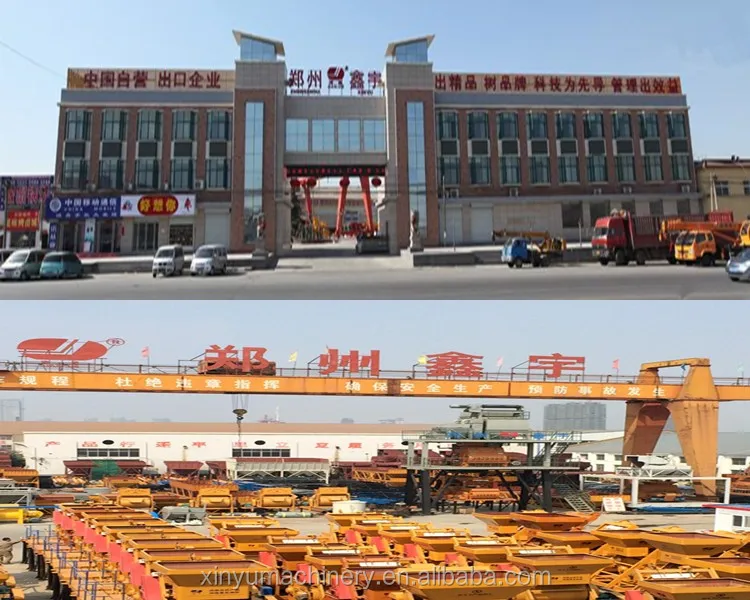

Introduce of Xinyu Machinery Company |
Founded in October 1982, Xinyu Machinery Manufacturing is located in Construction Machinery Base, Zhengzhou City, China. Our main products include HZS series concrete batching plants, concrete mixer trucks, construction lifters, stabilized soil mixing stations, concrete mixers, screw conveyors, aggregate batching systems and other related items.
"JIANJIE" brand construction machinery, which were completely researched and developed by ourselves, sell well not only at home, but also in Southeast Asia, Africa and 30 other countries and regions worldwide. Thus, we have gained a global respect and the support of clients.
Covering an area of 126, 000 square meters, our ISO 9001: 2008-certified factory is equipped with 11 production lines manned by more than 1, 000 employees. Depending on our 23 engineers and 186 technicians, we have a strong technical ability and obtained our own patents. Moreover, we cooperate with Xi'an Jiaotong University for our R&D projects.
To begin sourcing, contact us today.
Yours Only Industry.
