Aluminum anodizing machine for aluminum profile production line

Product details
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramVideo shipment inspection:if
State of health:newAnodizing current density:130A/square meter
After-sales service provided:Free spare parts, online support, on-site installation, commissioning and training, on-site maintenance and repair services, video technical supportCore components:PLC, motor
brand:brilliantmembrane thickness:12um
place of origin; place of origin:Guangdong, ChinaCore component warranty:1 year
Type of machine:Aluminum Extrusion Linename:Aluminum profile production line anodizing machine
Showroom location:not anyAfter warranty service:Video technical support, no service, online support, spare parts, on-site maintenance and repair services
Main selling points:competitive priceMonthly capacity:200~300 tons
Average Yield:98%Packaging Details:standard
Marketing Type:2019 Hot ProductsLocal service location:not any
Daily output:200~300 tonsSupply capacity:100 sets per year
Voltage:380V 50Hz 3 phase/customizedColoring current density:80A/square meter
Equipment efficiency:80%Applicable industries:manufacturing plant
port:Shenzhen/Guangzhou/FoshanWarranty:1 year
Mechanical test report:Not availableAlloy type:6063

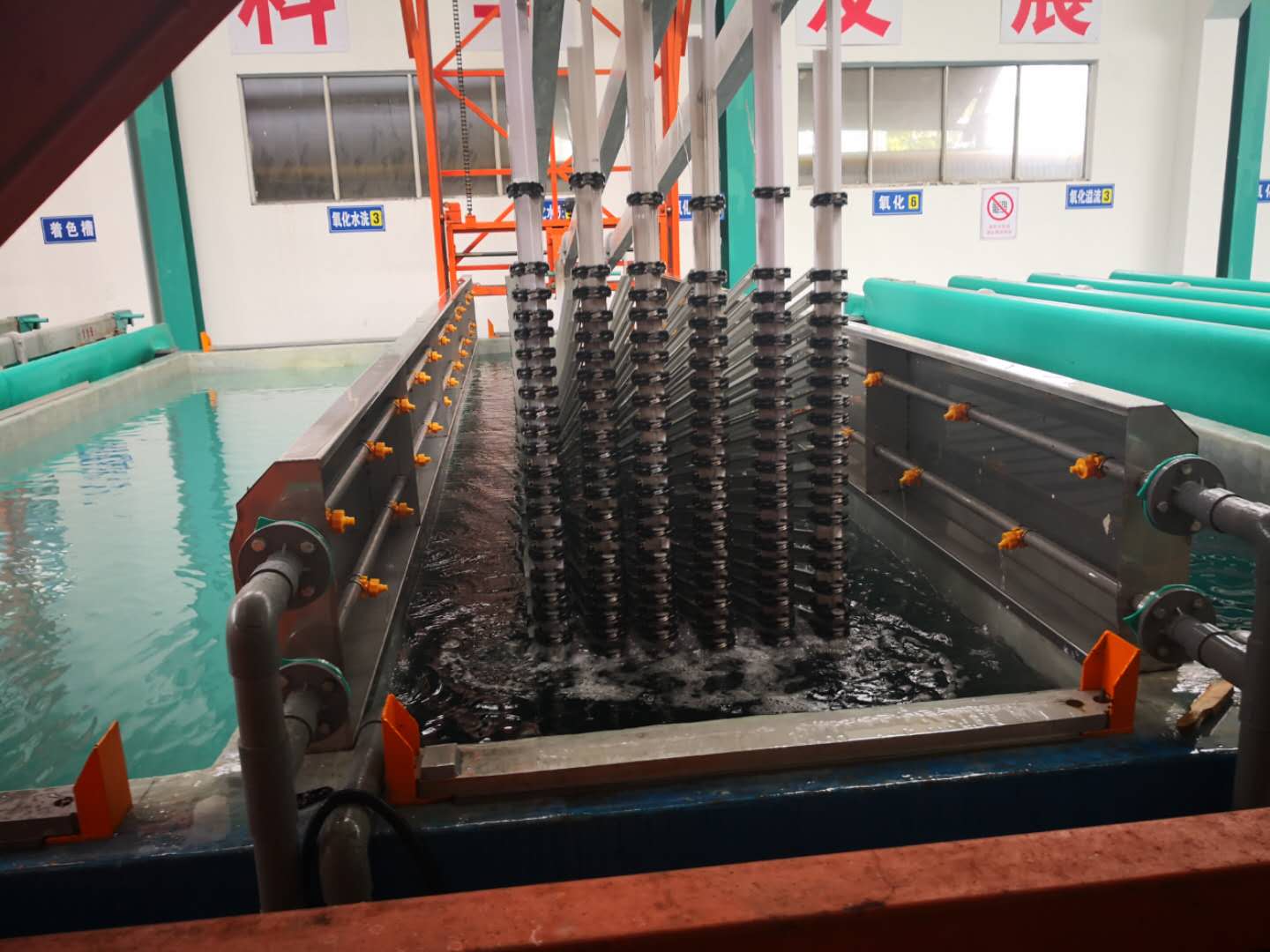

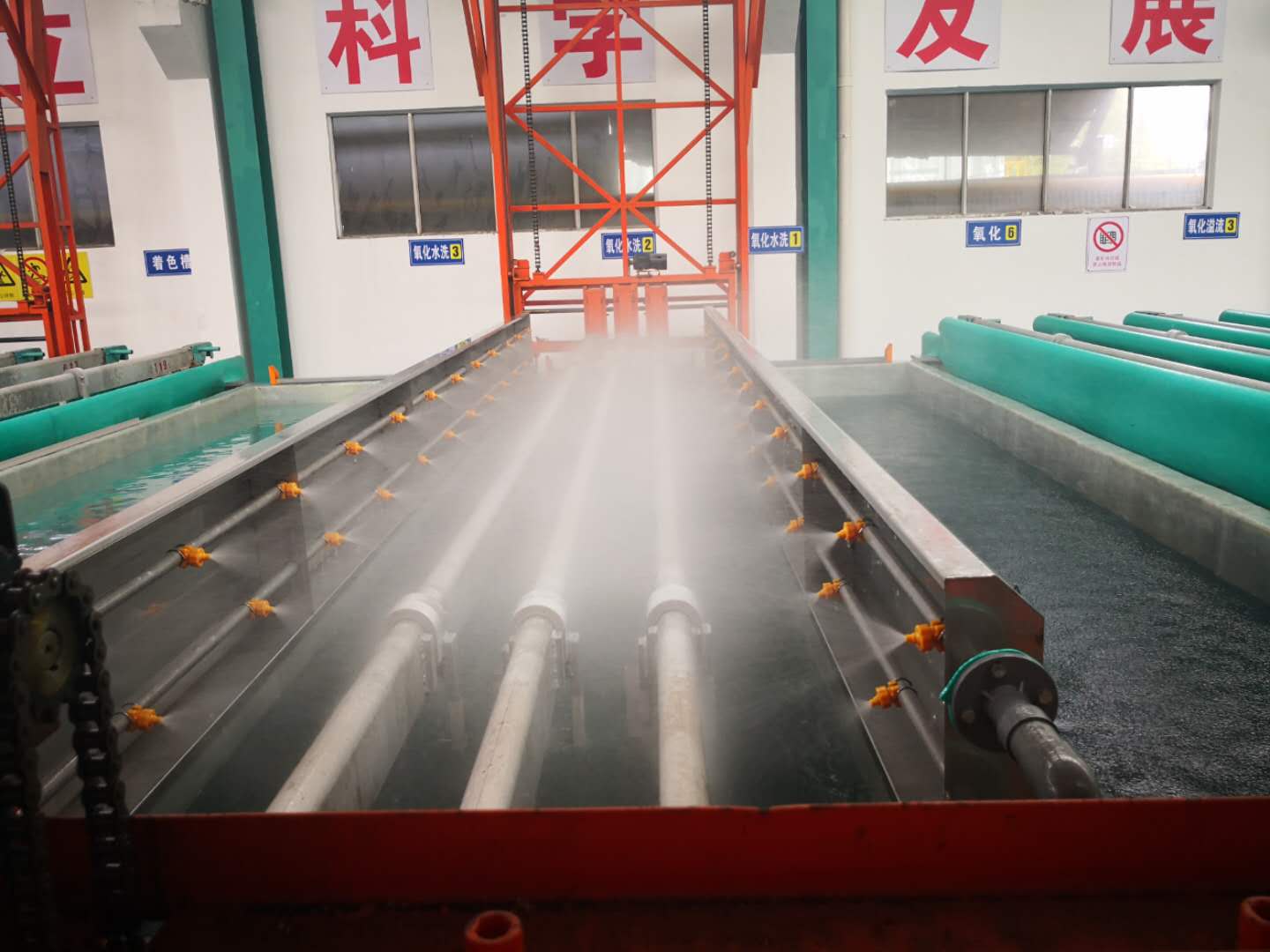

100 tons per month production line of small anodizing machine for aluminum profiles in Thailand customer factory:

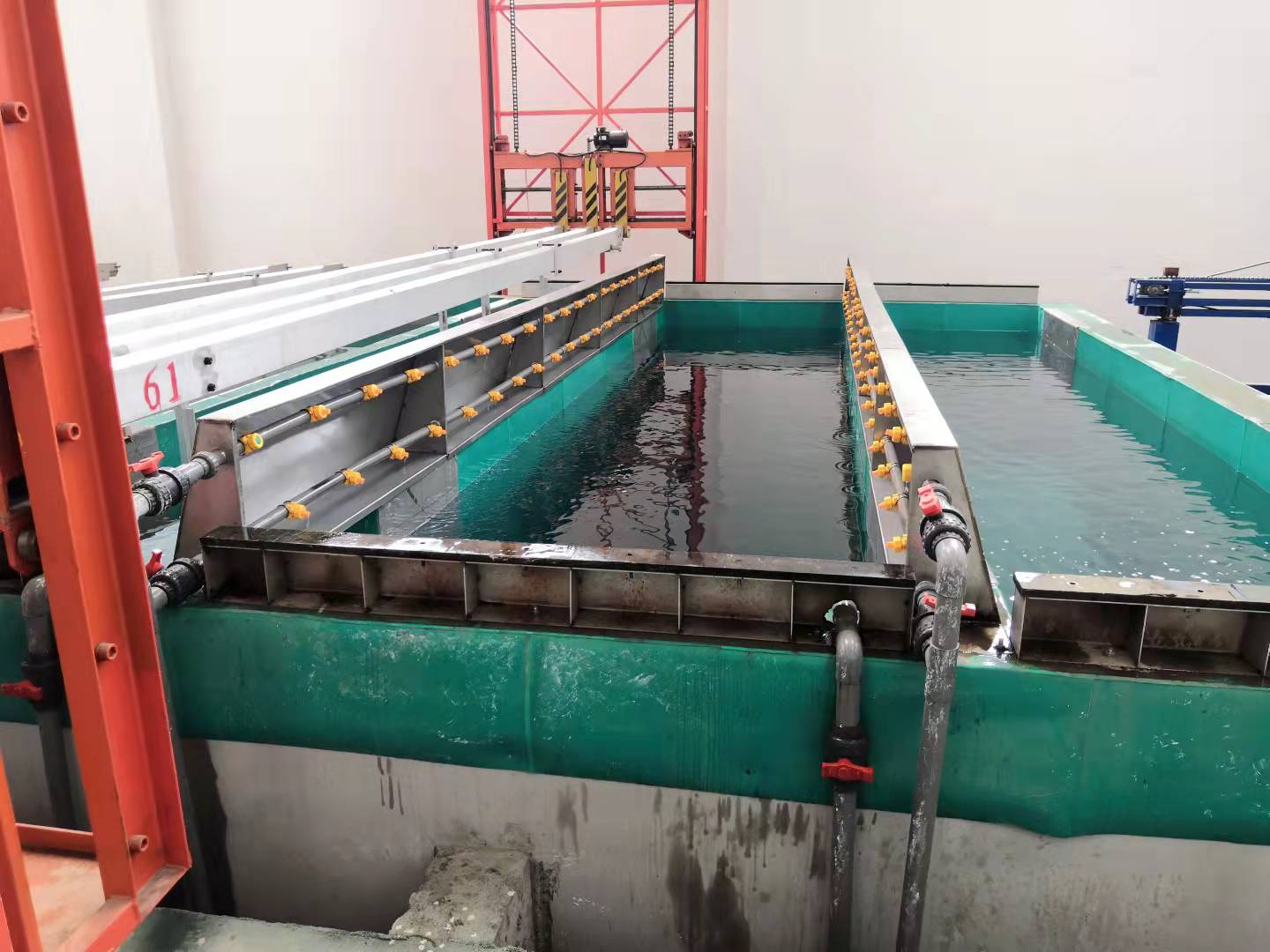

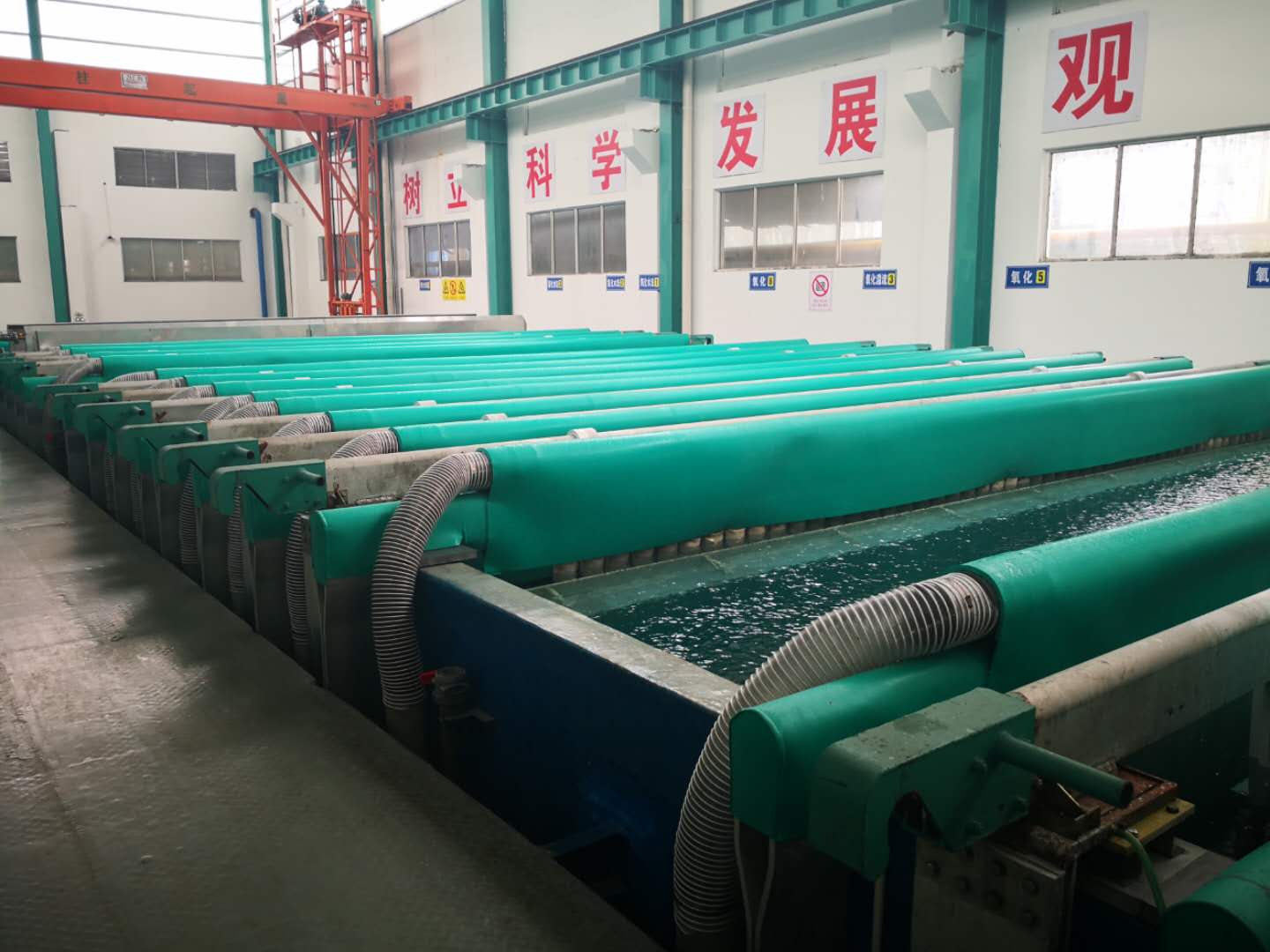

Aluminum profile anodizing production line content: 1 degreasing tank, 1 alkali etching tank, 1 neutralization tank, 4 anodizing tanks, 2 anodizing launders, 3 electrocoloring tanks, 1 medium temperature closed tank, rinsing 12 tanks, 1 hot rolling tank and 1 water washing tank.



Anodized rectifier:

1. Output current level: 10000A

2. Current accuracy: +-1%

3. Soft start output: 0~180s

4. Adjustable closing time control: 0~99s

5. Anodizing time: adjustable



Anodized colored rectifiers:

1. Coloring time: adjustable

2. Output AC current waveform: asymmetrical waveform



Spring loaded brass seat:

1. Size: 210*230(+-2mm)

2. Acid-resistant rubber plate, stainless steel seat



Pure copper soft connection:

1. Size: 500*47*10mm(+-2mm)

2. T2 copper, copper ratio above 99.5%, electrical conductivity: above 98%



Copper-aluminum composite panel:

1. Size: 150*100*25mm(+-2mm)

2. Copper: 10mm, Aluminum: 15mm

3. Pure copper, smooth surface, good electrical conductivity



Bubble bag:

1. Size: 170*2850mm

2. Material: 750B



Aluminum conductive rod:

1. Size: 10*200mm

2. Material: pure aluminum

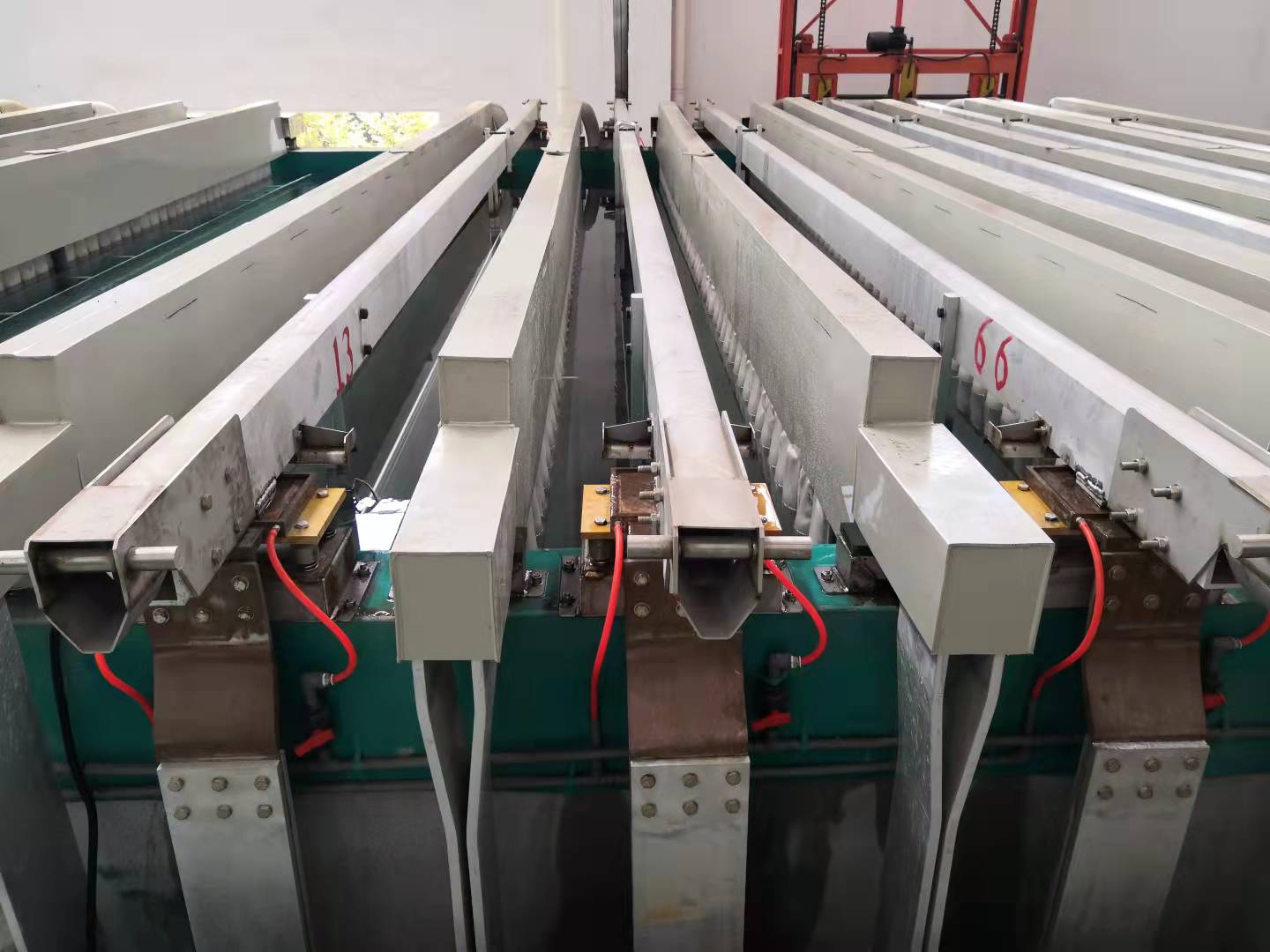

Aluminum Beams and Connecting Rods:

1. Anode rod

2. Size: 70*180*8800mm (with hanging beam machine



Anodized conductive rod:

1. Anodized tank conductive rod

2. Size: 140*10*3000mm

3. Material: pure aluminum



Colored Conductive Rod:

1. Size: 1.2*150*3000mm

2. Material: 316L stainless steel

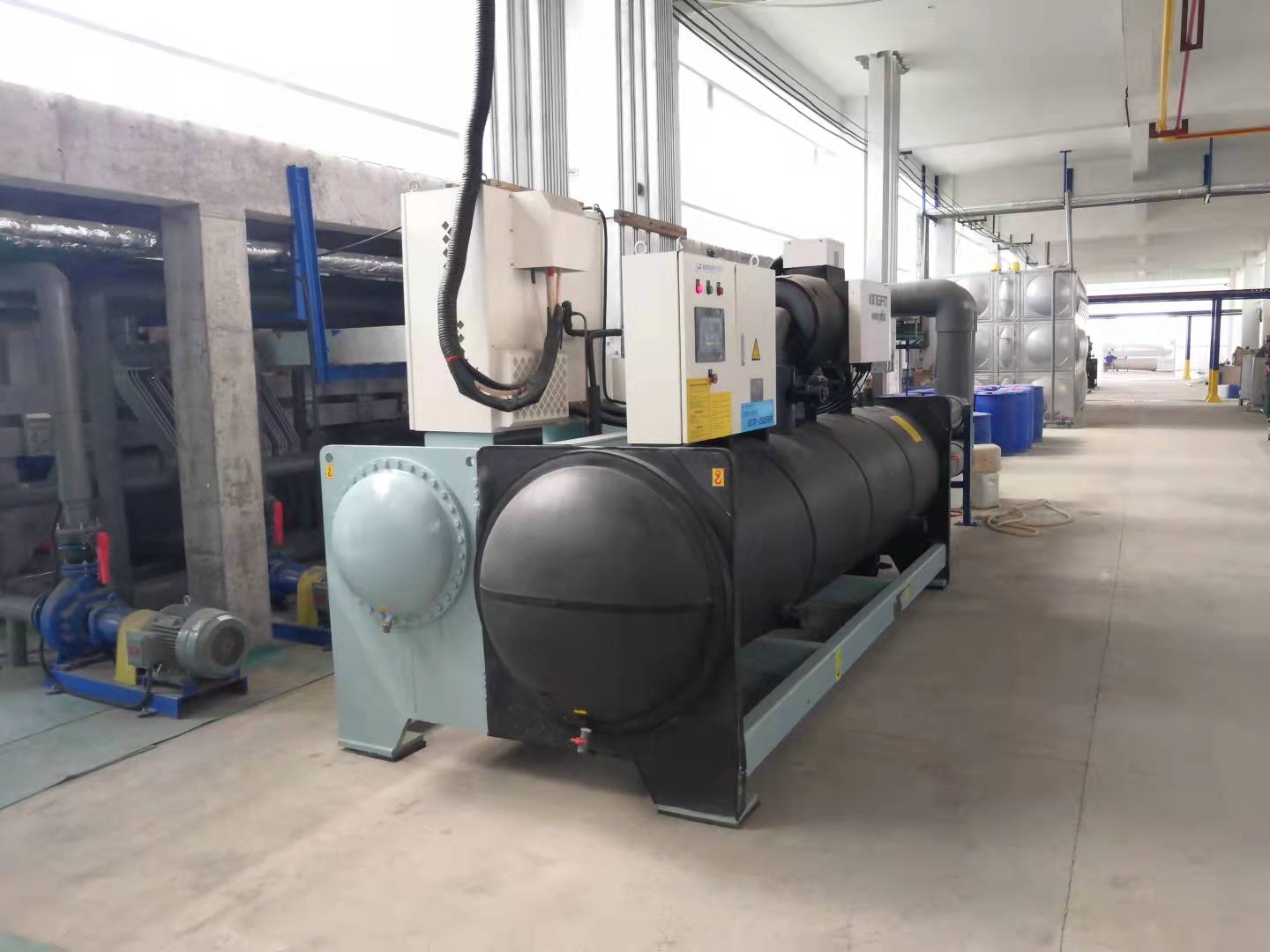

cooling system:

1,550,000 kcal

2. Power: 127kw

3. Size: 4600*1500*1850mm



Cooling tower: 200T



circulatory system:

Anodizing circulation system: 316L50m2 heat exchanger

Coloring circulation system: 316L30m2 heat exchanger



Sealed tank heating control system:

SUS316L temperature sensor



Tank rack: 1 set



Plant drainage pipe: 1 set

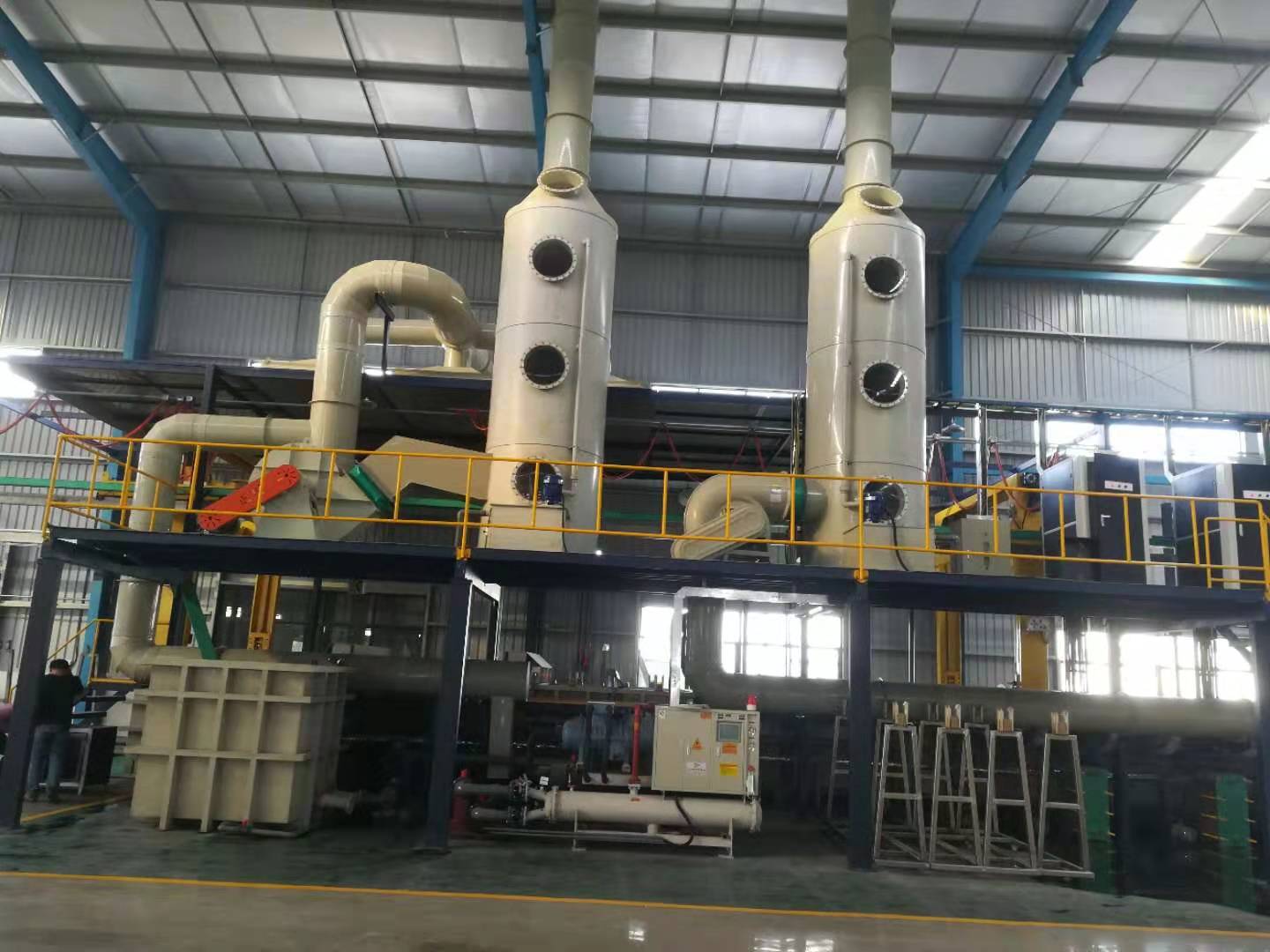

Anodized exhaust system: 1 set



Etching tank, exhaust system:

Flow: 12000~22000m3/h

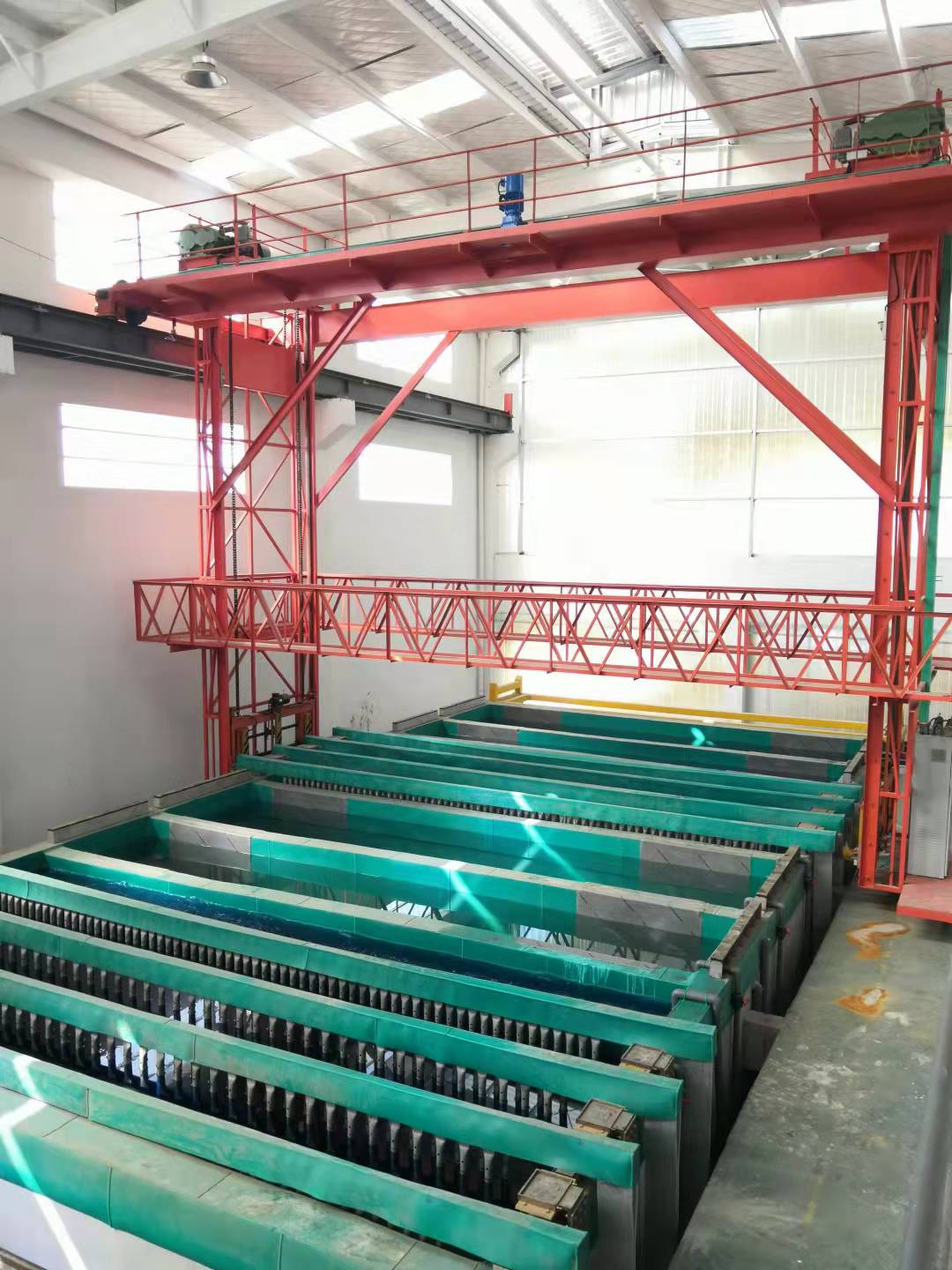

1+1 anodized crane: 1 set

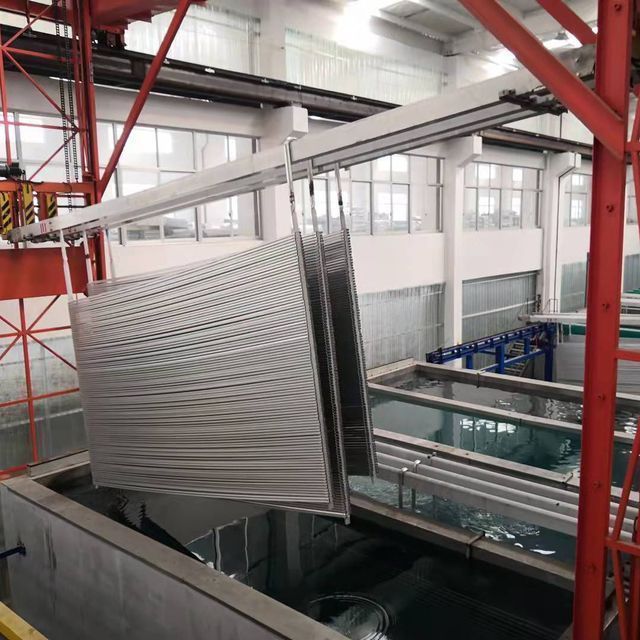

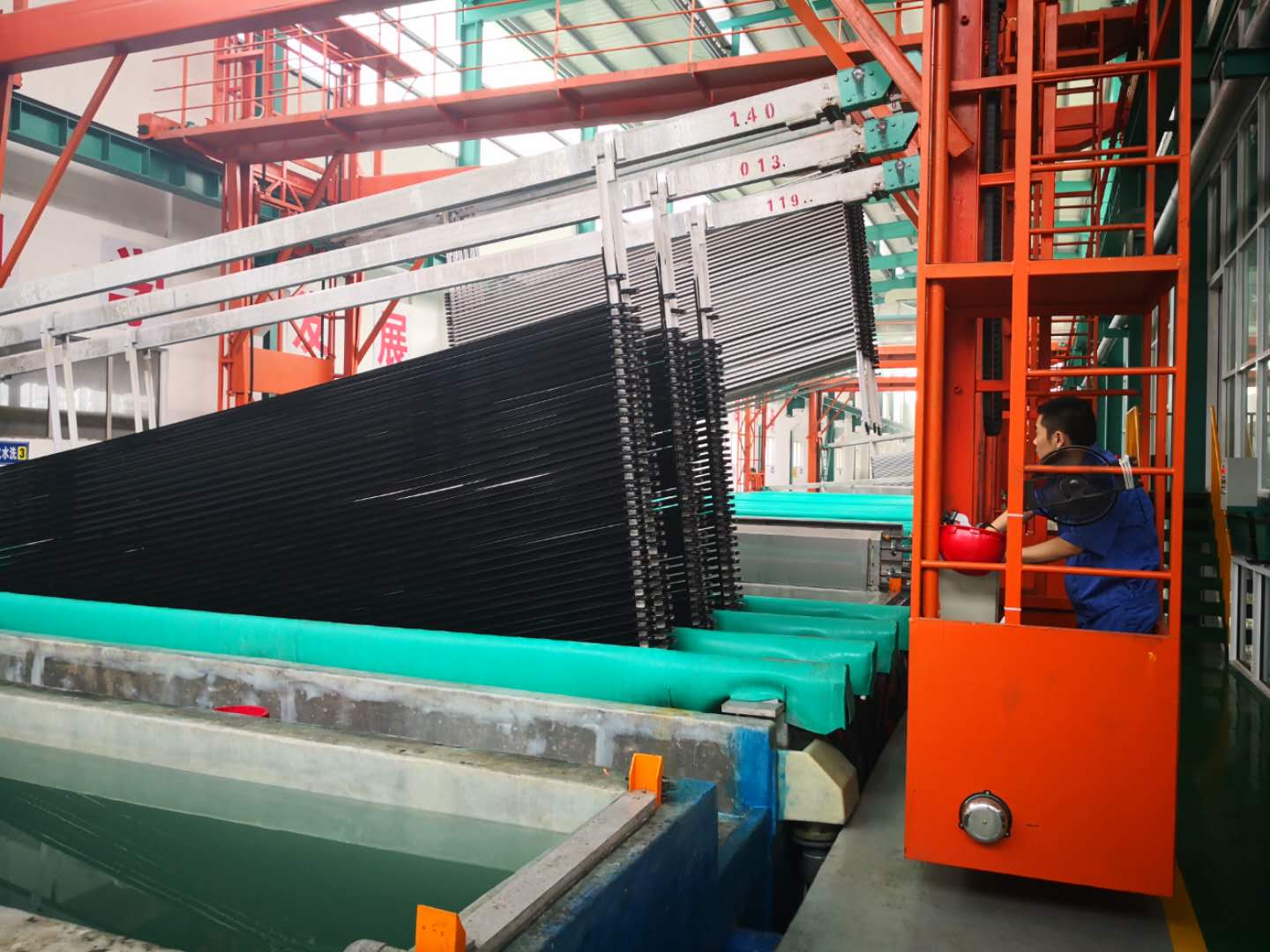

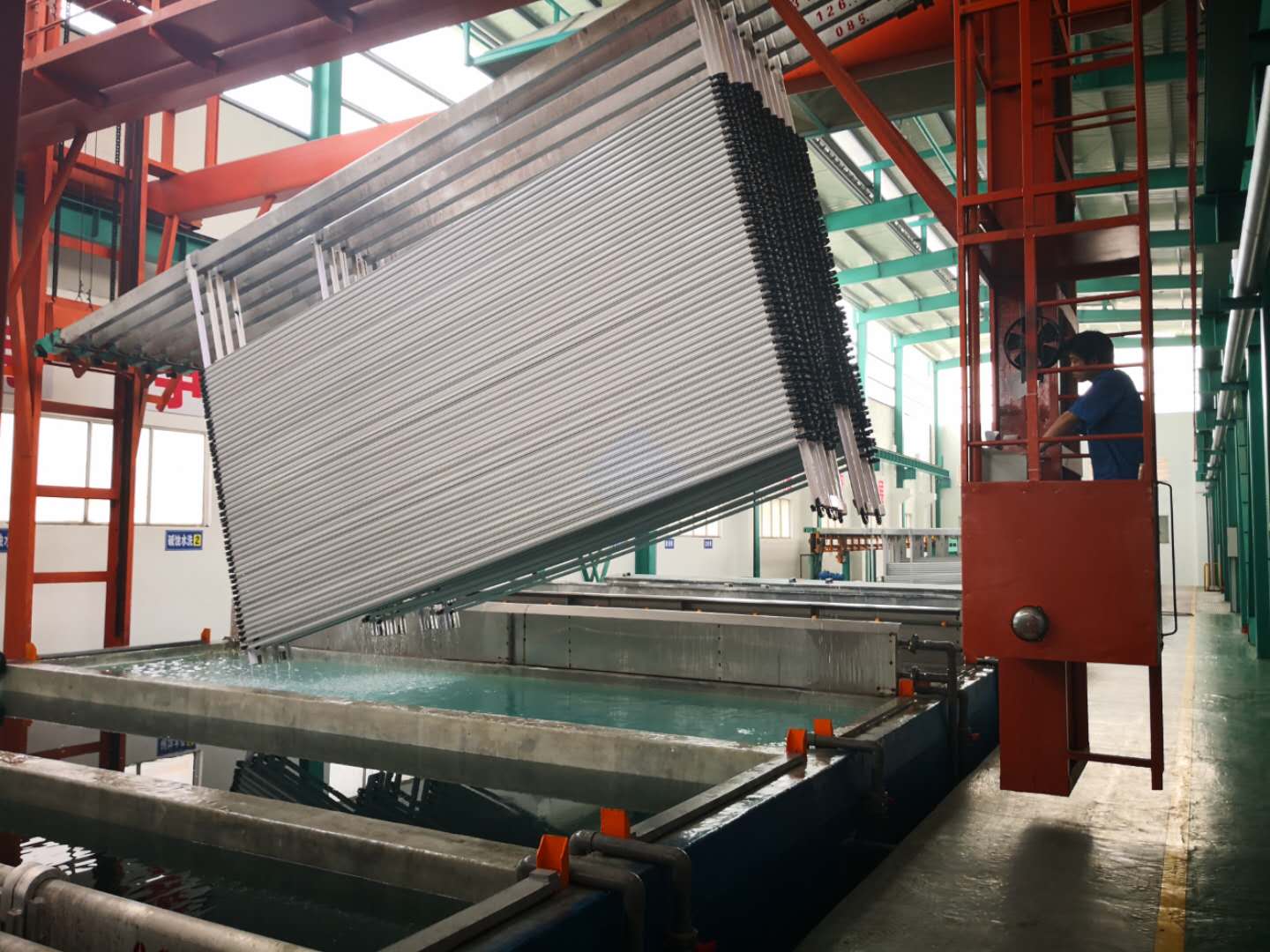

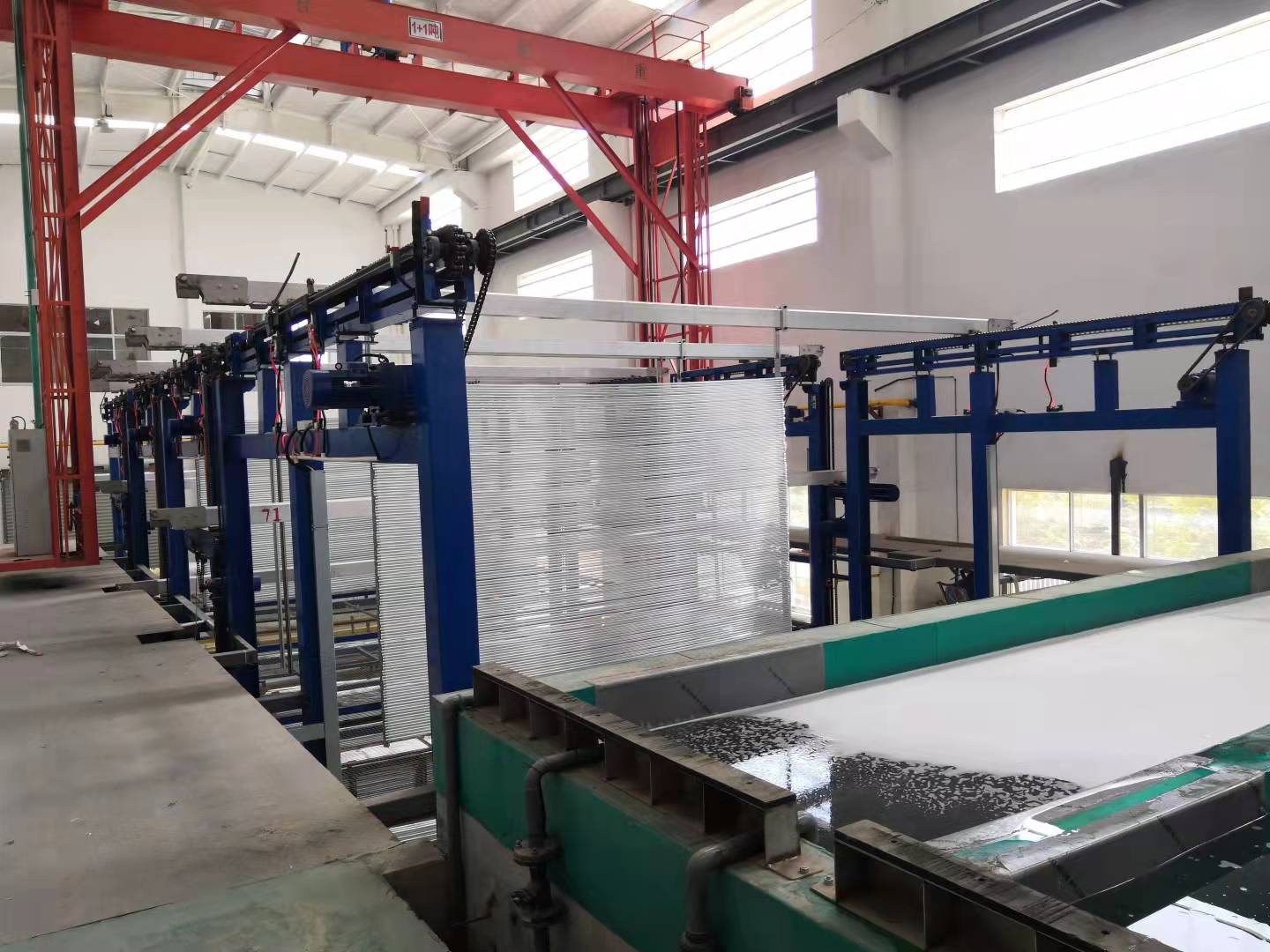

Large capacity anodizing machine for aluminum extrusion profiles working in customer factory:







What information is needed for anodizing machine of aluminum profile production line
