Automatic plate chain conveyor electric motorcycle assembly line with inspection line and hoisting line

Supplier: Guangzhou Sanhok Hitech Co., Ltd.
Region: Guangdong, China
Contact: Mr Frank Luo
Price: $49000.00 / 1 - 9 pieces
$45000.00 / >=10 pieces
Min. Order: 1 piece

Click here to contact

Product details

brand:	three-in-one	place of origin; place of origin:	Guangdong, China
application:	motorcycle assembly line	Core components:	Motor, bearing, PLC
After-sales service provided:	online support	Marketing Type:	New Products 2021
Voltage:	220V	Showroom location:	Egypt, Turkey, Vietnam, Peru, India, UAE, Algeria, Bangladesh, South Africa
Package preview:		State of health:	new
Dimensions (LWH):	L20000W850H900-2000mm, L20000W850H900-2000mm	Warranty:	1 year
Video shipment inspection:	if	Number of pallet stops:	8 sets
Production line type:	automatic or semi-automatic	Supply capacity:	30 pieces per month
Pallet entry type:	QX-2	Core component warranty:	1 year
Material:	aluminum alloy, aluminum	structure:	Slat conveyor
After warranty service:	Video technical support, online support	Width or Diameter:	850mm
Applicable industries:	mechanical repair shop	port:	Shenzhen Guangzhou
Chain type:	three speed chain	Packaging Details:	wooden bag
product name:	Electric motorcycle assembly line	Mechanical test report:	if
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	strength:	1500W
Local service location:	Egypt, Turkey, Vietnam, Peru, Pakistan, India, Thailand, UAE, Colombia, Bangladesh, South Africa	Control System:	PLC control
Aging thread volume:	2 rows

Product Description

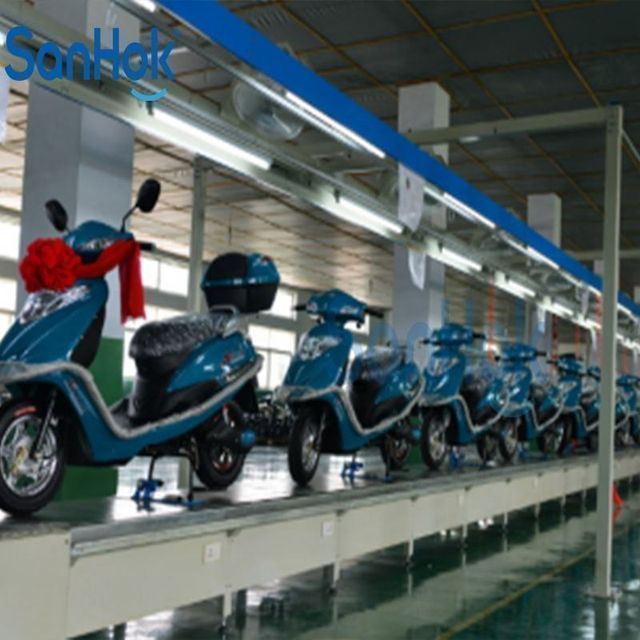

Motorcycle assembly line, motorcycle automatic assembly line: two-wheel motorcycle assembly line, two-wheel agricultural motorcycle production line, high-end motorcycle assembly line. The motorcycle assembly line is composed of automatic transmission line, supporting auxiliary mechanism, electrical control, etc., and the electronic management system for assembly and production.

Specification

For cabinets of different sizes, we can provide you with different suggestions.

For example:
1. Slat Top Conveyor

2. Roller conveyor system

According to the workshop size and requirements, we provide customers with one-stop service.The specifications are as follows:↓

motor	1.With gear, speed ratio 1:289; power 3HP, 2.2kw	running speed	2.0.7～2M/min, Delta speed controller;
support frame	3. 10# steel	motor head	4. Wiring terminal
support leg	5. 60mm×40mm×2mm carbon steel, equipped with 50mm height-adjustable leveling feet; one foot every 2m, the surface is sprayed with powder;	conveyor chain	6. P=100mm, chain pulley edge;
side panels	7.δ2.5mm steel plate 40mm×155mm, plastic sprayed. δ2.0mm steel U-shaped slat chain is galvanized on the surface, and each slat can withstand Over 75 kg with rubber coating; slat height side panels 10 mm;	Programmable Controllers	8.PLC, Mitsubishi control
frequency converter	9.Delixi frequency conversion speed regulation;	PLC master switch	10. Chint brand, equipped with Xingcheng solenoid valve, Xingcheng magnetic switch, Yangming brand light control, travel switch Omon;

Customization steps

The specifications required for customization are as follows↓

1) What size and type of motorcycle will be assembled?This will determine the pallet size (pallet size is very important and will affect the conveyor project design)2) Production capacity?This will determine how fast the line conveyor will run. 3) Workshop layout is required.Designing a proper project requires a shop floor layout in CAD.

Sanhe assembly line success case

Successful cases of Sanhe assembly line include Skyworth, Huike Netherlands, Hugo, Walton, Rfl, etc..

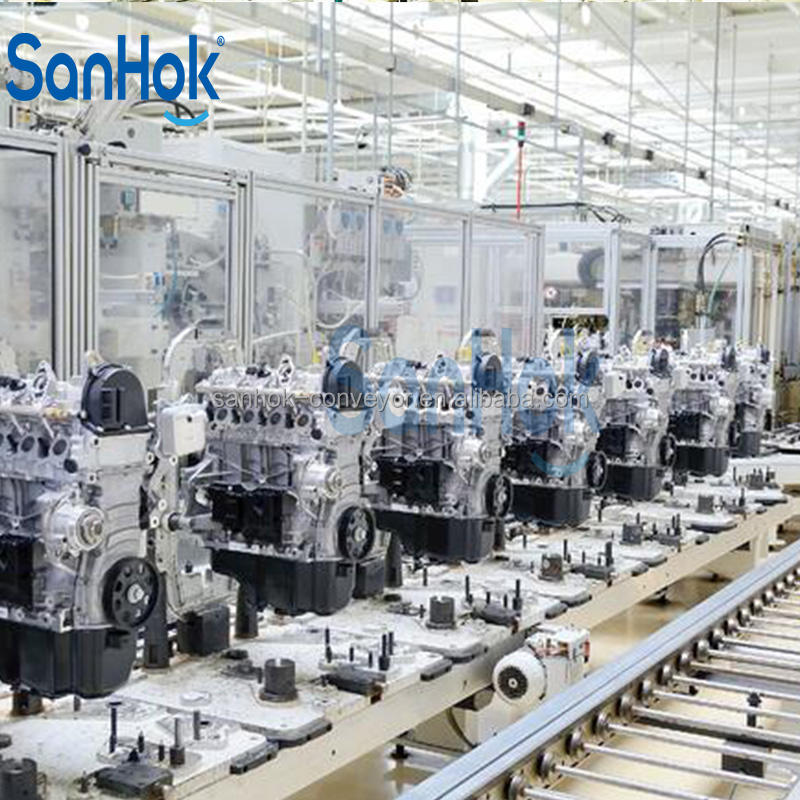

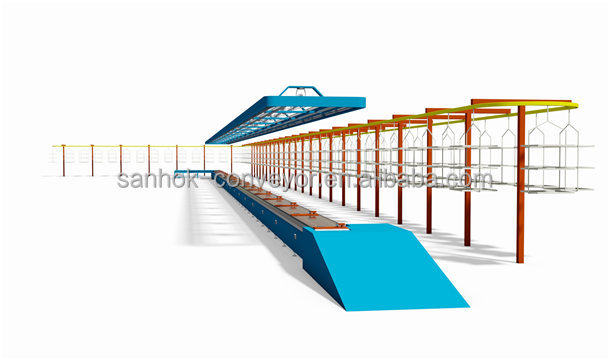

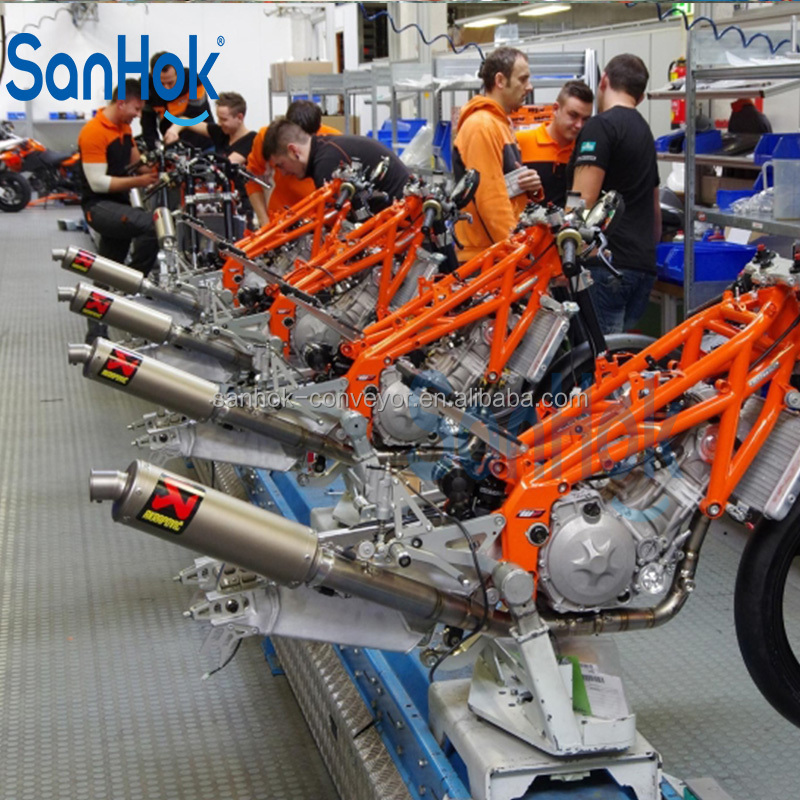

product display
