Material: | natural rubber, steel | Supply capacity: | 3000 pieces per month |
Packaging Details: | plastic pallet or wooden pallet | Advantage: | Anti-puncture, anti-cut, wear-resistant, long life |
Hole: | 4,6,5,8 | type: | solid tire |
alien: | 10mm, 15mm, 18mm, 20mm, 50mm, 30mm, 35mm, 40mm, 42mm, 45mm, 25mm, 0mm | diameter: | >28 inches |
color: | Black | Origin: | Shandong China |
Warranty: | 1 year | payment terms: | L/C, T/T, Western Union |
Certificate: | reach, ISO | Polycarbonate: | 130mm, 120mm, 108mm, 115mm, 112mm, 127mm, 100mm, 139.7mm, 98mm, 165.1mm, 114.3mm, 120.65mm, 143.1mm |
Certification: | different | Package preview: | |
port: | Qingdao | brand: | Wang Lei |
width: | 235-255mm |

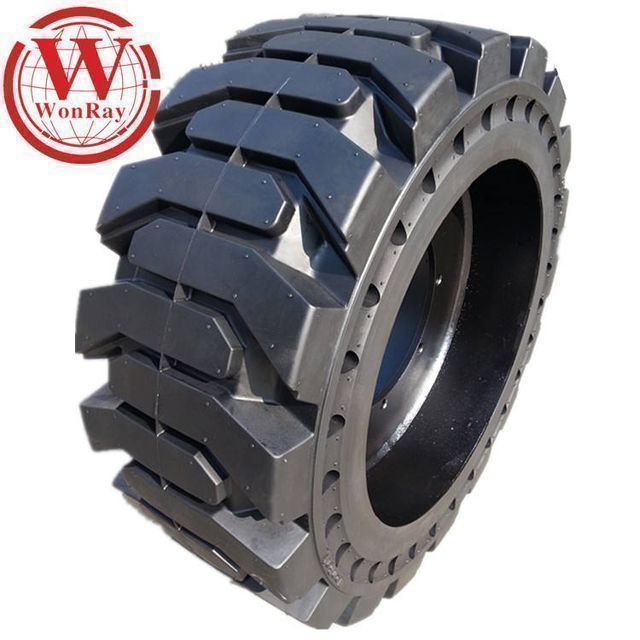

famous solid tire 10.16.5 12.16.5 for bc, excavator, skid steer loader and front loader
Note: Please let us know if you need markings on the left and right side of the tire
benefit:
1, Factory, OEM service
2. Standard rubber, better stability, no slip ring and lamination
3. Puncture-free, wear-resistant, no tire blowout, long tire life, saving a lot of cost
4. Small rolling resistance, saving energy
5. High bearing capacity, easy to fix
6, Various sizes, no marking available
7. Quality, durability and deep tread traction design
8. We have advanced quality inspection equipment
9. Solid rubber with buffer, more comfortable ride
10. For harsher, more abrasive environments where solid tires must be used
Size Information:
tire size | Rim size | outer diameter | section width | net weight/kg) | Maximum load(Kg) |
other industrial vehicles | |||||
±5mm | ±5mm | ±1.5% kg | 16km/h | ||
10x16.5 (30x10-16) | FB/hole | 788 | 250 | 116 | 3700 |
12x16.5 (33x12-20) | FB/hole | 840 | 275 | 140 | 4500 |
16/70-20 | FB/hole | 1060 | 400 | 329 | 8830 |
16/70-20 | FB/hole | 940 | 330 | 216 | 6620 |
38.5x14-20(14*17.5,385/65D-19.5) | FB/hole- | 966 | 350 | 246 | 7070 |
385/65-24 (385/65-22.5) | FB/hole- | 1062 | 356 | 290 | 7390 |
445/65-24 (445/65-22.5) | FB/hole | 1152 | 428 | 394 | 10040 |
14.00-24 | Facebook/- | 1340 | 328 | 461 | 10700 |
17.5-25 | FB/hole - | 1368 | 458 | 650 | 13400 |
18.00-25 | FB/hole - | 1620 | 500 | 960 | 15795 |
20.5-25 | Facebook/- | 1455 | 500 | 950 | 17470 |
23.5-25 | FB/hole - | 1620 | 580 | 1040 | 23400 |
26.5-25 | FB/hole - | 1736 | 650 | 1395 | 29260 |
29.5-25 | FB/hole - | 1840 | 730 | 1780 | 34390 |
1098*500 | FB/hole - | 1098 | 500 | 500 | 14235 |
1510*470 | FB/hole - | 1510 | 470 | 1045 | 16125 |
Company Profile:
Yantai Wanrui Rubber Tire Co., Ltd. is a comprehensive enterprise engaged in the R&D, production and sales of high-performance and low-cost industrial tires. The annual production capacity is 300,000 pieces, 40% of which are exported to North America, Europe, Southeast Asia, Oceania, Africa and other overseas markets. The sales network is all over the country, providing high-quality and perfect after-sales service for all customers.
All of our products comply with TRA in the US, ETRTO in Europe and JATMA in Japan.
Product and factory photo display:
After promotion:
1. All our solid tires comply with GB/T10824-2008
2, We can provide the correct rim and press the rim into the tire if needed
3. After sales, we will inform you about the speed limit and load capacity
4. If you have any questions, please contact us, we will reply as soon as possible.
5. If there is any quality problem, please take a photo and we will be responsible for it.
6. If you need to develop new products, please provide detailed technical requirements or mold drawings.attention:
We have rims with different mounting bolt holes. When ordering these tires with rims, please let us know how many bolt holes your current rims have!
