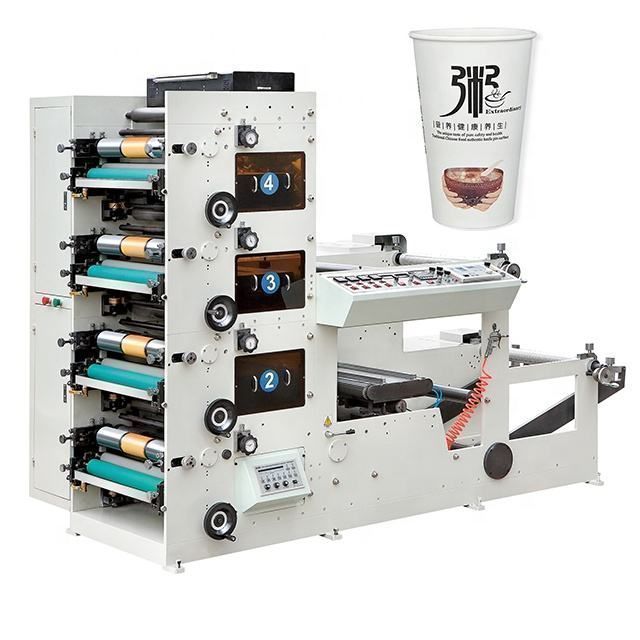

2 3 4 5 6-color paper cup blank fan-shaped printing punching machine

Supplier: Wenzhou Henghao Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Mickey YU
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

printing material:	Paper cups, thermal paper, plastic film, etc.	Print size:	175-370mm
Main selling points:	hot air drying	Plate type:	Typography
Warranty:	1 year	usage:	Paper printers, label printers, card printers, receipt printers, plastic bags
Core components:	Bearings, motors, pumps, gears, gearboxes, engines, others	Core component warranty:	1 year
Maximum web width:	860mm	Package preview:
Dimensions (LWH):	480020502250mm	payment terms:	L/C, Western Union, D/P, D/A, T/T
Health status:	new	Supply capacity:	5 sets per month
Automatic level:	automatic	brand:	Henghao
Mechanical test report:	if	Colors and Pages:	Polychromatic
Sheet thickness:	1.7mm	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction, Energy and Mining, Food and Beverage Stores, Other, Advertising company, other
Tension controller:	Automatic magnetic powder tension control	product name:	4-color flexographic printing machine
After-sales service provided:	online support	Maximum print width:	850mm
printing speed:	60-80m/min	structure:	heap
port:	Ningbo	weight:	4500 kg
Voltage:	380V±10%	Video shipment inspection:	if
Printing color:	1-8 colors	type:	Flexographic printing machine
Print size:	850mm	Packaging Details:	Seaworthy packaging
Anilox roller:	Ceramic Anilox Roller	Origin:	Zhejiang, China

feature

This is an economical and environmentally friendly thermal paper and cup paper printing machine, using water-based ink, by changing the printing cylinder and anilox roller, you can get different printing sizes and quality, so that the printing quality can meet your requirements.

product specification

machine type	HH-RY850-4C	HH-RY950-4C	HH-RY1000-4C
Machine Color Quantity	4 colors
printing speed	55-60m/min
Maximum Width	860mm	950mm	1010mm
printing width	850mm	940mm	1000mm
Maximum unwinding diameter	1300mm
printing size	175-380mm
total power	About 45kw	45kw	50 kW
Registration accuracy	±0.10mm
total air pressure	0.6-0.8MP
Voltage	380V±10%
machine weight	4500KG	5000KG	5500KG
Machine size	480020502250mm	4800X2150X2250mm	4800X2200X2250mm

machine configuration

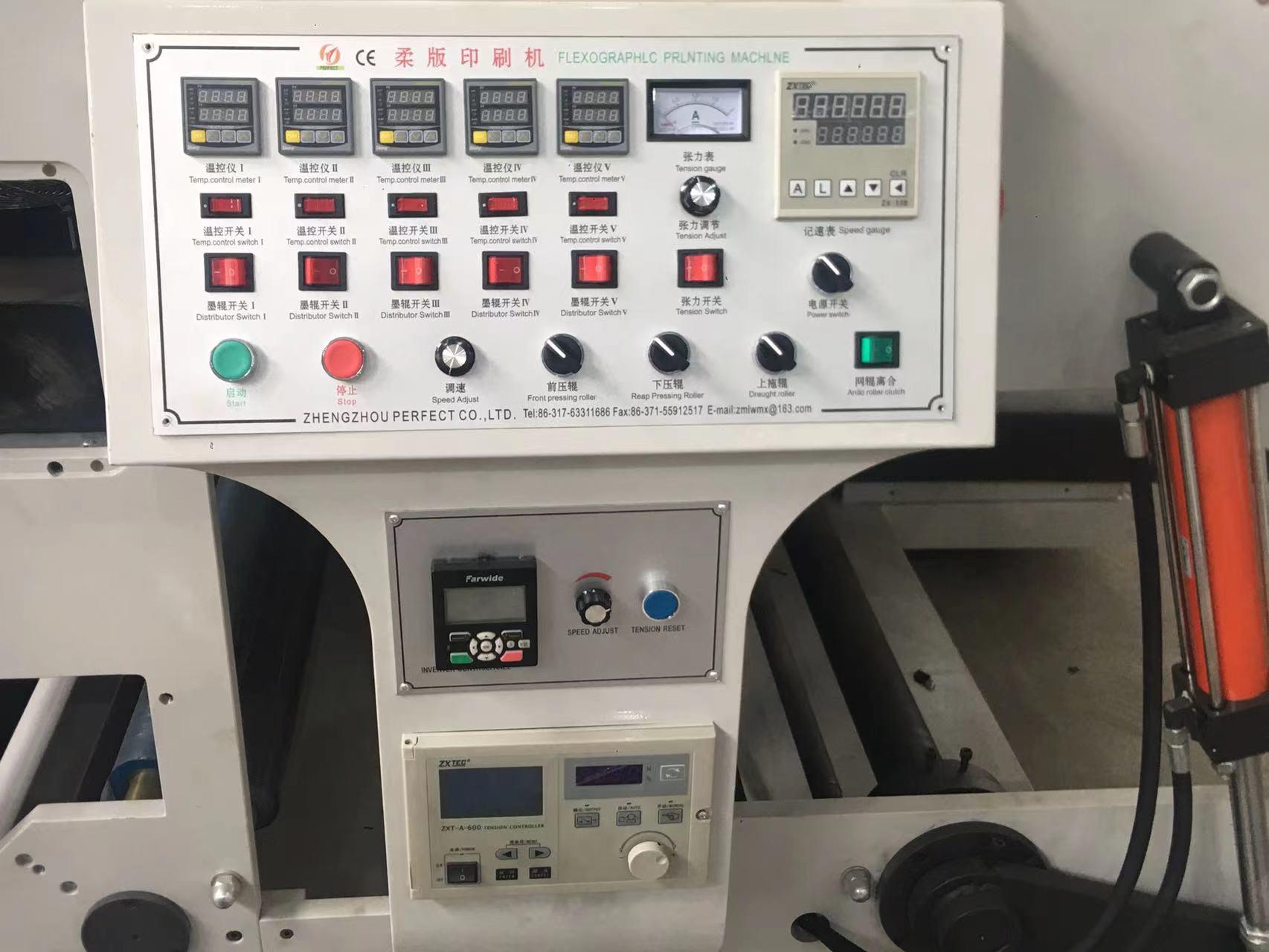

control Panel

1). Power, stop button, start button and emergency stop.
2). Temperature controller for each furnace.
3).Anilox roller rotation button for each printing station.
Length counter and speed controller

4) Bottom roll tension control

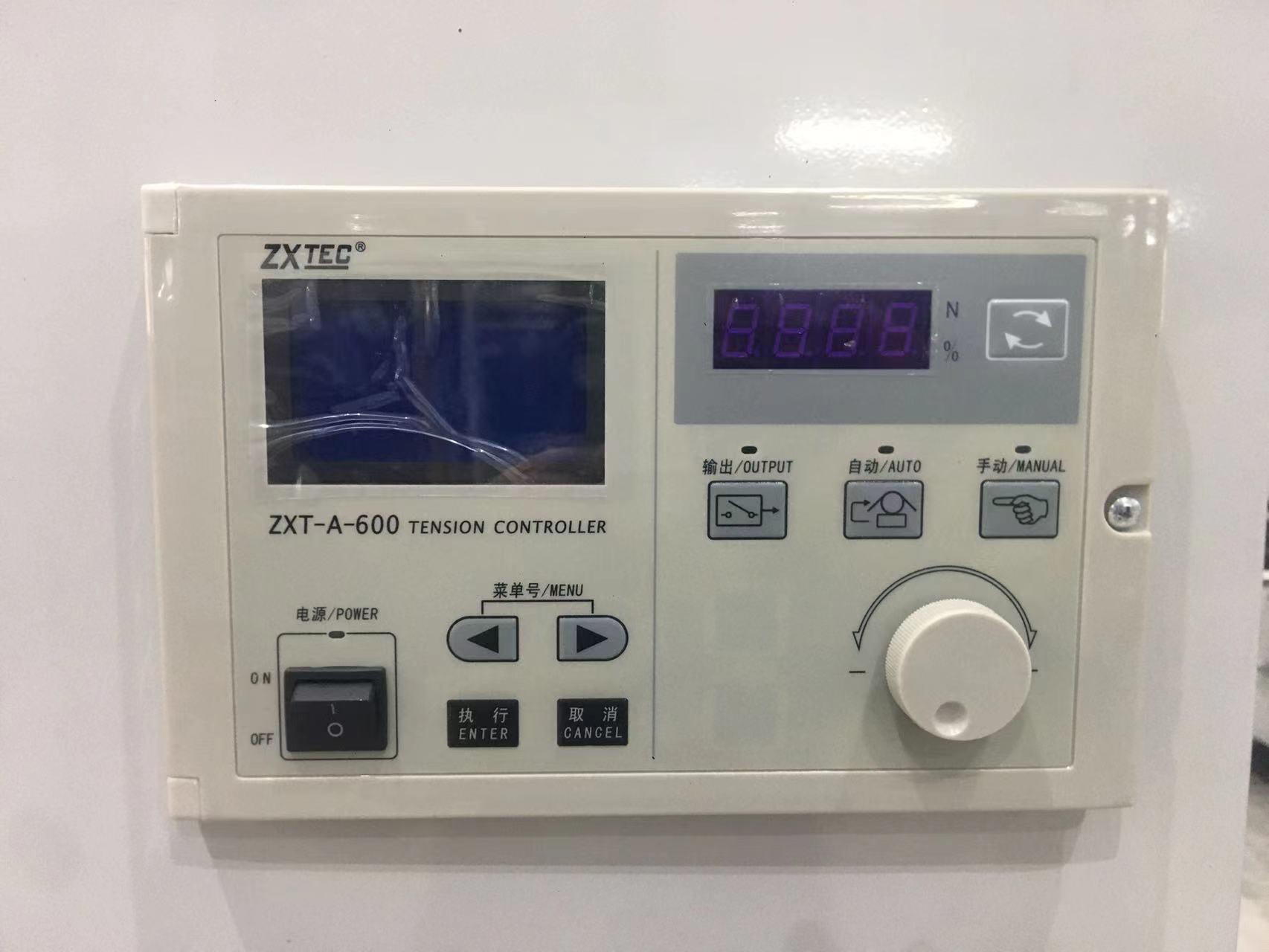

Automatic constant tension control

Tension is the control to tighten or loosen material. The machine is equipped with a set of automatic constant tension controller for unwinding

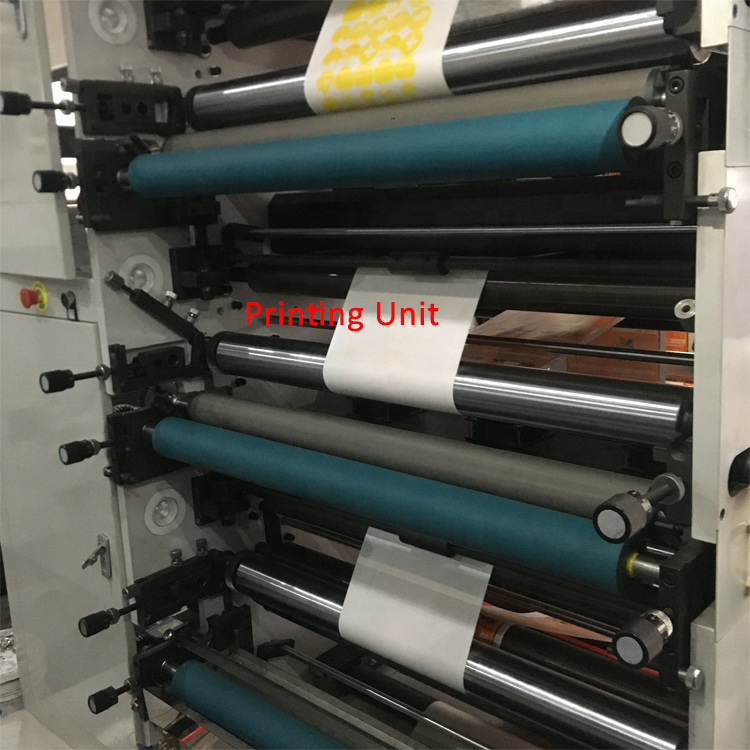

printing unit

Printing station with ink rollers, ceramic anilox rollers, plate cylinders, doctor blades and cartridges, platen rollers, helical gears

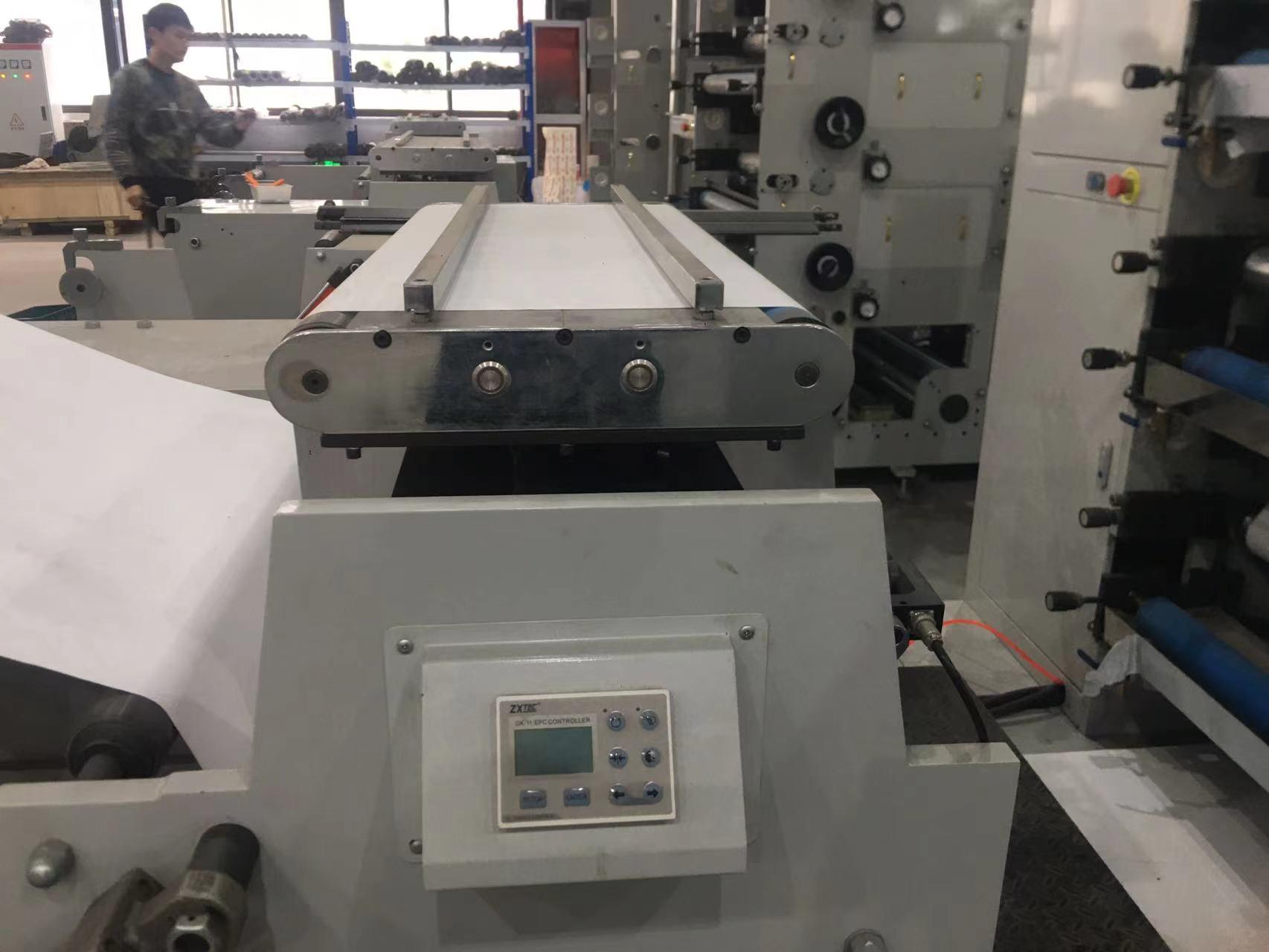

web guide

It is possible to control the material to advance in a straight line, and then output the final product with a good edge.

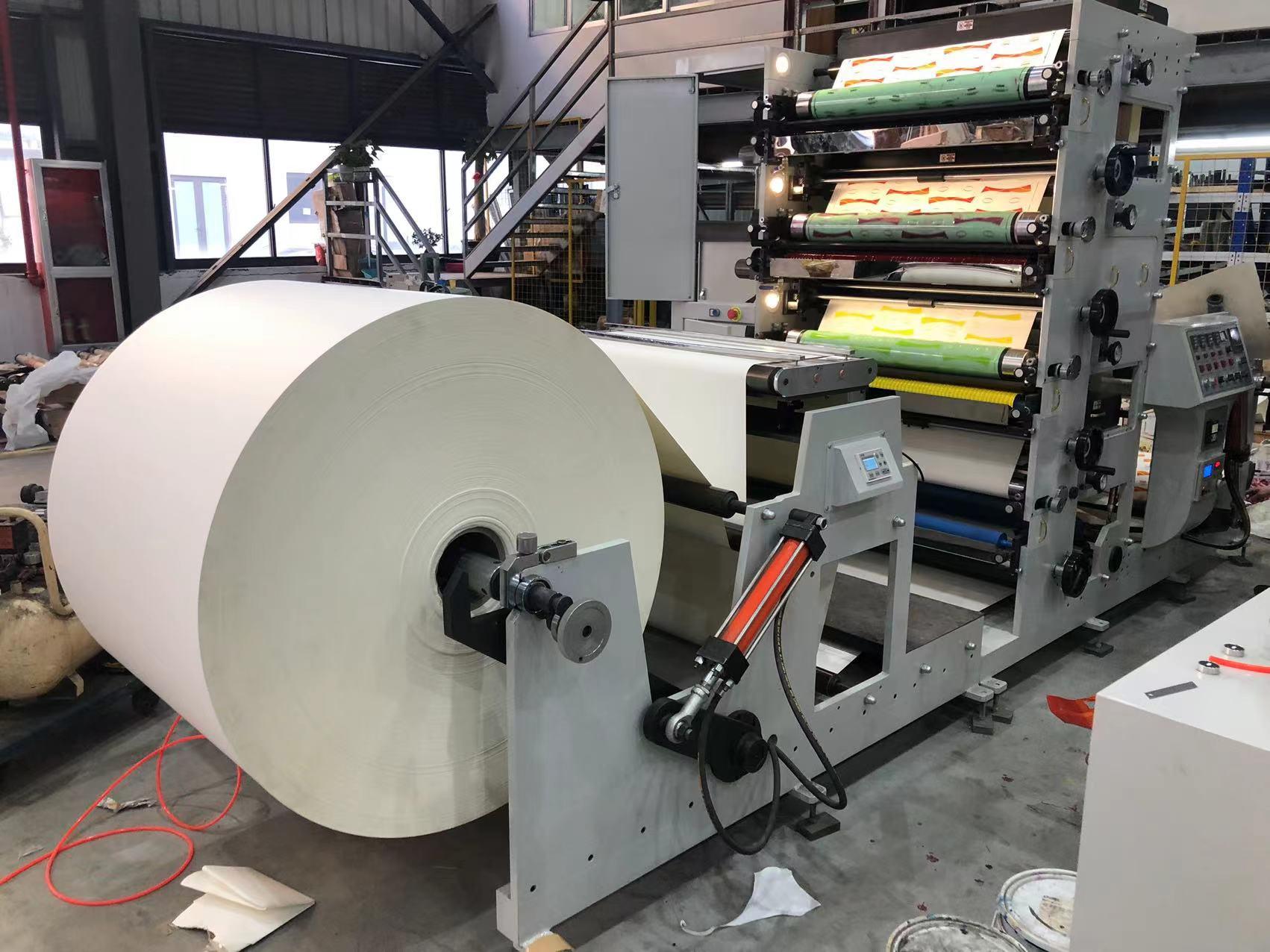

Unwinding and rewinding hydraulic lifting system

Regardless of whether the weight of the raw material is heavy or light, it does not need to be manually moved to the unwinding position, it can be automatically lifted to the unwinding position.

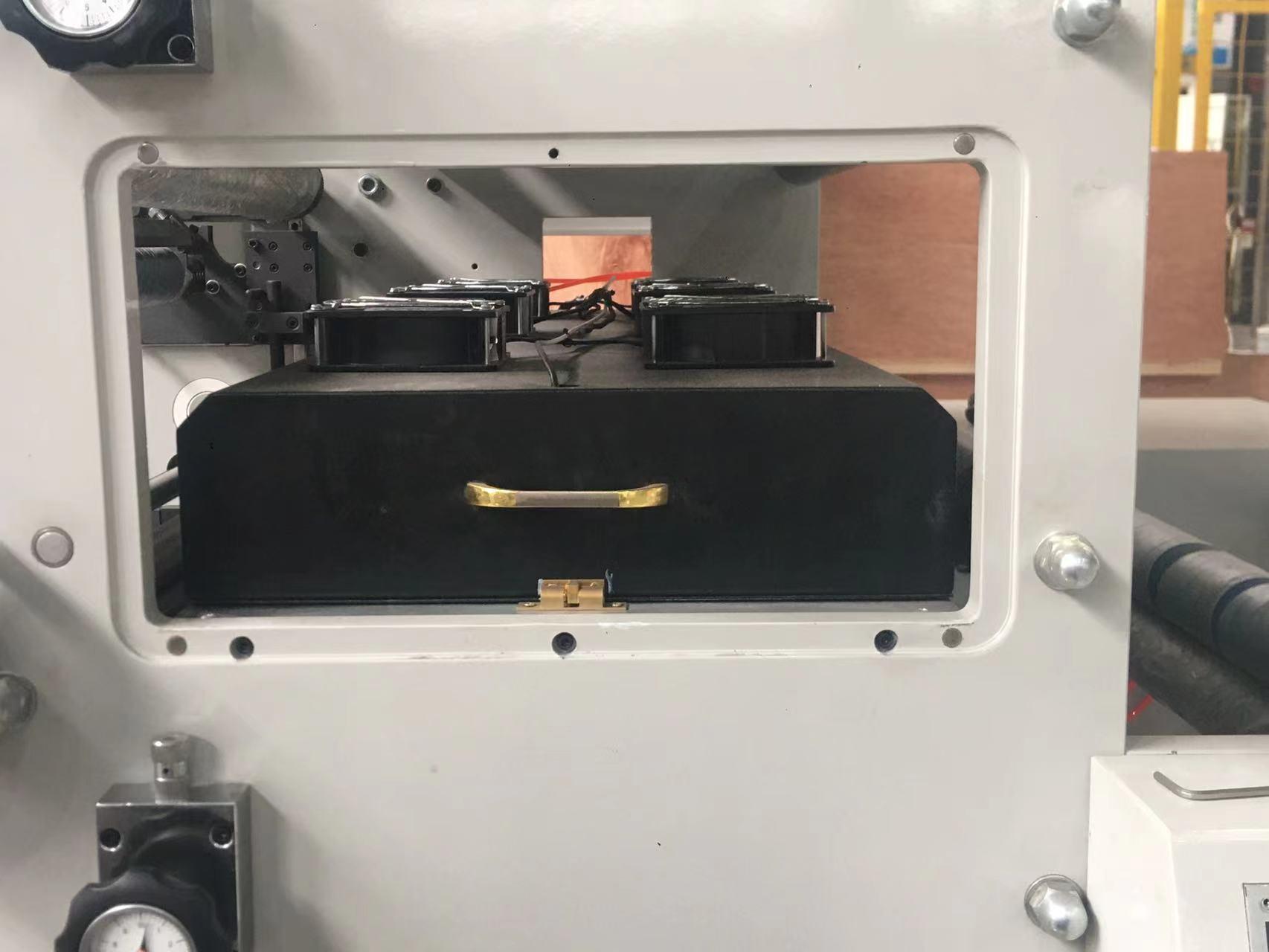

infrared dryer

1). Each printing unit is equipped with an infrared heating oven.
2).Infrared heating drying oven is placed on the material and after each printing station.
