feature: | water cooling | brand: | Ranson |
software: | CorelDraw, PhotoShop, AutoCAD, Tajima | Function: | Engraving non-metallic materials |
cooling method: | water cooling | Cutting speed: | 0-30000mm/min |
payment terms: | L/C, Western Union, T/T, MoneyGram | Origin: | Shandong China |
Applicable materials: | Acrylic, crystal, glass, leather, MDF, paper, plastic, plexiglass, plywood, rubber, stone, wood, marble, granite, tombstone, fabric, ceramics, etc. | CNC or not: | Yes |
power supply: | 220V/50HZ 110V/60HZ | Supported software: | Tajima CoreDraw Photoshop AutoCAD |
Control system brand: | Reda | Core components: | motors, gears, engines |
Laser type: | carbon dioxide | Dimensions (L*W*H): | 198*137*43cm |
Operating mode: | continuous wave | cooling system: | Chiller CW3000/CW5200 |
Mechanical test report: | if | Laser power: | 75-90W |
Packaging Details: | Packaging Details: The packaging comes in a fumigation-free plywood box. All machines use plastic covers to avoid moisture during transport. We ship by sea, by air or by express, which is most convenient for you. Please contact us for more details. Shipping Details: Shipped within 7 days after payment | Engraving area: | 1000*600mm |
Main selling points: | flexible | Core component warranty: | 2 years |
Laser tube: | Sealed CO2 laser tube | Video shipment inspection: | if |
port: | Qingdao, Shanghai, Tianjin | Laser head brand: | Ranson |
Optical lens brand: | wavelength | Health status: | new |
Control System: | Ritar control system | Laser source brand: | Lacey |
Servo motor brand: | lead light | Drive System: | Three-phase stepper motor |
Configuration: | Gantry | Package preview: | |
application: | laser engraving | Warranty: | 2 years |
Supply capacity: | 999 sets per month | Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Factories, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies, funeral industry |
Weight (kg): | 380 kg | Engraving speed: | 0-60000mm/min |
Supported graphic formats: | AI, BMP, Dst, DXF, PLT | Rail brand: | Purchasing Managers Index |

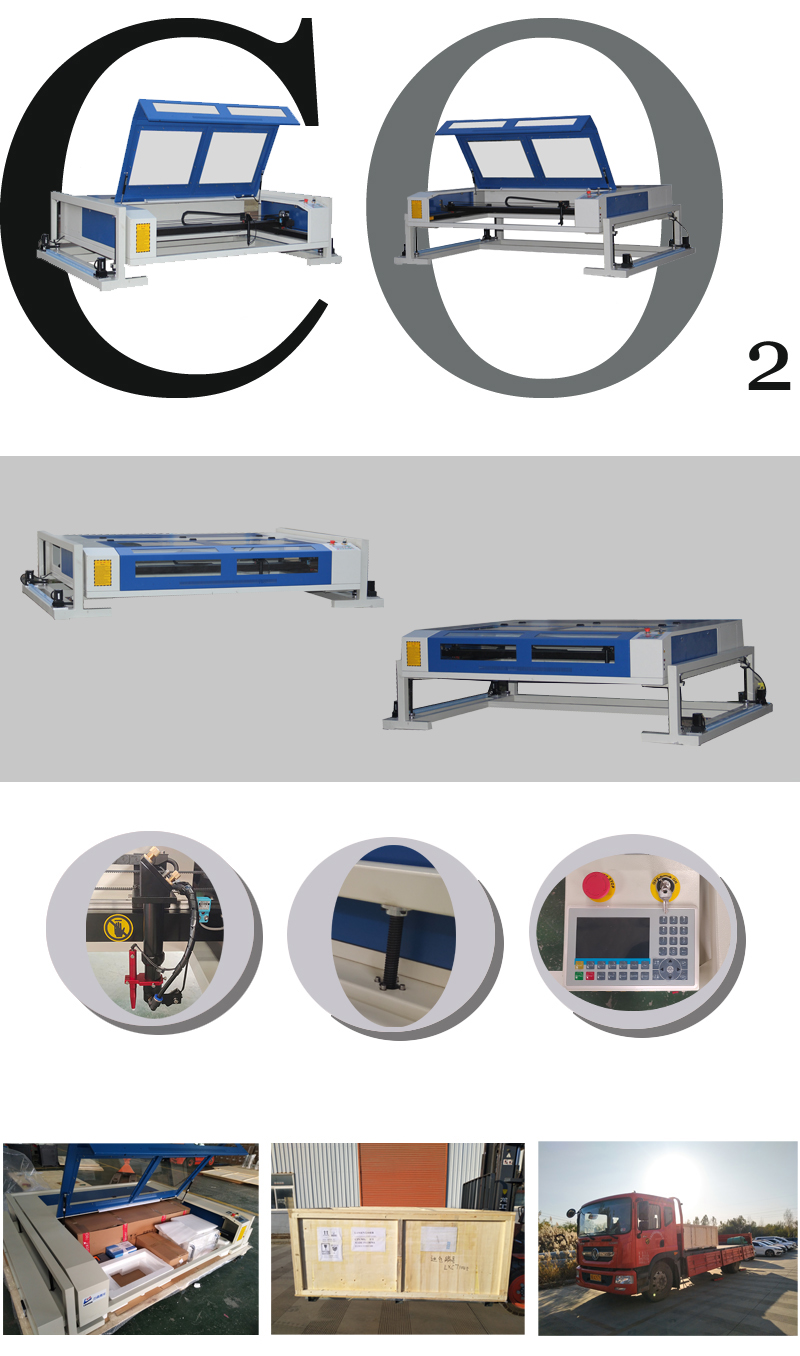

1). The upper and lower parts of the machine are separated. The upper part can directly place large and thick marble/stone/granite.
2). This machine adopts double lift table. The upper and lower parts can move up and down automatically, which is very convenient for thick materials.
3). Very useful for small house doors.
Model | LM1060U | |
Work area | 100cm*60cm/39in*23.4in | |
Equipment size | 198*37cm/ 43in*18.5in (L*W*H) | |
laser power | 75W-90W (100W optional) | |
laser type | CO2 sealed laser tube, water cooling, 10.6um | |
cooling method | water cooling | |
Engraving speed | 0-70000mm/min | |
cutting speed | 0-40000mm/min | |
Communication Interface | USB | |
Laser output control | 1-100% software setting | |
minimal character engraving | Inch 1.0mm*1.0mm | |
positioning accuracy | ≤±0.01mm | |
Highest scanning accuracy | 4000DPI | |
Operating temperature | 0 - 45°C | |
power supply | 220V/50HZ , 110V/60HZ | |
Graphics formats supported | BMP, PLT, DST, DXF, AI | |
supported software | ArtCut, PhotoShop (conversion output) CorelDraw, AutoCAD, Lasercut (direct output) | |
worksheet | Honeycomb suction cup or blade workbench | |
Drive System | Three-phase stepper motor | |
net weight | 280 kg | |
gross weight | 350 kg | |

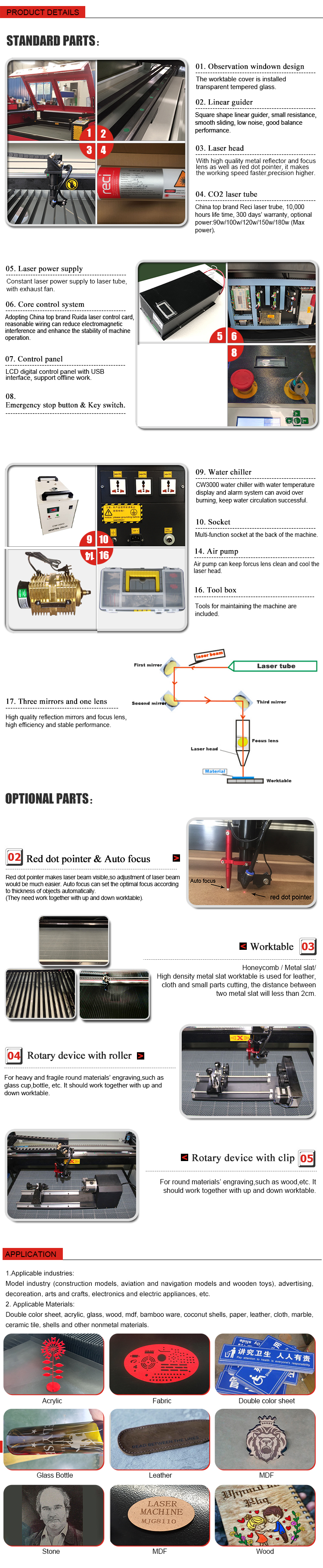

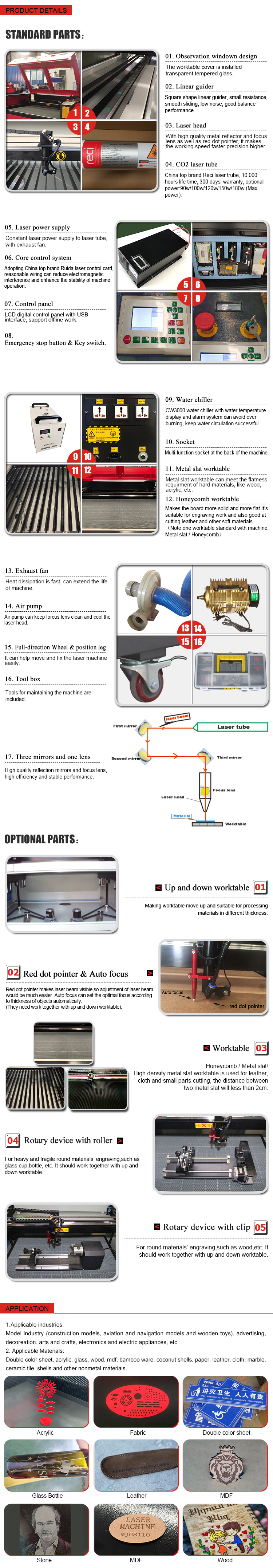

Spare Parts Recommendation(R): Laser Tube(R), Lens(R), Reflector(R) | ||
Optional parts: | ||
1. Electric lift table 2. Chiller 3. Rotary Tool with Roller / Rotary Tool with Clamp4. Red dot locator5. car Focus 6. CCD device optional |
Applicable industries: | Applicable materials: |
marble carving industry, advertise, Gift, packaging, shoes, clothing, Toy, Model, decorate, arts and crafts, Paper industry, etc. | marble, granite, tombstone, wood, acrylic fibers, organic Glass, crystal, fabric, Paper, leather, eraser, ceramic products, Glass and other non-metallic materials. |
1. Machine 24 months
2. Reci laser tube 10 months, other tubes, lenses and mirrors 6 months
3. Water pumps, fans, air pumps and other outdoor equipment for 12 months.
4. Detailed manuals and videos guide users on how to use the machine and maintain it, and provide specification settings for speed and power to engrave or cut various materials. Provide vivid and fast technical guidance and solutions via email and webcam within 24 hours.
