Operating force: | / | Cross reference: | / |
color: | green | brand: | touch sensor |
Sensitivity (LSB/(°/s)): | / | Installation type: | mounted behind a mirror, / |
Amplifier type: | / | model: | NSB139B |
interface: | / | Origin: | Guangdong, China |
Voltage - Output Difference (Typical) @ Distance: | / | Package: | / |
Package preview: | Voltage - Output (Typical) @ Distance: | / | |
size: | / | application: | Smart makeup mirror, bathroom mirror light switch, mirror light sensor switch |
Voltage - Power: | AC 100-240V | usage: | mirror sensor |
Operating Voltage: | DC12V/24V input=output | Current Rating - AC: | / |
Voltage - DC Reverse (Vr) (Max): | / | Current - Output (Maximum): | / |
Packaging Details: | Bag | Power - Maximum: | / |
port: | Shenzhen | Sensing object: | / |
Load current: | 2A/3A/5A | payment terms: | L/C, Western Union, T/T, MoneyGram, PayPal |
Sensing Temperature - Remote: | / | Acceleration range: | / |
Flow sensor type: | / | Measuring range: | / |
Dimensions/dimensions: | / | Sensing distance: | / |
technology: | / | Operating temperature: | / |
Output function: | / | Current - output: | / |
Current Rating - DC: | / | Indicator color: | White when powered on, blue when working |
Voltage - Rating: | / | feature: | / |
brand: | Norduff | Current - supply (maximum): | / |
Voltage - Maximum: | / | frequency: | / |
theory: | touch sensor | Voltage - Input: | / |
Sensitivity (LSB/g): | / | Oxygen range: | / |
Sensing range: | / | rated power: | / |
Revolt: | / | Product Size: | L49XW33.4mm |
Function: | / | Sensor light: | / |
Line length: | Input 150mm, output 120mm | Output configuration: | / |
powered by: | / | Bracket Thickness: | ≤5mm glass/acrylic/mirror... |
Material: | circuit board | Sensitivity (mV/°/s): | / |
current: | / | Sensitivity (mV/g): | / |
Resistance Tolerance: | / | bandwidth: | / |
Payment/Payment: | / | Sense Temperature - Local: | / |
Rated voltage: | / | Resolution (bits): | / |
output: | / | describe: | touch sensor |
solve: | / | tolerant: | / |
Humidity range: | / |
product name | Switch + three colors + stepless dimming with memory mirror touch switch | ||||||
brand | Norduff | ||||||
Model | NSB139B | ||||||

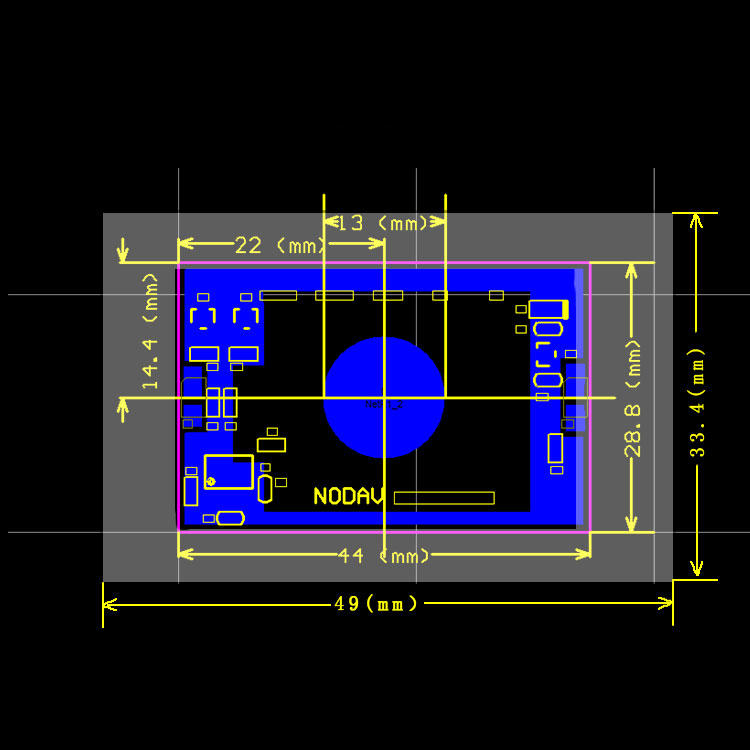

Product Size | L49XW33.4mm | ||||||
line length | Input 150mm, output 120mm | ||||||
Operating Voltage | DC12V /24V input=output | ||||||
load current | 2A/3A/5A | ||||||
Output Power | 24W(12V2A)/36W(12V3A)/60W(12V5A)/48W(24V2A)/72W(24V3A)/120W(24V5A) | ||||||
Support thickness | ≤5mm glass/acrylic/mirror... | ||||||
Dimming color | Three kinds: cool white, warm white, neutral white | ||||||
dimming mode | stepless dimming | ||||||
Apply | Smart makeup mirror, beauty mirror, makeup mirror dimmer switch | ||||||
Custom processing | 1. Support processing customization. 2. Tell us your needs, we can design products that meet your needs. | ||||||

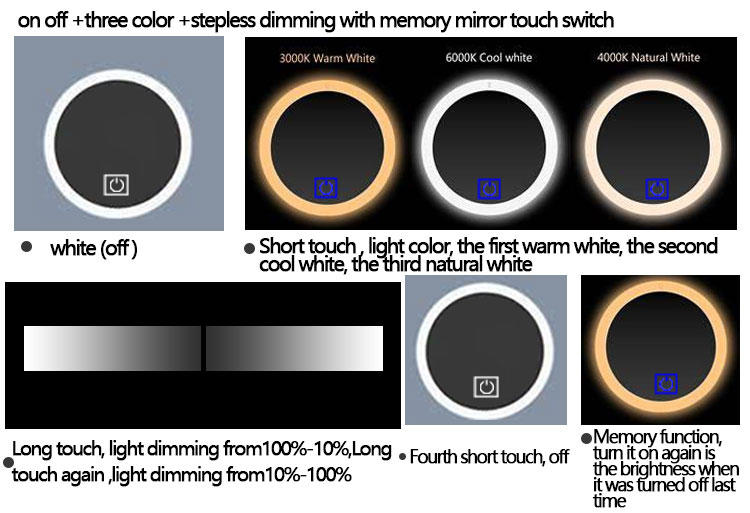

Operating mode | Turn on the power, the white indicator light is on, the first short press the control to turn on, the blue indicator light is on during work, long press to adjust the brightness, the second and third short press to control the color of the light, and the fourth short press to turn off the control. |
