Used Railway Equipment Used Multi-Tie Rod MTT and Ballast Regulator from Korea, Japan, China

Product details
can use:YesShipping:we provide
payment terms:wire transferWarranty:unavailable
Packaging Details:Each 50 sets in a cartonport:Ningbo
Video shipment inspection:ifAfter warranty service:Video technical support, online support
Showroom location:not anyHealth status:ok second hand
Year:1998Origin:Busan, South Korea
Supply capacity:15 sets per weekLocal service location:not any
Applicable industries:railway maintenanceMechanical test report:if
Core component warranty:not availableMarketing Type:normal product
Core components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump

Railway maintenance using second-hand multi-sleeper MTTs from Korea, Japan, China



We have a good relationship with Kora/Japan Railways, every year they have used MTT and other railway maintenance equipment, we help sell them to those who need them, they are all in good condition, ready to use, and the price is lower than brand new. We will also carry out the transportation from the port of origin to your port of destination.

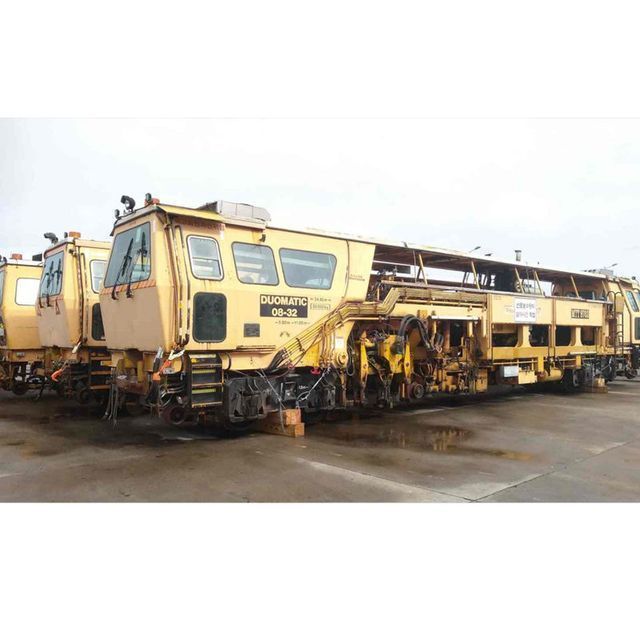

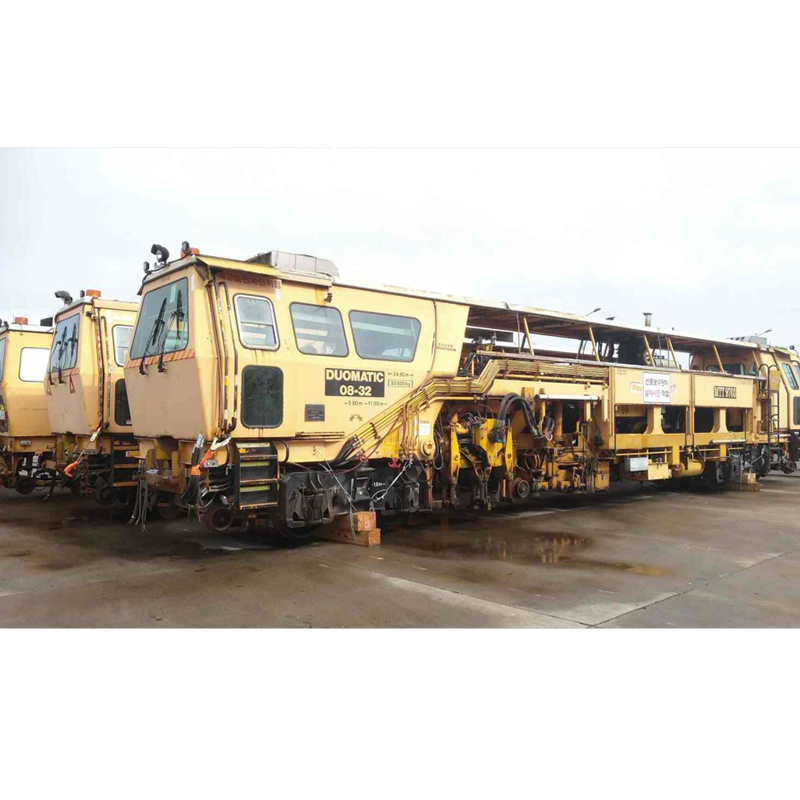

This machine is a double sleeper tamping machine, which adopts stepping action during operation. The machine can complete the track lifting, track lining and leveling of railways and turnouts, and the compaction of ballast on both sides of the rail or under the sleeper at the end of the sleeper. The machine can measure and record the geometric parameters of the railway track after operation through the on-board measurement system, and operate according to the set geometric parameters of the track through the control system. If the speed-increasing bogie is used, the traction speed can reach 120 km/h.
Dimensions (length x width x height): 23200mm x 3120mm x 3750mm
Curb weight: 58 tons
Gauge: 1435mm
Engine rated power: 235 kW
Self-propelled maximum two-way speed: 80 km/h or 100 km/h
Maximum towing speed: 100 km/h or 120 km/h
Bogie pivot distance: 11000 mm
Bogie wheelbase: 1500 mm
Emergency braking distance: ≤ 630 meters (on straight and horizontal tracks at 80 km/h)
Minute driving radius: 100 meters
Minimum working radius: 120 m
Working efficiency: 1000 m/h ~ 1300 m/h
Working precision
Longitudinal level: ≤3mm
Horizontal level: ±2mm
Sine: ±2mm
