Single Row Cylindrical Roller Bearing Single Row N NU NJ NUP 2314 2308 2307 2306 2305 High Quality N NU NJ NUP

Product details
Rows:single rowpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
brand:DFN DFDN HXK or OEMCertificate:ISO9001:2015
structure:CylindricalApplicable industries:Manufacturing plants, machine repair shops, retail, rolling stock, machine tool spindles
pack:original packagingfeature:longevity
Serve:OEM/ODM or customer logo acceptabletype:roller
Material:Chrome steelPackaging Details:1. Industrial packaging: plastic bag + kraft paper + carton or wooden box; plastic wrap + carton + tray 2. Commercial packaging: 1pc/plastic bag + color box + carton + tray 3. Packaging according to customs requirements
brand:DFN DFDN HXK or as your requestport:Qingdao Guangzhou Ningbo Shanghai
Origin:Chinasize:standard size
product name:Cylindrical Roller Bearingsapplication:Automobiles. Tractors. Construction machinery. Rolling mills
cage:Steel cage. Brass cage. Nylon cageSeal type:Open
Package preview:Accuracy class:P0 P6 P5 P4 P2
model:N NU NJ NUP 2314 2308 2307 2306 2305 EM EM ECSupply capacity:1,000,000 pieces per month
Hot Products
Product Description
product name
Cylindrical Roller Bearings
Material
Chrome steel, GCR15
type

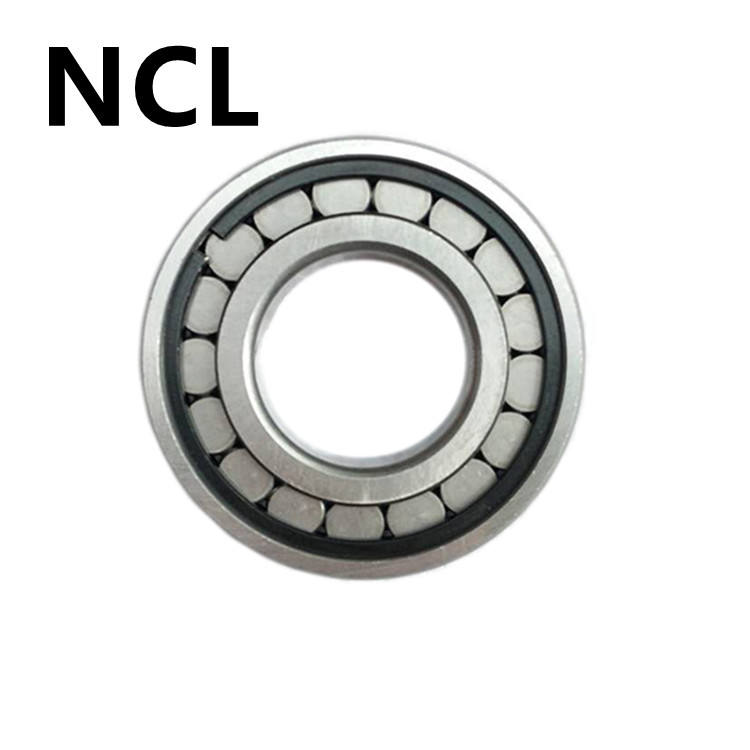

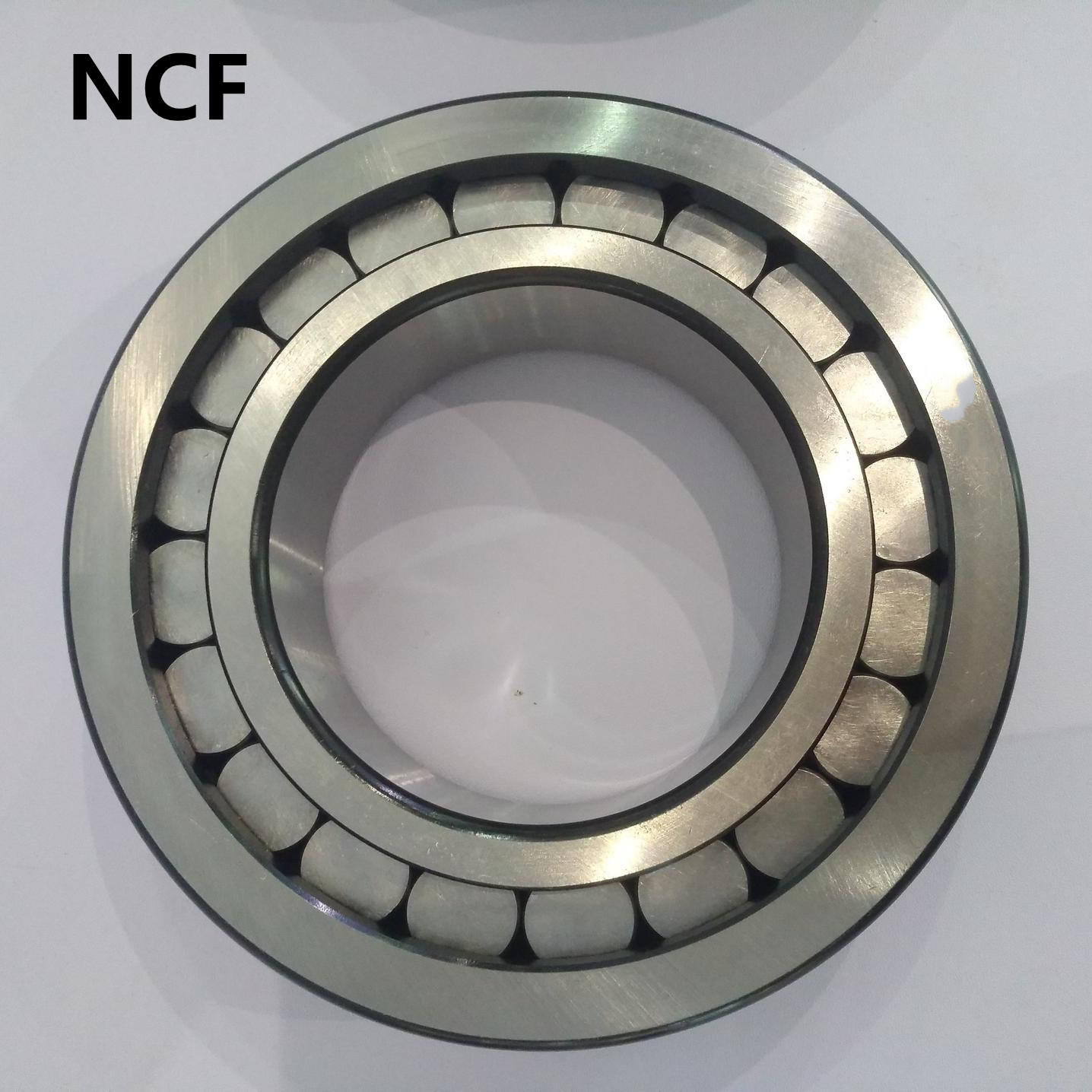

Single row (N, NU, NJ, NUP, NF, RN, NCL, NCF)

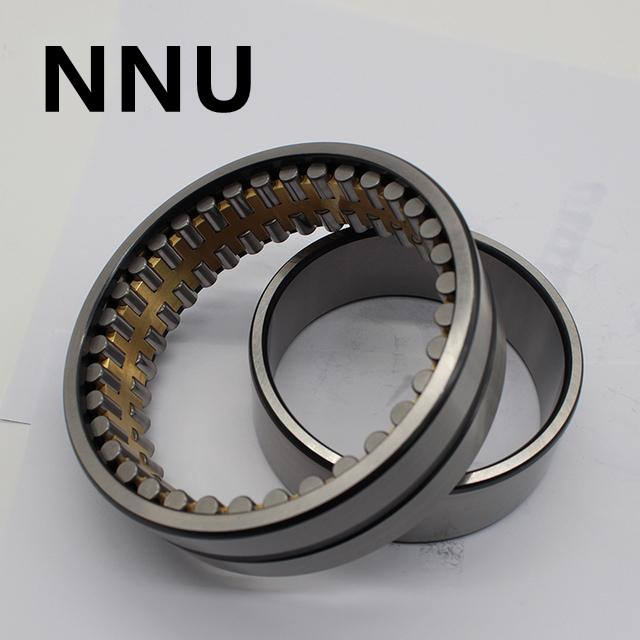

Double row (NN, NNU)

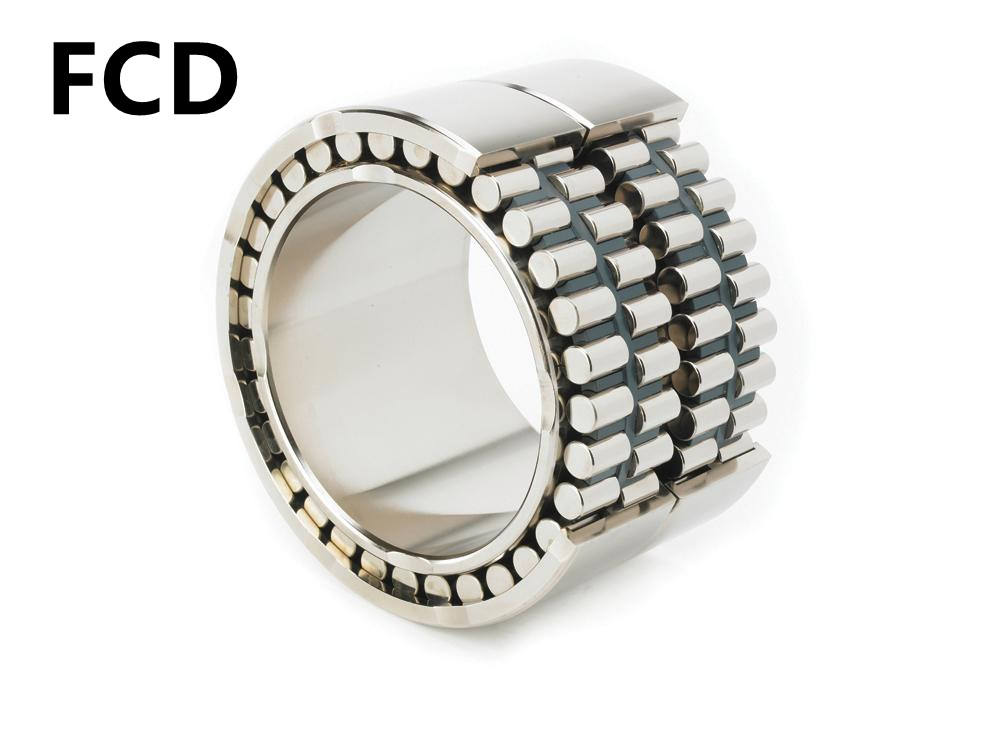

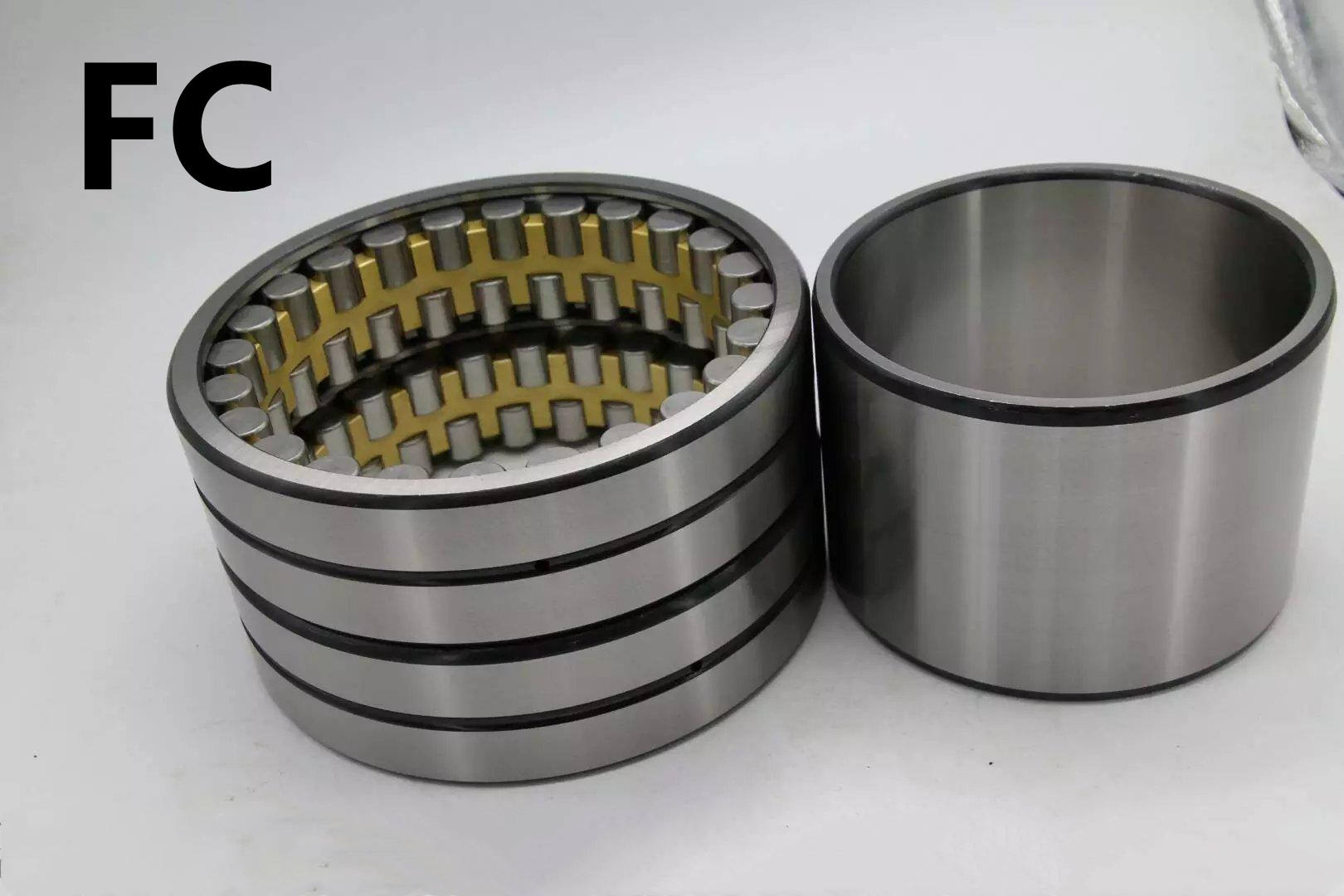

Four rows (FC, FCD)
size
D: 3-110mm, D: 9-240mm
accurate
PO,P6,P5,P4,P2
to clear
C0, C2, C3, or as required
cage
steel cage, copper cage, nylon cage
for
Large motors, machine tool spindles, engine front and rear support shafts, train and passenger car box shaft brackets, diesel engine crankshafts, automobile and tractor gearboxes, internal combustion engines, generators, gas turbines, reducers, rolling mills, vibrating screens and lifting and transportation machinery
Warranty
1 year
brand
OEM or DFN DFDN HXK
Package
Packaging according to buyer's requirements
Specifications
Bearing number
Dimensions (mm)
weight
Bearing number
Dimensions (mm)
weight
d
Man
Second
Kilogram
d
Man
Second
Kilogram
NU204
20
47
14
0.11
NU304
20
52
15
0.201
NU205
25
52
15
0.137
NU305
25
62
17
0.251
NU206
30
62
16
0.211
NU306
30
72
19
0.377
NU207
35
72
17
0.3
NU307
35
80
twenty one
0.501
NU208
40
80
18
0.382
NU308
40
Post-90s
twenty three
0.68
NU209
45
85
19
0.438
NU309
45
100
25
0.93
NU210
50
Post-90s
20
0.493
NU310
50
110
27
1.2
NU211
55
100
twenty one
0.648
NU311
55
120
29
1.53
NU212
60
110
twenty two
0.84
NU312
60
130
31
1.87
NU213
65
120
twenty three
1.07
NU313
65
140
33
2.31
NU214
70
125
twenty four
1.16
NU314
70
150
35
2.86
NU215
75
130
25
1.25
NU315
75
160
37
3.43
NU216
80
140
26
1.5
NU316
80
170
39
4.05
NU217
85
150
27
2.5
NU317
85
180
41
4.82
NU218
Post-90s
160
30
2.35
NU318
Post-90s
190
43
5.59

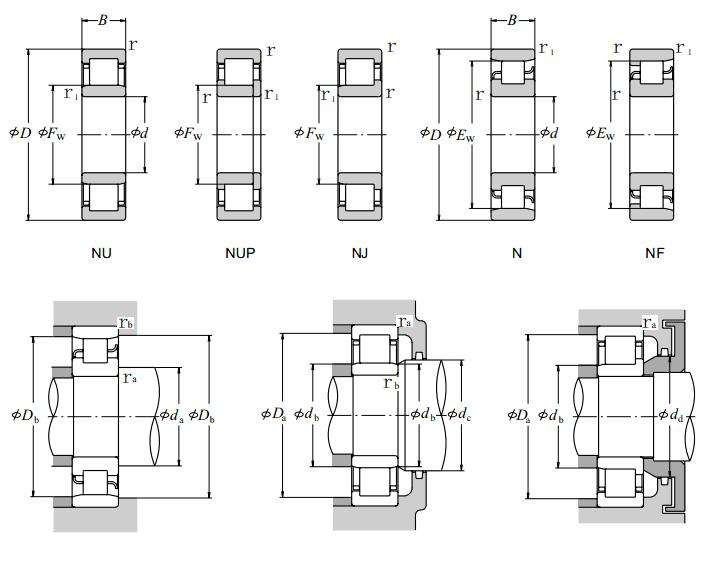

detailed drawing

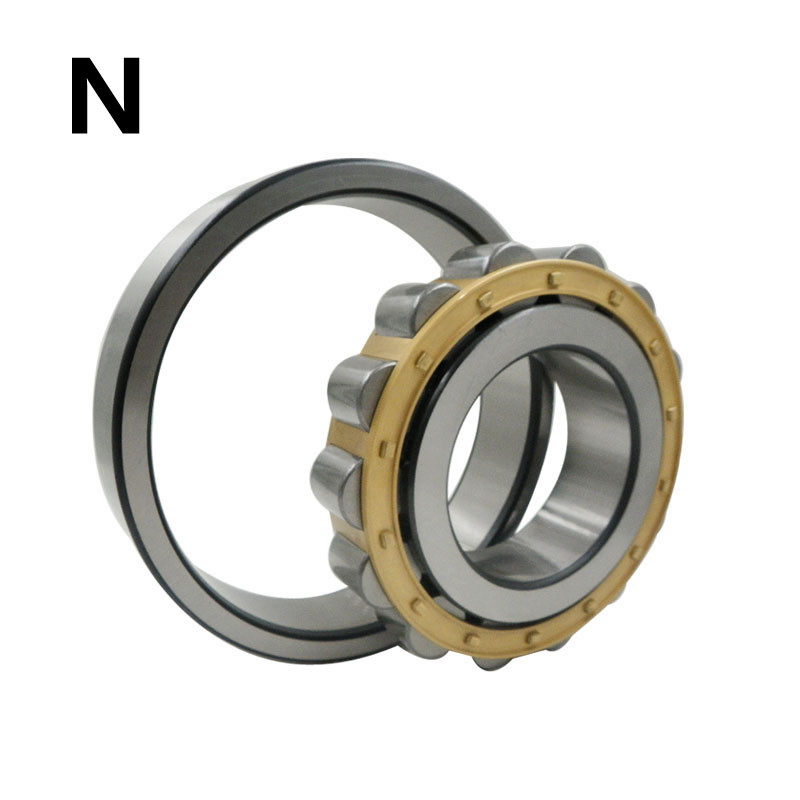

N type:
The inner ring has two integral ribs and the outer ring has no ribs. The axial displacement of the shaft relative to the housing can be adjusted in both directions on the bearing itself. Therefore, the bearing acts as a floating bearing.

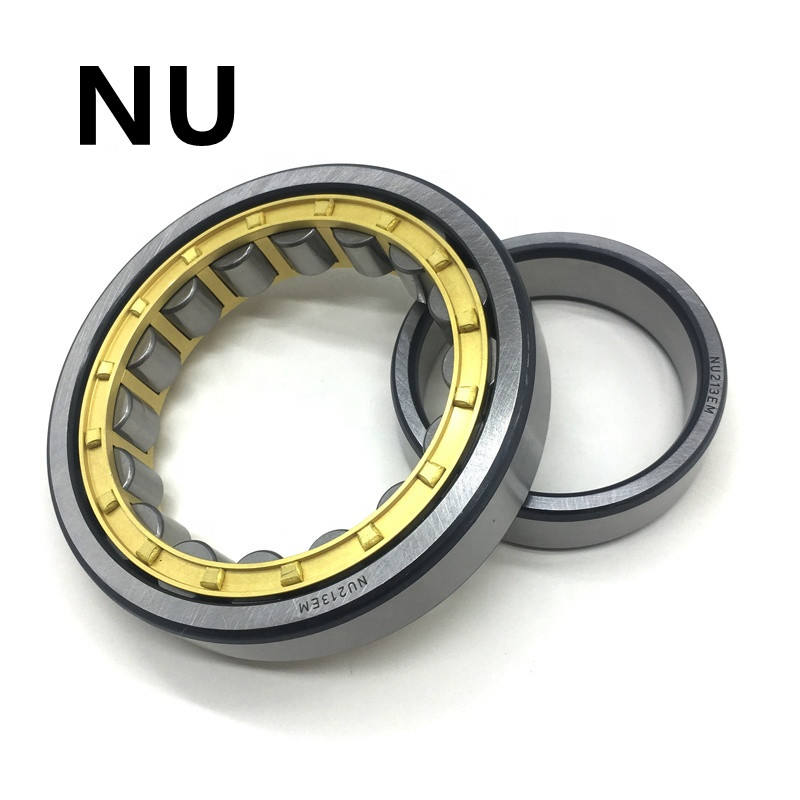

NU type:
NU design bearings have two integral ribs on the outer ring and no ribs on the inner ring. The axial displacement of the shaft relative to the housing can be adjusted in both directions on the bearing itself.

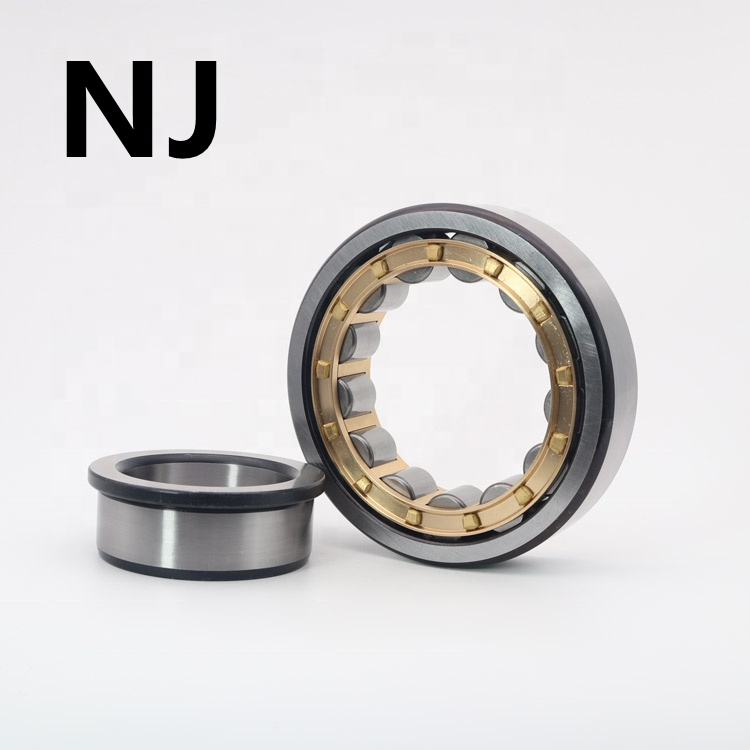

New Jersey Type:
There are two integral flanges on the outer ring and one integral flange on the inner ring. Therefore, the bearing is suitable for axial positioning of the shaft in one direction.

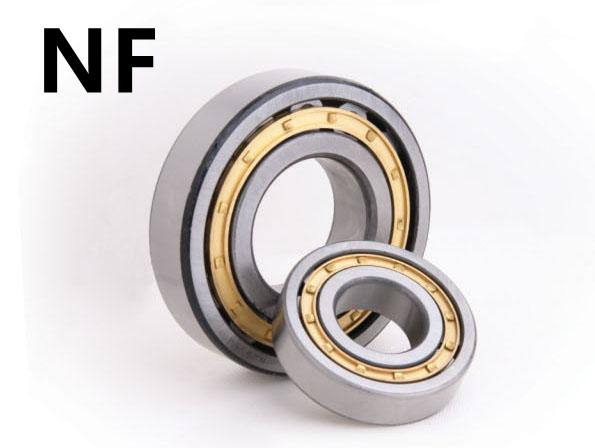

NF type:
The outer ring has one integral flange and the inner ring has two integral flanges.

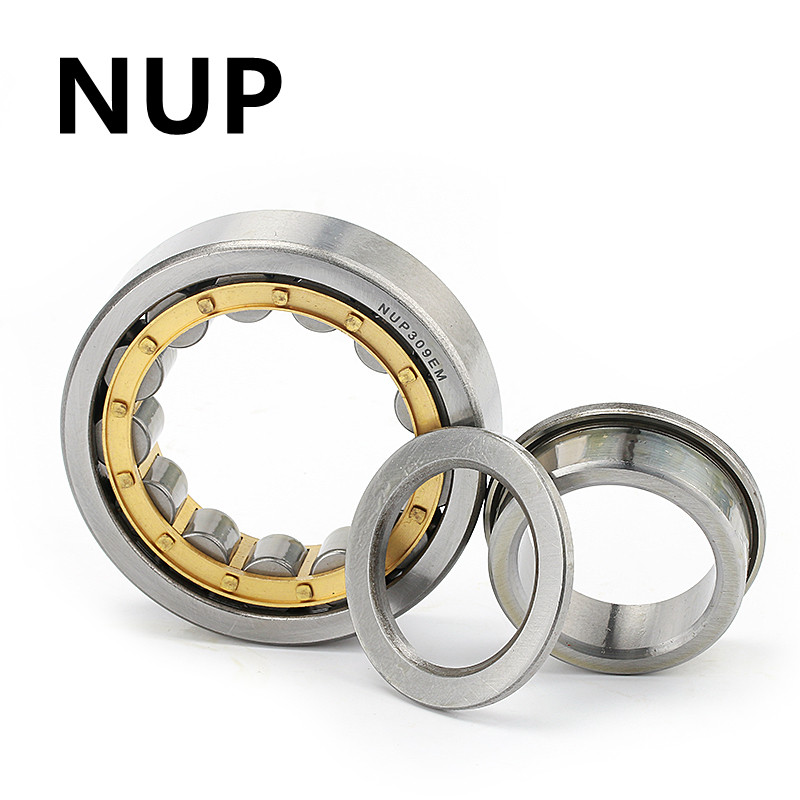

NUP type:
The outer ring has two integral flanges and the inner ring has an integral flange and a non-integral flange in the form of a loose flange ring. These bearings can be used as locating bearings, i.e. they can provide axial positioning of the shaft in both directions.

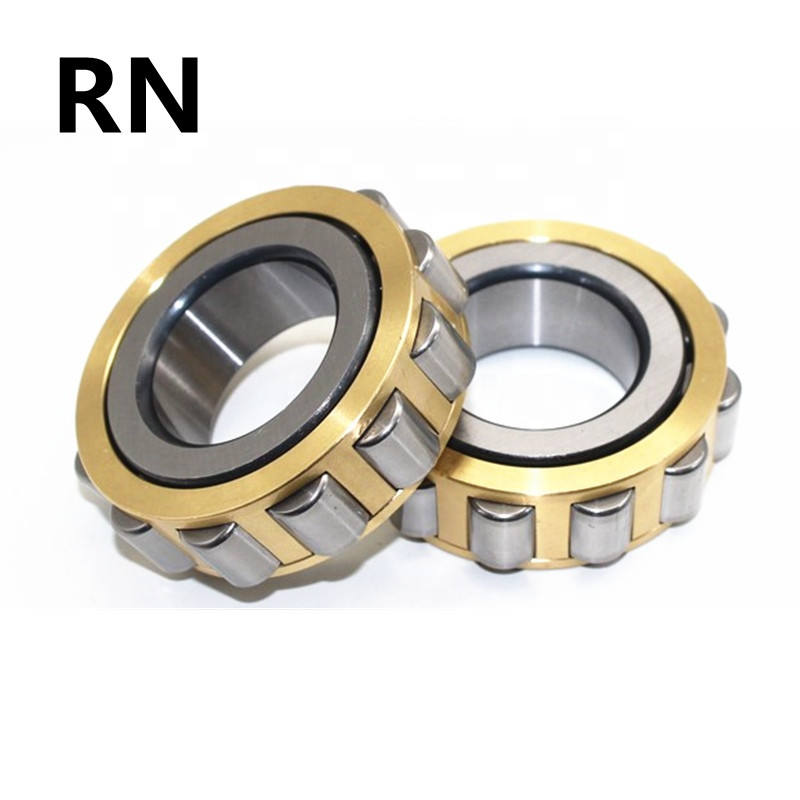

Registered Nurse Type:
There are two integral flanges without outer ring and inner ring.

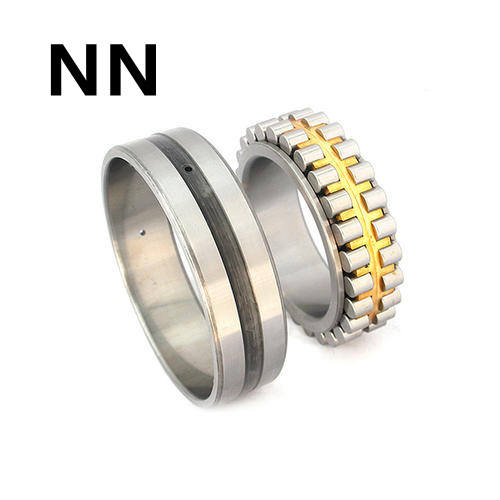

Neural Network Type:
The outer ring of NN type bearing has no ribs, and there is a rib in the middle of both sides of the inner ring. can do axis
Axial displacement between opposing bearings in both directions.

application
Large motors, machine tool spindles, engine front and rear support shafts, train and bus box shaft brackets, diesel engines
Crankshafts, automotive and tractor gearboxes, internal combustion engines, generators, gas turbines, speed reducers, rolling mills, vibration
Screen and lifting transport machinery
