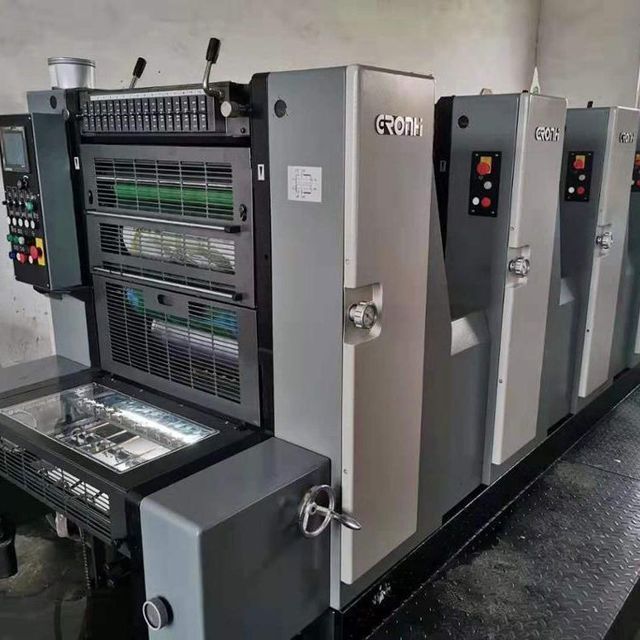

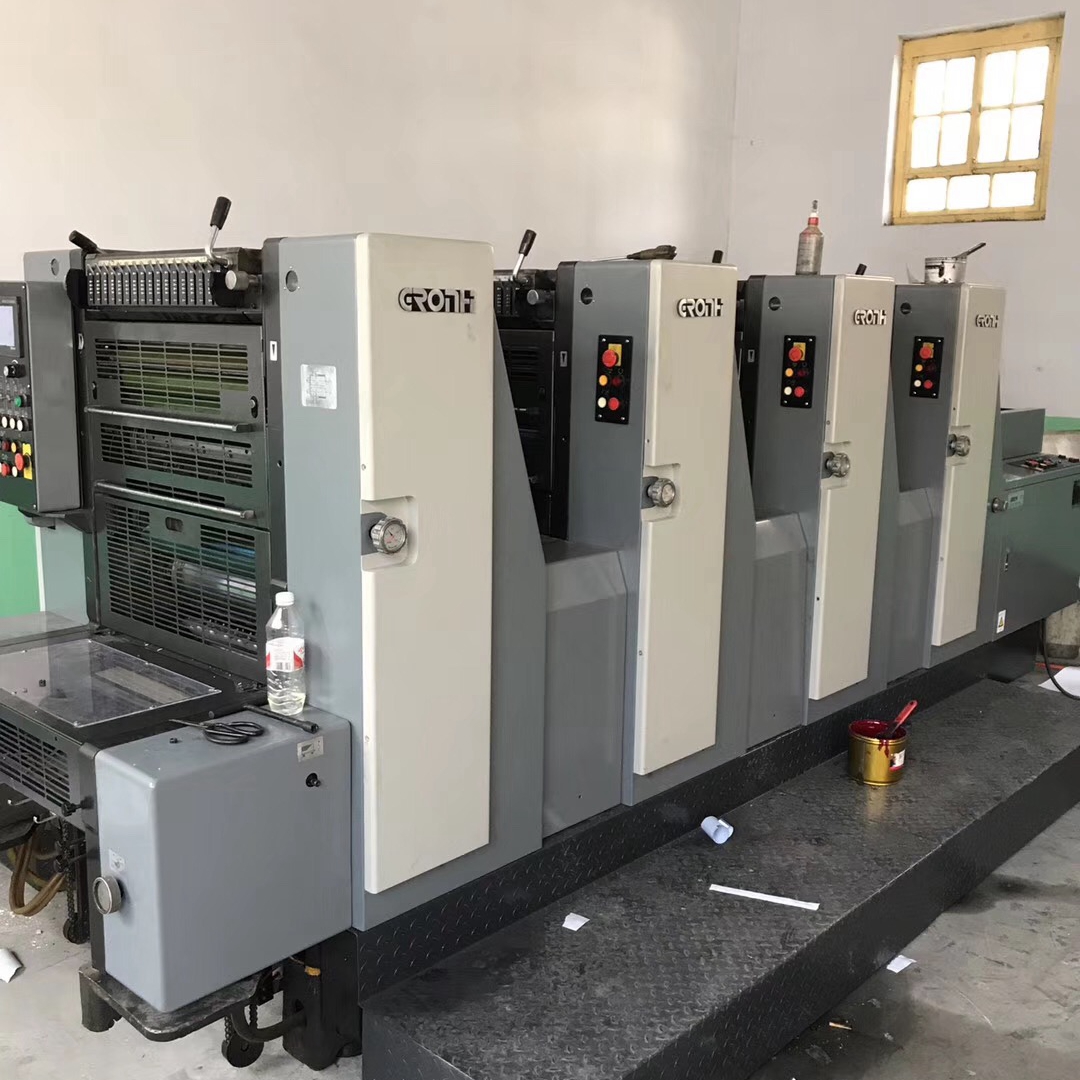

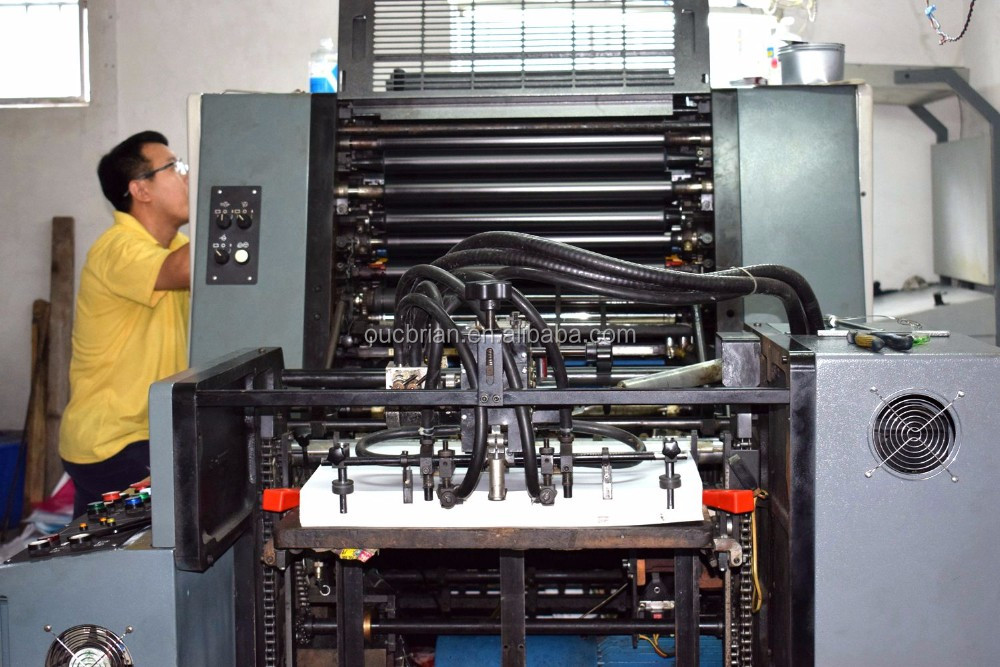

Magazine multi-color printing 4-color offset printing machine price

Supplier: Weifang Swan Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Brian Mu
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Make:	Groni	type:	Offset printing machine
Local service location:	Uzbekistan	Maximum printing area:	505x350mm
Colors and Pages:	Polychromatic	Certification:	CE CCC ISO9001
Showroom location:	Uzbekistan	Maximum paper size:	520x375mm
Supply capacity:	10 sets per month	Shape roll:	4 pieces
payment terms:	L/C, T/T, Western Union, MoneyGram	Origin:	Shandong China
Color unit number:	4 units	Feed pile height:	750mm
Minimum paper size:	260x190mm	Warranty:	6 months
After warranty service:	Online support, spare parts, on-site maintenance and repair services	Paper Thickness:	0.04-0.4mm
Packaging Details:	Export wooden box 4 color magazine offset printing machine for multicolor printing price	weight:	9600 kg
Fountain roller:	19 pieces	Health status:	used
Delivery pile height:	400mm	Voltage:	380V
Main selling points:	automatic	Maximum printing speed:	13000 rev/h
Automatic level:	automatic	Dimensions (LWH):	4500x1700x1600mm
After-sales service provided:	Online support, free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support	Plate type:	flatbed printer
Applicable industries:	printing shop	usage:	Receipt printers, card printers, label printers, paper printers
brand:	swan	Package preview:
Year:	2015	port:	Qingdao

Product Description

Conditions of use heavy duty 4 color offset printing machine Conditions of use 4 color automatic printing machine multicolor printng 4 color magazine offset printing machine price

Conditions of Use Magazine Press Brochure Heidelberg Press Conditions of Use

Model:	GH524	GH564
Color unit number	4	4
printing speed	12000 seconds/hour	2600-12000 seconds/hour
Maximum paper size	520x375mm	560×400mm
Minimum, paper size	100x148mm	148×100mm
paper thickness	0.04-0.4mm	0.04-0.4mm
Maximum printing area	510x360mm	540×380mm
plate size	510x410x0.15mm	550×433×0.15mm
Feed pile height	900mm	900mm
delivery stacking	420mm	420mm
ink roller	19	19
Fountain roller	4	4
platen roller	5 (4 inks, 1 fountain)	5 (4 inks, 1 fountain)
Plate damping	Alcohol	Alcohol
strength	12Kw	12kw
net weight	9000 kg	9600 kg
Machine size	4330x1820x1720mm	4420×2280×1720(mm)

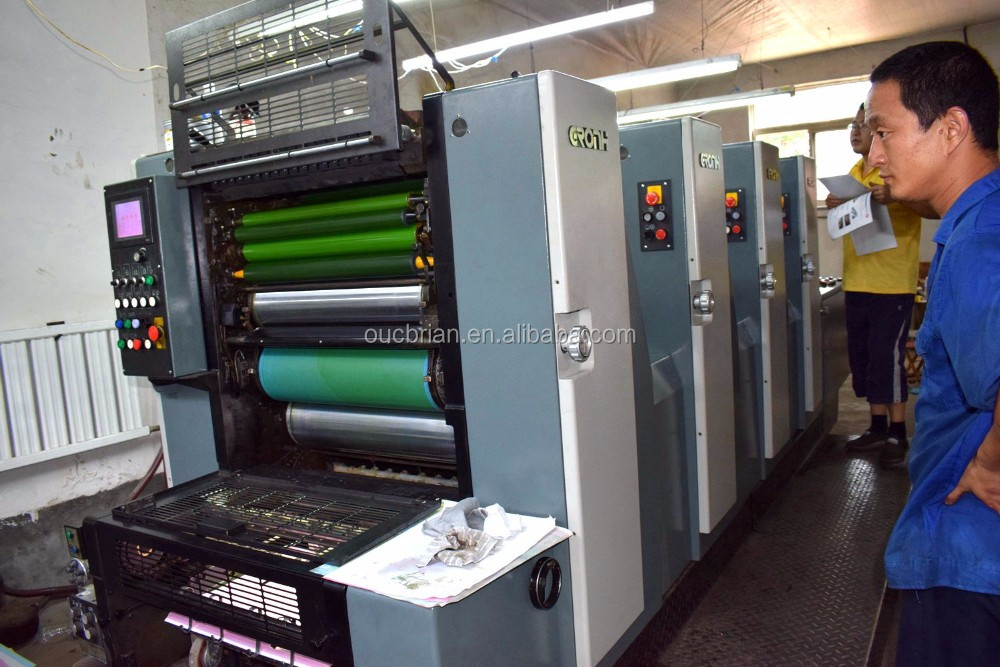

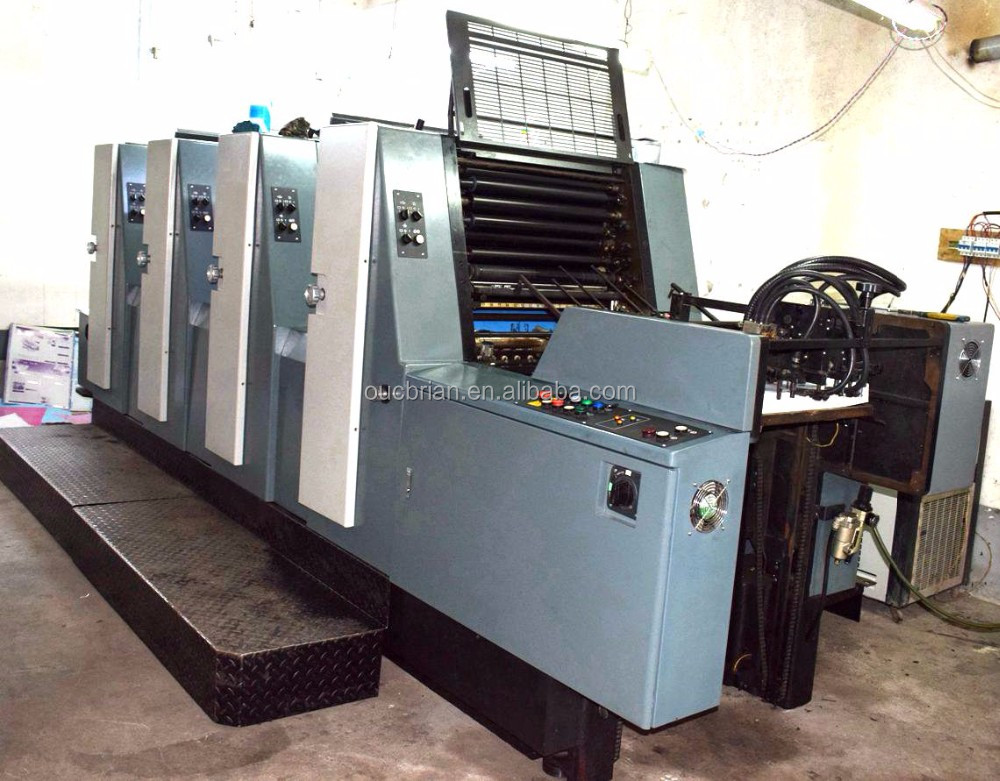

main features ofUSED Condition 4 Color Offset Press

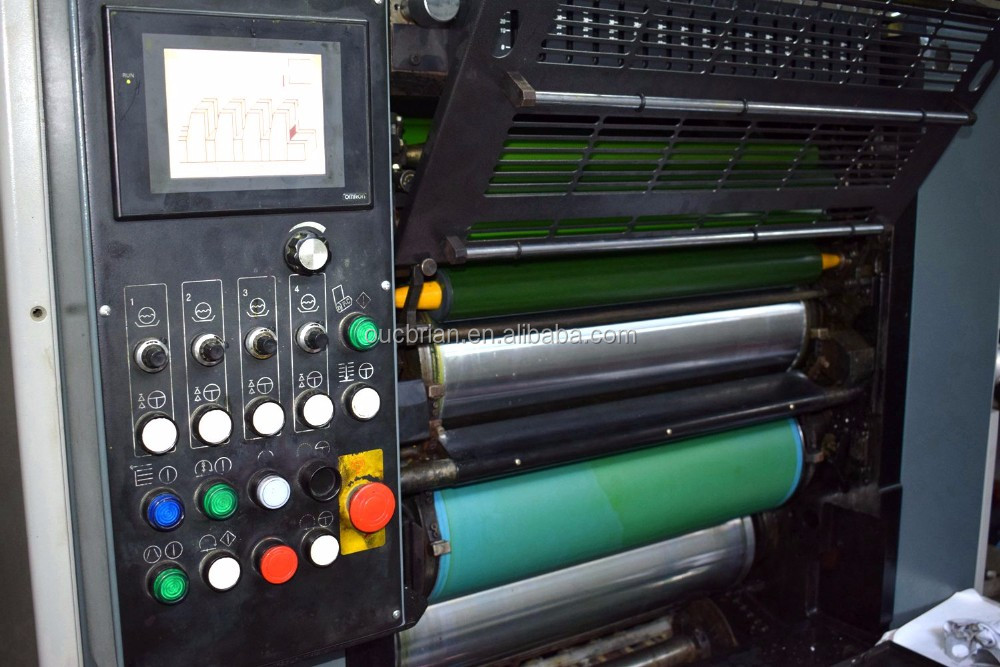

1. The unit layout is adopted, and a double-bore cylinder and two single-bore cylinders realize the transition. Intelligent and humanized touch screen control system.

2. Semi-automatic plate changing device

3. The touch screen control system does not stop the machine to realize precise axial and circular adjustment, the axial direction is ±1mm, the circumference is ±0.5mm, and the step distance is 0.01mm. Printing accuracy, continuous and stable printing are guaranteed.

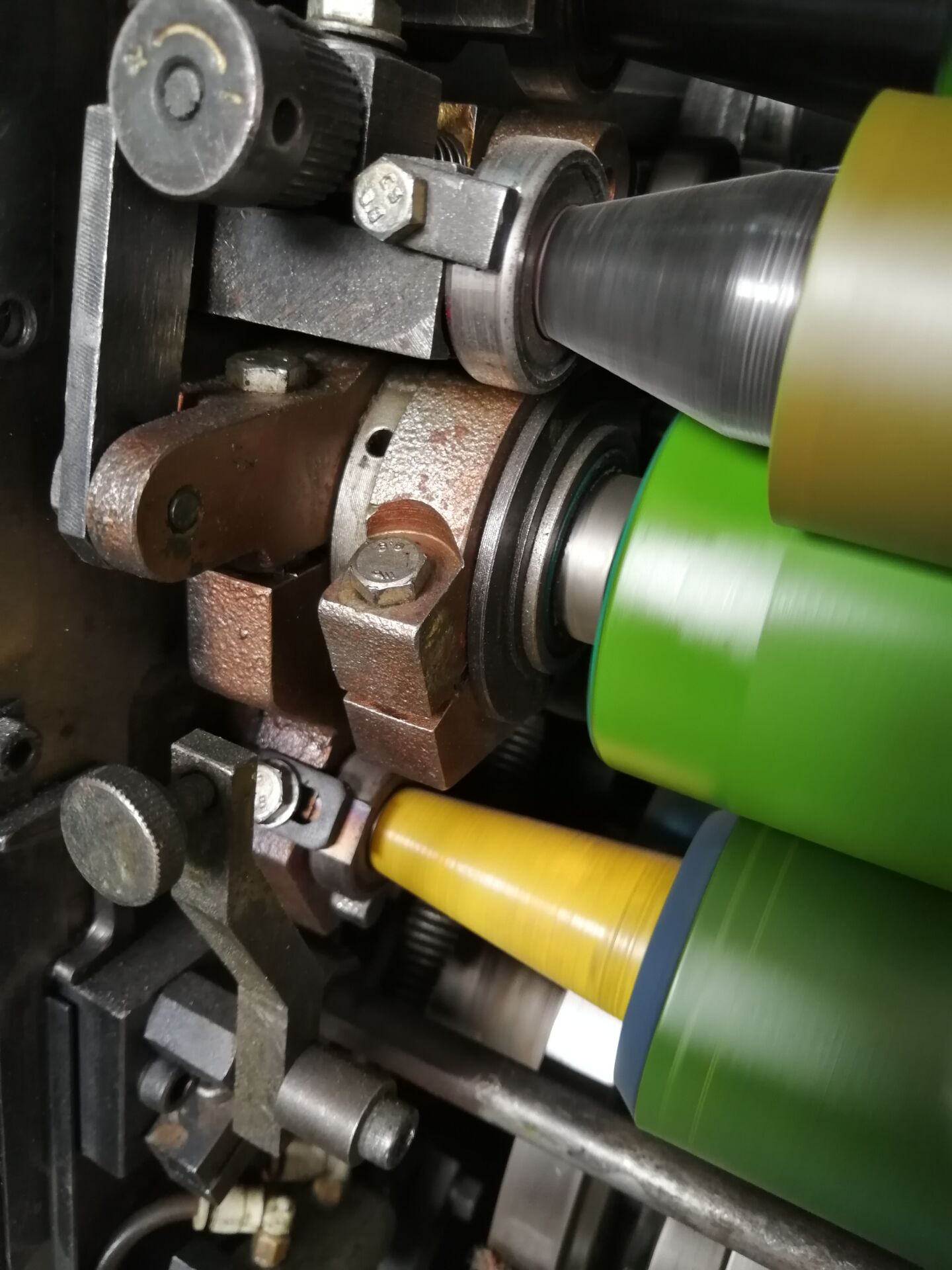

4. Alcohol plate dampening system, separate dampening roller drive motor with speed-up function, evenly distributed liquid film reduces dpi increase, optional alcohol concentration automatic detection device.

5. Pneumatic centralized control and operating mechanism realize multiple functions such as automatic ink filling, dampening, clutch pressure, and plate changing. The size of the machine is greatly reduced, the power of the main motor and the transmission link of the medium are reduced, the execution speed of the trading institution is improved, and the reliability and stability of the operation are improved.

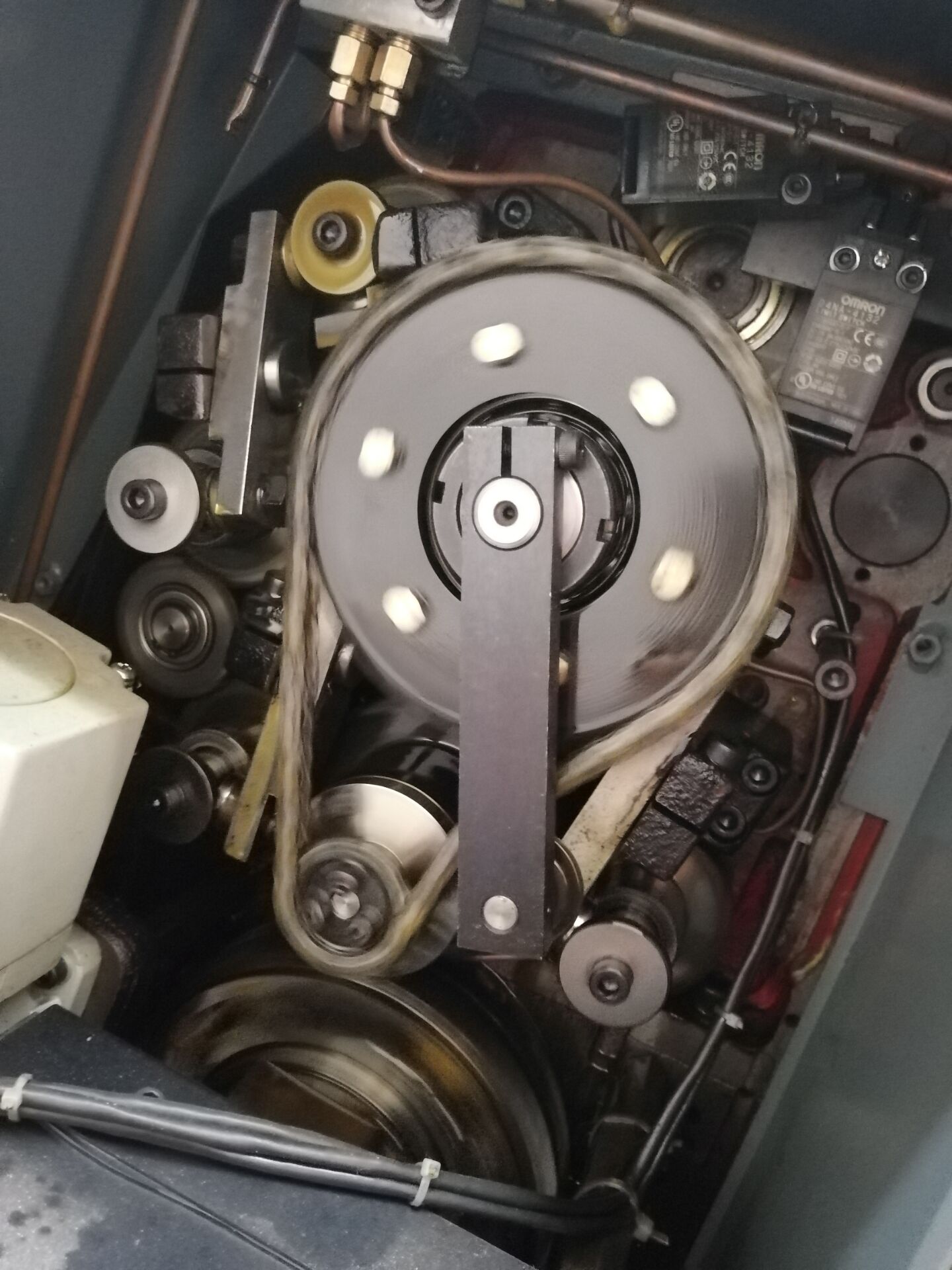

6. Super strong cast iron plate, unique frame design, stable structure, durable and reliable. High-precision external helical gear transmission, low noise, ensuring satisfactory performance and prolonging service life.

7. Continuous suction paper feeding and upward swing rotary paper feeding device.

8. Automatic lubrication system

more details

Advantages of the Hans Gronhi Heavy Duty 4-Color Offset Press

1. They are new (manufactured 2006-2016)
2. They are very efficient:
1) Automatically upload the fourth edition within 3 minutes
2) Speed 13000S/H,
3. Simple operation:
1) Computer controlled inking
2) Automatic registration adjustment
4. Most cost-effective
1) The price is much cheaper than the old Heidelberg machine
2) Spare parts are easily available and maintenance is cheap (more than 3000 sets are still in use in China)
We have a number of machine sizes 520,560,660 in stock that were built around 2011-12.
Model: 470, 520 560, 660, 740mm.
Video link:
https://www.youtube.com/watch?v=Ago0wAkbWiE
https://www.youtube.com/watch?v=UIALHN2eLFM

finished work
