PH EC TU DO Water Treatment Residual Chlorine Online Multi-parameter Water Quality Meter

Supplier: Suzhou Delfino Environmental Technology Co., Ltd.
Region: Jiangsu, China
Contact: Ms Ye Selena
Price: $435.00 / 1 - 4 pieces
$415.00 / 5 - 19 pieces
$395.00 / >=20 pieces
Min. Order: 1 piece

Click here to contact

Product details

Package preview:		payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
product name:	Multiparameter Water Analyzer	power supply:	AC: 100~240V
pH range:	0~14pH	Supply capacity:	30 pieces per month
brand:	Dalaifu wild	Measurement object:	pH, conductivity, turbidity, dissolved oxygen, residual chlorine
aspect:	144144120mm	model:	MCC200
Origin:	Jiangsu, China	Protection class:	IP66
Turbidity range:	0~20NTU/0~1000NTU	Customization support:	OEM production
type:	Multiparameter Analyzer	Dissolved oxygen range:	0~20 mg/L
EC scope:	0~10mS/cm	Packaging Details:	cardboard box
Warranty:	1 year	Communication Interface:	RS485

Multiparameter Analyzer Features

Customized Multiparameter Analyzers

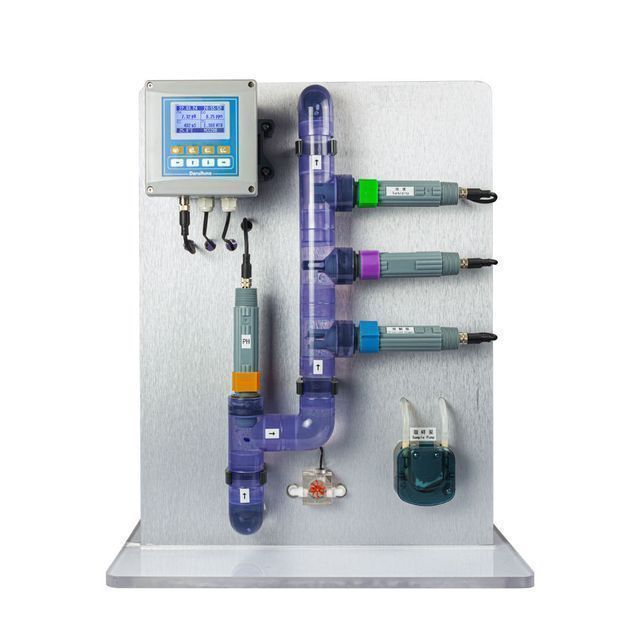

The Daruifuno MCC200 analyzer has 4 digital channels and can connect up to 4 digital sensors. Measurement parameters can be pH, ORP, dissolved oxygen, conductivity, TDS, salinity, turbidity or chlorine.

different measuring ranges
The MCC200 controller can be connected to different electrodes for measurement. The measuring range is determined by different sensors.

The data is accurate and stable
MCC200 requires these authorized sensors to upload detection data in a special encrypted communication method to ensure that the controller collects high-precision data more stably.

Communication and Control
MCC200 multi-parameter water quality analyzer has RS485 interface, and the communication protocol is Modbus RTU. The water quality tester has a cleaning relay, which is used to control cleaning the sensor with a brush.

Various installation methods
The size of the controller is 144*144*120mm, and it supports wall mounting, pipe clamp, and panel mounting.

Multiparameter Analyzer Specifications

product name	Multi-parameter water quality meter
Product number	MCC200
brand	Dalaifu wild
Detection object	pH, ORP, temperature, conductivity, dissolved oxygen, turbidity, residual chlorine
pH sensor	Principle: glass electrode method Range: 0~14pH, 0~50℃ Accuracy: 0.01pH
Conductivity sensor	Principle: 2 electrodes or 4 electrodes Range: 0~10mS/cm automatic switching, 0~50℃ Accuracy: 1% of range
Dissolved Oxygen Sensor	Principle: fluorescence method Range: 0~20mg/L, 0~50℃ Accuracy: ±0.1mg/L
Turbidity sensor	Principle: Infrared 850nm 90° scattered light method Range: 0~1000NTU, 0~4000NTU Accuracy: <±1% of range
configuration information	Power-down protection, parameters are kept indefinitely
Temperature sensor input	PT1000 or NTC10K
Temperature compensation	automatic or manual
Operating temperature	0~60℃RH<95%
Storage temperature	-20~70℃ RH<55%
Relay output	Clean the relay, max. Load 3A/250VAC
communication method	RS485 interface
Protocol	Modbus RTU, supports JSON text
time/data logging	Accurate to the second, record 7800 pieces of historical data, support data download Logging interval can be set between 1 and 999 minutes
maintenance records	last 100 times
exhibit	3.2 inch 128*64 LCD screen
language	English
degree of protection	IP66
Material	Enhanced ABS
aspect	144144120mm
Install	Wall mount, pipe clamp, panel mount (opening size 138*138mm)
power supply	AC: 100~240V, 50/60Hz; DC: 18~36V
energy consumption	<24W
weight	1600 grams
