Mobile Industrial 1000 Liters Emulsion Emulsion Agitator Steam Jacketed Mixing Tank with Agitator and Agitator

Supplier: Jiangsu Speed Precision Machinery Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr jack qin
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Spindle speed range (rpm):	1 - 1400 rpm	Health status:	new
Mechanical test report:	if	usage:	Food, chemical, dairy, beverage, pharmaceutical, etc.
Blender Type:	mixer, homogenizer	port:	Shanghai, Ningbo, Qingdao
Core component warranty:	1 year	Material processing:	Plastics, Chemicals, Food, Medicine
Package preview:		Marketing Type:	Hot Products of 2022
Video shipment inspection:	if	Origin:	Jiangsu, China
Applicable industries:	Hotels, clothing stores, building supplies stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, print shops, energy and mining, food and beverage stores, advertising agencies	payment terms:	L/C, Western Union, D/P, D/A, T/T
Bucket volume (L):	1000	Additional features:	emulsification

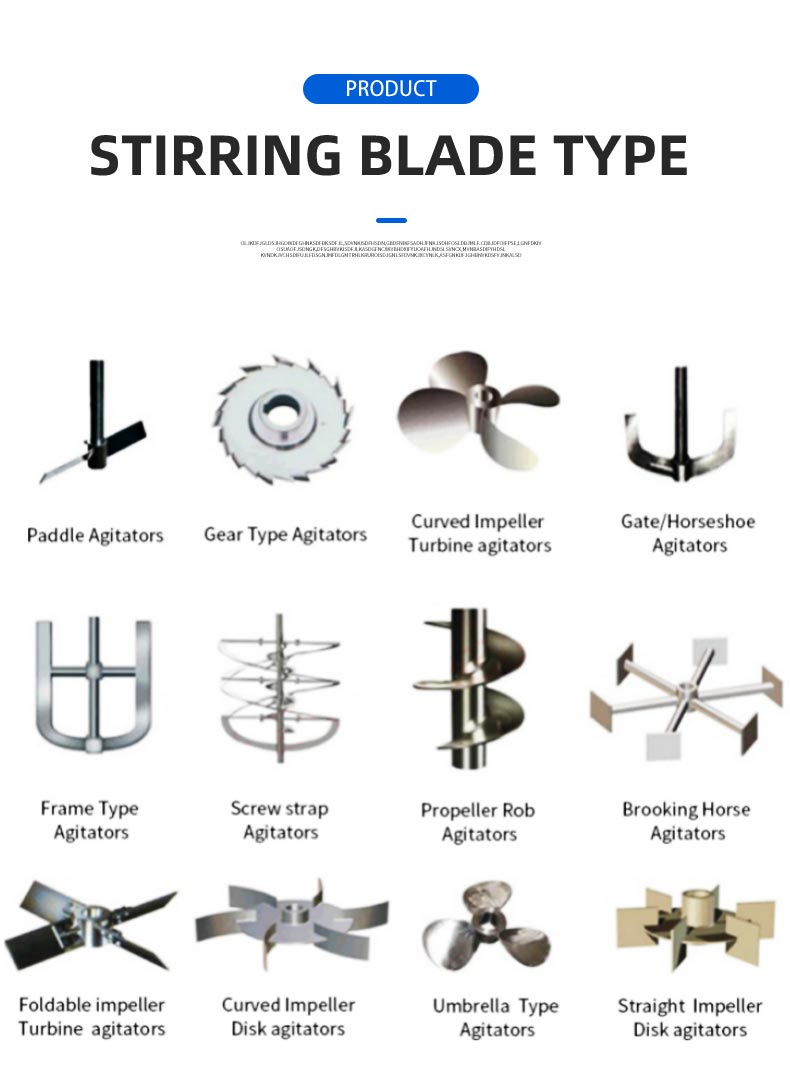

Product Category:	food	Blender Type:	Agitator, homogenizer, paddle, frame, anchor, scraper with agitator
Main selling points:	competitive price	Supply capacity:	500 sets per week
brand:	speed	Showroom location:	not any
Material:	SUS304, SUS304L, SUS316, SUS316L	Power (kW):	5 kW
Packaging Details:	Carton wooden box	maximum. Loading volume (L):	1000 liters
Core components:	motor, gearbox	Voltage:	110/220/380/415V
Weight (kg):	200 kg	application:	liquid
Warranty:	12 months, 1 year

Product Details

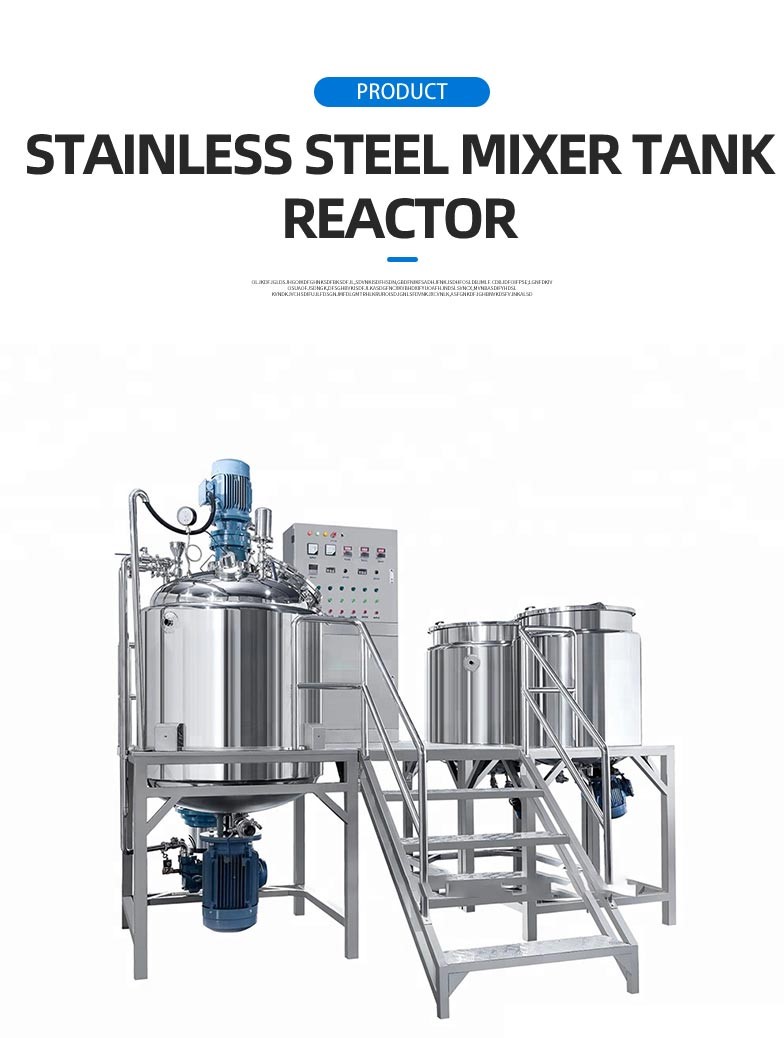

Cream cosmetics high shear stainless steel emulsification mixing tank with mixing equipment

High-speed emulsification tanks are currently used in dairy products, beverages,

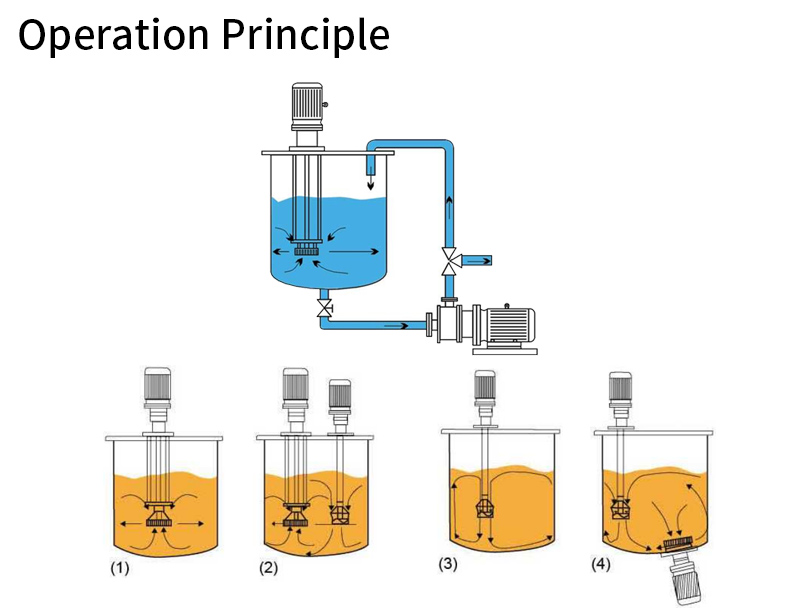

When the high-speed ultra-fine emulsification paddle for fruit juice and food is working, it throws the material in the center of the rotor to the stator at high speed, and then realizes ultra-fine emulsification through the tooth gap of the stator and the shearing, collision, and crushing between the rotor and the stator. Therefore, it is a comprehensive equipment integrating mixing, emulsifying, homogenizing, dissolving, crushing and other functions.

Material	Stainless steel 304, SS316/316L
Ability to work	50-40000L, customized
mixer type	Mixer, emulsifier, disperser, etc.
layer	1. Single layer type 2. Double layer type: (1) Dimpled jacket (2) U-shaped jacket (3) Coil sheath 3. Layered type: add insulation layer

Specification

heating mixing tank

The electric heating stirring tank has an open top structure, which has the functions of heating, automatic temperature control, heat preservation, stirring, etc.; it has the advantages of fast heat transfer, large temperature difference, and convenient cleaning. Widely used in heating, mixing or sterilization of food (dairy) products, pharmaceuticals, daily chemicals, beverages, oils, chemicals, paints and other industries. It is especially suitable for small and pilot tests in units and scientific research institutions without steam heat sources. A fully enclosed structure can also be used according to process requirements.

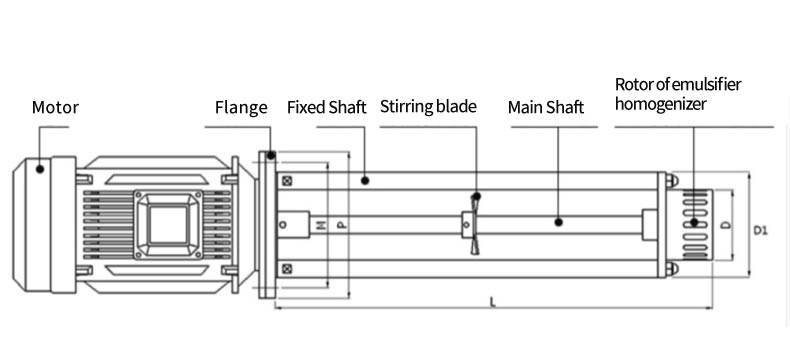

High Shear Emulsifier

The high-shear emulsifier adopts a high-speed rotating shear wheel and a stationary shear wheel to fully and quickly emulsify, homogenize and disperse the mixed liquid and mixture in the tank. Widely used in food, beverage, biopharmaceutical, fine chemical, pigment and other industries to mix and emulsify materials to improve production efficiency and material quality, especially for CMC, glue, powder and other refractory additives. more useful

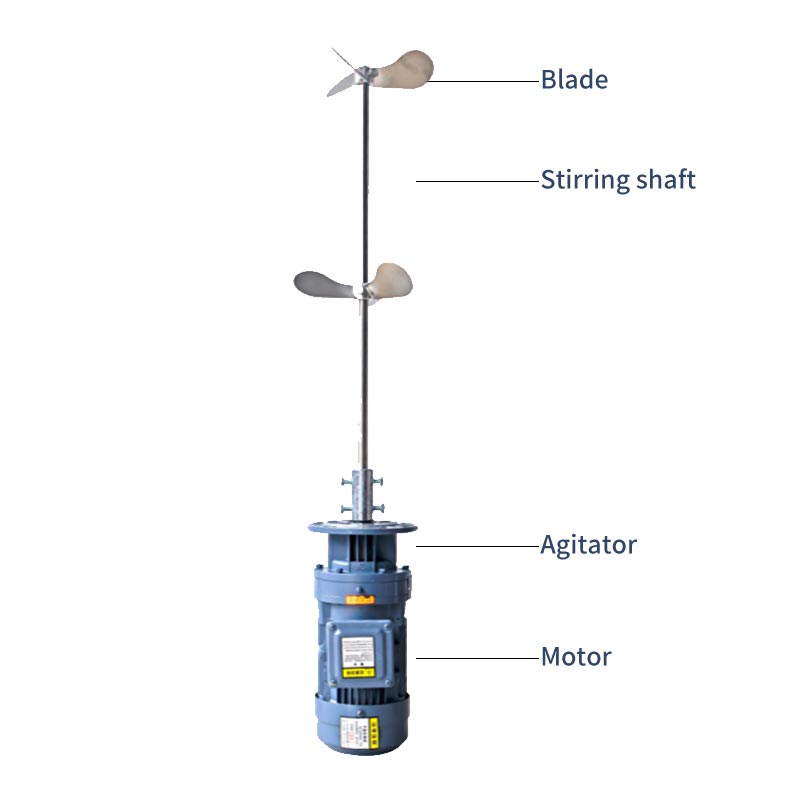

stand mixer

Raw materials should be mixed with a vertical mixer, and the inner plate is lined with polypropylene or stainless steel plate, which is not easy to stick to the material. Wear-resistant, using cycloidal pinwheel reducer, it has the characteristics of compact structure, convenient operation, uniform mixing, convenient unloading and transportation.
