FBZ-40D automatic seam welding machine

Supplier: Xi'an Songhui Mechanical & Electrical Equipment Manufacturing Co., Ltd.
Region: Shaanxi, China
Contact: Ms Rissa Nie
Price: $25000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Video shipment inspection:	if	application:	Food, Beverage, Chemical
Welding method:	resistance	Packaging Details:	Normal packing is plastic and wooden case. We can also pack the machines according to customers' requirements.
Marketing Type:	New Products 2022	Mechanical test report:	not available
Weld diameter:	120-286mm	After-sales service provided:	On-site installation, commissioning and training
Voltage:	Three-phase AC380V/50Hz	Welding method:	automation
Applicable industries:	Manufacturing plants, food and beverage plants, farms, restaurants, food stores, construction projects, food and beverage stores	Supply capacity:	20 sets per month
usage:	seam solder can body	Package preview:
Showroom location:	not any	Warranty:	1 year
Health status:	new	payment terms:	L/C, T/T
weight:	2000Kg	port:	Shanghai, Shenzhen
Origin:	Shaanxi, China	Core component warranty:	over 5 years
Material:	Tinplate, bottom iron, galvanized sheet	Forming time:	50m/min
strength:	40KVA	Weight (kg):	2000 kg
Core components:	Programmable Controllers	Advantage:	high efficiency
aspect:	2.6m1.5m1.9m	Name:	automatic welding machine
brand:	Shanghai	Main selling points:	automatic

Product Description

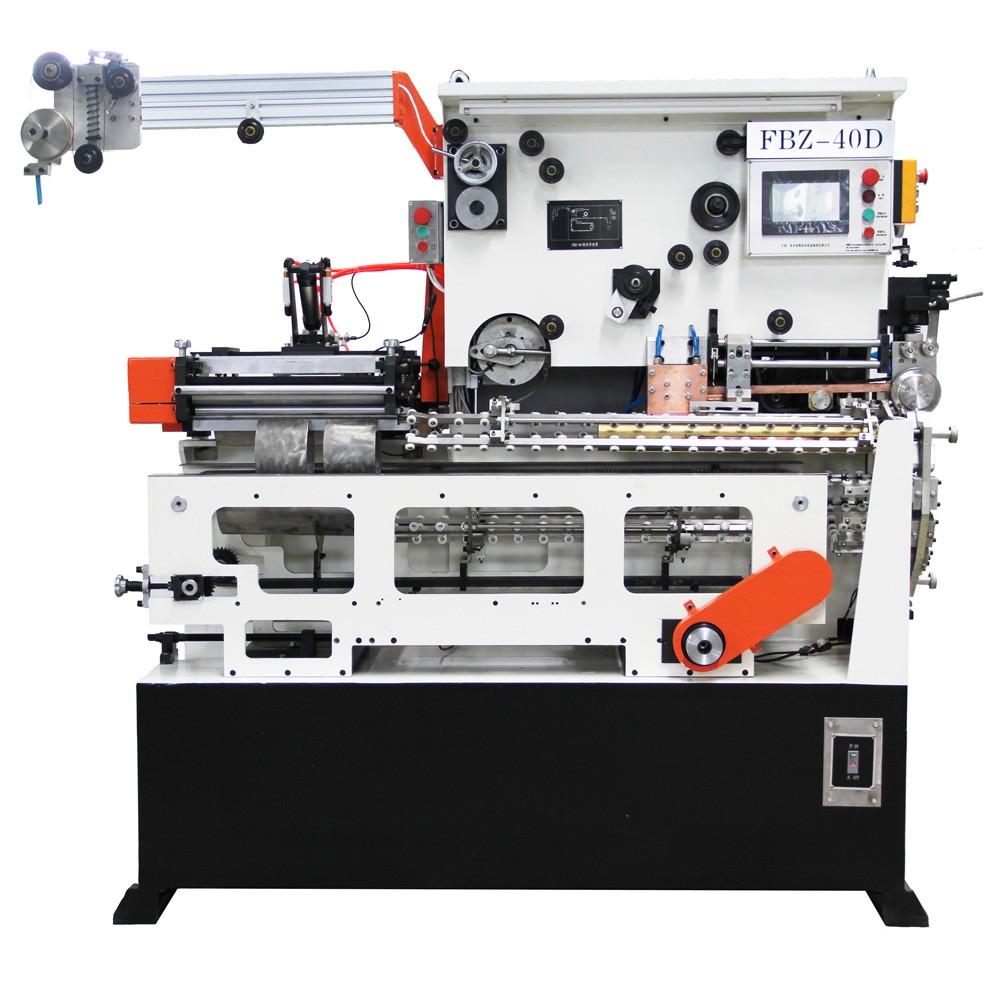

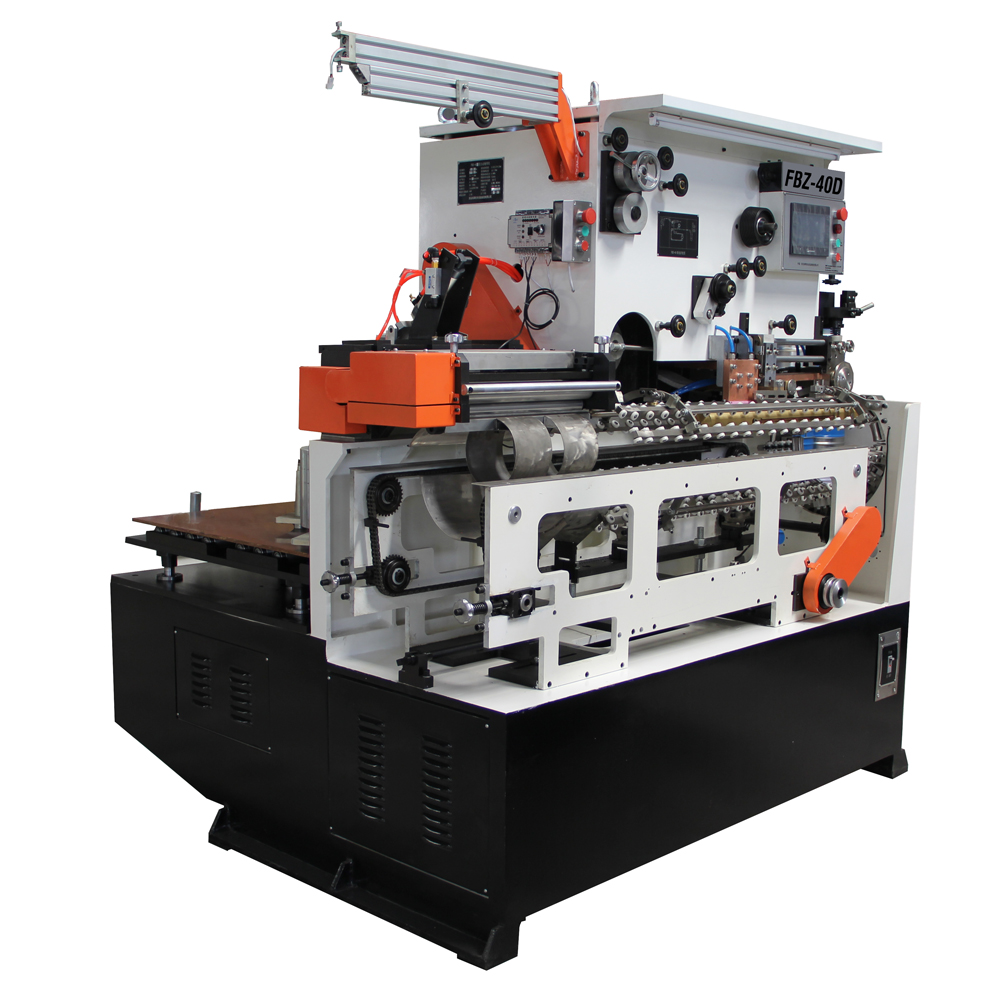

FBZ-40D Automatic Can Seam Welding MachineIt is a functional equipment for automatic rolling forming, automatic tank feeding and automatic welding. The diameter of the welding tank of this machine can be fine-tuned. It can automatically weld cans at a very high speed. PLC and touch screen control, easy operation, frequency conversion welding makes the product beautiful in appearance and stable in performance. This machine sells well all over the world.

*FBZ-40D Automatic Can Seam Welding Machine Technical Parameters*
Material	tin, bottom iron	total power	40KVA
material thickness	0.18~0.65mm	voltage	Three-phase AC380V/50Hz
Can diameter	φ120~φ286mm	cooling water flow	7 liters/min
Can height	180~450mm	cooling water pressure	0.4Mpa
Roll forming speed	50m/min	Cooling water temperature	≤20℃
seam overlap	0.4~1.5mm	air pressure	0.5Mpa
welding speed	6~25m/min	air flow	40 l/min
welding frequency	80~200Hz	aspect	2.6m×1.5m×1.9m
Copper wire diameter	φ1.5~φ1.8mm	gross weight	2000Kg

Exchange history:

FBZ-40D, FBZ-40C, and FBZ-40Q are all FBZ-40 series automatic can body forming and welding machines, which are exported to India, Vietnam, Turkey, the United States, Canada, etc. A large can making company in Guangdong Province, China purchased 26 such machines from our company. All in all, FBZ-40 series automatic can body forming welding machine is the best can making equipment.
