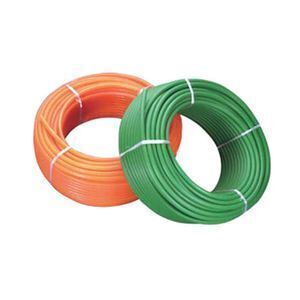

Reorinced PU green O-Ring round polycord belt with Steel Cord

Supplier: Xuanze Industrial Drive Systems (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Jessica Ma
Price: $2.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union;	Hardness:	90A;
Applicable Industries:	transmission;	Material:	PU;
Standard or Nonstandard:	Nonstandard;	Cord:	Steel;
Supply Ability:	10000 Piece/Pieces per Day;	Place of Origin:	Shanghai China (Mainland);
Name:	PU green O-Ring round polycord belt;	Brand Name:	Xuanze;
Color:	green,red;	Certificate:	ISO9001;
Application:	Power Transmission Belt;	Temperature:	-35℃ to 80℃;
Size:	3 4 5 6 8 10 15 or cutsom;	Surface:	smooth & rough;
Type:	Round Belt;	Package:	carton box;
Port:	Shanghai;

TYPE	diameter (mm)	weight (g/m)	Small wheel diameter(mm)	K8% pull(N)	Tensile strength (MPA)	Connetion Method
R-2	2	4	20	6	125	1. The welding temperature is 295 ° C; 2. The welding time is less than 2 minutes 3. Round belt with a diameter of 2-7mm, it must be cooled for 5 minutes, round with a diameter of 8-15mm, and cooled for 15 minutes.
R-3	3	8	30	13	280
R-4	4	17	40	22	500
R-5	5	25	50	35	800
R-6	6	35	60	50	1100
R-7	7	48	70	70	1500
R-8	8	58	80	90	2000
R-10	10	96	90	140	3100
R-12	12	131	120	200	4500
R-15	15	208	150	315	7000
R-18	18	318	171	400	11200
R-20	20	408	190	515	13000

Application:Packaging machinery, mining equipment, dryers, annealing furnaces, bonding machines

Description

Polyurethane round belts are made by high quality TPU polyurethane by Extrusion. It has outstanding chemical resistance,aging resistance and high load capacity.

Main Advantages

1. Our own factory with competitive price

2. 100% TPU material made by extrusion.

3. chemical resistance, wear resistance and oil resistance

4. Easy to weld by Welding tool.

5. The fast delivery (10-12 working days ).

6. Packing by standard carton boxes
