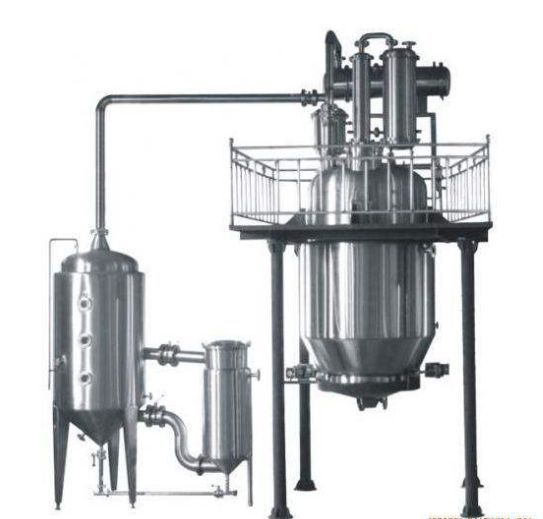

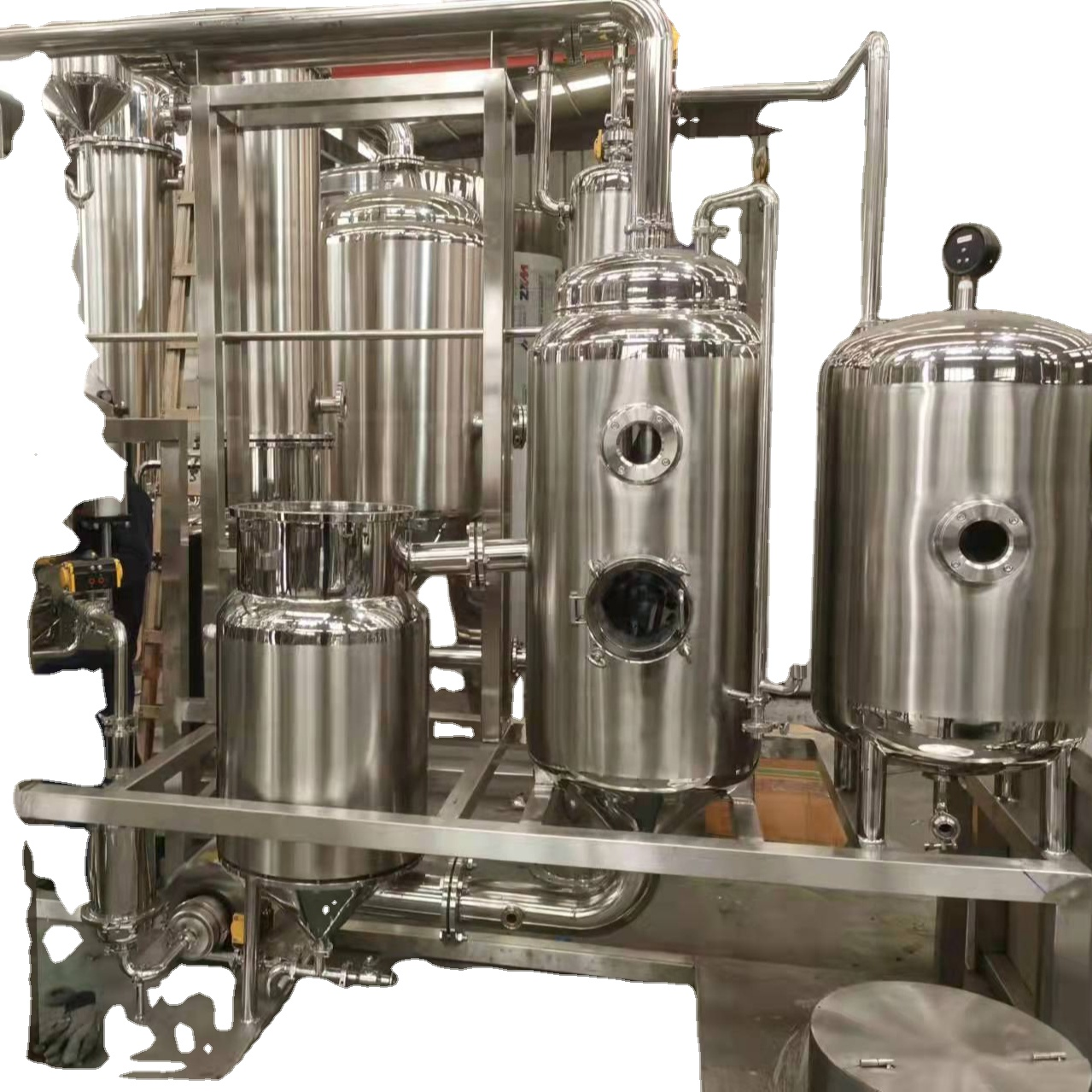

Stainless steel vacuum evaporation concentrator

structure:
It is mainly composed of single-effect heater, single-effect separator, steam-water separator, condenser, liquid collection tank, vacuum and delivery pump, electric control cabinet, valve pipeline and other systems.
Working Standards:
The steam enters the shell side of the heating chamber, and the liquid level in the tube rises after being heated, and is sprayed into the evaporation chamber from the nozzle for vapor-liquid separation. The material and liquid return from the circulation pipe to the lower part of the heating chamber for reheating, and after being heated, the material and liquid are sprayed into the evaporation chamber again to form a cycle. The feed liquid is concentrated to a certain extent, and the material is discharged from the discharge port after being determined to be qualified by sampling. The secondary steam evaporated from the evaporating chamber is defoamed by the defoamer, and then passes through the vapor-liquid separator. Part of the feed liquid returns to the evaporation chamber. The remaining secondary steam is cooled into liquid by the condenser and cooler, and enters the liquid collection tank without condensation. The gas is drawn out by a vacuum pump.
feature:
Alcohol recovery: the recovery volume is large, and the vacuum concentration process is adopted. Compared with the old similar equipment, it is 5-10 times higher, and the energy consumption is reduced by 30%. It has the characteristics of small investment and high recovery efficiency.
Concentrated liquid material: This equipment adopts external heating natural circulation and vacuum negative pressure evaporation. Evaporates fast. The liquid material is completely sealed and concentrated without foam. The medicinal liquid concentrated by this equipment has the characteristics of strong medicinal flavor and clean cleaning. Convenient (open the upper and lower covers of the heater to clean). The equipment is easy to operate and occupies a small area. The heater and evaporator adopt stainless steel insulation structure, and the insulation adopts polyurethane foam, and the outer surface is frosted and matte. The concentrator complies with GMP medical standards.

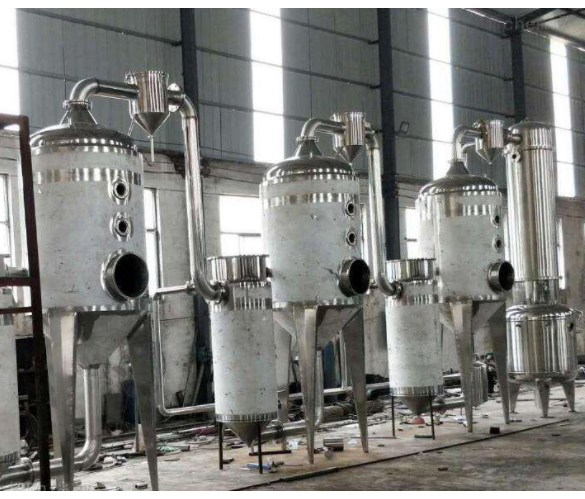

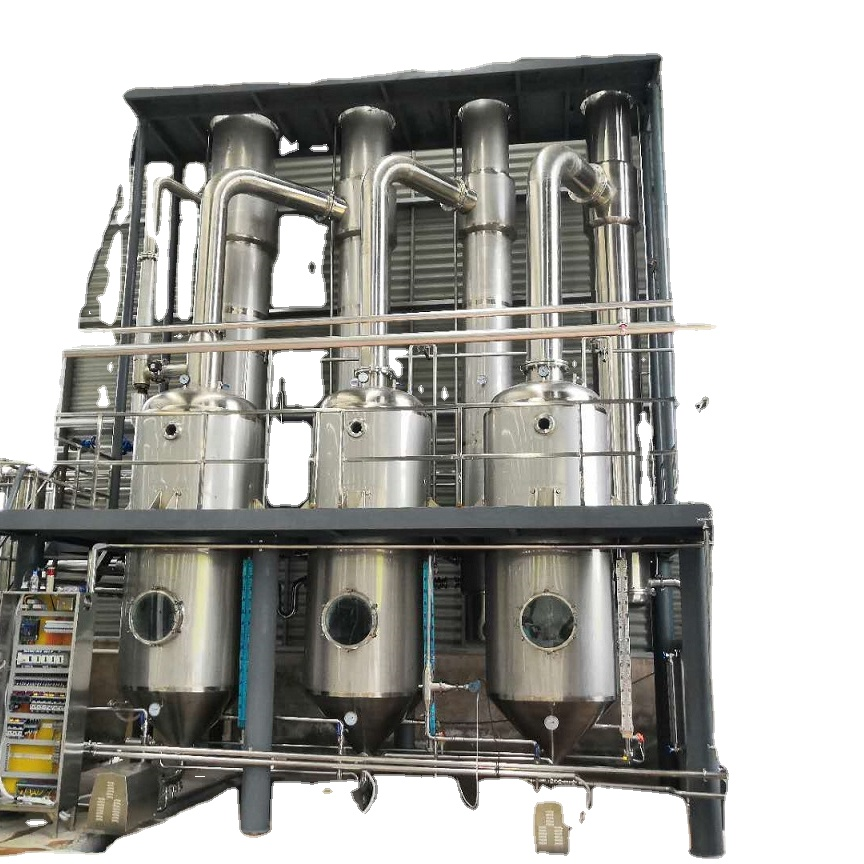

Application of stainless steel vacuum evaporation concentrator

Application of stainless steel vacuum evaporation concentrator
