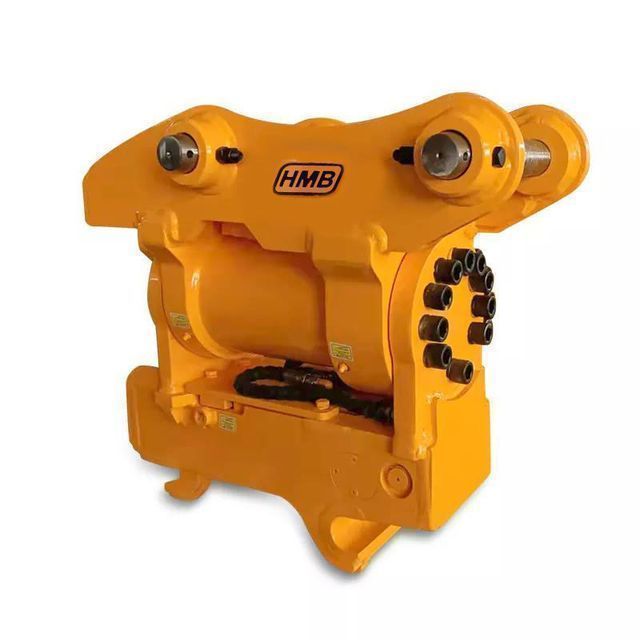

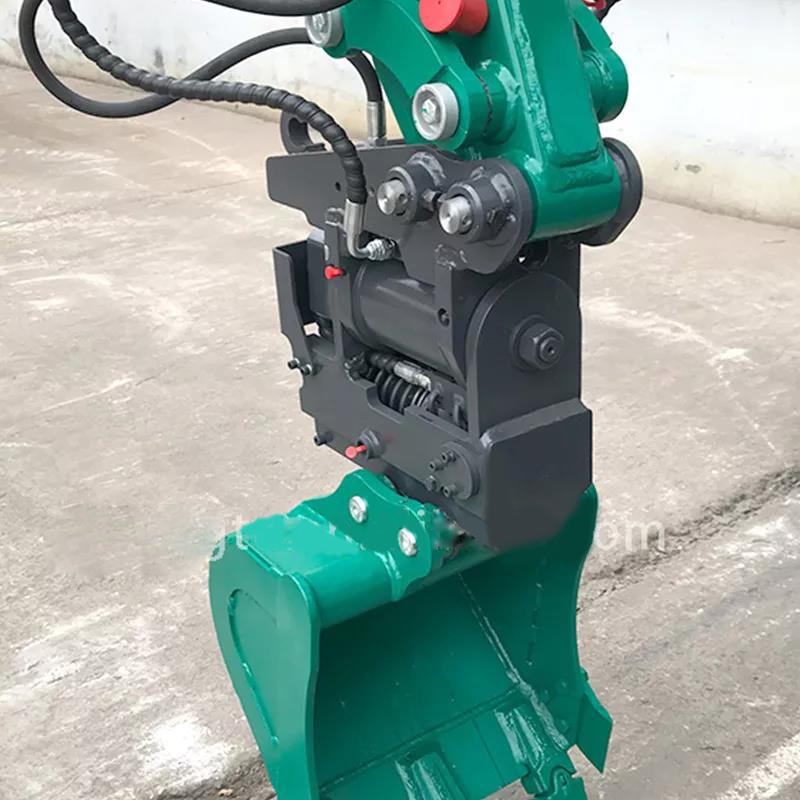

360 Degree Swivel Quick Connect Hydraulic Tilt Rotator Power Tilt For Excavator

Supplier: Yantai Jiwei Construction Machinery Equipment Co., LTD
Region: Shandong, China
Contact: Ms Wendy Mao
Price: $190.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

payment terms:	L/C, Western Union, T/T, MoneyGram	Operating Weight:	156 kg
color:	customer request	Showroom location:	UK, US, Italy, Mexico, Russia, Spain
Core components:	engine	Mechanical test report:	if
QC:	ISO & 100% inspection standard	port:	Yantai, Qingdao, Shanghai, China
Applicable industries:	Farms, machinery repair shops, energy and mining	Applicable industries:	Farms, Energy & Mining, Construction
Packaging Details:	plywood case	Video shipment inspection:	if
Applicable excavator (ton):	4-6 tons	weight:	156 kg
Warranty:	1 year, 1 year	Origin:	China
Package preview:		Material:	hardened steel
Marketing Type:	New Products 2020	Applicable excavator weight:	4-6
Pin diameter:	rely on	Supply capacity:	100 pieces per month
Health status:	new

Product Description

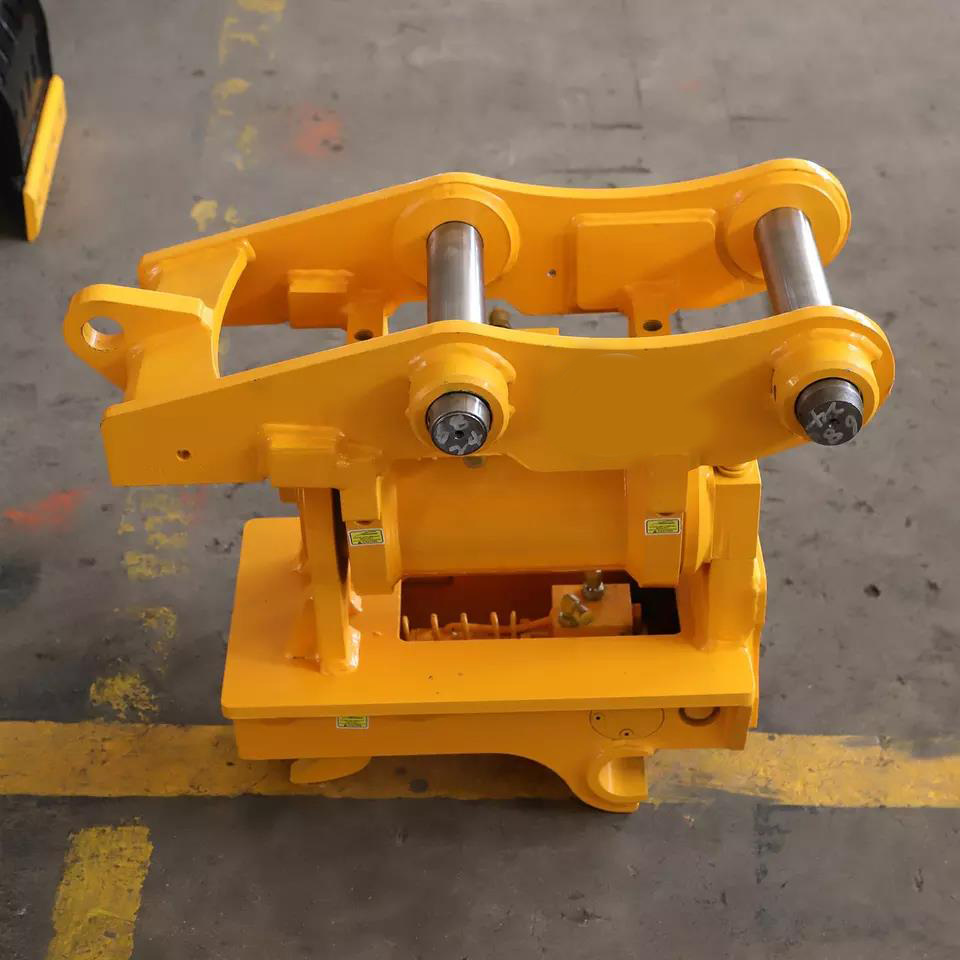

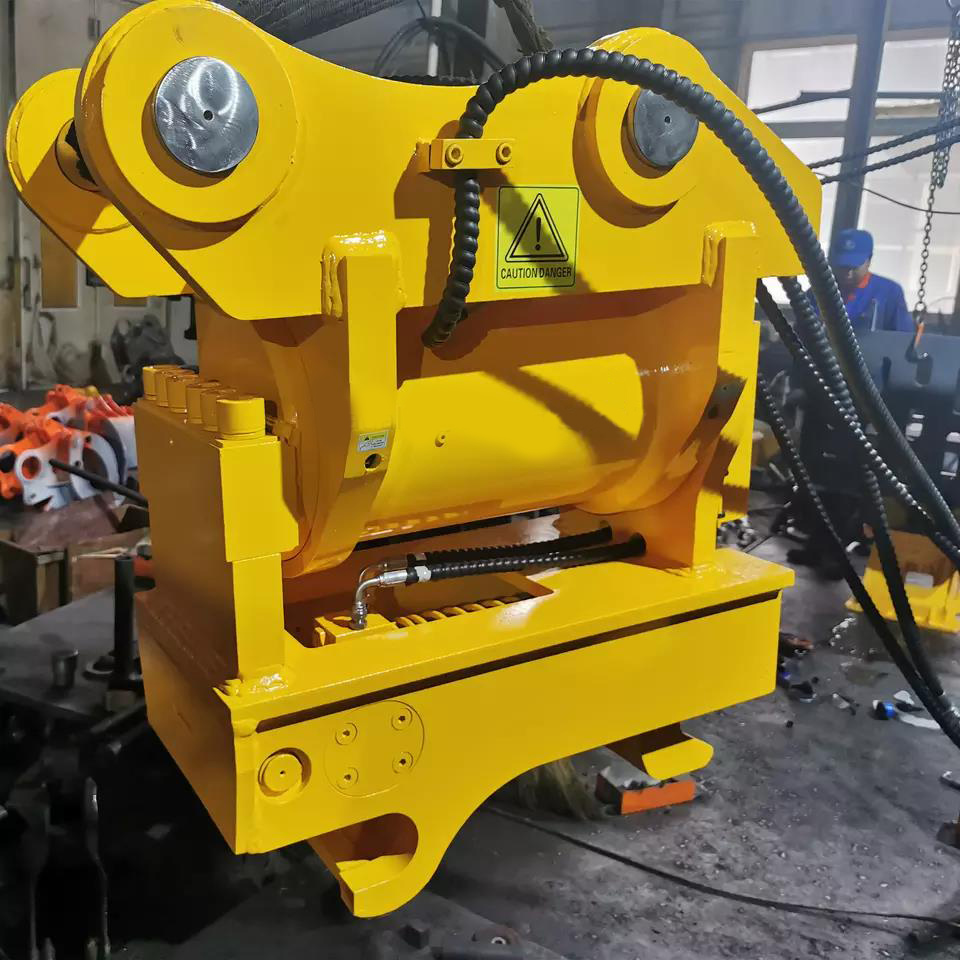

Excavator quick coupler, also known as quick coupler, quick coupler, bucket pin grabber, can quickly connect various

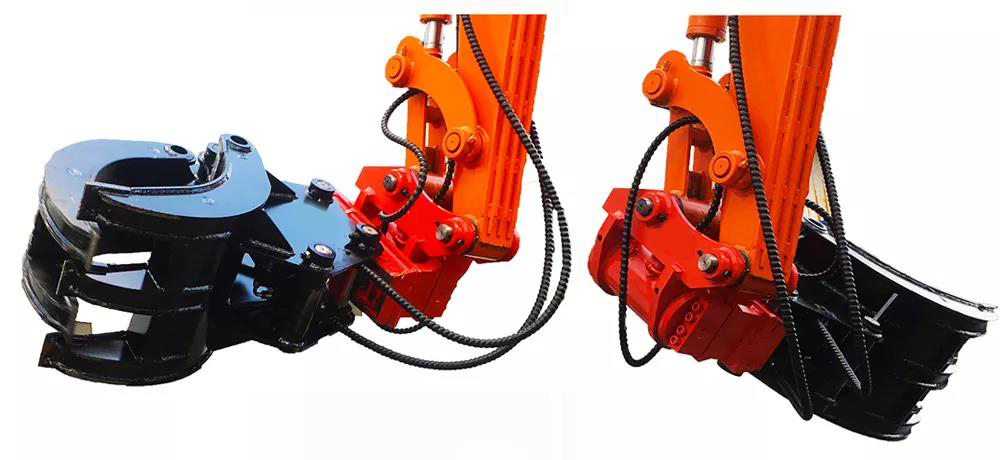

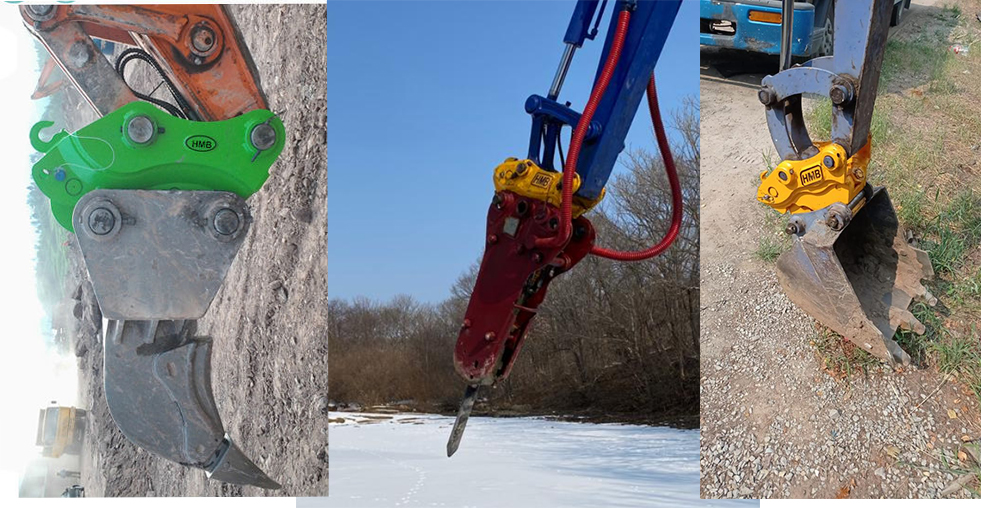

The accessories on the excavator (bucket, hydraulic breaker, plate compactor, log grab, scarifier, etc.) can expand the scope of use of the excavator, save time and improve work efficiency.

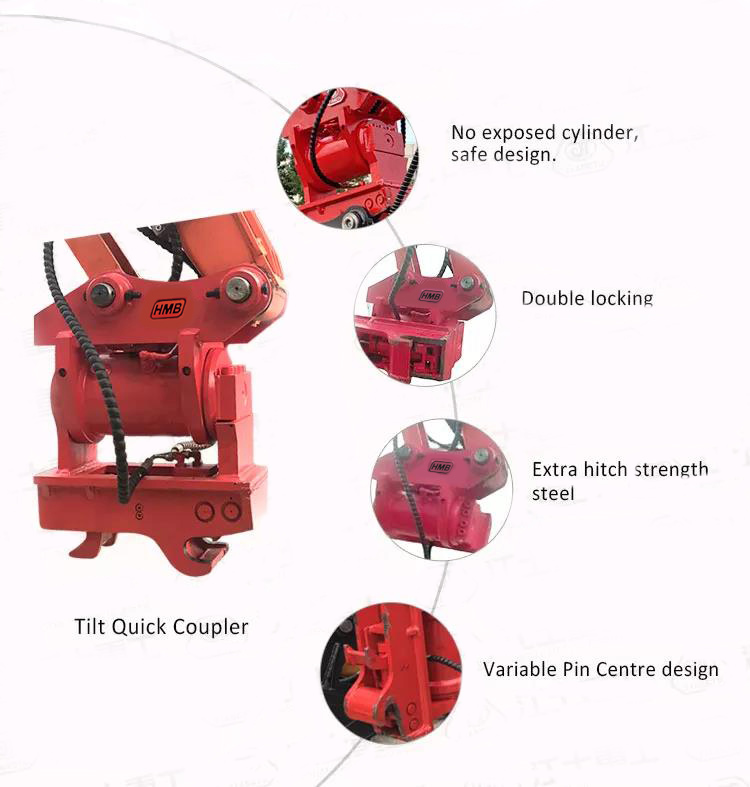

main feature:

1. The torque of the tilting cylinder is larger, and the safety design

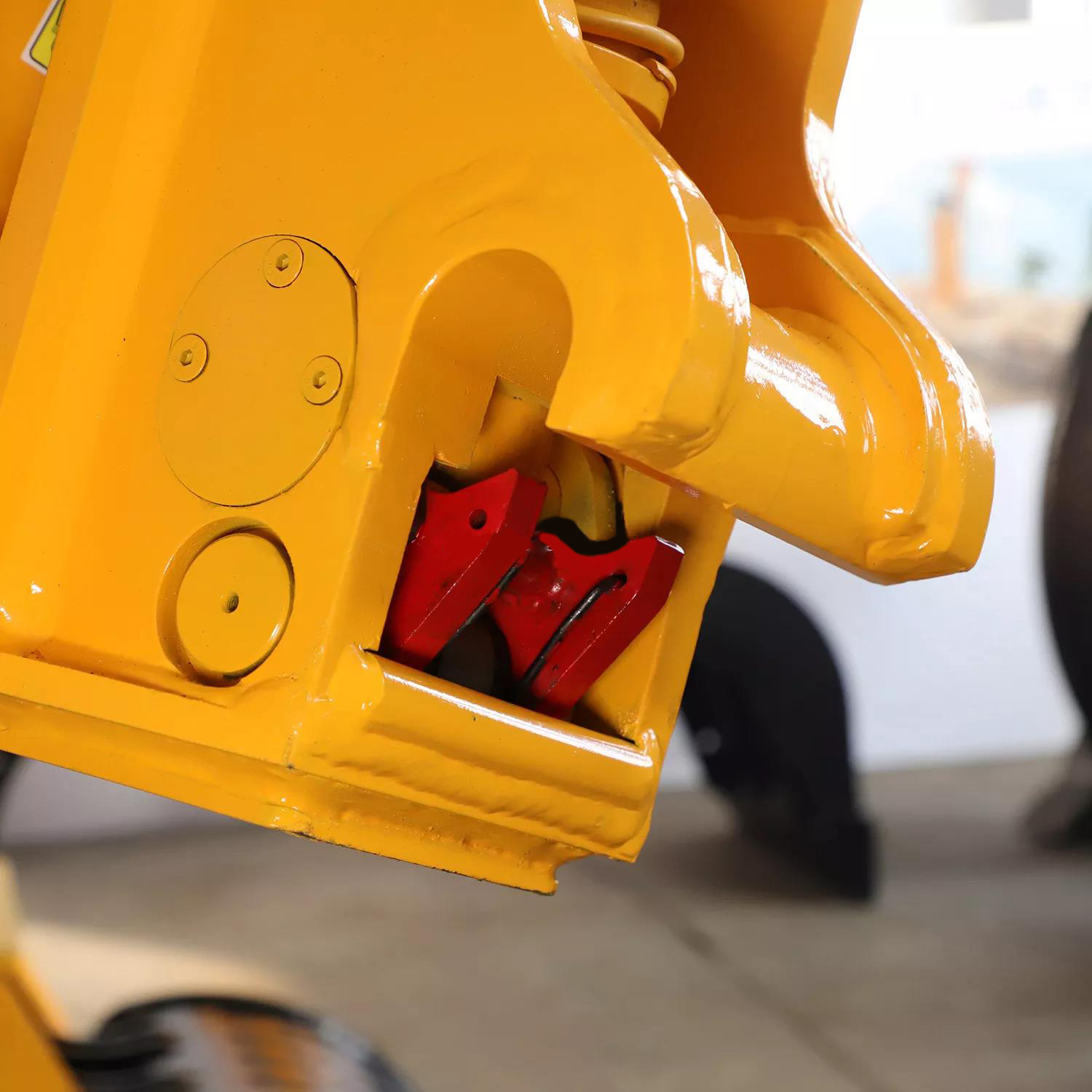

2. Double lock

3. The whole process is made of ultra-high-strength steel

Body

4. Variable pin center design

5. Tilt angle 0-140°, 180° for your choice

As one of the leading excavator quick coupler manufacturers in China, HMB has a full range of quick couplers for
Excavators from 1.5-90 tons. They fit all makes and models of excavators including MS01, MS03, MS08

Category/Model	HMB-MINI	HMB02	HMB04	HMB04'	HMB06a	HMB06b	HMB08	HMB10
inclination	180°	180°	180°	180°	180°	180°	140°	140°
drive torque	930 nautical miles	2870 nautical miles	4400 nautical miles	4400 nautical miles	4400 nautical miles	7490 nautical miles	10623 nautical miles	18600 nautical miles
Tilt displacement	0.627 L/MN	0.627 L/MN	1.016 liters/million Newtons	1.016 liters/million Newtons	1.016 liters/million Newtons	1.896 liters/million Newtons	2.3 L/MN	3.62 L/MN
Inclined working pressure	210 bar	210 bar	210 bar	210 bar	210 bar	210 bar	210 bar	210 bar
Tilt necessary flow	2-4 L/min	5-16 L/min	5-16 L/min	5-16 L/min	5-16 L/min	15-44 L/min	19-58 L/min	35-105 l/min
work pressure	25-300 bar	25-300 bar	25-300 bar	25-300 bar	25-300 bar	25-300 bar	25-300 bar	25-300 bar
necessary traffic	15-25 L/min	15-25 L/min	15-25 L/min	15-25 L/min	15-25 L/min	15-25 L/min	15-25 L/min	15-25 L/min
excavator	0.8-1.5 tons	2-3.5 tons	4-6 tons	4-6 tons	7-9 tons	7-9 tons	10-16 tons	16-22 tons
Dimensions (L2W1H1) mm	477280567	477280567	518310585	545310585	541350608	582350649	720450784	858500911
weight	55 kg	112 kg	156 kg	156 kg	170 kg	208 kg	413 kg	655 kg

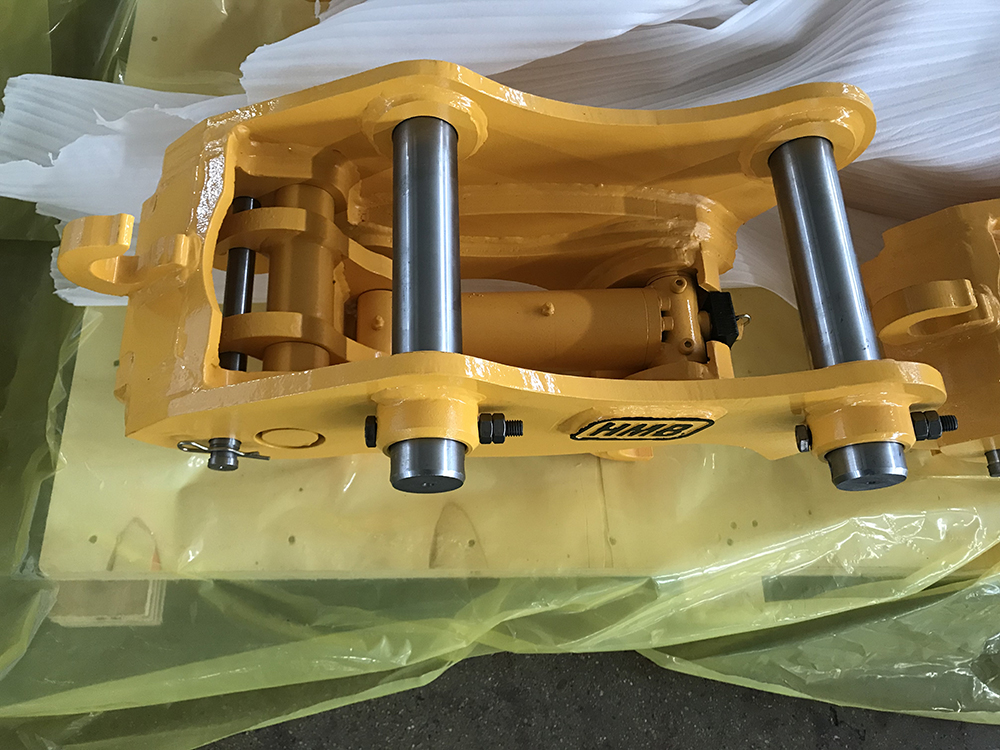

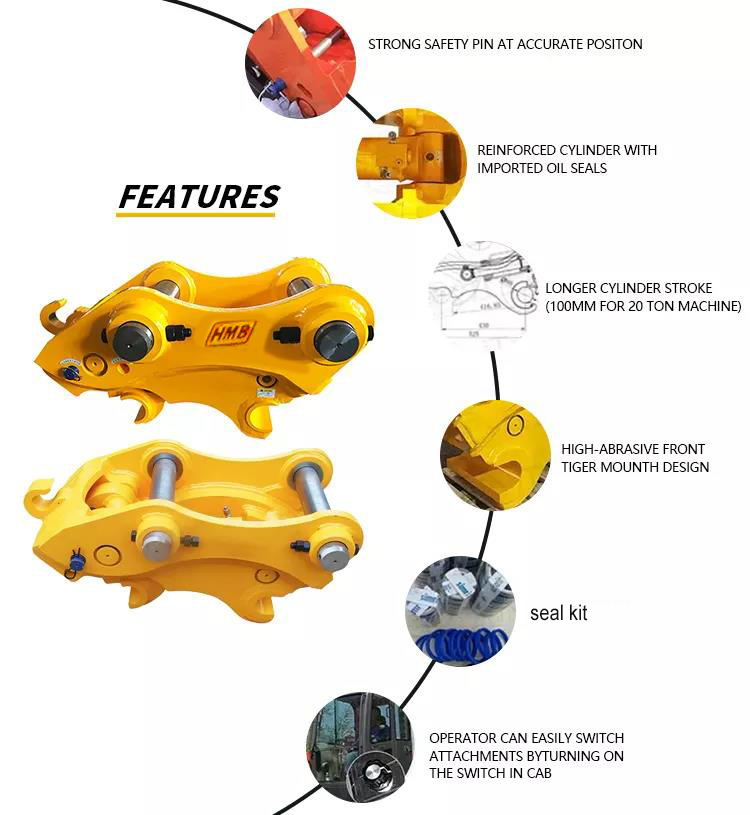

Main features of hydraulic quick connector
1) High-strength alloy is used. Suitable for different machine weights and models.
2) Accessories can be replaced without removing the pin.
Provides high efficiency and easy installation.
3) Welding is done by experienced workers with more than 12 years experience in excavator attachment welding.

Model Name	HMB02	HMB06	HMB08	HMB15	HMB20	HMB25	HMB30	HMB40
Pin diameter range(mm)	25-35	40-50	50-55	60-65 years old	70-80	Post-90s	90-100	100-110
Weight(KG)	30-50	50-80	80-115	160-220	340-400	380-420	420-580	550-760
Carrier (tons)	0.8-3.5	4-7	8-9	10-18	20-24	25-29	30-39	40-45 years old

Mechanical quick connection:

1.Machinery quick change, generallay used in mini ton excavators, no additional tubing 2.quick hitch change coupler used to
Excavator Bucket Replacement Manually
