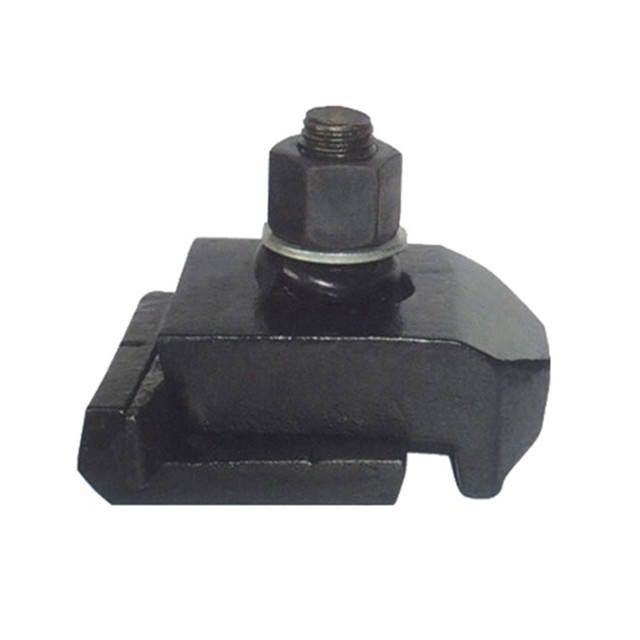

Weldable rail clamp for crane rail fastening

Supplier: Maanshan Kingrail Technology Co.,Ltd
Region: Anhui, China
Contact: Ms Amanda Wang
Price: $3.50 / 1 - 9999 pieces
$0.50 / >=10000 pieces
Min. Order: 1 piece

Click here to contact

Product details

brand:	Rika	type:	track clamp
Dimensions (LxWxH) (mm):	According to customer requirements	Fatigue life:	5 million times without crack
Origin:	China	Serve:	Manufacture, design, packaging, OEM
sample:	Samples available	size:	According to customer specification
Supply capacity:	10000 tons per year	port:	Tianjin
Processing:	accepted	standard:	UIC, DIN, JIS, AREMA, ISCR, GB, etc.
Processing:	hot rolled, forged	product name:	Gantrex Gantrail Orbital Welding Fixtures
Package preview:		Material:	20#,Q235
surface:	Black Oxidized, Ordinary Oiled, Painted, HDG, Galvanized	Packaging Details:	Standard export packing wooden case/pallet
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	usage:	Railway maintenance, railway construction

Product Description

Rail clamps, also known as rail clamps or rail fixing clamps, are devices used to maintain the lateral position of rails.
Especially crane rails, but allowing the necessary longitudinal movement. In a track fastening system, track clips secure the track to the
Through the mechanical locking position, at the same time, the longitudinal rail movement of the rail is accepted by the combination
Vulcanized bonded synthetic elastic nose. As a rule, rail clamps are always anchored to sleepers with anchors
bolt. In terms of types, there are mainly bolted rail clamps and welded rail clamps.

The characteristics of the rail clamp are as follows:*Scientific design and high quality*Best performance and low maintenance*High efficiency*High tensile strength and long service life*Various clamp types and custom designs are available.

Name	rail clip
type	custom made
components	Base plate, cover plate, T-bolts, nuts, washers
Material	Bottom and cover: ductile iron, cast steel Bolts, nuts, flat washers: Q235 Spring washers: 60Mn, 60si2Mn
surface	Plain, black, galvanized, HDG, etc.
usage	Rail Fixture

We can provide various track clamps or track clamps to meet customer needs, suitable for different track conditions, whether it is subway, main line or crane track. For rail clamp materials, according to past production experience, forged Q235, cast steel ZG35, and QT500-7-cast iron are the top three choices.1. Crane clamp 21/050 AN/BNCrane clamps allow the rails to be fitted with good tolerances and are adjustable to ensure precise alignment of the rails. Our clamps are designed to carry the heavy loads that are transferred to the rails by cranes. The installation method can be bolted or welded, depending on the needs of the end user.2. Crane clamp 22/130 AN/BNThe Self-Locking Gantrail Rail Clamp is a special design that secures the rail with a rubber nose. By adjusting the height of the rubber nose, this clamp can be used for different track types.3. KPO Rail ClampFor the KPO track clamp, it is a high strength boltable clamp. KPO3, KPO6, KPO9 are more commonly used in track fastening systems by combining with ribbed plates, track bolts and washers.4. North African Rail ClampThis type of track clamp is commonly used on railway lines or cranes in North Africa.5. K-type rail clamp 6. MTH forceps 7. Other fixtures according to customer requirements or drawings.
