Fuel tank capacity (gallon): | 255 liters | brand: | Treasure |
Cylinder diameter: | 360mm | Rod diameter: | 80-90mm |
Origin: | Fujian China | Supply capacity: | 5 sets per month |
weight: | 3800-4000kg | Pump pressure: | 210 kg/cm2 |
Shipping Details: | 30 days after deposit received | Machine size: | 1700*1300*2200mm |
Generator motor (1HP=0.7457KW): | 5.5 kW 10.06 (hp) | Heater capacity: | 12 kW |
payment terms: | L/C, T/T | After-sales service provided: | Engineers available to service machinery overseas |
Board surface: | 600*700mm | port: | Xiamen |
Maximum stroke: | 460mm | Packaging Details: | The melamine tableware maker is packed in a plywood case |
feature:

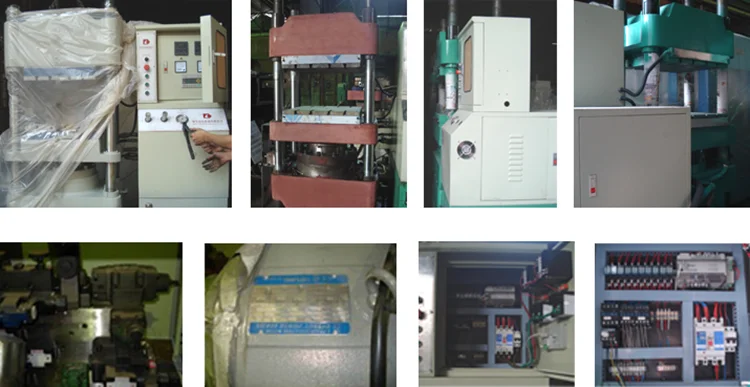

1. The electric control adopts imported computer, which has the characteristics of quick action, quietness and stable operation, and has a high-performance control system.
2. The computer panel can freely set the pumping time, degassing time, molding time, initial pressure time, decompression time, and finished product counting. Easy to operate and adjust, precise and easy to manage.
3. Emergency stop setting to protect the safety of staff and products.
4. Fixed pressure test, easy to operate and check.
5. The pressure system uses famous brand products. Designed to achieve high speed and energy saving.
Technical Information:
brand | JB-200T | JB-200T | JB-250T | JB-300T |
board | 600*700 | 600*600 | 600*600 | 700*700 |
bore | 360mm | 360mm | 420mm | 480mm |
Maximum stroke | 460mm | 400mm | 400mm | 400mm |
Generator motor (1HP=0.7457KW) | 5.5kw | 5.5kw | 5.5kw | 7.5kw |
10.06 (HP) | ||||
Machine size | 1700*1300*2200mm | 1600*1500mm | 1700*1500mm | 2100*1500mm |
Rod diameter | 80-90mm | 80mm | 95mm | 105mm |
weight | 3800-4000Kg | |||
pump pressure | 210kg/cm2 | 210kg/cm2 | 210kg/cm2 | 210kg/cm2 |
heater capacity | 12kw | 12kw | 12kw | 14.4kw |
Fuel tank capacity (gallon) | 255 liters | |||
sunlight | 700 | 500 | 500 | 500 |
