UT181A True RMS Data Multimeter

Supplier: Chongqing Huakong Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms elena he
Price: $1.00 / >=10 units
Min. Order: 10 units

Click here to contact

Product details

port:	Shenzhen	Origin:	China
payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram	brand:	unit
model:	UT181A	product name:	True RMS Data Logging Multimeter
Supply capacity:	10000 pieces per month

Product Description

Specification

Specification	scope	UT181A
DC voltage (V)	1000V	±(0.025%+5)
AC voltage (V)	1000V	±(0.3%+30)
DC current (A)	10A	±(0.08%+10)
AC current (A)	10A	±(0.6%+20)
Resistance (Ω)	60MΩ	±(0.05%+2)
Admittance (nS)	60nS	±(2%+10)
Capacitance (F)	60 microfarads	±(2%+5)
Frequency (Hz)	10Hz~60MHz	±(0.01%+5)
temperature (°C)	-40℃~1000℃	±(1%+30)
Temperature (°F)	-40°F~1832°F	±(1.5%+50)
feature
Display times		60000
Auto/Manual Range		√
Bandwidth (Hz)	100kHz	√
AC+DC/on-off buzzer		√
low pass filter	1kHz	√
dBV/dBm		√
diode	About 3V	√
duty cycle	10%~90%	√
dual temperature measurement	T1, T2, T1-T2, T2-T1	√
Data Hold/Peak Hold		√
relative mode		√
data record	20000	√
trend capture		√
Max/Min/Avg		√
Data time display/data comparison		√
Backlight adjustment		√
Analog bar graph/USB interface		√
Misinsertion alarm		√
Battery indicator/automatic shutdown		√
rechargeable battery		√
input protection		√
Input Impedance of DCV	≥10MΩ	√
general characteristics
strength	Li-ion battery: 7.4V 2200mAh
exhibit	3.5-inch 64K color TFT LCD (320 x 240)
Product color	red and gray
Product Weight	638.6 grams
Product Size	225mm x 103mm x 59mm

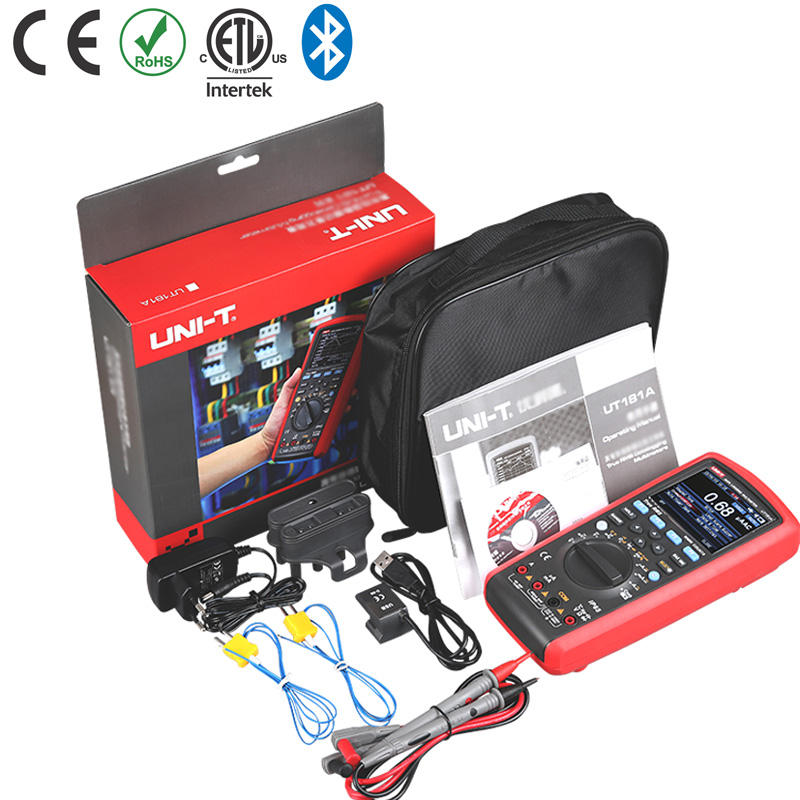

Standard accessories	battery, test leads, temperature adapter socket, Point contact temperature probe, power adapter socket, power adapter, PC software CD, USB interface cable
Standard Individual Packaging	Gift box, handbag, English manual
Standard quantity per box	20
Standard carton size	480mm x 385mm x 505mm
Standard carton gross weight	25.3 kg
Optional accessories	Bluetooth adapter (UT-D07)

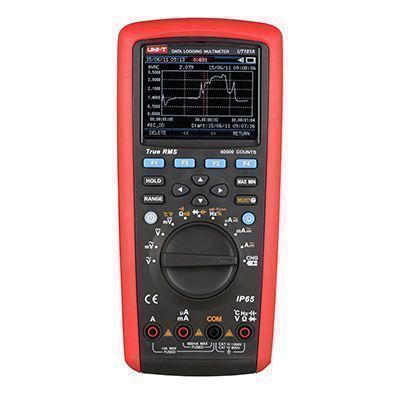

UT181A is a digital multimeter with trend capture, true RMS, low pass filter, nS
Conductivity, dual temperature measurement, etc. With data logging function, users can store up to 20,000 sets of data
Measure data and display it on trend graphs for long-term monitoring.
1. Trend capture
2. Data records: 20,000 pieces
3. Data comparison
4. 3.5 inches 64k color TFT LCD
5. Double temperature measurement
6. Low pass filter
7. 2200mAh lithium-ion battery
8. Live date
9. Peak hold

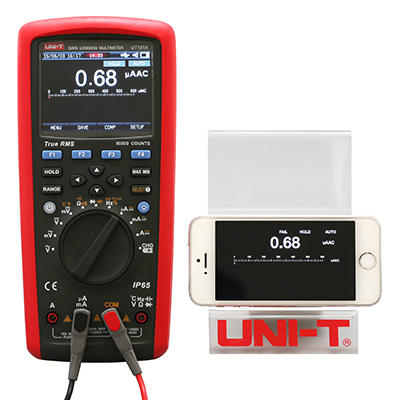

10. Bluetooth/APP

11. USB interface cable/PC software CD

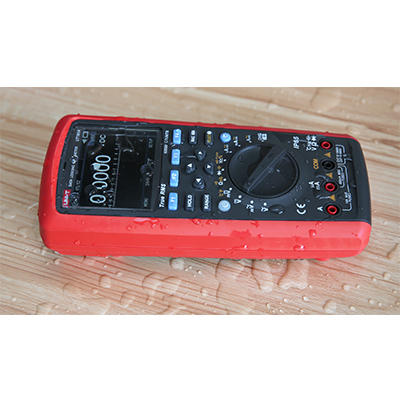

12. IP65
