biade axis: | 6 | Dimensions (L*W*H): | 1450*700*1200 |
Core components: | motor, water pump | Package preview: | |
Video shipment inspection: | if | Milling Depth: | 3-20mm |
weight: | 480KG, 480 kg | Unique selling point: | High operating efficiency |
Applicable industries: | Building materials store, manufacturing plant, home use, retail, construction, energy and mining, other | brand: | Zhao Fan |
Working depth: | 3-20mm | Health status: | new |
Packaging Details: | Plywood packing or iron frame and standard carton or customized | Core component warranty: | 1 year |
payment terms: | L/C, T/T | Marketing Type: | New Products 2022 |
strength: | 15KW, 15KW | Warranty: | 1 year |
port: | Qingdao | Supply capacity: | 200 pieces per month |

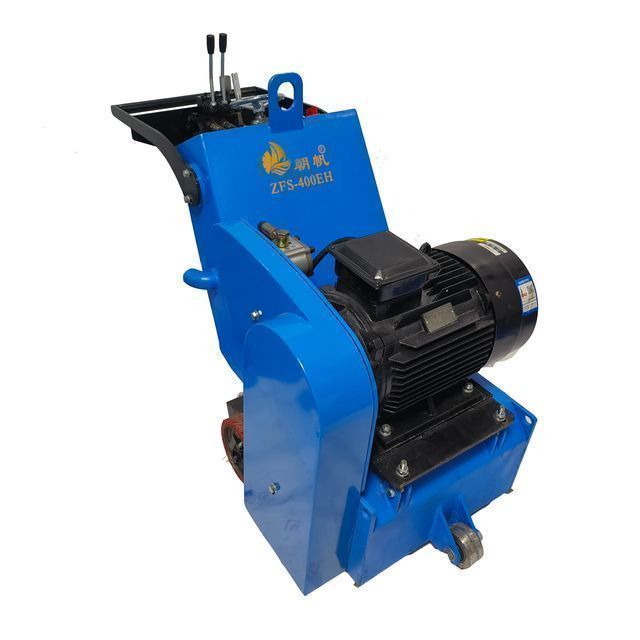

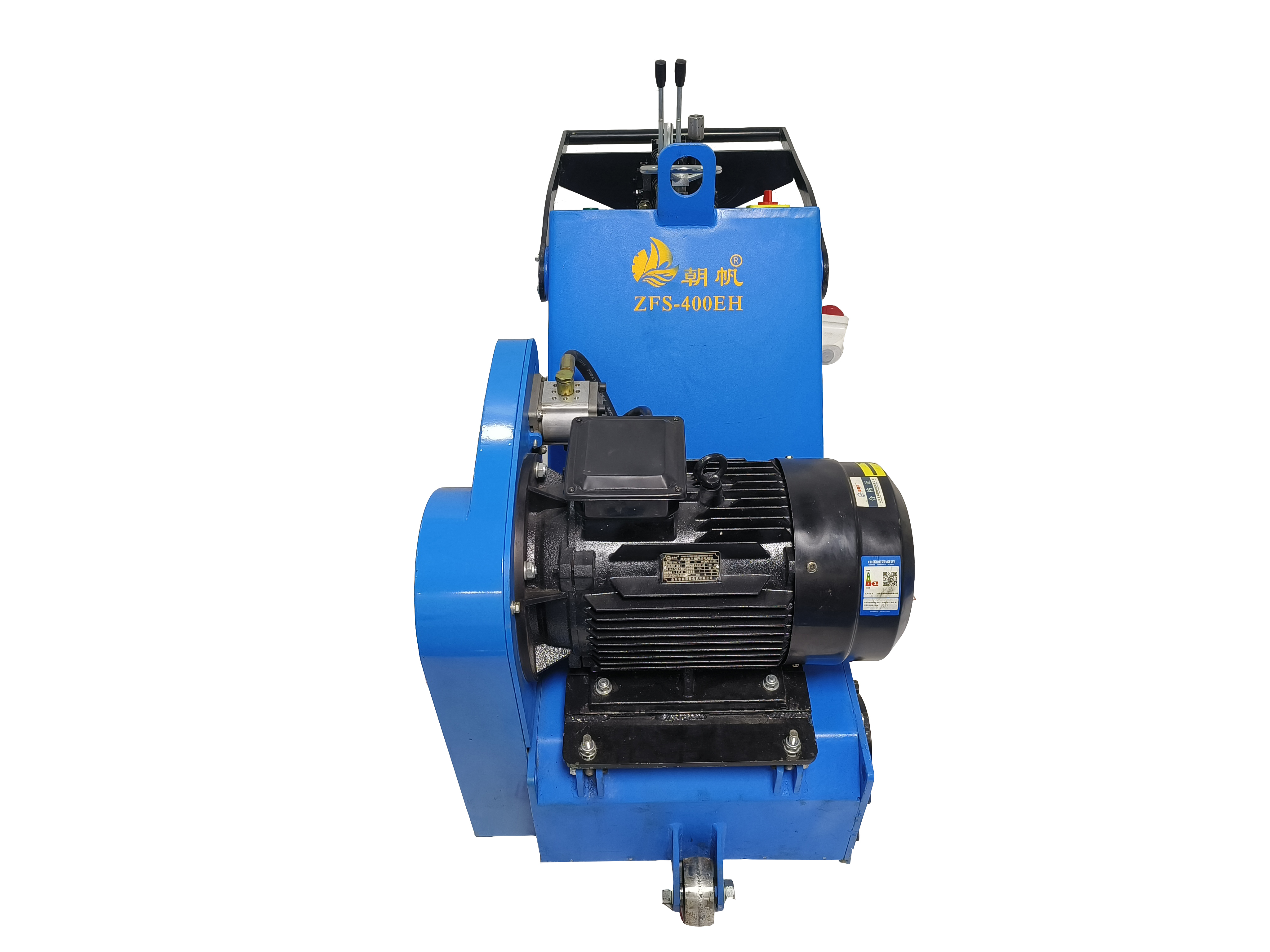

Model: | ZFS-400EH | Showroom location: | Philippines, Malaysia |
Loosening mode: | Up and down scarifier | feature: | Safe operation and high efficiency |
blade: | 150 | Working width: | 400mm |
Mechanical test report: | if | Origin: | Shandong China |
Voltage: | 380V-415V, 380V-415V | product name: | self-propelled milling machine |
video description
Product Description
Model | ZFS-250EH | ZFS-300EHS | ZFS-300EH | ZFS-400EH |
Voltage | 380V-415V | 380V-415V | 380V-415V | 380V-415V |
strength | 7.5KW | 7.5KW | 11KW | 15KW |
Milling width | 250mm | 300mm | 300mm | 400mm |
Milling Depth | 3-10MM | 3-10MM | 3-15MM | 3-20MM |
Number of axes | 6pcs | 6pcs | 6pcs | 6pcs |
knife number | 120PCS | 136PCS | 128PCS | 138PCS |
weight | 245KG | 270KG | 380KG | 480KG |
Product functions and features:
1. Designed for loosening soil on concrete or epoxy floors.2. High-quality hard alloy cutting tools are guaranteed to be durable.
3. Simple operation, saving labor cost and time.
4. With vacuum cleaner connection device, providing a dust-free working environment
5. Adjustable walking speed
6. Especially suitable for large-scale ground transportation, fast speed and high efficiency

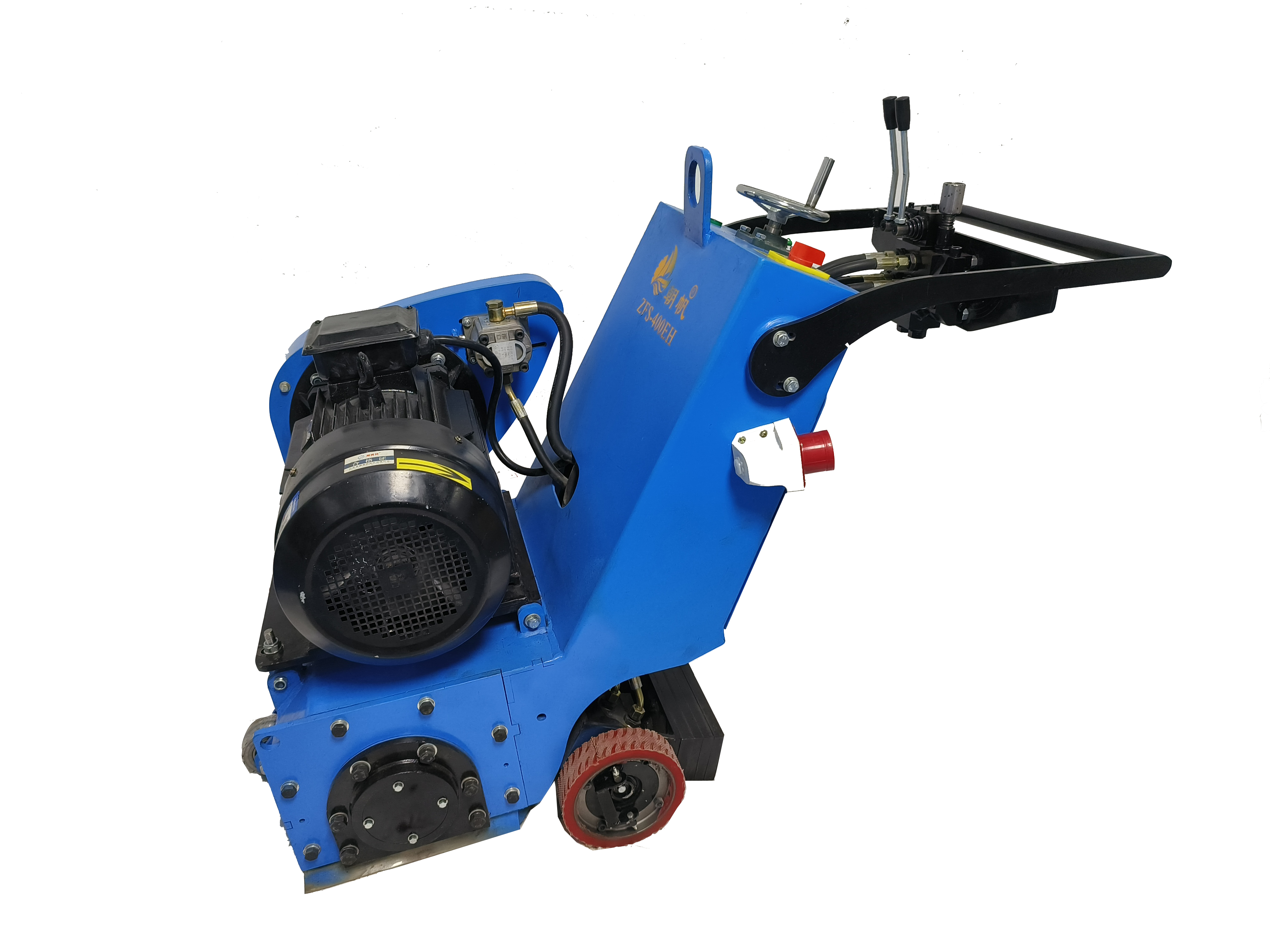

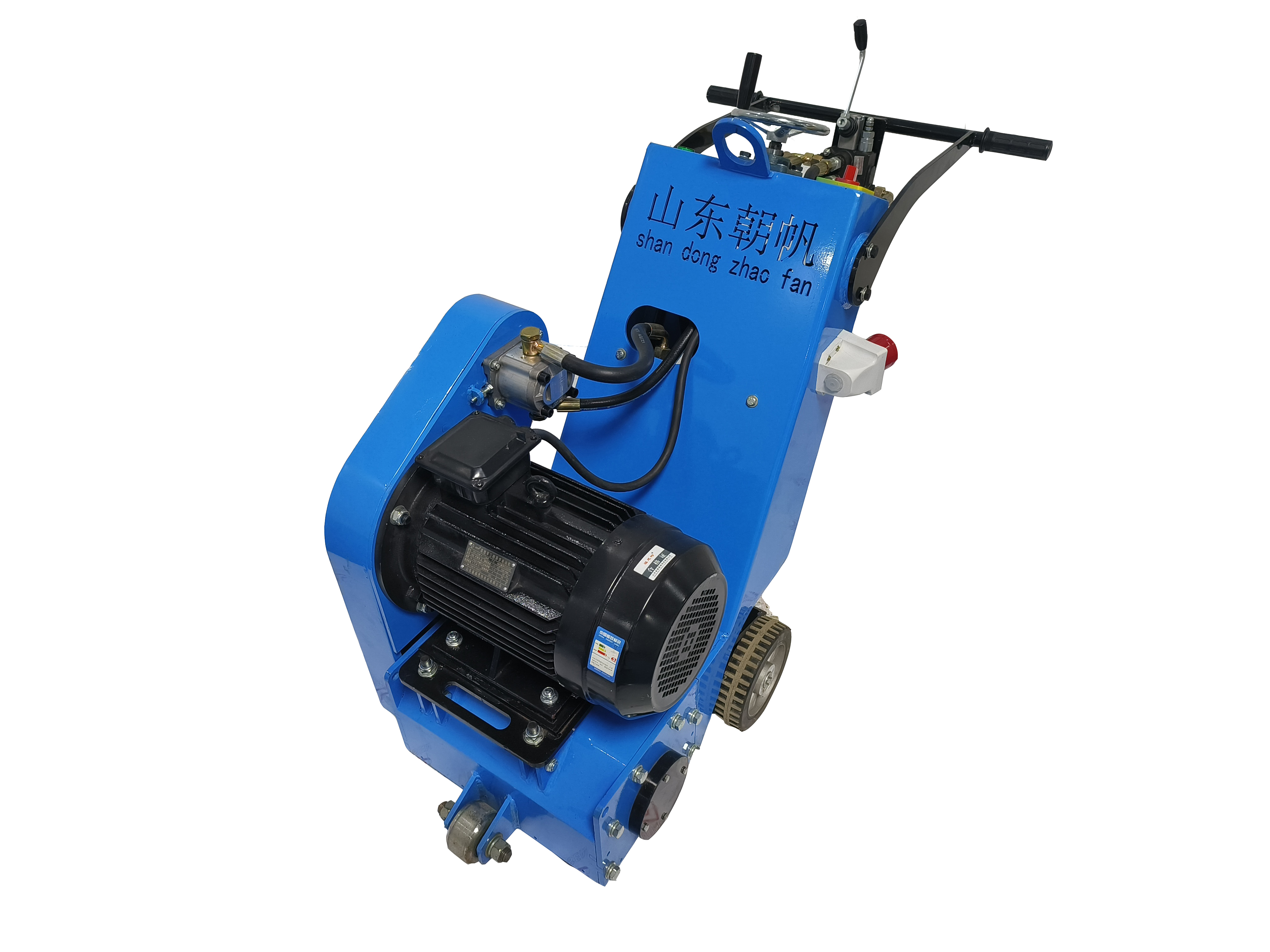

The hydraulic self-propelled concrete scarifier is more efficient, safer and saves labor costs.
It can be constructed with a
External dust collector to achieve dust-free construction.

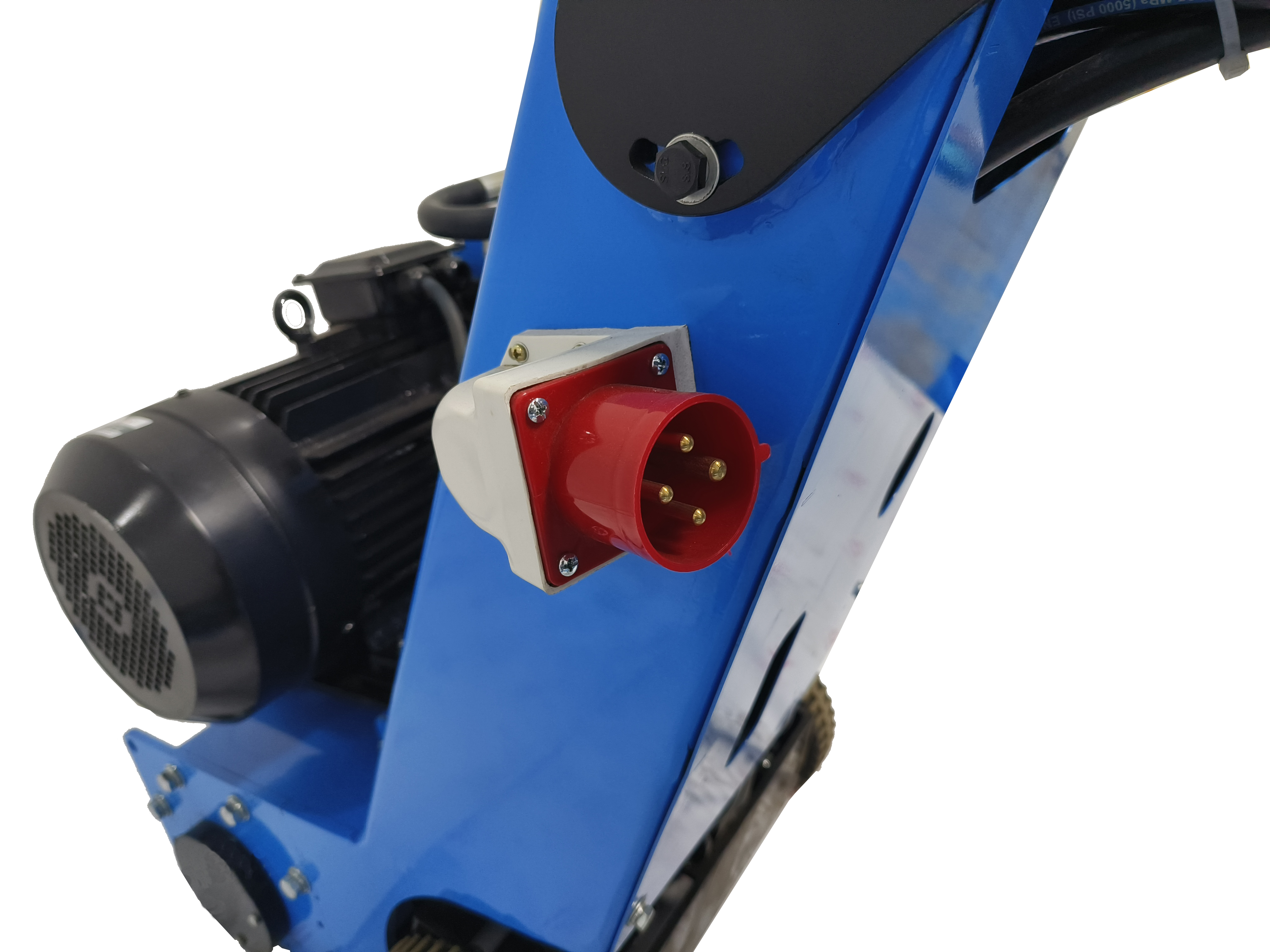

Explosion-proof plug, safe use of electricity

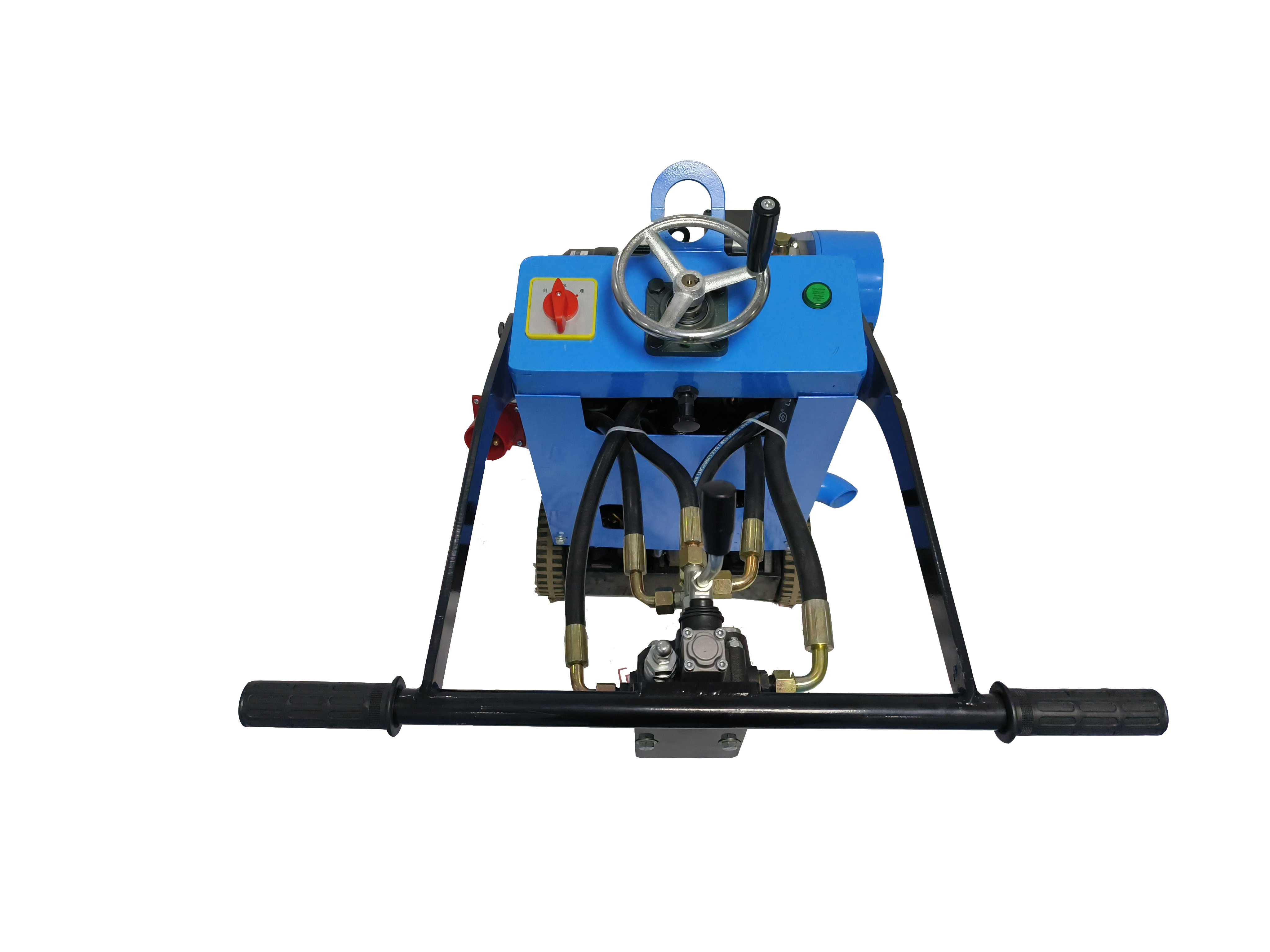

Hydraulic automatic walking system
Optimized overall body design
easy and convenient steering

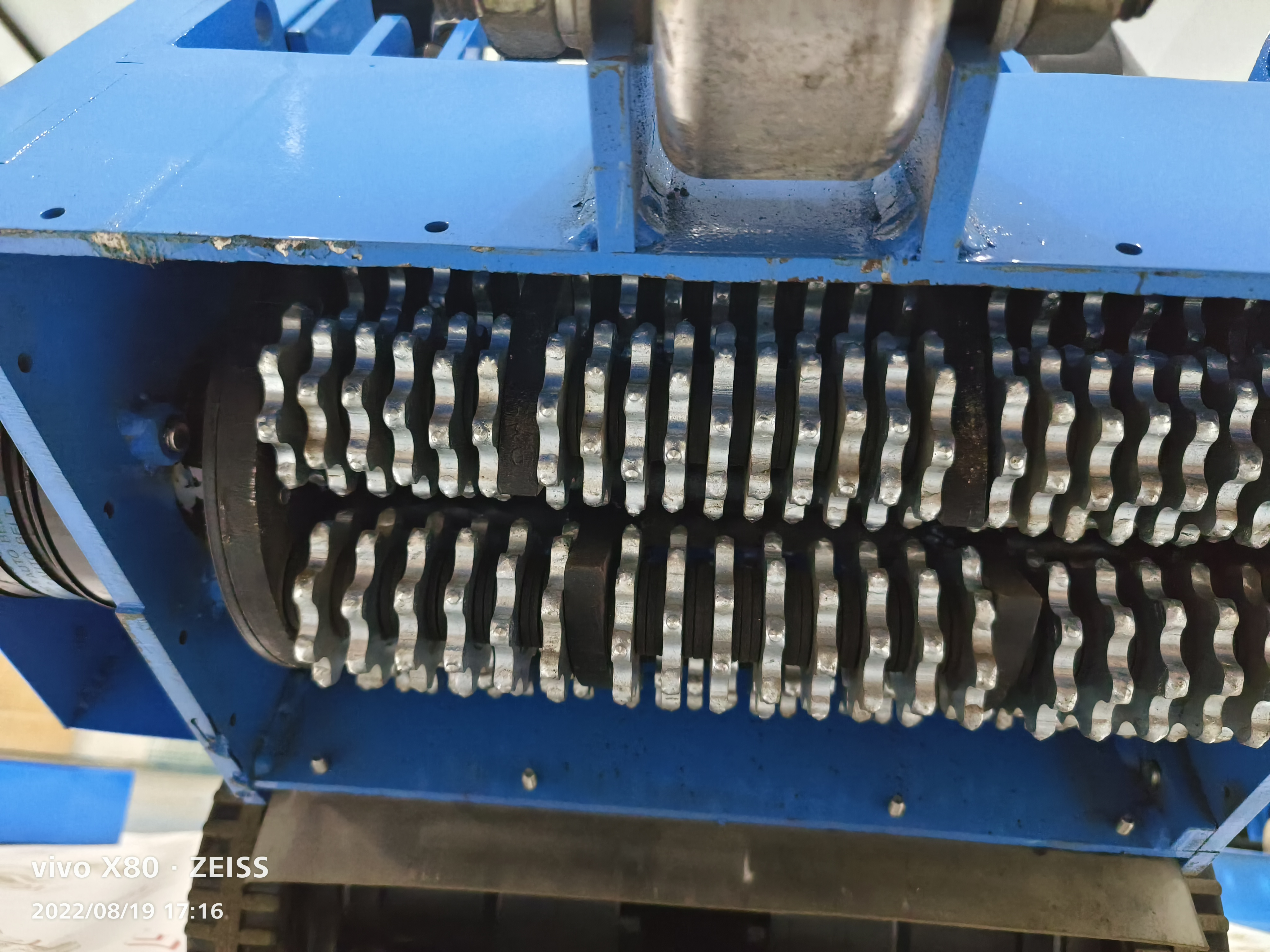

The blade adopts high-end diamond grinding head
A set of blades can hit about 10,000 square meters.
It is mainly used for excavation and renovation of asphalt concrete surfaces such as highways and urban roads.
Drawing of concrete pavements such as airports and freight yards and milling of fault tables.
1. The most cost-effective hydraulic automatic walking concrete scarifier2. Automatic walking, saving labor
Milling road and bridge surfaces, removing asphalt, removing concrete from old ground, removing surface coatings, paint, various traffic markings, damaged ground, dirt that needs renovation, and removing old floor surfaces.
Shandong Zhaofan Machinery Co., Ltd. is located in Heze, the peony capital of China. It is a mechanical equipment manufacturing company specializing in the research, development, production and sales of floor machinery. We have a range of concrete floor surface preparation machines such as concrete floor sanders, floor scarifiers and consumable tools to meet the needs of ground preparation. We have relevant industrial vacuum cleaners for floor cleaning after concrete sanding. We are committed to providing the best machines and the best prices. We adhere to the principle of customer first and quality first, and provide dealers with one-stop purchasing, OEM and ODM services.
Q: What is the working depth and working width of ZFS-300EHS?
A: The working depth is 0-10mm, it also depends on the floor condition. The working width is 300mm.
Q: Is 300ehs a 136 blade?
Answer: yes
Q: What is the service life of TCT knives?
A: To be honest, it is difficult to give life data. This is due to the different condition of the floor.
Q: How to maintain the floor scarifier?
A: Lubricate the bearings within a few hours. This is very important. When it starts working, don't put down the roller suddenly. It's easy to break up.
