Packaging Details: | The polishing/engraving machine is packed in an inner box, and then the inner box is packed in a carton | enter: | Max AC230V 50/60HZ / OEM |
Machine level: | Lvmax DIY or Industrial | Gross weight: | 5 kg |
port: | Fuzhou/Xiamen/Shenzhen/Shanghai/Yiwu/Guangzhou/All ports | Customization support: | OEM,ODM,OBM |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal and Alibaba | application: | Jewelry Engraving / Polishing / Cutting / Dentures |
Rotating speed: | 1- 60,000 rpm | product name: | Hot selling jewelry making tools topping machine equipment |
Warranty: | 1 year | application: | Gem carving, wood carving, stone carving, metal polishing, jewelry processing |
output: | DC0-40V 0-8A | Energy source: | electrical |
style: | No need to replace the grinding head for dual handpieces | Voltage: | 110V/220V |
warranty period: | 1 year | Origin: | Fujian |
Supply capacity: | 100000 sets per month | Function: | Sculpture/polishing/cutting/denture/electronics factory |
Package preview: | | grade: | DIY,Industrial,AT-CM-036 & A4 &A7 Hot Selling Jewelry Making Tools |
Product Description

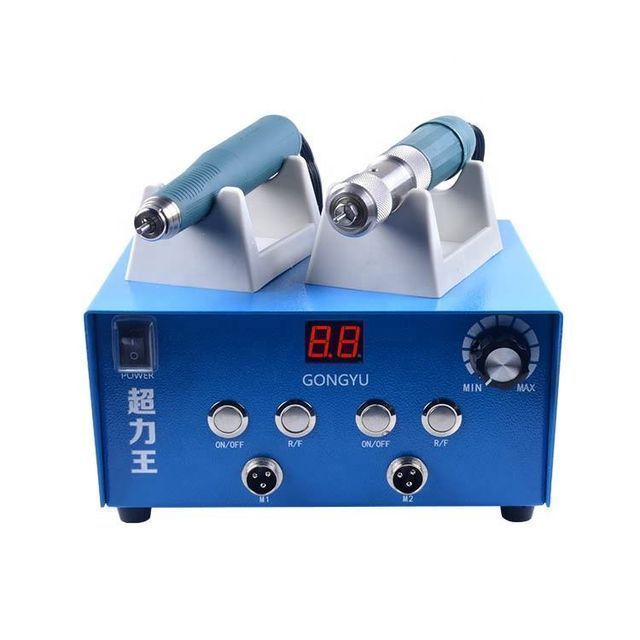

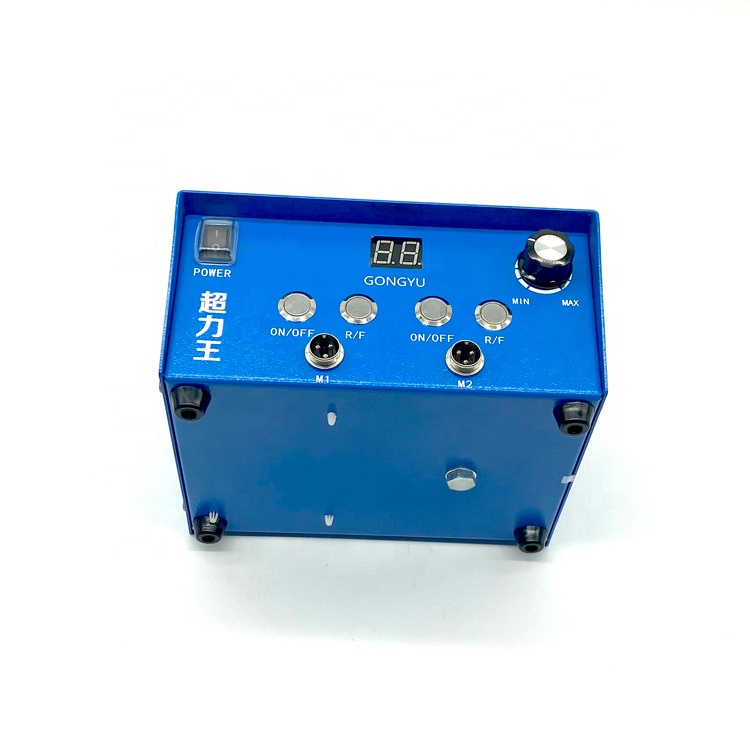

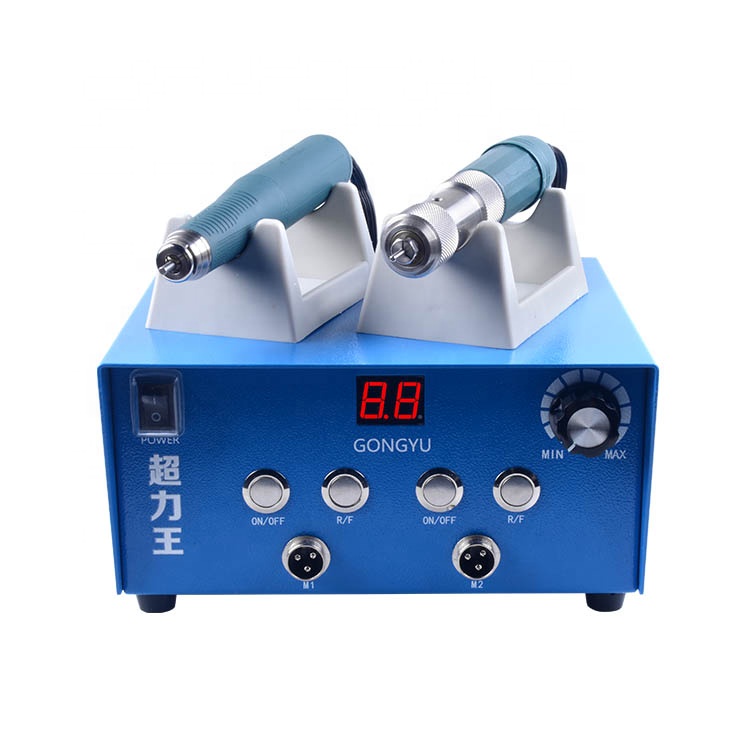

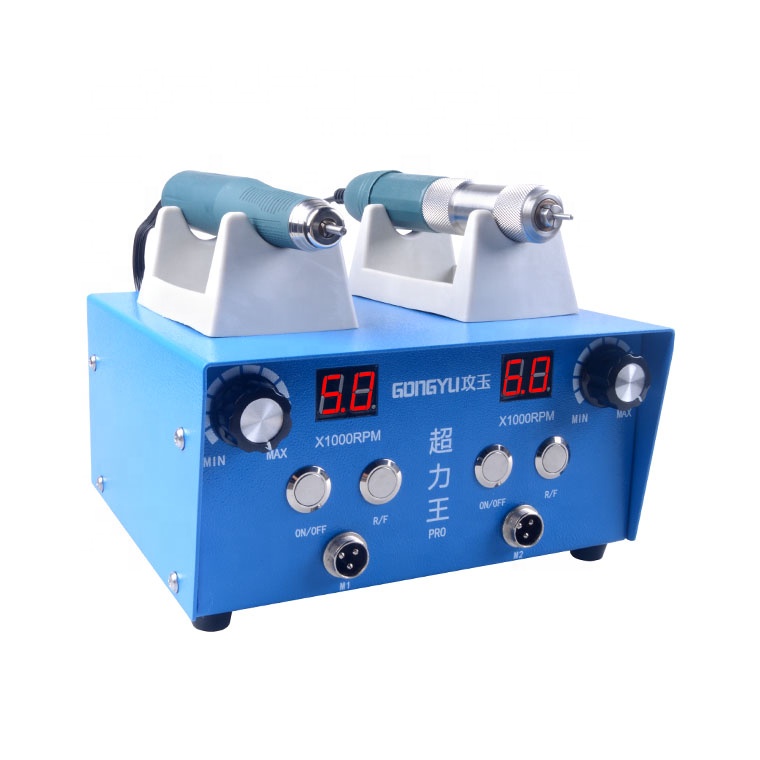

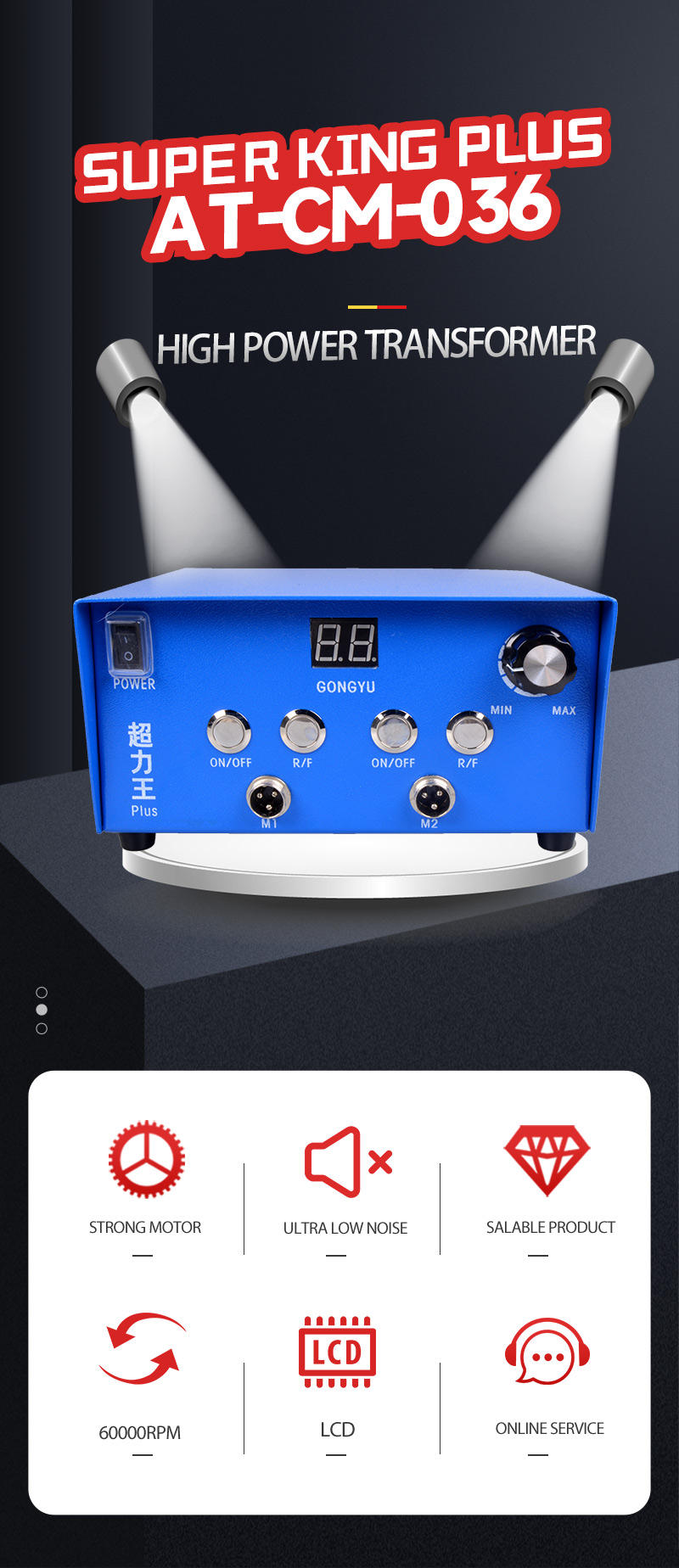

production name | AT-CM-036 & A4 &A7 Hot Selling Jewelry Making Tools Hole Opening Machine Equipment |
Input for this nail drill | 220V (50/60HZ) / 110V OEM acceptable |
output | 36V/OEM acceptable (engraving machine standard 36V) |
strength | 250W/ 150-300W OEM can |
Supporting mobile phone | maximum50,000 rpm/60,000 rpm/ 90,000 rpm / 35,000 rpm /brushless phone |
Handheld engraving machine abrasive accessories | 2.35mm /3mm/ 3.175mm optionalAT-CM-036 & A4 &A7 Hot Selling Jewelry Making Tools Hole Opening Machine Equipment |
size | 20.5*18*11CM |
Standard package for polisher and engraver | Inner box packaging, then carton packaging; Inner box has English non-brand standard packaging, or can OEM your brand OK |
Item NumberHot selling jewelry making tools topping machine equipment | AT-CM-036 & A4 &A7 Jewelry Making Engraving/Polishing/Cutting/Denture Tools |
sampling time | 3-15 days |
mass production time | 3-15 days (OEM style needs to be checked with the design, estimated 10-30 days) |
payment methodAT-CM-036 & A4 &A7 Hot Selling Jewelry Making Tools Hole Opening Machine Equipment | PayPal 5% bank fee; TT $50 baking fee per payment; Alibaba insurance contract 2.5% bank fee; Western Union works without bank fee Choose your preferred payment method |

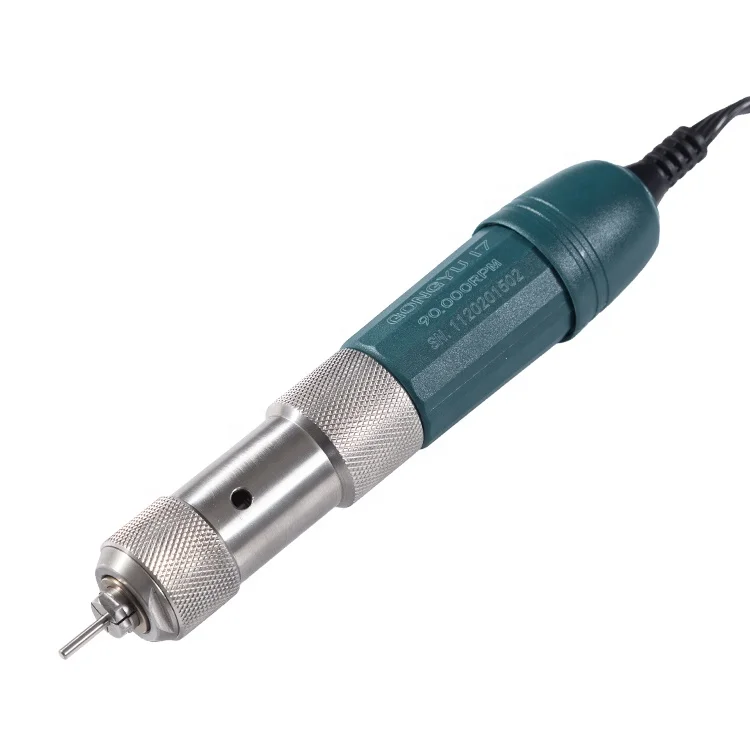

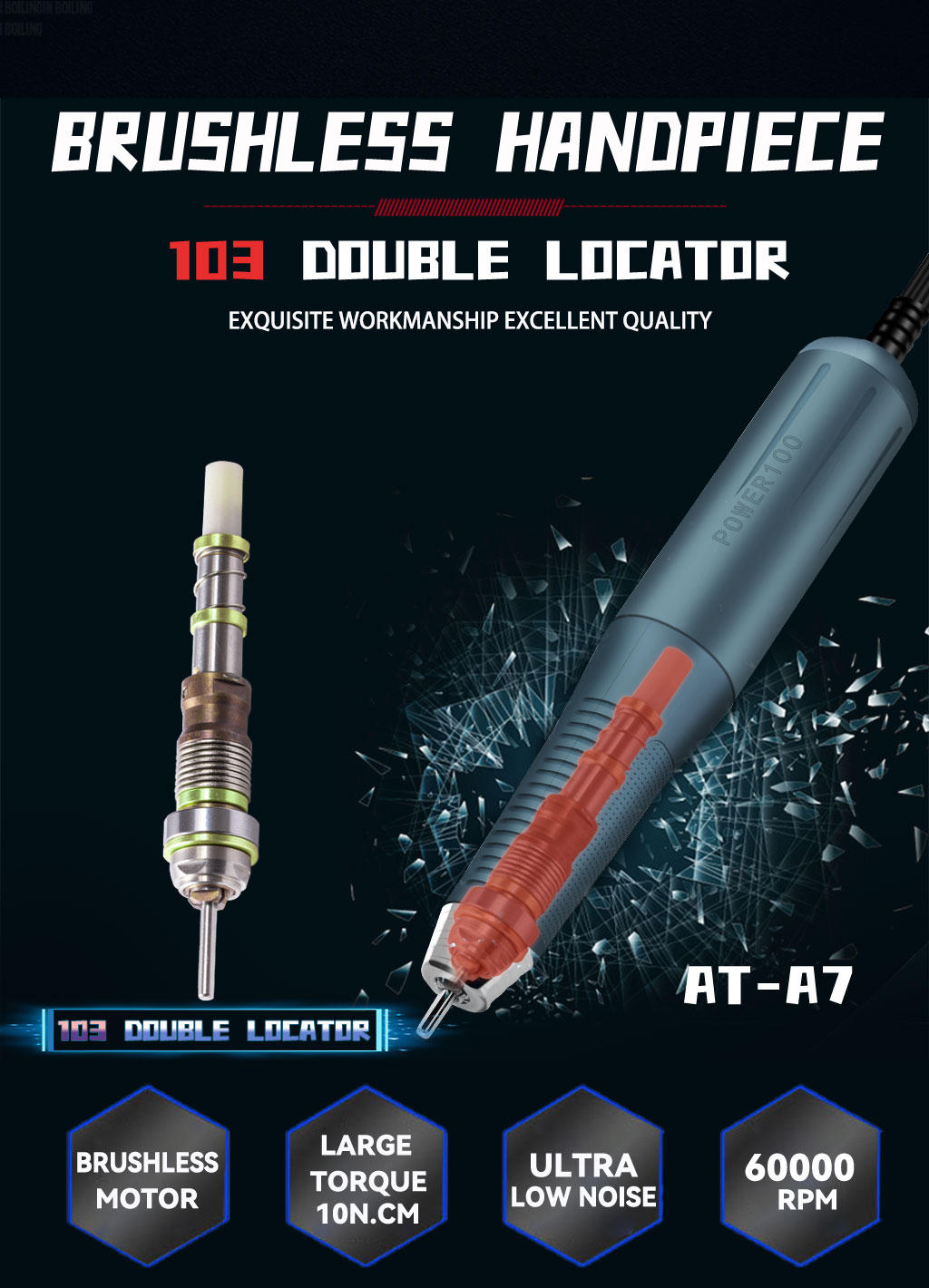

AT-A7 handle style | | Brushless micro motor mobile phone | | |
Maximum torque | | 3.5N.CM / 6.5N.CM / 7N.CM /10N.CM/ 12N.CM / Accept OEM | | |
Rotating speed | | Up to 35,000RPM /50000RPM/60000 rpm/90000RPM/OEM acceptable | | |
bearing | | 103 double locator | | |

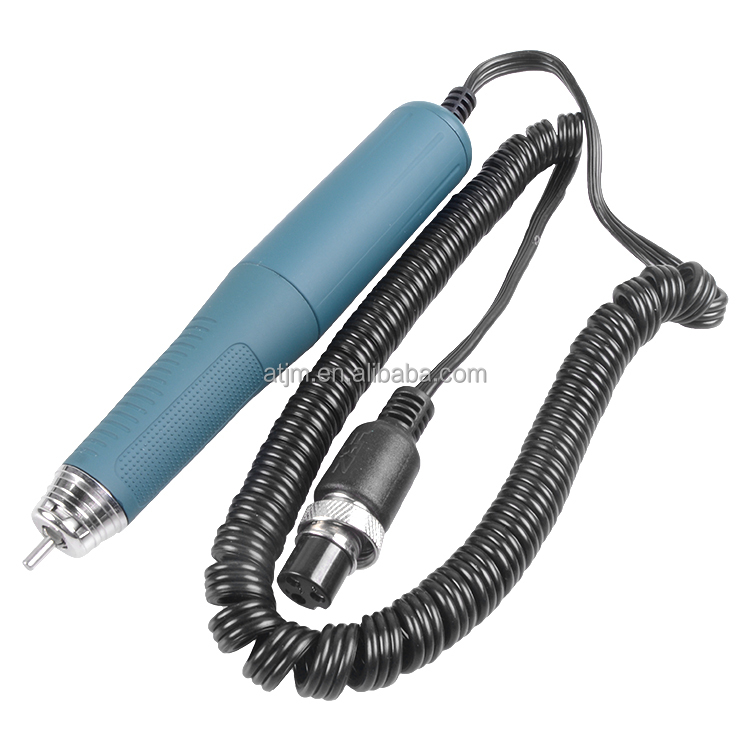

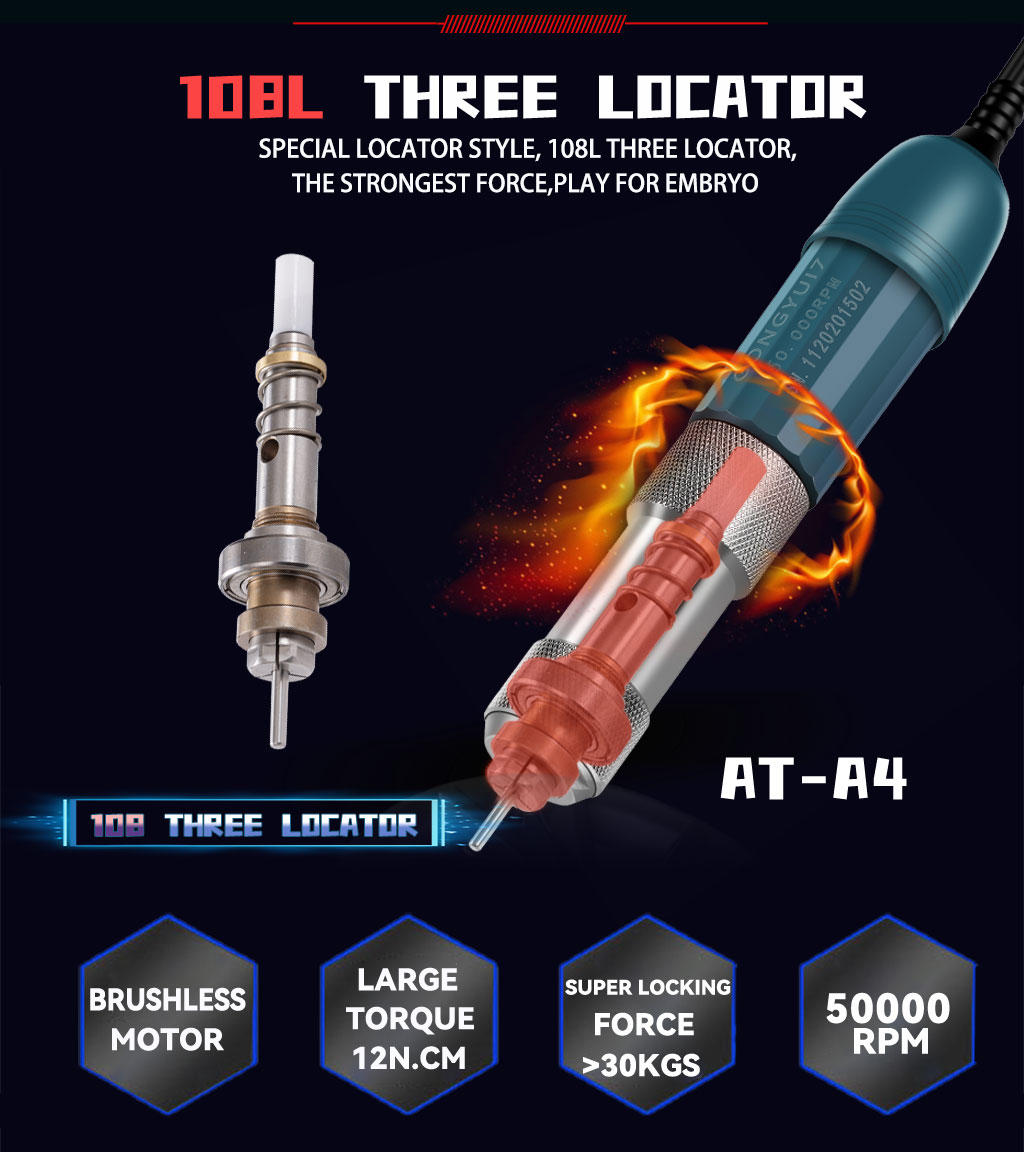

AT-A4 handle style | | Brushless micro motor mobile phone | | |
Maximum torque | | 3.5N.CM / 6.5N.CM / 8N.CM / 10N.CM /12N.CM/ OEM acceptable | | |
Rotating speed | | 35,000RPM max /50000 rpm/ 60000RPM/90000RPM/OEM acceptable | | |
bearing | | 108L three position locator | | |
1. This product is developed for dental technicians. It can also be used in jewelry processing, nail art, polishing, handicraft carving, mold processing, electronics and other industries.
Thank you for purchasing our product, correct maintenance and timely replacement of product parts can prolong the service life of the product.
The company is not responsible for any accidents caused by not carefully reading the instructions before use.
In order to improve and upgrade the product, the appearance and configuration of the product may be adjusted without prior notice.
2. Product Warranty
The warranty period for the handle is 6 months, excluding wearing parts. Such as three-leaf spring (chuck), shaft core, small shaft core, bearing; control box and pedals are guaranteed for one year.
4. Maintenance suggestions
4.1) Please keep the handle rotation area clean and dry
4.2) When there is dust and dirt inside or outside the handle, please wipe it with a little alcohol, but avoid a large amount of alcohol or moisture from penetrating into the bearing. Do not fill the inside of the handle with oil (the bearings will become too hot to use), nor can you fill them with water (the bearings will rust and damage)
4.3) It can be cleaned with an air gun, but be aware that the gas in the air gun may contain moisture. Be sure to avoid water vapor blowing into the bearing to prevent rust.
about Us
Fujian Aite Precision Machinery Co., Ltd.
Founded in 2008, it is a factory specializing in the production and sales of hand-held high-speed brushless electronic grinders and accessories. Our factory is located in Wuyi Zhigu Software Park, Wuyi High-tech Zone, Nanping City, Fujian Province, China. It has excellent imported mechanical processing equipment and mature production and processing technology of core accessories. The company used to be engaged in the production and processing of core components of high-speed grinding machines. The core components of high-end grinding machines produced by our company have reached or even exceeded the technical indicators of similar imported products. At the same time, our company independently develops and designs a high-speed brushless grinder power supply, which has a dual-drive control chip, supports dual-channel stable output, and can continuously drive two high-speed brushless electronic pens at the same time; it fills the gap in related products in this industry. At present, the company has applied for a number of national invention patents. The high-speed brushless electronic grinding machine produced by our company is suitable for jewelry, jade, stone, dentistry, nail art and other industries and processing industries that require manual precision repair. Our main products include but are not limited to: nail art drills; engraving machines; nail lamps; and accessories for those machines. Your ideas and cooperation are welcome.
