Made in China Industrial Sf6 Gas Density Monitor different size

Specification:

1. Size: 63mm

2. Range:-0.1-0.1Bar (customizable)
3. Accuracy: At 20℃:Class 1.0 or 1.6; -20℃ to +60℃:Class 2.5; -30℃ to -20℃:Class 3.0
4. Protection:IP67
5. Connection: bottom, or back
6. Leakage rate: < 1×10-9 Pa·m 3 /s
7. Cable size: 1.5mm2 recommended; 2.5 mm2 maximum
8. Insulation properties
   Insulation resistance: >100 MΩ(500V DC)
   Withstand voltage: AV2000V, 50/60 Hz 1 min (to case)
9. Contact ratings : 30W/50VA,1A max
   220VDC/380V 50/60Hz max
10. Window: Safety glass

Features:

1. AISI304 hermetically sealed stainless steel case

2. AISI316 parts in contact with gas

3. Temperature compensated bourdon tube pressure gauge

4. Suitable for indoor or outdoor installation

5. Indicated values and signal outputs independent of installation altitude

Application:

1. Gas Insulated Switchgear (GIS)

2. Gas Insulated Lines (GIL)

3. SF6 circuit breakers

4. Gas insulated busbar systems

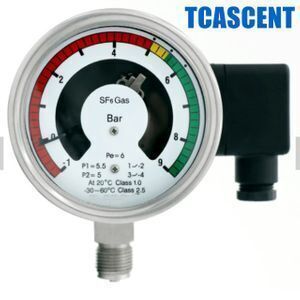

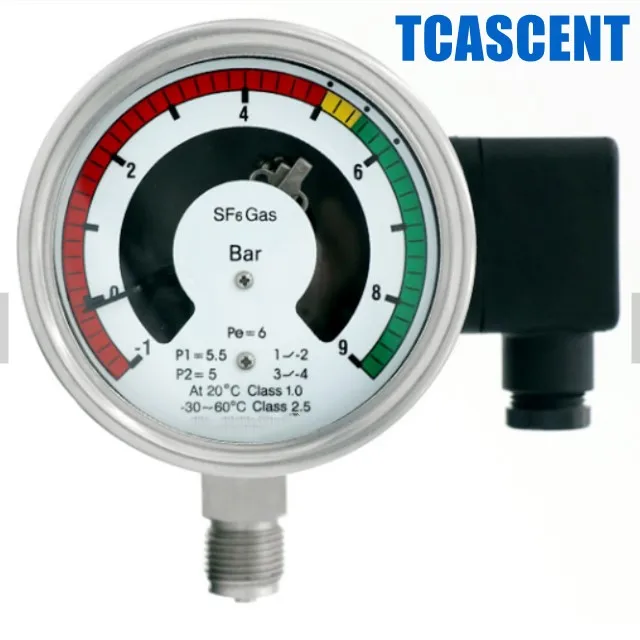

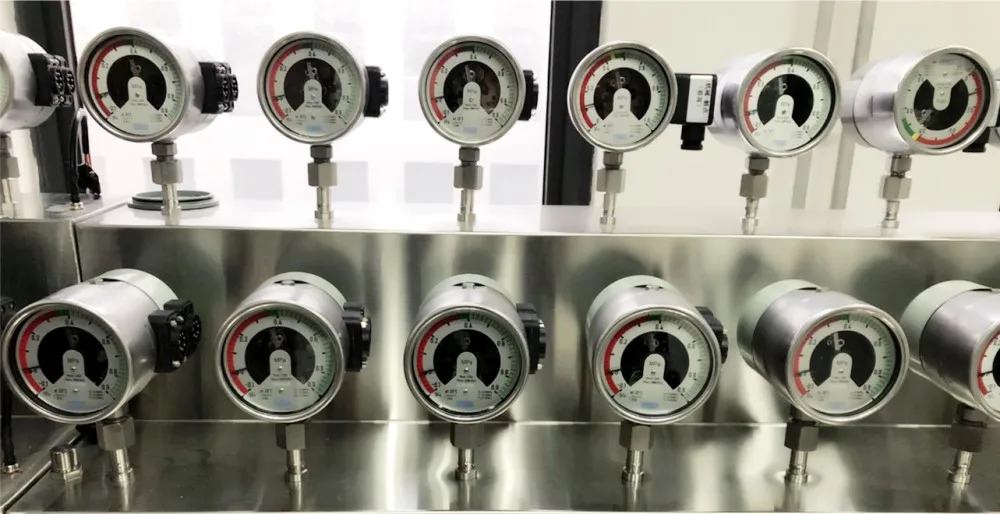

Product Photos

N/W . :0.5kg/pcs

Package as customer request .

 Company holds professional engineer and High-quality sales team ,worked in the industrial automation instruments and meters area. , Products covered the temperature, level, pressure, flow, analysis, temperature, industrial automation systems

1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Model code or Related  parameters information .

2. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.

3. What terms of payment are available?

We accept T/T, L/C, Trade assurance, Escrow, Western Union, Paypal, Money Gram, etc.

4.When will you arrange the production?

We will arrange the production immediately after receiving your payment.

5. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients

6. Do you have any certification?

Yes, according to the different products, overpass CO ,CE, RoHS, ISO, Ex,Ul etc

Thank you for your business…it is very much appreciated!

Ph. & whatsapp:0086 15399040533
