Semi-automatic pocket spring coil manufacturing machine mattress pocket spring assembly machine production line

Supplier: Kaifeng Youdo Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Cherry Han
Price: $32857.00 / 1 - 4 sets
$30000.00 / 5 - 19 sets
$28570.00 / >=20 sets
Min. Order: 1 set

Click here to contact

Product details

Core component warranty:	1 year	Origin:	Henan, China
payment terms:	Western Union, T/T, MoneyGram, PayPal	Mechanical test report:	if
Wire diameter:	1.6-2.3mm	Showroom location:	not any
weight:	2600	speed:	65-70PCS/min
type:	automatic	product name:	pocket spring machine
Spring core diameter:	60-72mm	Voltage:	380V
Packaging Details:	wooden box	Package preview:
Video shipment inspection:	if	Applicable non-woven fabric weight:	45-90 g/m²
Supply capacity:	10 sets per month	port:	Qingdao Port
aspect:	310015001800mm	Marketing Type:	New Products 2020
Applicable non-woven fabric width:	320mm-560mm	Health status:	new
strength:	8.5kw	Applicable industries:	Mattress
Gas source:	0.2 cubic meters per minute (0.8Mpa)	Warranty:	one year
Dimensions (LWH):	320016001900mm	brand:	UD
application:	Mattress	Core components:	PLC, motor

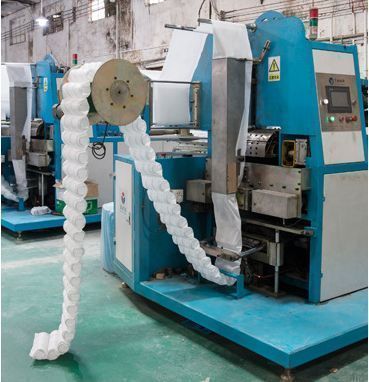

Automatic Pocket Spring Assembly Line

Finished product display

brief introduction

The machine is fully automatic CNC operation, due to the use of back sealing ultrasonic edge banding.

Thinner nonwovens can also be used to produce thicker springs.

The length of the blank part is set to stop automatically when the fabric runs out.

Thereby improving the intelligence of the machine, the cost of the product produced by the product is lower, and the waste is less,
The structure is stronger, and it is an ideal equipment for independently bagging bed nets and sofa seat bags.

pocket spring machine
Model	UDMC-DZJ-70A
aspect	310015001800mm
Applicable width of non-woven fabric	320mm-560mm
Applicable non-woven fabric weight	45-90 g/m²
Wire diameter	1.6-2.3mm
Spring core diameter	60-72mm
weight	2600 kg
average power consumption	8.5kw
speed	65-70PCS/min
Gas source	0.2 cubic meters per minute (0.8Mpa)
Package Size	320016001900mm

Pocket Spring Assembly Machine
Model	UDMC-ZJJ-3A
Applicable spring shape type	Cylindrical/drum
Self Adhesive Mosquito Net Width	≤2200mm
productivity	6-8 / hour
Applicable spring diameter	40-80mm
Applicable pocket spring height	65-280mm
Non-woven outer diameter	≤750mm
Non-woven weight	≤150kg
Voltage	380V/50hz/3 phase
shift	0.1 cubic meter/minute
air pressure	(0.5-0.7)Mpa
total power	9.09kw
consumerism	4 kW
aspect	330018002100mm
weight	2500 kg
Package Size	340019002200mm
