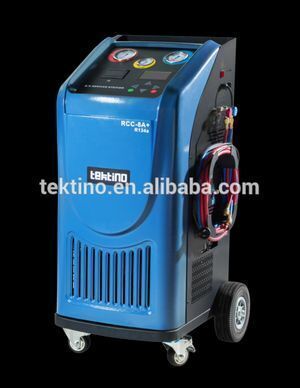

CE Certified, Tektino RCC-8A+ A/C Service Station

Click here to contact

Product details

LCD Display:	4.3-inch TFT full color;	Certification:	CE;
Port:	Shenzhen;	Warranty:	One year;
Model Number:	RCC-8A+;	Manifold:	Highly integrated manifold;
Type:	Other;	A/C database:	over 6000 car models till 2016;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,PayPal;	Place of Origin:	Guangdong China (Mainland);
Packaging Detail:	Packing info: 7206701190mm, Gross weight:115kg;	Type:	Fully Automatic;
Brand Name:	Tektino;	Supply Ability:	300 Unit/Units per Week;

CE Certified, Tektino RCC-8A+ A/C Service Station

* Highly integrated module and high quality spare parts ensure a stable & reliable operation.

* A/C database is more than 6000 car models, can be also updated every year and have 10 blank

self-definition database settable.

*Automatic vacuum leak test available

* Service reminding for regular maintenance after 600 operations

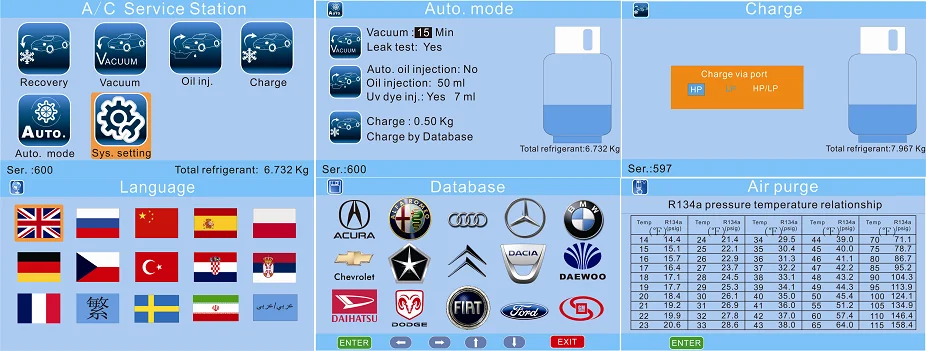

Interphase Chart

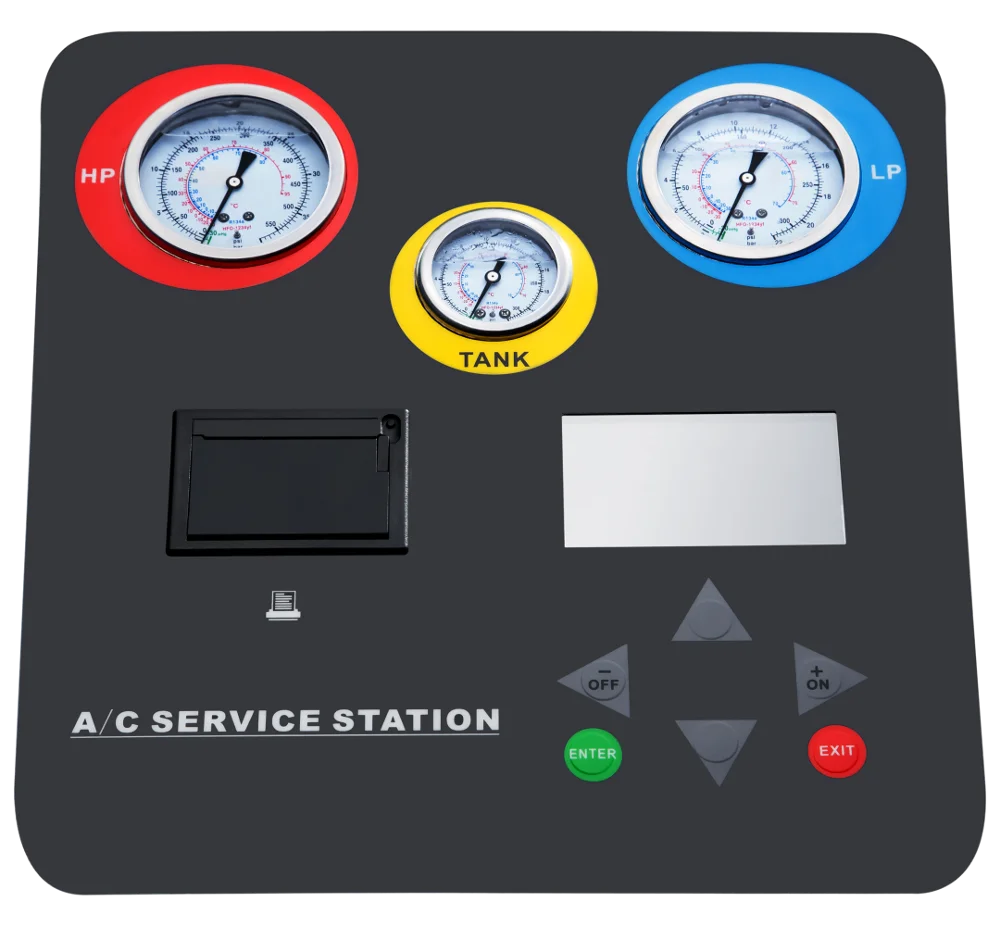

Key board

Highly integrated pipeline modules

Original imported high-quality parts

Compressor

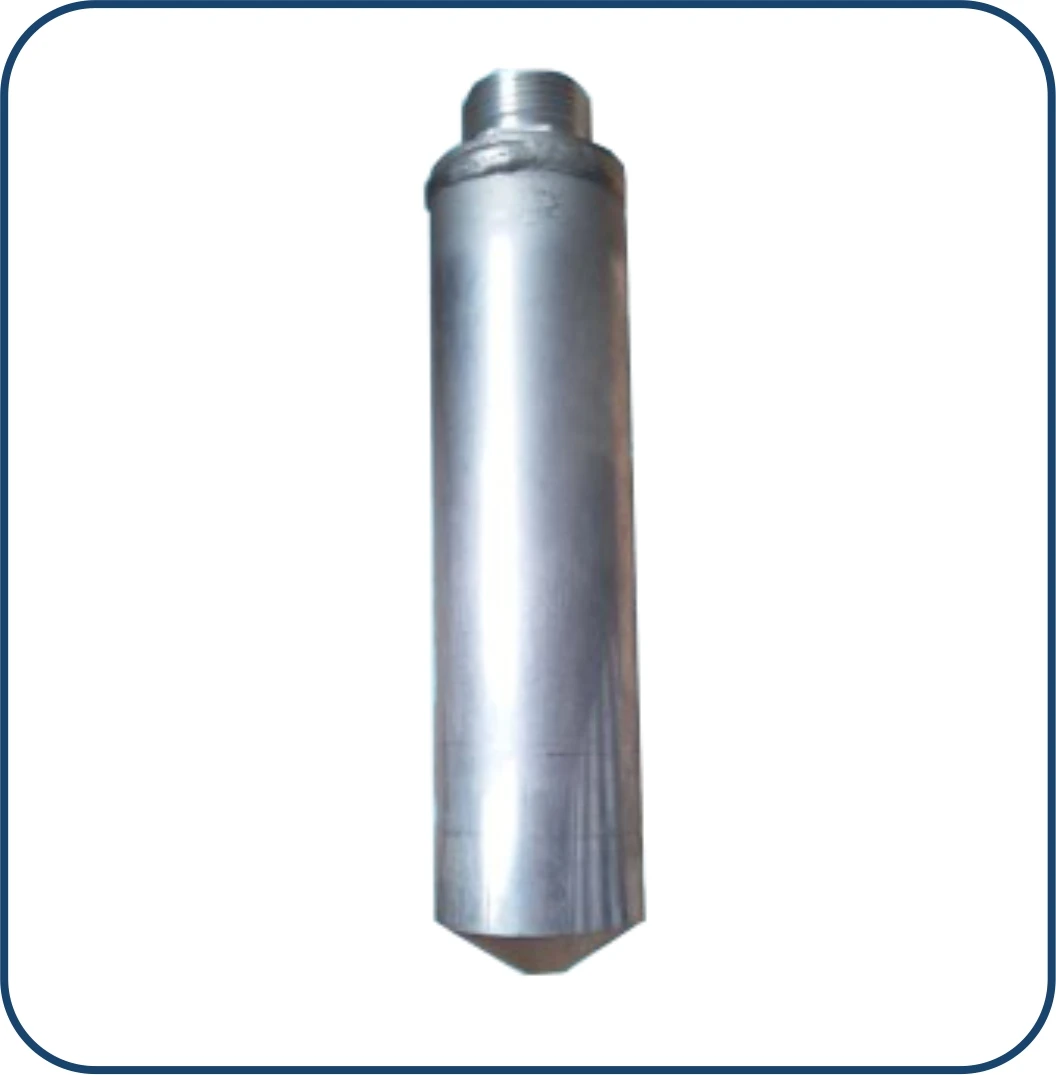

Dry filter

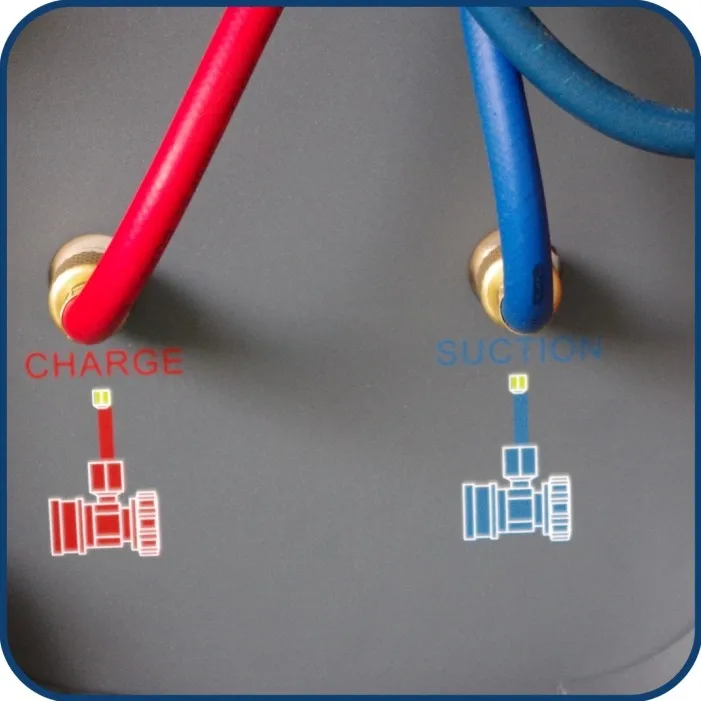

Hose

partial picture

Functions

1) Fully automatic in recovery/vacuum/oil injection/charge
2) Amply database

3) Automatic service reminding

4) Automatic air purge (optional)

5) Vacuum leak test (optional)

6) UV dye injection (optional)

·Heater band

·Thermal printer

·Hand valves free

·Condenser and cooling fan

·A/C database included,free update

·Pressurization to speed up used oil discharge

Specifications

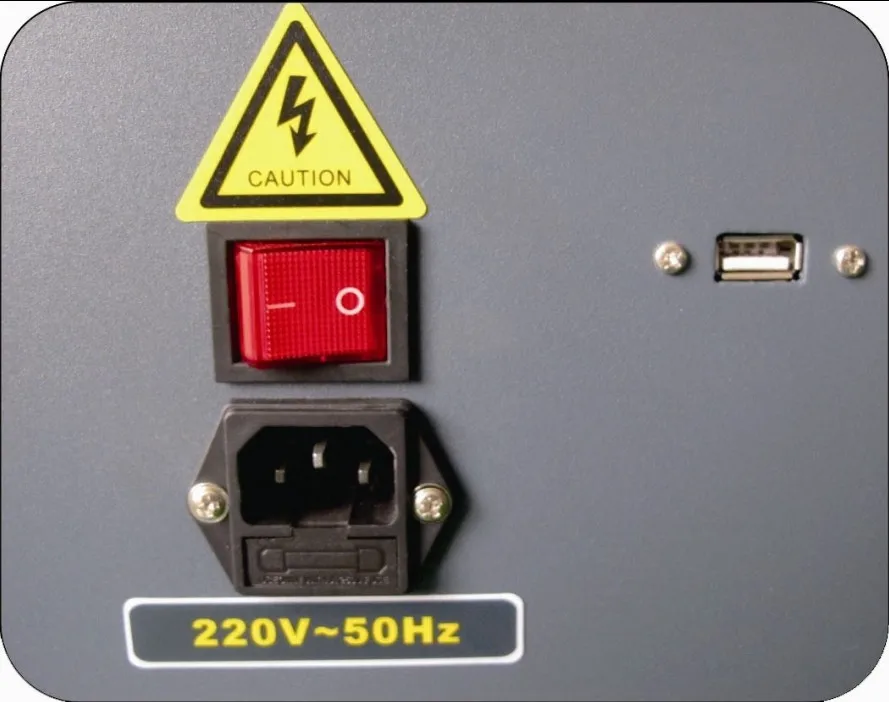

Power supply	AC220V±10%~50/60Hz, 110V±10%~60Hz
Vacuum pump	60L/Min (120L/Min for optional)
Compresor	3/8hp, import compressor
Accuracy of gas cylinder load cell	±10g
Max. working pressure	20bar
Dry filter	600ml
Refrigerant tank volume	max.10kg full tank alarm
Vapor refrigerant recycling speed	250g/Min
Recovery rate	97%
Accuracy of oil bottle load cell	±5g
Charge speed	2Kg/Min(max.)
LCD display	4.3-inch,TFT full color
Dimension(machine)	6355851075mm
Dimension(Package)	7206701190mm
Languages	English,Russian,Spanish,Polish,German,Czech,Turkish, Croatian,Serbian,French,Swedish,Farsi,Arabic, Bulgarian,Traditional Chinese,Chinese,etc.
Gross weight	115kg
