24V large truck bus side warm blind spot detection sensor auxiliary system

  • Supplier: Dongguan Kysail Tech Ltd
  • Region: Guangdong, China
  • Contact: Mr Peter Liang
  • Price: $299.00 / 2 - 1999 pieces
    $100.00 / >=2000 pieces
  • Min. Order: 2 pieces
Product details
frequency:77-81GHzport:Shenzhen
brand:Lintek/OEMRange resolution:0.5M
payment terms:L/C, Western Union, D/A, T/T, PayPalbuzzer:Yes
Operating temperature:(-40℃ ~ 85℃)Car equipment:MAN - Euro Heavy
Accurate distance:5-10 metersVideo output:CAN output/RS232/IO output
Year:1970,1999-2002,1967-1970,2004-2013,2002-2013,2000-2006,2002-2006,2007-2013,1987-1995,1972-1981,1999-2001,1983-1996,1990-2003, 2002-2009,2007-2013,1989-2001,2006-2010,1999-2013,2005-2013,2002-2003,1983-2011,2005-2013,1970,2002-2005Power consumption (W):18W
Model:LE, G, F, TGM series, TGS series, TGL series, M, L, 9.126, 10.126, 8.15, TG series, TGA series, 11.136, TGX series, 7.126waterproof level:IP67
Detection accuracy:0.18MDetection distance:7-20M

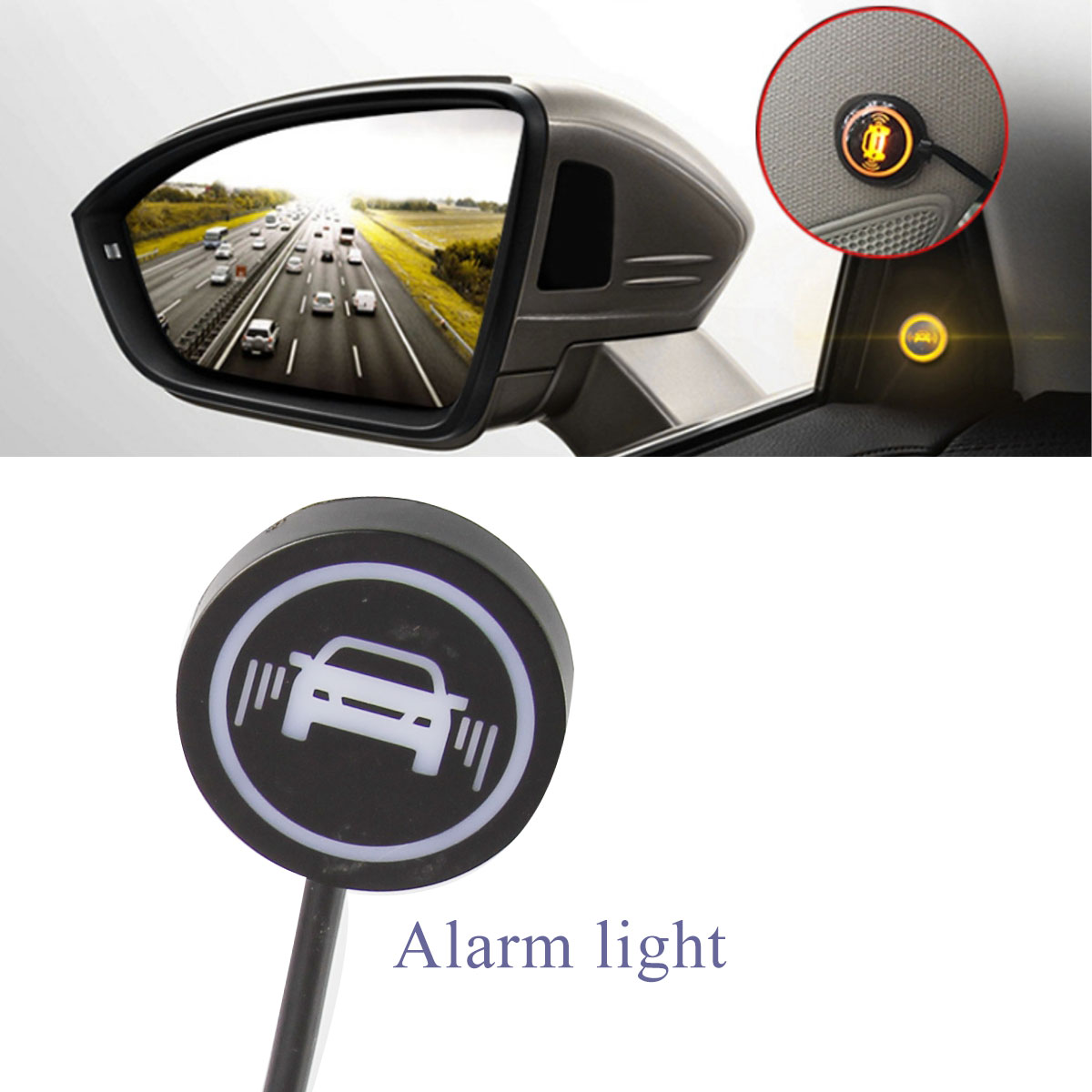

Alarm lights:YesPackaging Details:brown box
Voltage:8-36VSupply capacity:500 sets per month
application:heavy vehicle trailerWarranty:1 year
Product Description

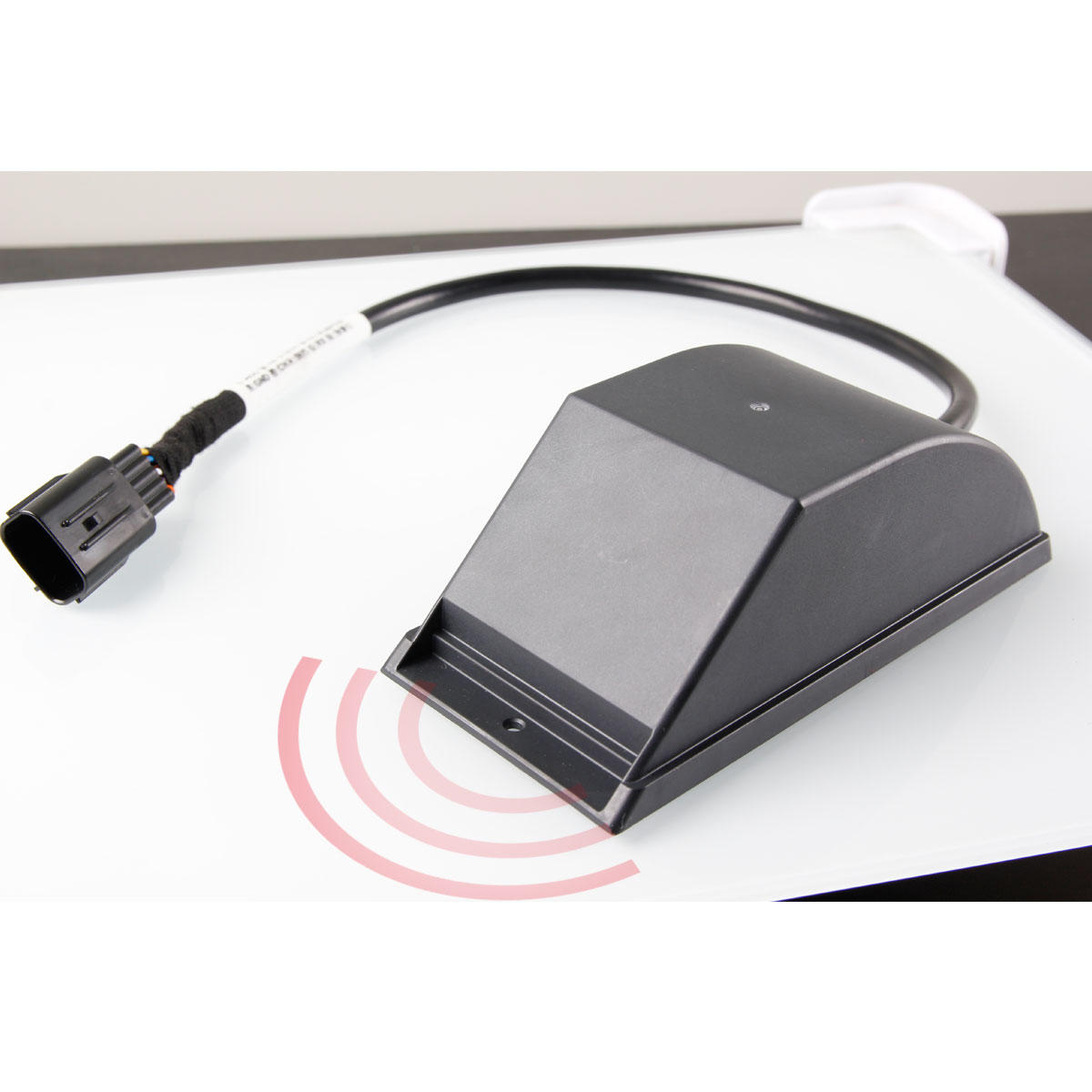

Model: T-R4-D

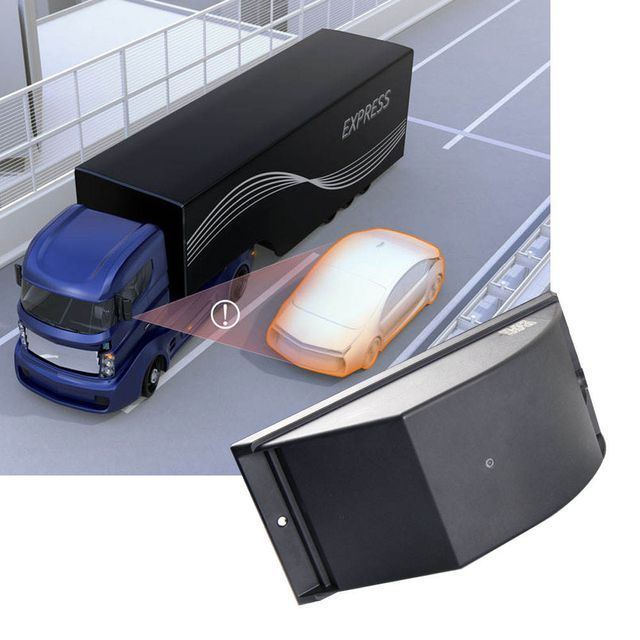

A new blind-spot motion detection system warns truck drivers of accidents.
Vehicle-mounted blind spot monitoring radar is a kind of early warning for targets in the blind spot on the right side of the vehicle.
vehicle
With its unique ability to penetrate smoke, fog and dust, radar can realize all-weather applications.
-- This assistance can be auditory and/or visual and has a variety of functions. Assuming that all other vehicles on the road are vulnerable to heavy truck accidents, the goal is to maximize the safety of the smallest vehicle on the road at the time. Thus, when the system detects, through the activation of indicators or movement of the steering wheel, that the driver has initiated maneuvers, the radar detects any moving objects in the blind spot. In the event of an imminent collision, the indicator light flashes with a beep so the driver can react quickly. That said, Blind Spot Assist doesn't just focus on the safety of other vehicles on the road users, but also aims to enhance the safety of truck drivers. It can also calculate the trailer's steering angle when turning and warn the driver if there is a risk of colliding with a utility pole or traffic light.

Specification
feature
parameter
Technical data





system property
Voltage
8-36V
Operating temperature
(-40℃ ~ 85℃)
consume
< 2W
waterproof level
IP67
frequency
77-81GHz

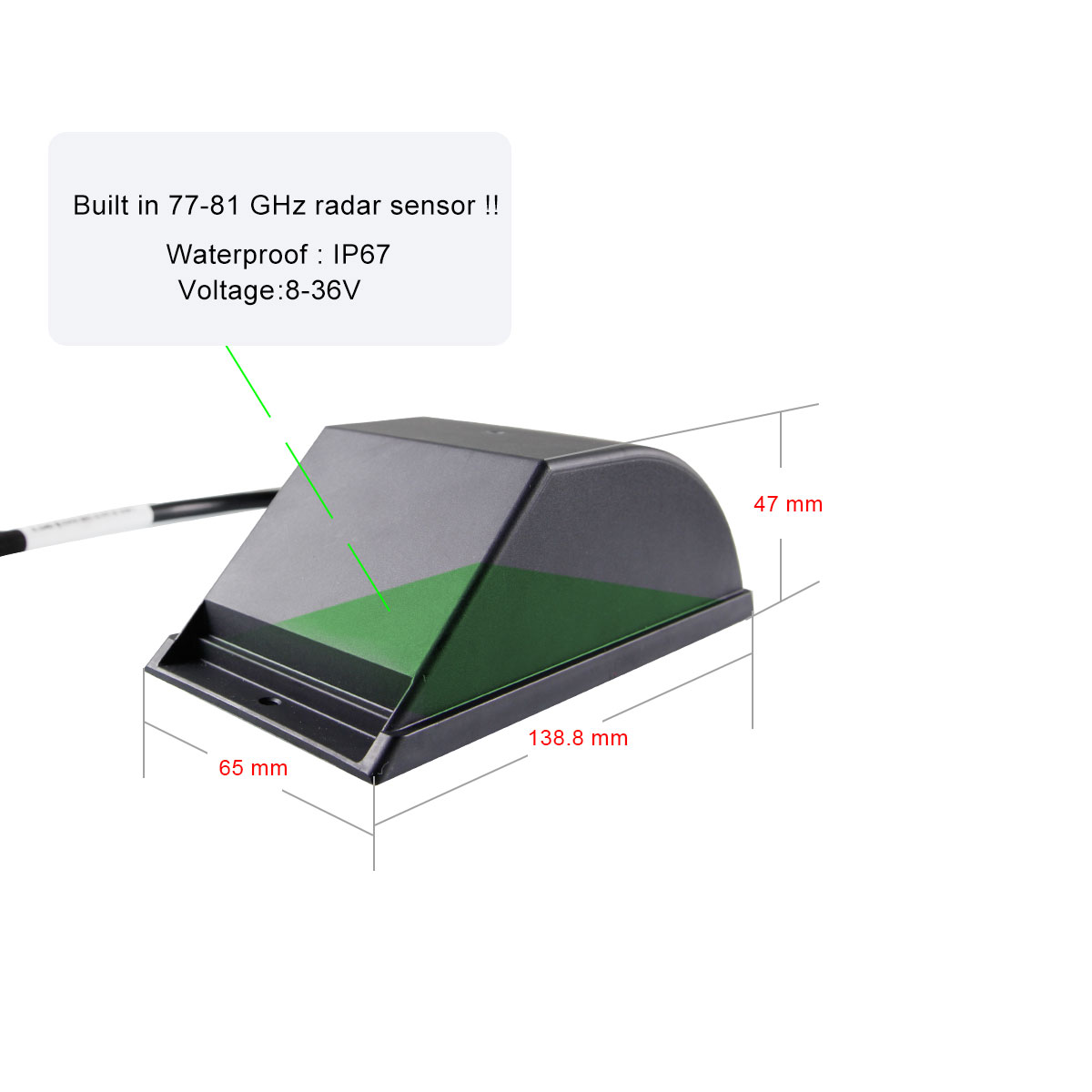

size
138 x 65 x 47 mm
weight
100 g
Horizontal Beam Width
±60°

Detection capacity
distance resolution
0.5m
Detection accuracy
0.18m
Detection distance
7-20 meters
interface
video output
CAN output/RS232/IO output

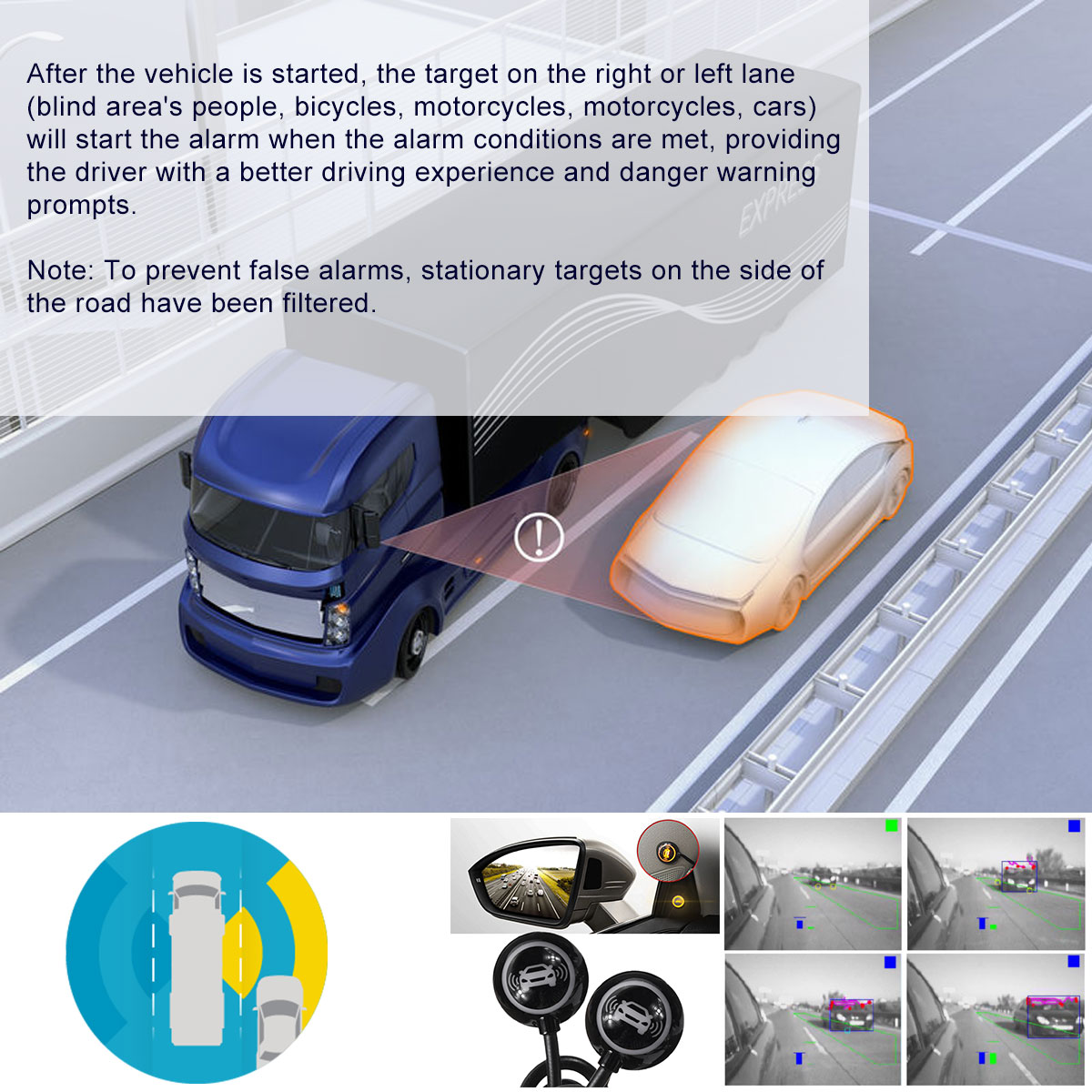

Blind spot monitoring and early warning strategy
Targets in the right or left lane after the vehicle starts (people in blind spots, bicycles, motorcycles, motorbikes, cars)

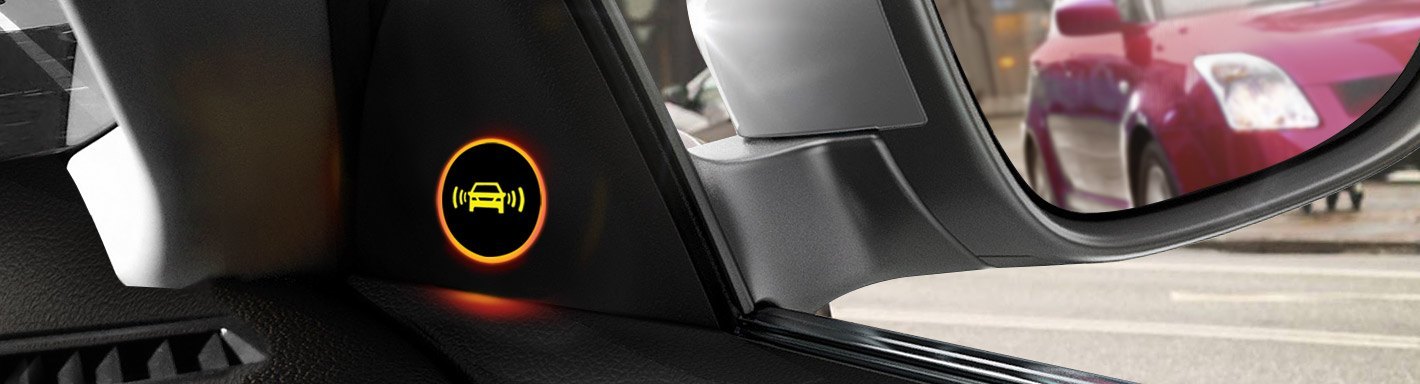

When the alarm conditions are met, the alarm will be activated to provide the driver with a better driving experience and danger warning
hint.

Note: To prevent false positives, stationary targets on the side of the road have been filtered.
