3.7V 5V 7.4V 12V Temperature control push button switch for heating clothes/gloves

Supplier: Shenzhen City Kaixinda Energy Technology Limited Company
Region: Guangdong, China
Contact: Ms Xiong Yang
Price: $1.85 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Product name:	Temperature controlled switch electric;	Delivery Detail:	0 days after payment;
Single package size:	30X15X9 cm;	Single gross weight:	1 KG;
Brand Name:	KXD;	Output:	wires / connector/ USB;
Color:	Black;	Voltage:	3.7v 5v 7.4v 12v 14.8v;
Operation type:	5-steps;	Selling Units:	Single item;
OEM:	YES;	Package Type:	Bubble bag+box;
Max. Current:	2.5A;	Protection Level:	best;
Funtion:	for heating system;	Model Number:	KXD-TW002;
Current:	1A-2.5A;	Logol:	OEM;
Max. Voltage:	14.8v;	Place of Origin:	Guangdong China (Mainland);
Payment:	TT/Paypal;

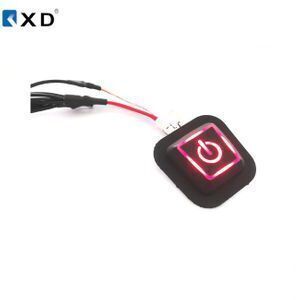

Temperature control push button switch for heating clothes/gloves

Product Description

Brands: KXD
Working voltage: 3.7v/7.4v/11.1v/14.8v
Working current: 0.5A-2.5A
Size: 8mm*34mm*34mm
Weight: About 7g

Five kinds of mode power output

Preheat : 100% output
High: 75% output
Medium: 50% output
Low: 30% output
Off : No output

Instruction:

1.Temperature (HIGH)
select a stall (H) (duty cycle 75%), red LED indicator light, press the (Logo) key into the
Medium temperature .
2. Medium (MEDIUM)
select a stall (M) (duty cycle 50%), bright white LED lights, press the (Logo) key into low
Temperature.
3. Low (LOW)
select a stall (L) (duty cycle 30%), light blue LED indicator, press the (Logo) key into the
HIGH temperature.
When working, press (Logo) key 1.5-3 seconds will enter the STOP status,
Indicator LED turn off, no output power.

Applications:
