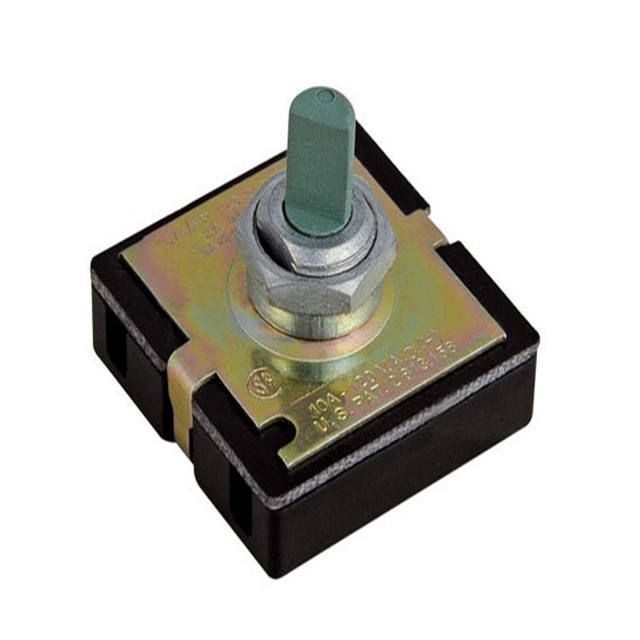

payment terms: | L/C, Western Union, T/T | product name: | 10a 3 speed rotary switch for mixer electric mixer |
MOQ: | 1 | Key words: | Rotary switch |
port: | Zhongshan Port, Guangzhou Port, Shenzhen Port | Serve: | OEM |
Packaging Details: | 1) Export carton. 1000pcs per carton, carton size: 44*31*35cm 2). OEM your own logo can be provided in the package | type: | to rotate |
Free samples: | Yes | usage: | Fan, mixer grinder, blender, juicer, meat grinder, oven |
maximum. Voltage: | 250VAC | Certificate: | CQC TUV |
Certification: | CQC, TUV, CB | maximum. current: | 10(2) |
Is it smart: | No | Supply capacity: | 20000 pieces per day |
Origin: | Guangdong, China | Mechanical life: | 10000 cycles |
Material: | plastic, copper, steel | model: | BX5 |
brand: | white bridge |
project | standard |
Rated voltage & rated current | 10(2)//250V |
Contact resistance | 30mΩ max. |
Insulation resistance | 500VDC, 50mΩ |
Stress resistance | 1500VAC/3000Vac, 1 minute |
Operating temperature | T125°C |
Electrical life | 10000 cycles |
Certificate | CB, CQC, TUV |
wire connection |
plug wire |
a fixed way |
Press nut (shipped with switch) |
Product Highlights:
Switch application:
---- Electric mixers, juicers, blender grinders, licuadoras, meat grinders, fans, ovens, heaters, food processors, air coolers, etc. other appliances
