Packaging Details: | Standard export packaging | Material: | pvc |
Origin: | Guangdong, China | MOQ: | 2KG |
Sales unit: | single product | application: | Battery Pack Assembly, High Voltage |
thickness: | 0.1mm 0.15mm | Size options: | 23mm-580mm |
Gross weight per piece: | 2.500 kg | Single package size: | 20X40X10 cm |
Rated voltage: | 600V | type: | insulating film |
model: | high speed rail | Package preview: | |
tensile strength: | ≥4000Pa/m2 | brand: | HLN |
Product Description

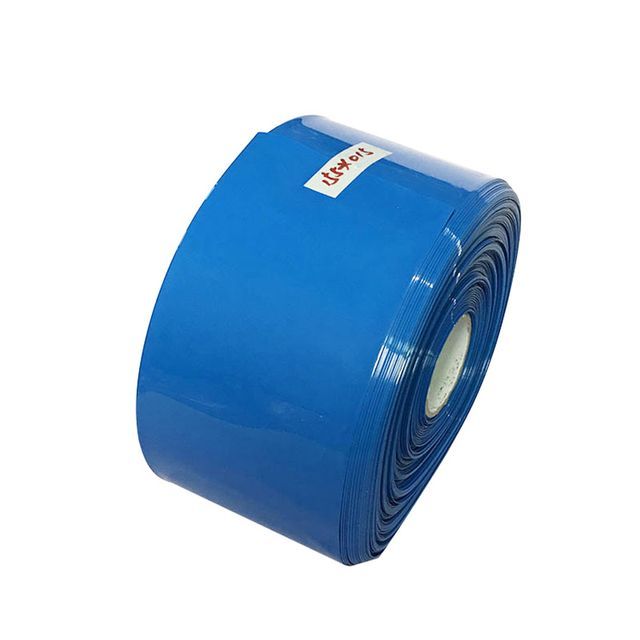

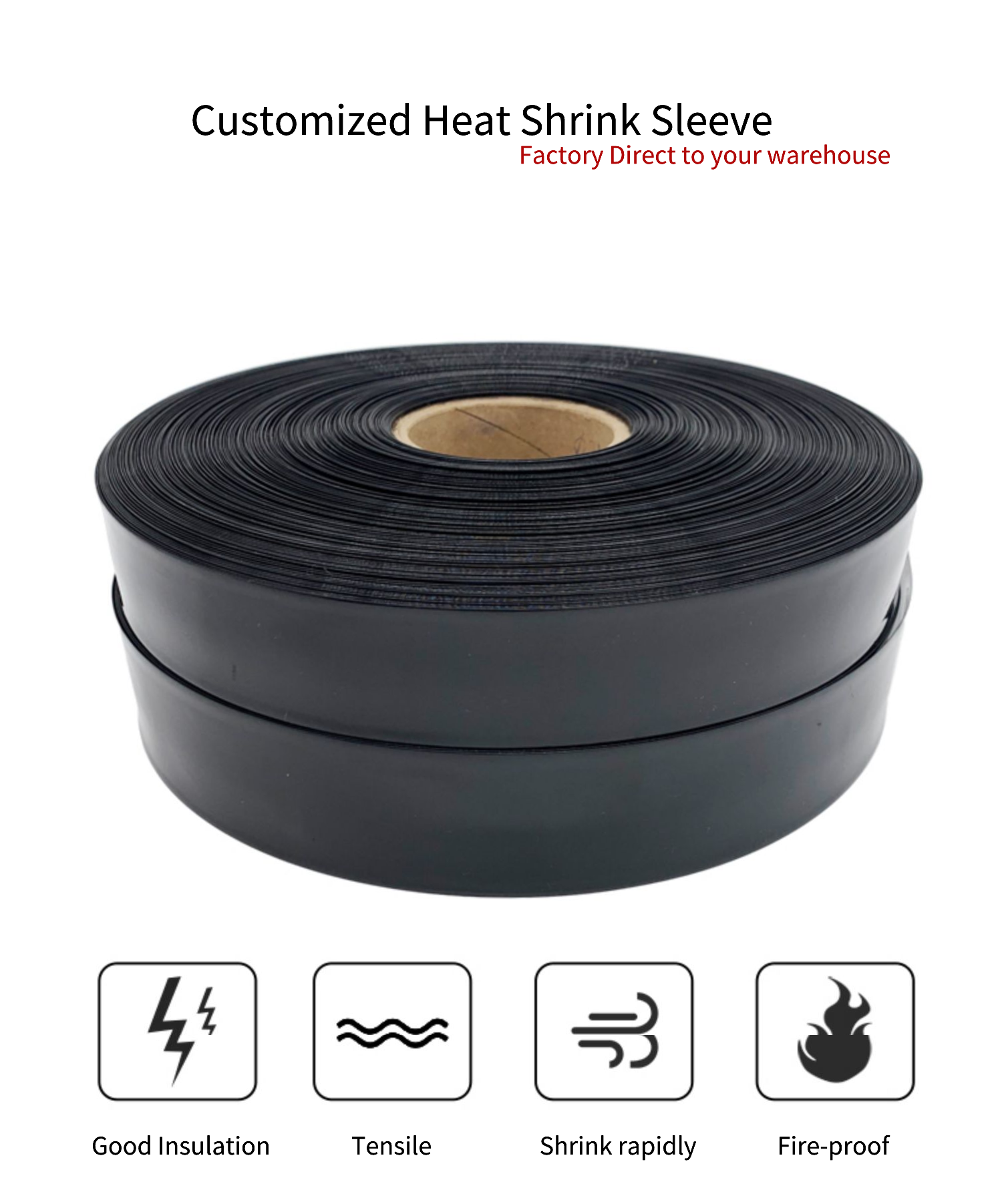

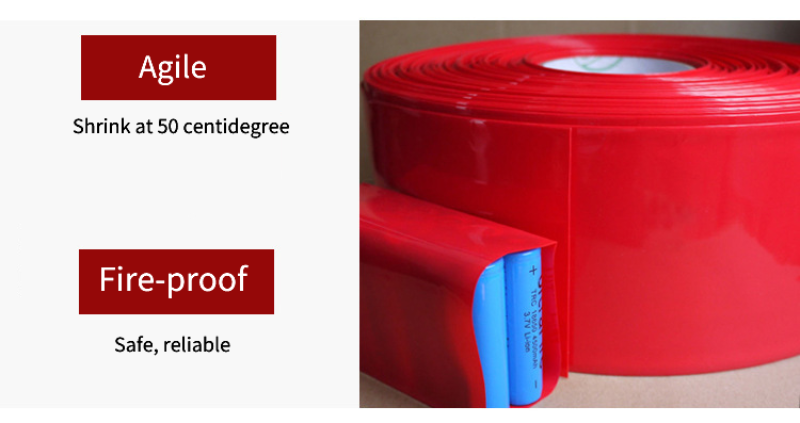

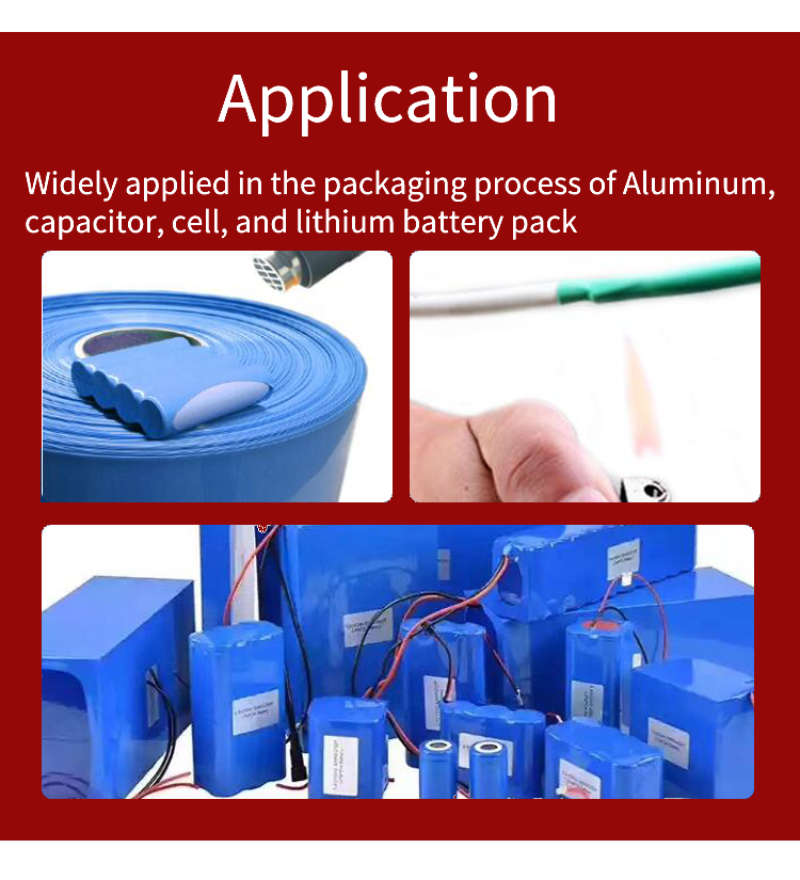

PVC heat shrinkable sleevesomething speciall functionShrinks when heated. It can shrink when heated above 98°C, which is convenient to use. It has the advantages of excellent flame retardancy, environmental protection, insulation, softness, stable performance, low shrinkage temperature, and fast shrinkage. The product has good high temperature resistance and no secondary shrinkage. It plays the role of anti-counterfeiting and beautifying the packaging, and plays the role of insulation, moisture-proof, anti-corrosion and dust-proof for the wrapped goods. Therefore, it is widely used in the casing of electrolytic capacitors, inductors, various rechargeable battery cells, combined packaging, curtain rods, shower curtain rods, hanging rods, drag rods, brooms, tool rods, telescopic rods, garden tools, supports, etc. pole etc. It can also be used for the identification of copper bars, connectors, and wiring harnesses of low-voltage indoor busbars, and insulation coating. High efficiency, less investment in equipment, and low overall cost. Lighting, LED pins, guitars and packaging bottle packaging
property | Test Methods | standard |
tensile strength | | ≥4000Pa/m2 |
withstand voltage | 10 seconds | ≥8KV |
volume resistivity | Relative temperature at room temperature≤65% | ≥1015Ω/cm3 |
Anti secondary shrinkage | 185°C for 15 seconds | ≤20% |
Anti secondary shrinkage | Immerse in 160°C silicone oil after 3 minutes of capacitance recovery | excellent appearance |
Shrinkage | Transverse shrinkage (>48%) and longitudinal shrinkage (<15%) | |
shrinkage temperature | 80°C; | |
Resistant to first heating | 105°C | |
Shrinkage | ≥ 48±5% | |

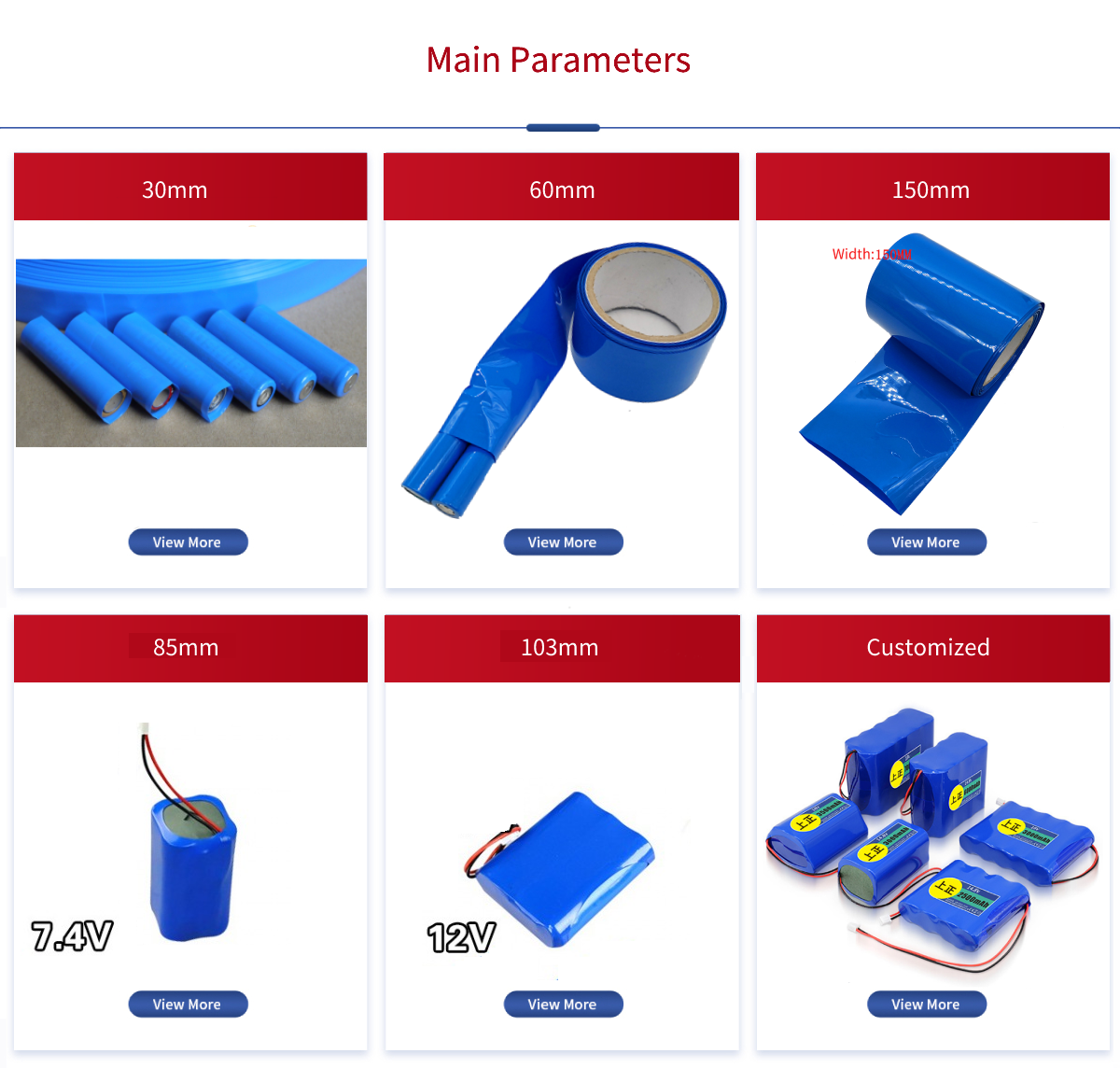

Package Size | | |
thickness | 0.1mm/0.15mm | |
Product packaging | 2KG/5KG/10KG/15KG volume | |
Flat width | 30mm-650mm | |

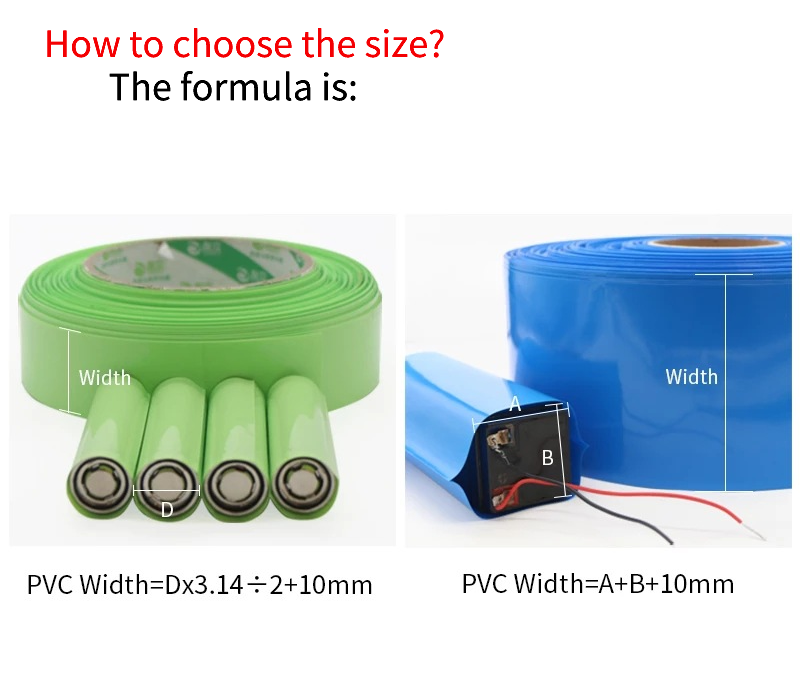

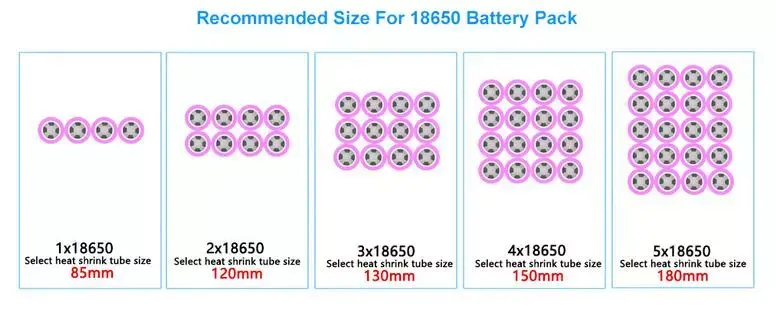

Recommended pipe diameters for common configurations | | |
1 x 18650 battery | 85mm | |
2 x 18650 batteries | 120mm | |
3 x 18650 batteries | 130mm | |
4 x 18650 batteries | 150mm | |
5 x 18650 batteries | 180mm | |
6 x 18650 batteries | 200mm | |
About Hualian Energy

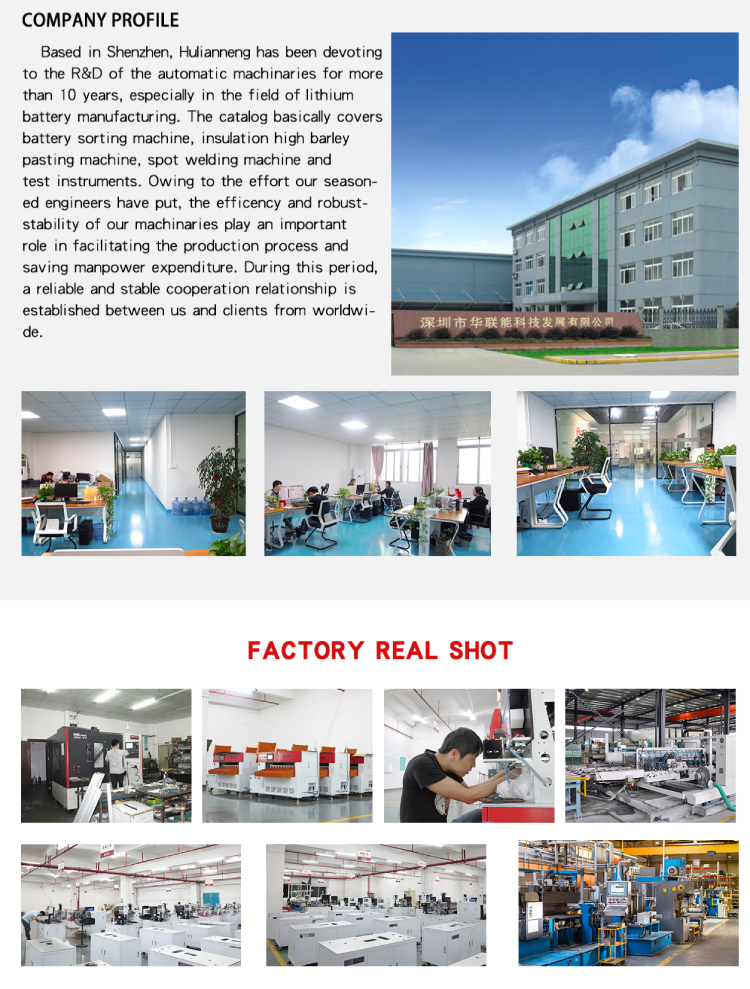

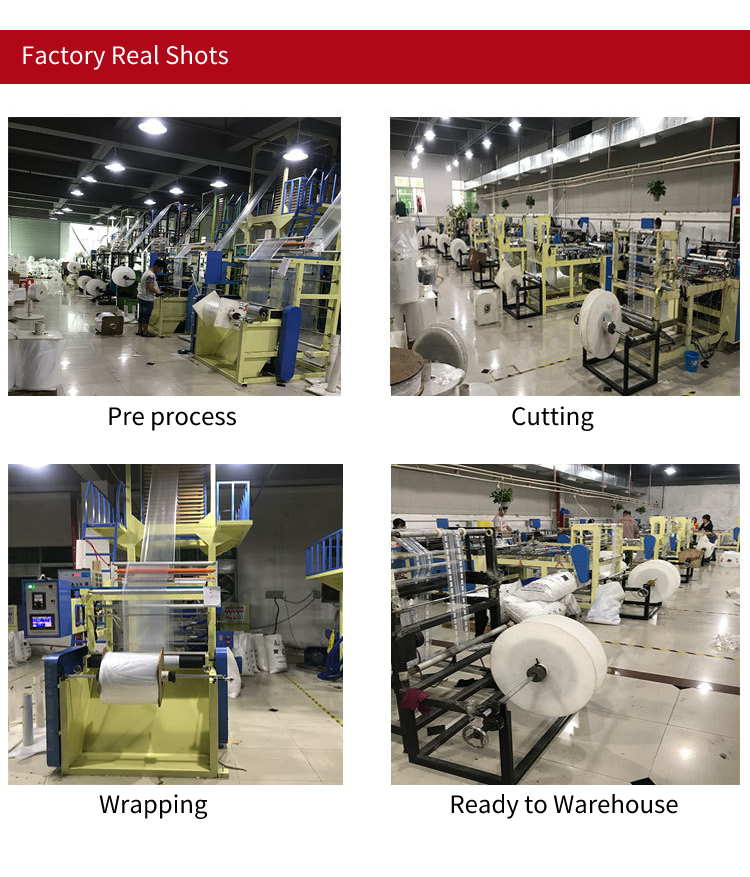

As a combination of manufacturer and trading company, we have provided one-stop material and equipment solutions for battery pack assembly lines for more than 12 years. One factory in Shenzhen for automatic and semi-automatic equipment, and another one in Dongguan for mass production of insulation materials and ABS PVC materials.Welcome to visit our factory or video call at any time to understand our real production process.Our customers come from all over the world and have influence in Europe, Southeast Asia and the US market. We have great strengths in the following areas:Nickel strip/gasket/fish paper- Highly customizable according to configuration.Battery sorting machine-2ch, 6ch, 10ch, 20ch. Prismatic, polymeric and cylindricalSpot welding- Manual / Autobattery tester- Battery comprehensive tester, charge and discharge tester, internal resistance tester, battery capacity tester, protection board tester
